The SIM7020E NB-IoT Module for the Raspberry Pi Pico is  an NB-IoT (NarrowBand-Internet of Things) module designed for Raspberry Pi Pico. It supports multiple NB-IoT frequency bands, can be controlled via serial AT commands, and supports communication protocols like HTTP/MQTT/LWM2M/COAP, etc.

Due to the advantages of low delay, low power, low cost, and wide range of coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring for the Asia, Europe, Africa, Australia regions.

Features

  • Standard Raspberry Pi Pico header supports Raspberry Pi Pico series boards
  • UART communication, serial AT commands control, multiple communication protocols support, multiple cloud platform support
  • Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery
  • 2x LED indicators, for monitoring the module operating status
  • Onboard Nano SIM card slot for NB-IoT specific card
  • Comes with development resources and manual (MicroPython examples)

Raspberry Pi Pico Header Compatibility

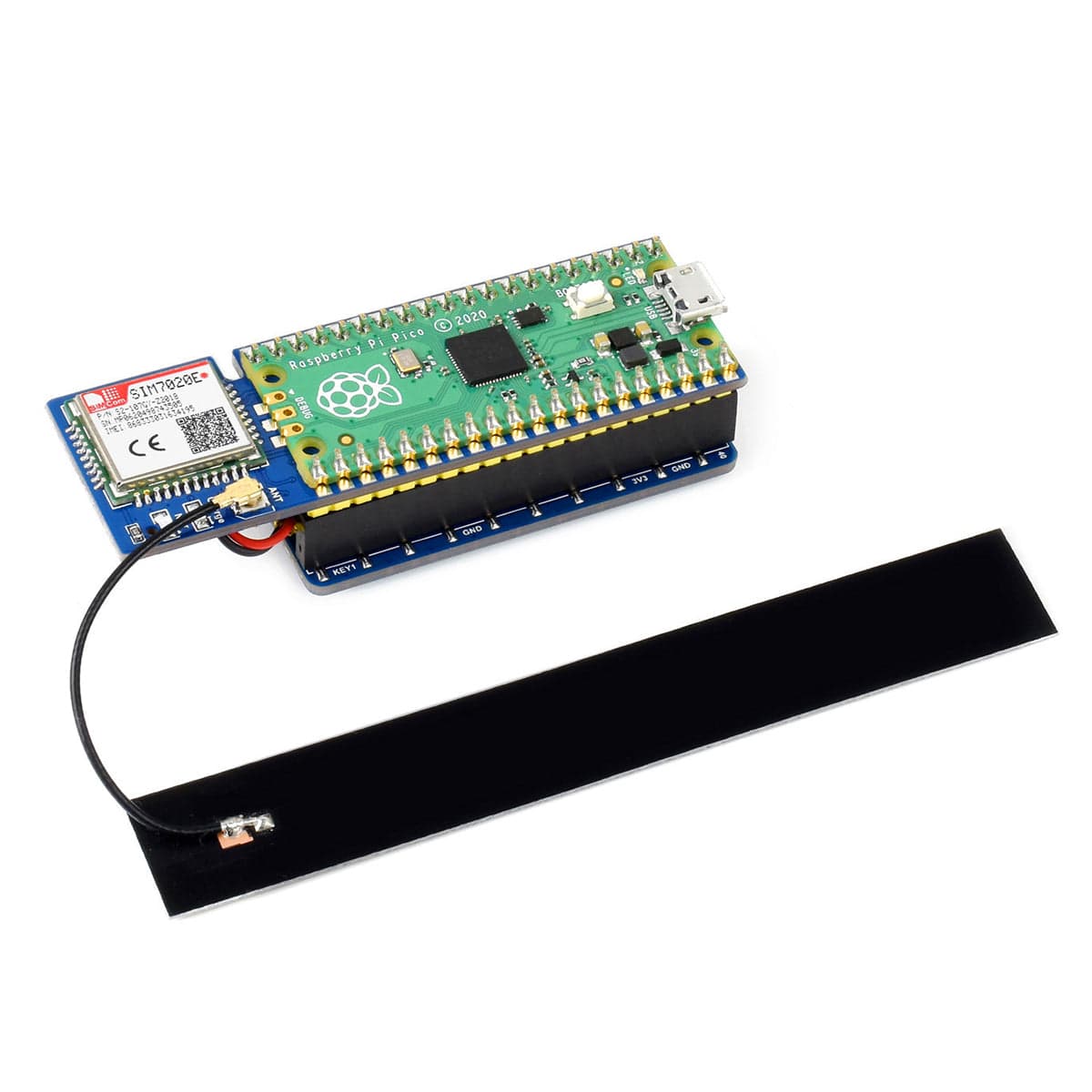

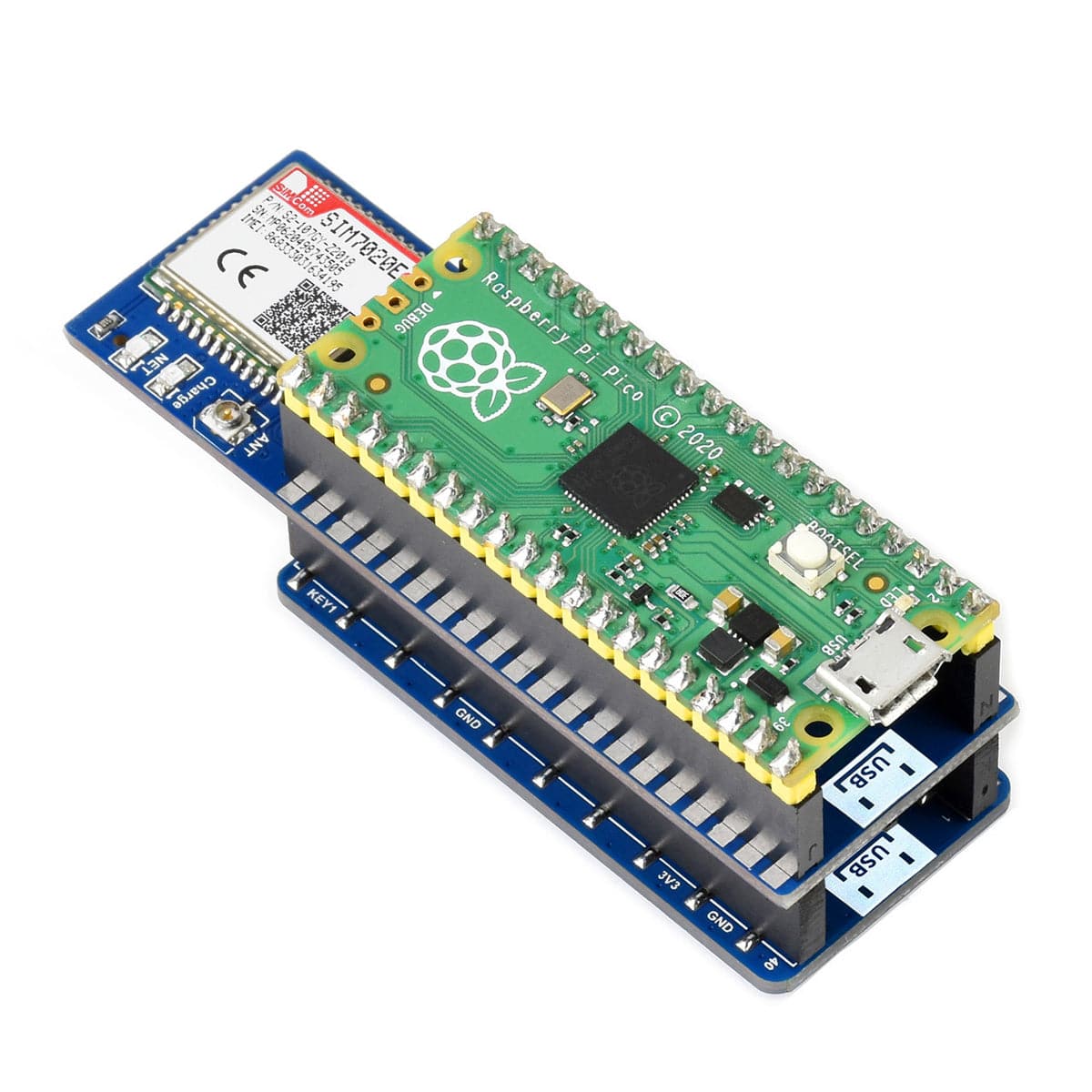

The Pico can be SMD-mounted (Left), or attached via a female header (Right).

    Specifications

    Frequency band
    NB-IoT LTE-FDD: B1/B3/B5/B8/B20/B28
    Cat-M N/A
    2G N/A
    GNSS N/A
    Data Rate
    NB-IoT 26.15(DL)/62.5(UL)
    Cat-M N/A
    2G N/A
    Other
    Communication Protocol TCP/UDP/HTTP/HTTPS/TLS/DTLS
    /PING/LWM2M/COAP/MQTT
    Power Supply External Li-po battery OR Raspberry Pi Pico USB port
    Battery Interface 3.7V ~ 4.2V
    Idle Mode Current 5.6mA
    Sleep Mode Current 0.4mA
    PSM Mode Current 3.4uA
    Audio input/output N/A
    Status Indicators NET: network indicator
    Charge: recharge indicator
    SIM card NB card (1.8V / 3V)
    Antenna Connector LTE

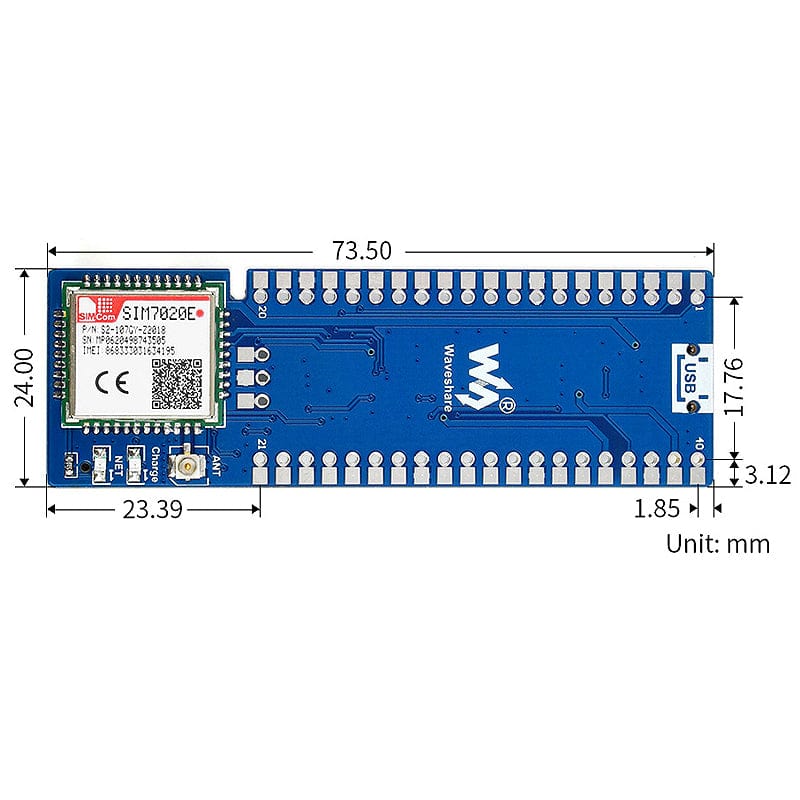

    Dimensions 73.5 x 24.00mm

    Resources

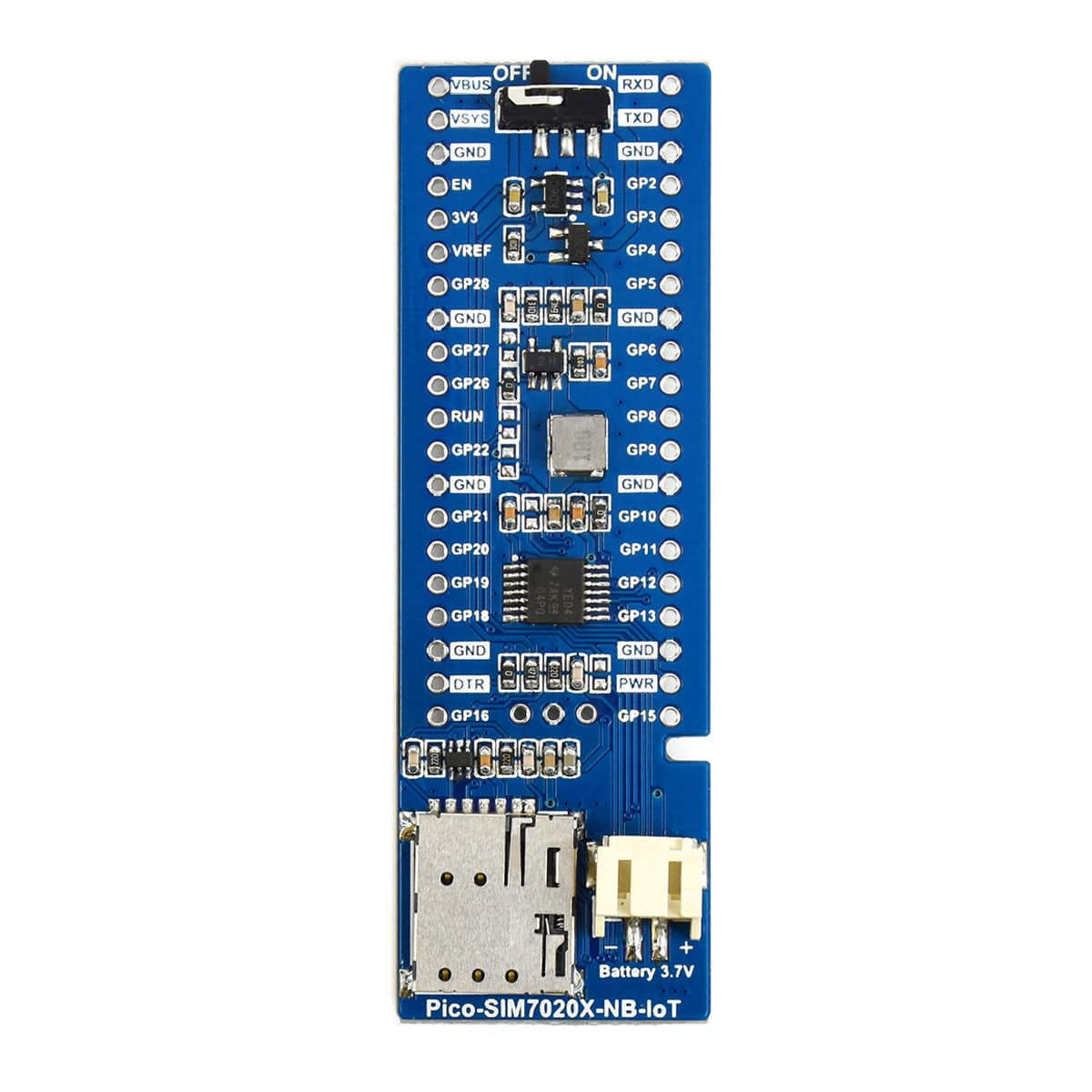

    Pinout

    Package Contents

    • 1x Pico-SIM7020E-NB-IoT
    • 1x Antenna
    • 2x 20-PIN female pin header
    • 1x 40-PIN male pin header
    • 1x 3.7V rechargeable Li-po battery
