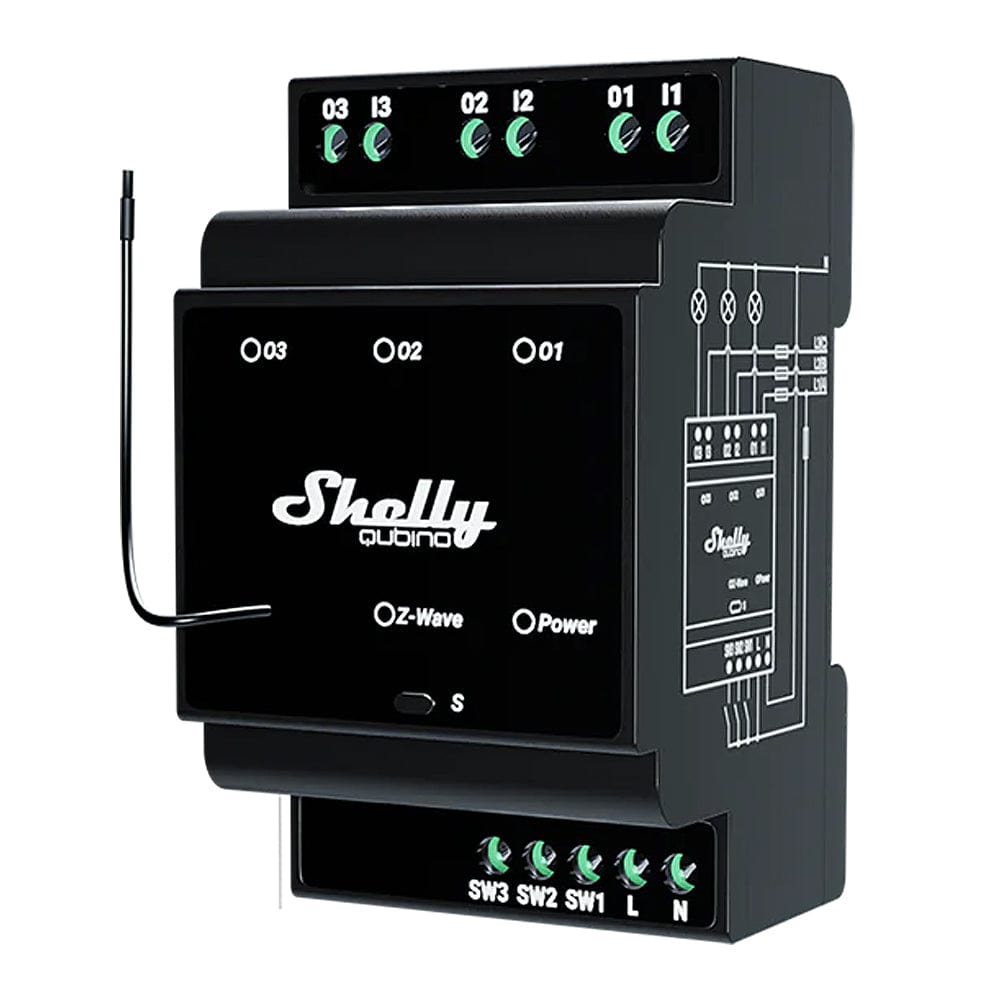

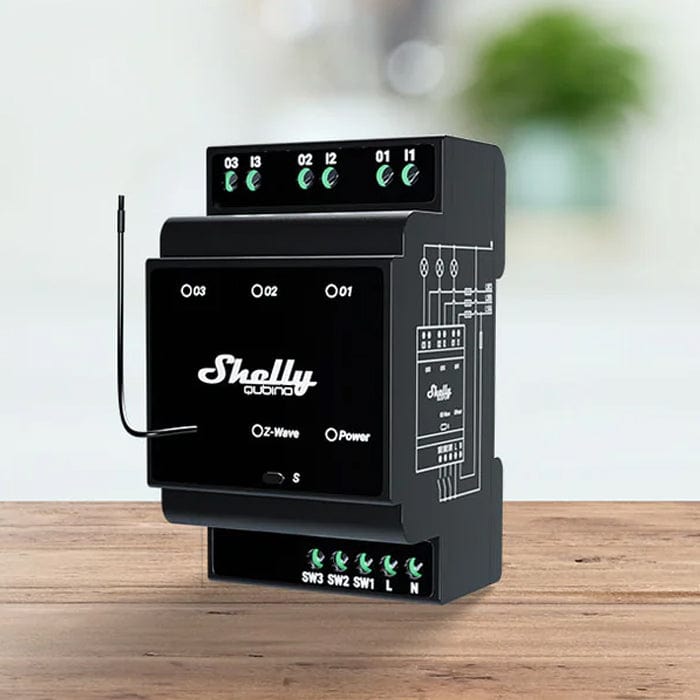

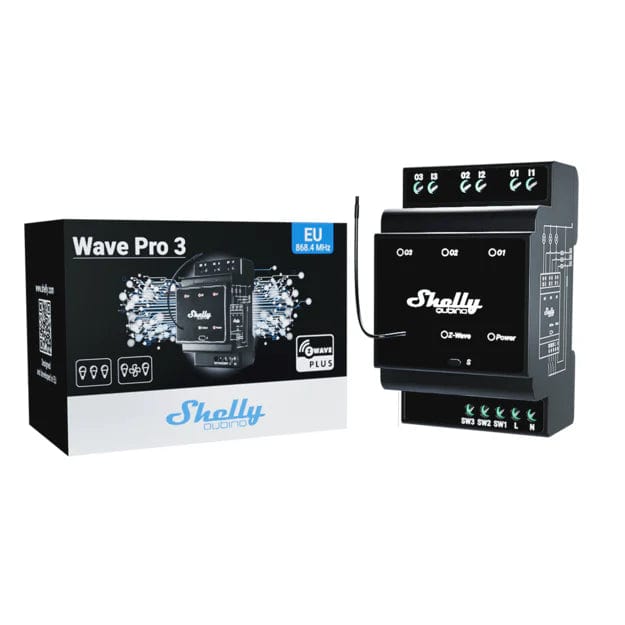

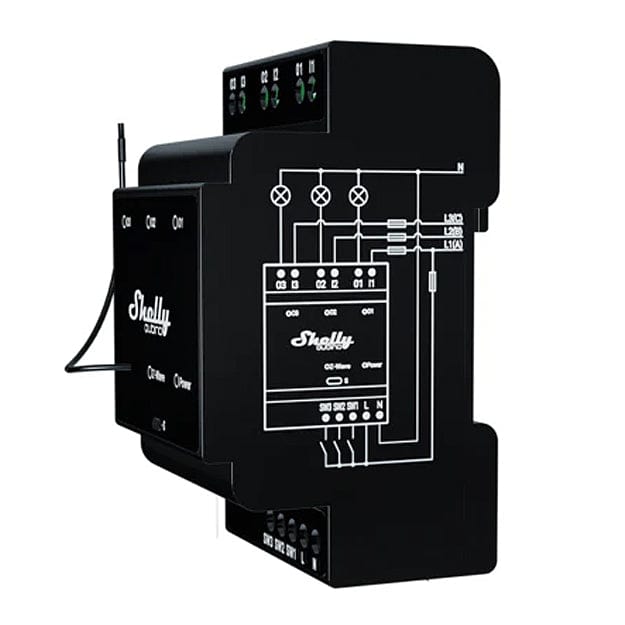

The ShellyWave Pro 3 is a professional 3-channel DIN rail Z-Wave smart relay switch, supporting 16A per channel and up to 48A total device maximum, for professional lights and appliance automation for residential or commercial use.
It is equipped with potential-free outputs (dry contacts), offering high flexibility in voltage support and applications.
Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!
Note:You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.
Shelly Wave works on Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org
Shelly Pro - Five-year manufacturer warranty
All Shelly Pro products carry a five-year manufacturer warranty.
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
3 outputs, 16 A each. Total device maximum of 48 A.
DIN-rail mountable
Dry contacts
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
Specifications
Power supply
110 - 240 V AC, 50/60 Hz
Power consumption
< 0.3W
Max. switching voltage AC
240 V
Max. switching current AC
16 A per channel, 48 A total
Max. switching voltage DC
30 V
Max. switching current DC
16 A per channel, 48 A total
Overheating protection
Yes
Distance
Up to 40 m indoors (131 ft.) (depends on local conditions)
Z-Wave® repeater:
Yes
CPU
Z-Wave® S800
Z-Wave® frequency bands
868.4 MHz
Max radio frequency power transmitted in frequency band(s)
