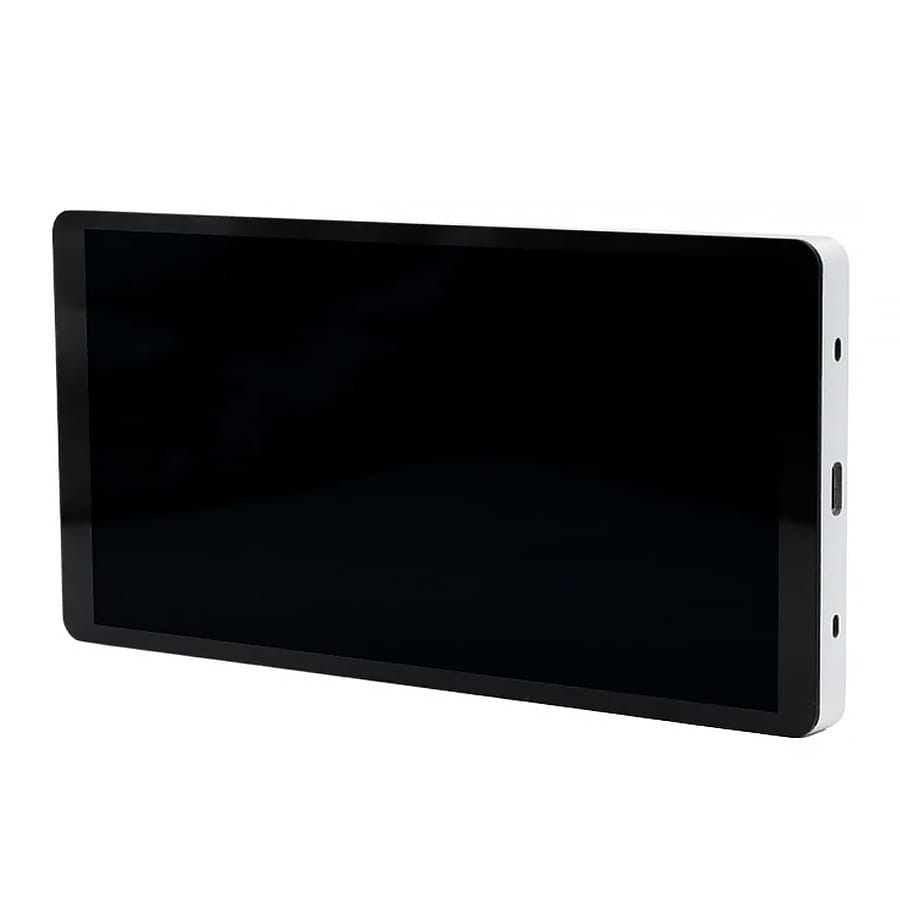

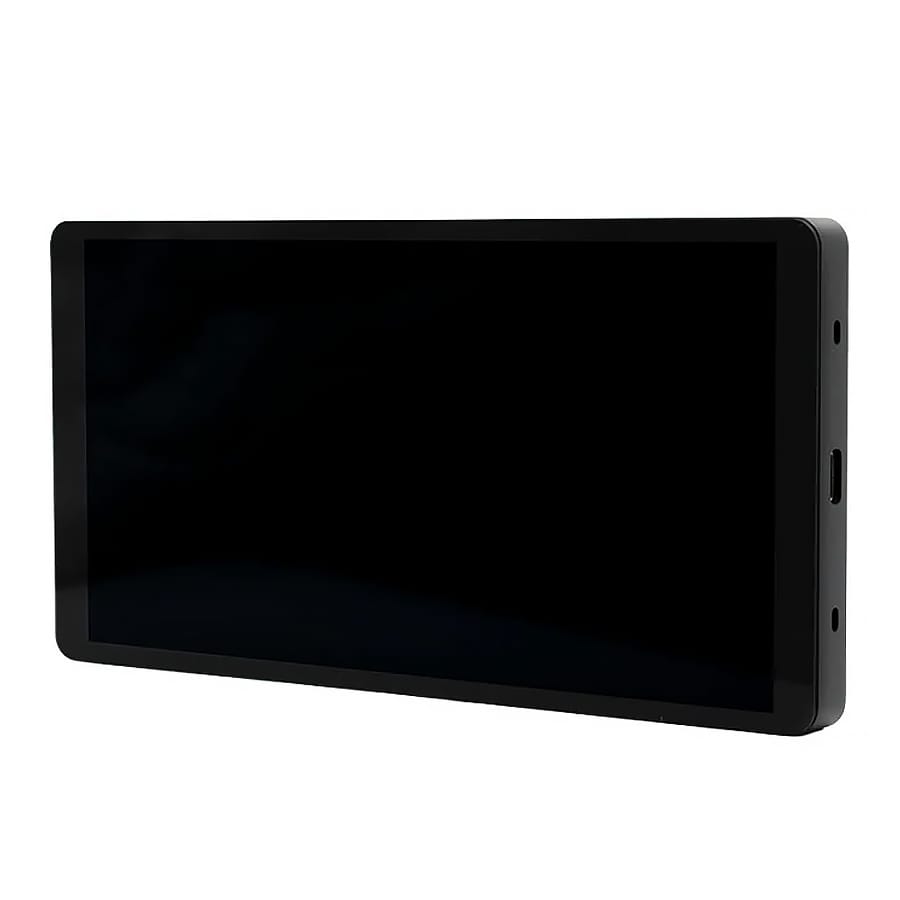

The ShellyWall Display X2i is a smart home control panel with a 6.95” colour touchscreen, ultra-fast quad-core processor, and an interchangeable power base with a single output for one-circuit control - and it works with Home Assistant!
It combines style and performance in a 6.95” colour touchscreen powered by a quad-core processor. Its interchangeable power base gives you more than just flexibility, whether you need relay control, USB power, or future module upgrades. Control your lights, appliances, and more with precision and ease, including touchless interaction through the integrated gesture sensor.
All this comes in an open, intuitive interface that connects locally or via Wi-Fi, MQTT, and Home Assistant - no cloud lock-in. The Bluetooth connection can also be used as aBluetooth gatewayforShelly BLUsensors.
Available with a black or silver frame.
Shelly X2 vs Shelly X2i
Compared to the original X2 display from Shelly, the X2i has a faster processor, improved mounting base for easier installation, Wi-Fi 6, and a built-in proximity sensor. However, the X2i does not come with a Shelly H&T included, whereas the original X2 display did.
Highlights
Advanced connectivity - pair devices using Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) and Bluetooth 5.0 for faster setup, stable communication, and greater control reliability.
Touchless interaction - wave to wake the screen using gesture and proximity sensors, while the LUX sensor adapts to ambient light.
Open smart ecosystem - manage your system locally through MQTT, webhooks, or Wi-Fi. Keep full access and privacy without relying on the cloud.
Powerful quad-core performance - rely on the quad-core processor for quick reactions when switching lights, changing settings, or managing your smart routines.
Built-in relay and dual power options - choose how you power the device - via 100–240 V~ interchangeable power base or USB-C, and use the built-in relay to directly control lights.
Flexible display orientation - rotate the screen between panoramic and portrait mode to match your setup and personalize how you control your home.

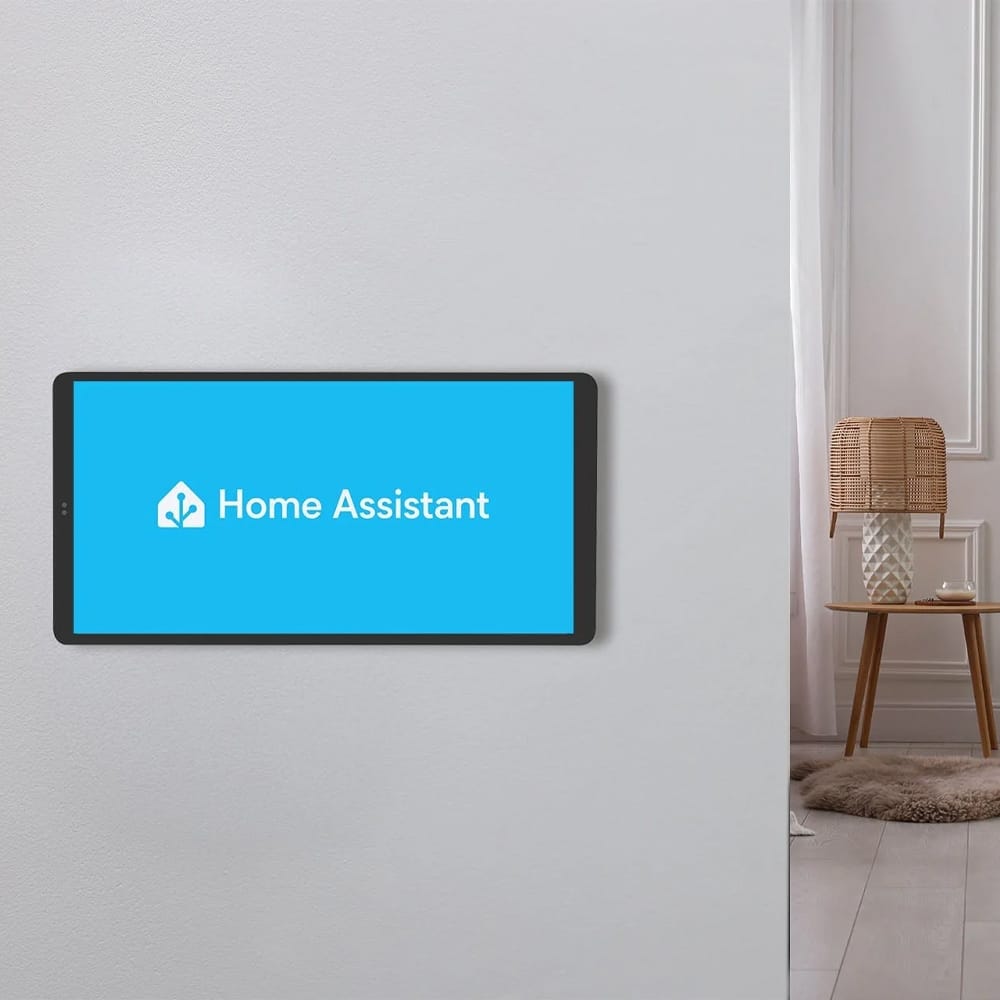

Integrate with Shelly Smart Control App or Home Assistant
Streamline your smart home experience by connecting the Shelly Wall Display X2i with Home Assistant or the Shelly Smart Control App.
Manage and automate all your Shelly and compatible devices from one customizable interface. With integration across platforms, you can control appliances, lights, or sensors, create personalized automation scenes and schedules for a real smart home experience.
Make your devices work for you
Remotely control and automate various electric appliances such as lights, fans, or other connected devices.
Thanks to the integrated LUX measurement sensor, the Wall Display X2i can trigger other devices automatically, turning lights on or off based on brightness levels to ensure optimal comfort and energy efficiency.
Let your home handle the climate

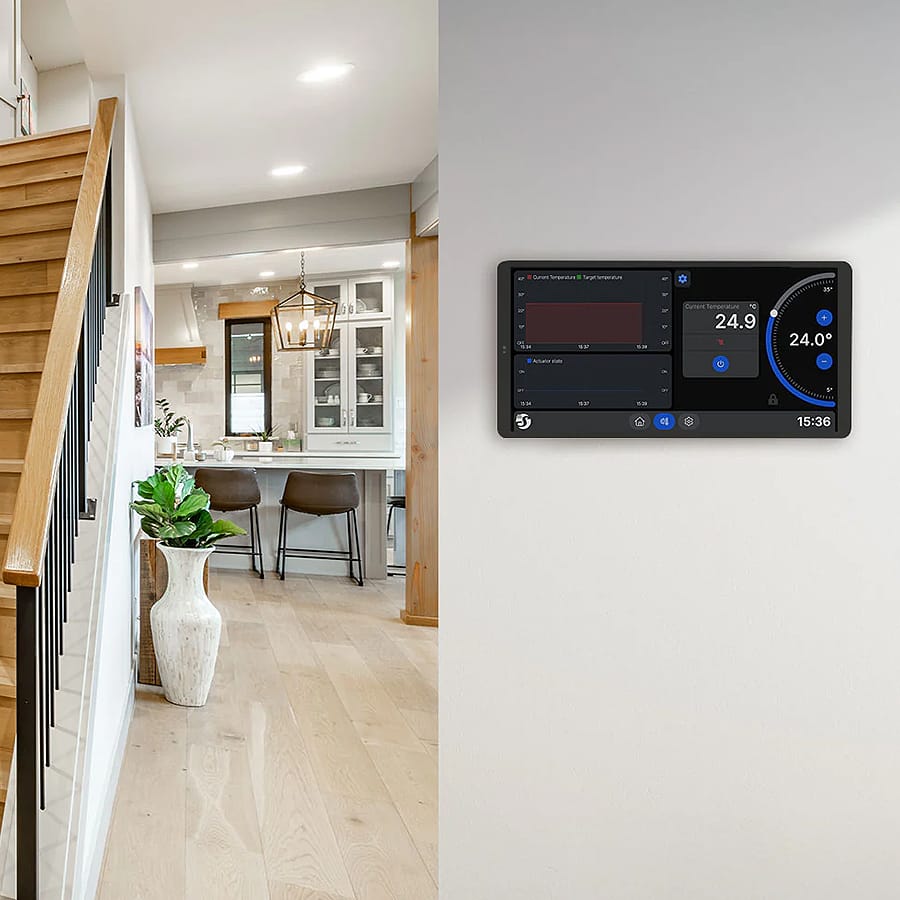

Adjust your heating, ventilation, and air conditioning systems based on real-time temperature and humidity data from connected sensors (like Shelly BLU H&T). The Wall Display X2i can act as a thermostat interface, giving you intuitive control over your indoor climate.
Working in harmony with other Shelly devices, it dynamically fine-tunes your environment to maintain the perfect comfort level in every room.
When your home plays the music

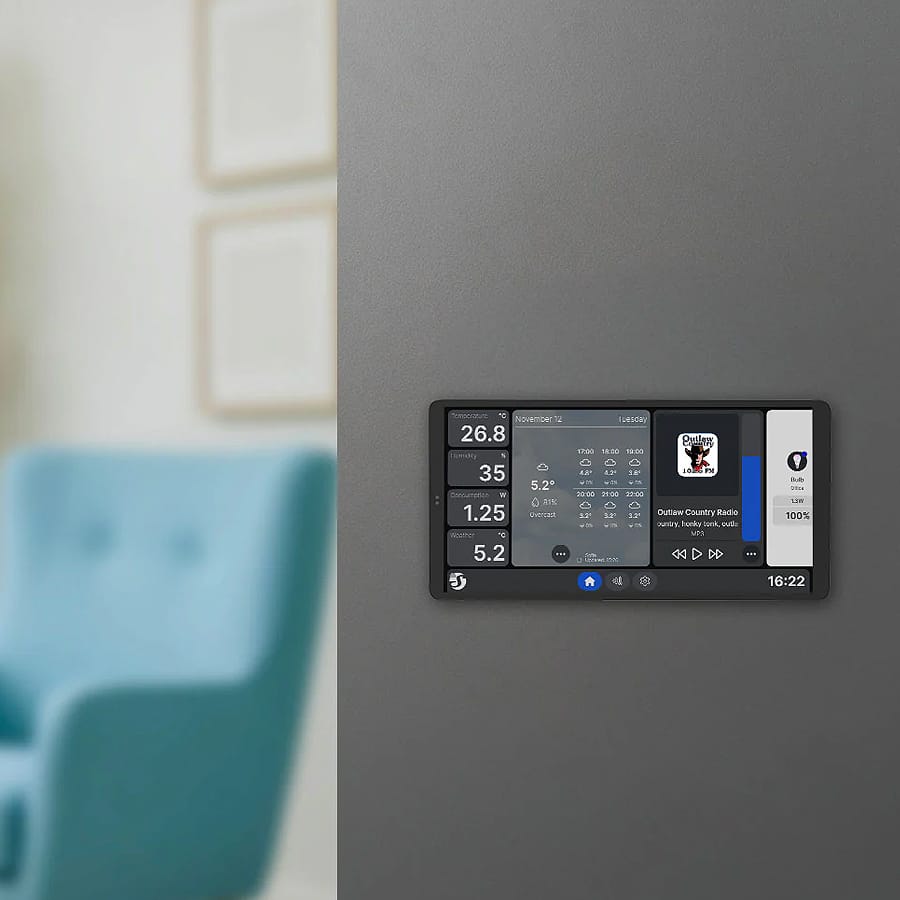

Connect your Bluetooth or Sonos speakers to the Shelly Wall Display X2i for enhanced audio control. Stream music, alarms, notifications, or any other audio signal directly through your home system for improved sound coverage and convenience.
Control everything from one hub

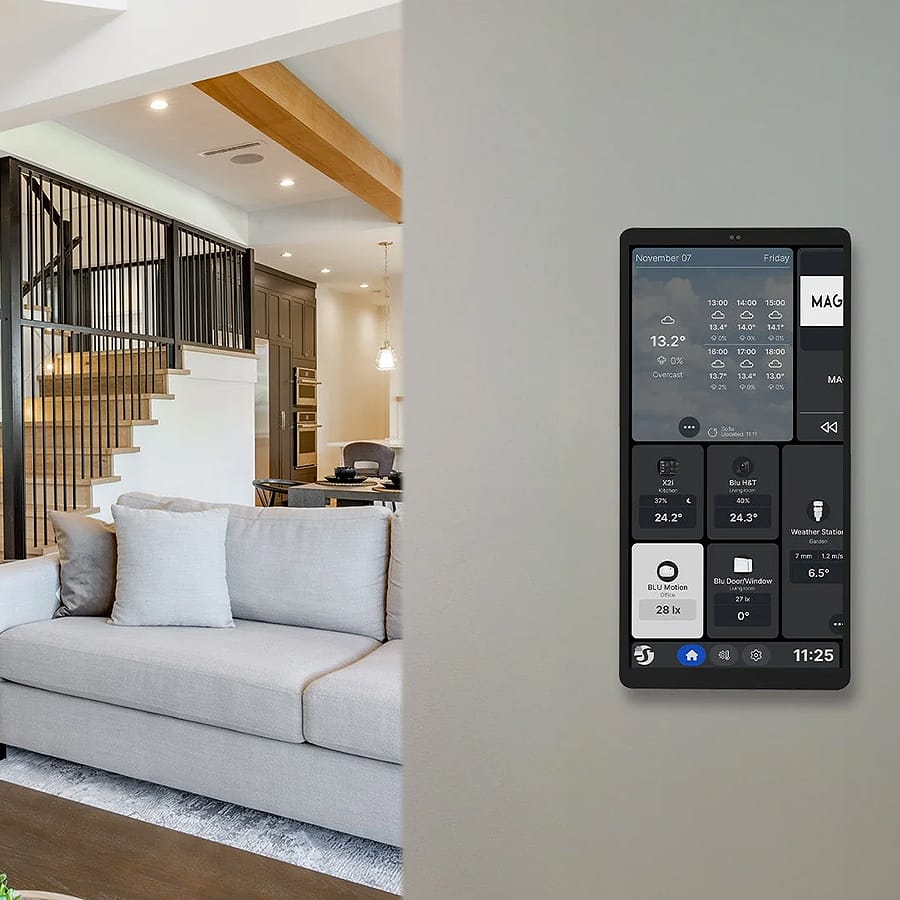

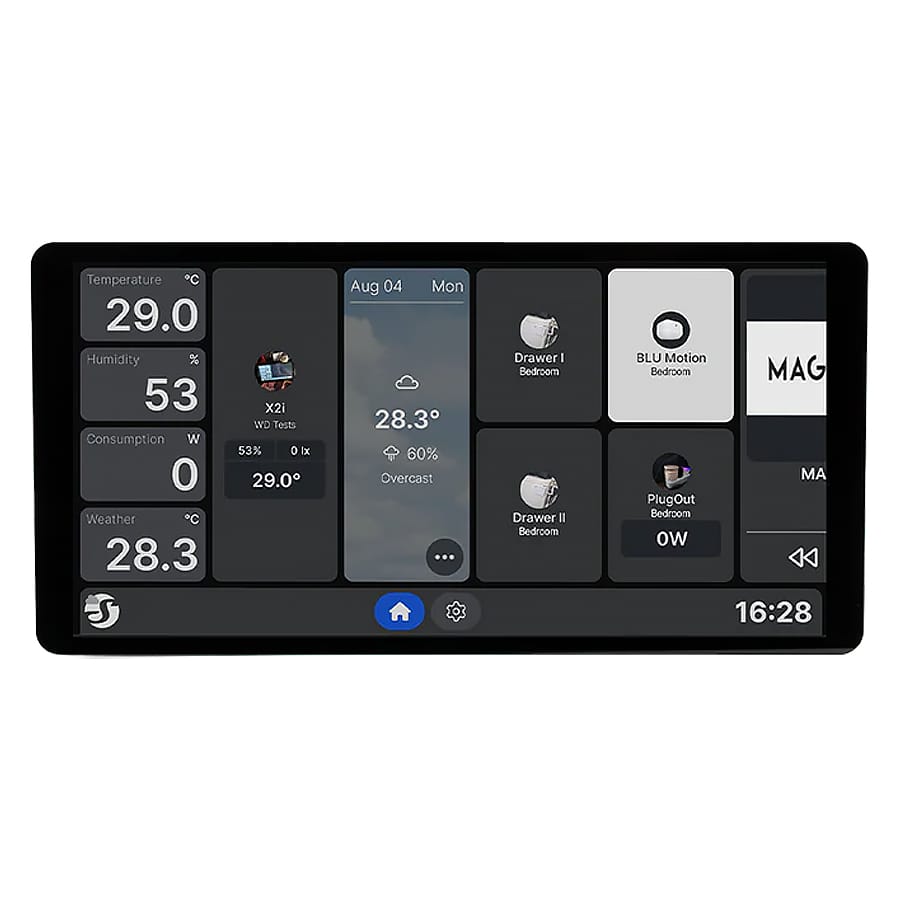

Manage your entire smart home from a single touchpoint. The customizable home screen of the Shelly Wall Display X2i brings together lighting, energy, climate, and automation controls - everything you need, right at your fingertips.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution.The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee(if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
Touch-sensitive 6.95” color display (panoramic or portrait view)
Bluetooth 5.0 and Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) connectivity
Ultra-fast quad-core CPU for instant response

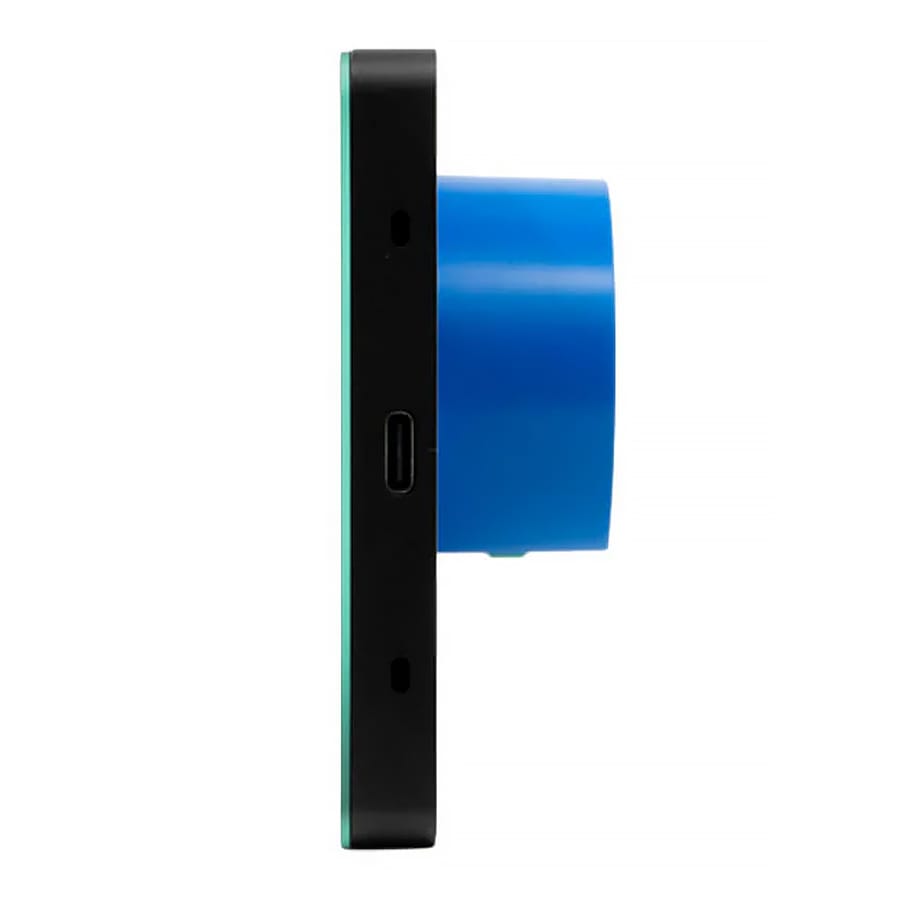

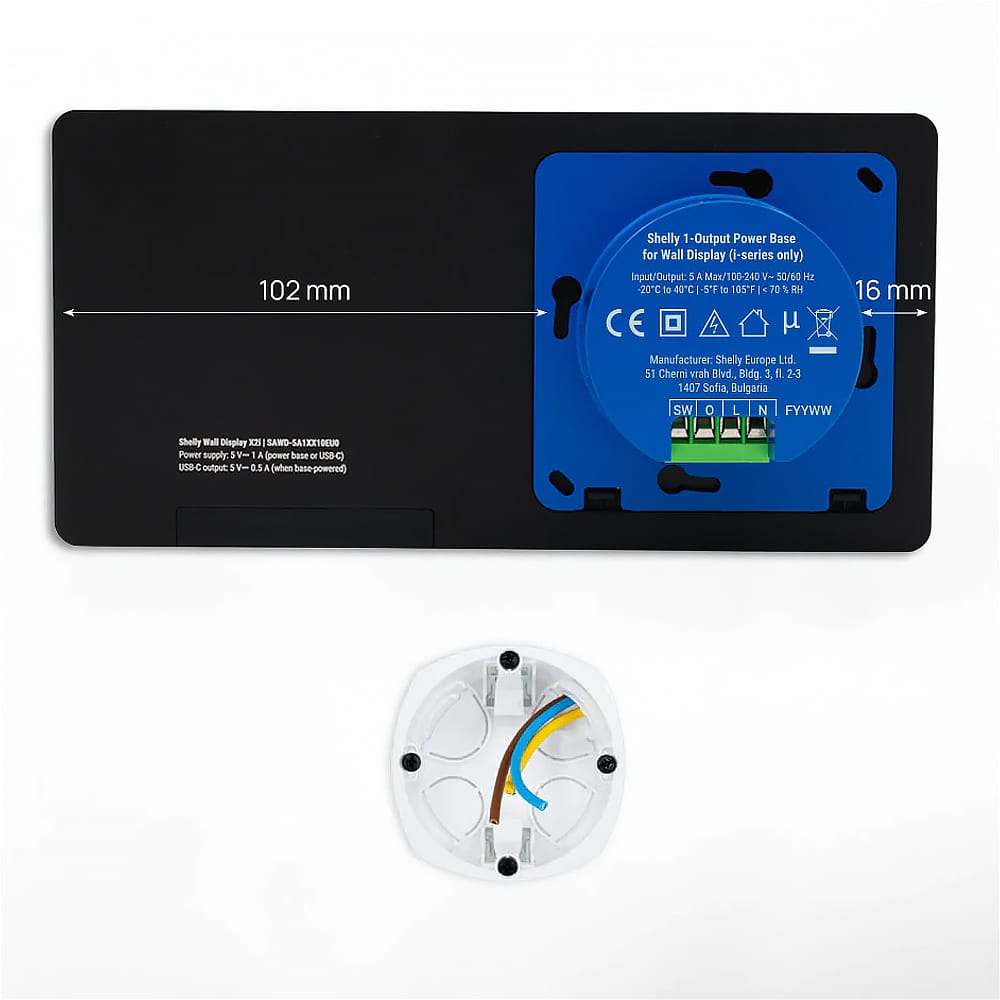

Interchangeable power base
Power monitoring for connected Shelly PM devices
Integrated 5 A relay for light control
Integrated 0.8 W speaker
Bluetooth and SONOS speakers support
Built-in LUX sensor, proximity sensor, and G-sensor (for gestures)
Supports both 100–240 V~ and USB-C (5 V⎓) power for flexible installation
Simple navigation and customizable home screen
Compatible with Shelly Smart Control App, and Home Assistant
Specifications
Size (HxWxD)
With power base: 87x178x36mm Without power base: 87x178x11mm
Weight
With power base: 292 g Without power base: 246 g
Touch screen
5-point capacitive
Screen resolution, px
1440x720p
Screw terminals max torque
0.4 Nm / 3.5 lbin
Conductor cross section
0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length
6 to 7 mm
Mounting
Wall box
Shell material
Plastic, aluminium, glass
Shell colour
Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%)
Speaker
0.8W*1
Ambient working temperature
-20 °C to 40 °C
Humidity
30 % to 70 % RH
Max. altitude
2000 m
Power supply
100-240 V~, 50/60Hz
Power consumption
< 5 W
USB TYPE-C power supply
5 V⎓, 1 A
Max. switching voltage
240 ~
Max. switching current
5 A
USB TYPE-C, voltage
5 V⎓
USB TYPE-C, current
0.5 A
Light sensor
Yes
Microphone
Yes
G-sensor
Yes
Proximity sensor
Yes
Wi-Fi
Protocol
Wi-Fi 6 Dual Band
RF band
2412 – 2472 MHz 5150 – 5850 MHz
Max. RF power
< 20 dBm
Range
Up to 30m indoors and 50m (Depends on local conditions)
Bluetooth
Protocol
5.0
RF band
2402 - 2480 MHz
Max. RF power
< 4 dBm
Range
Up to 10m indoors and 30m outdoors (Depends on local conditions)
