The ShellyPro Dimmer 0/1-10V PM is a DIN-rail mountable smart dimmer with power monitoring. Use it to control, dim, and power measure a wide range of halogen lights, dimmable LED, and ferromagnetic transformers between 0-10V or 1-10V, with Ethernet LAN, WiFi, Bluetooth and MQTT support.
Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!

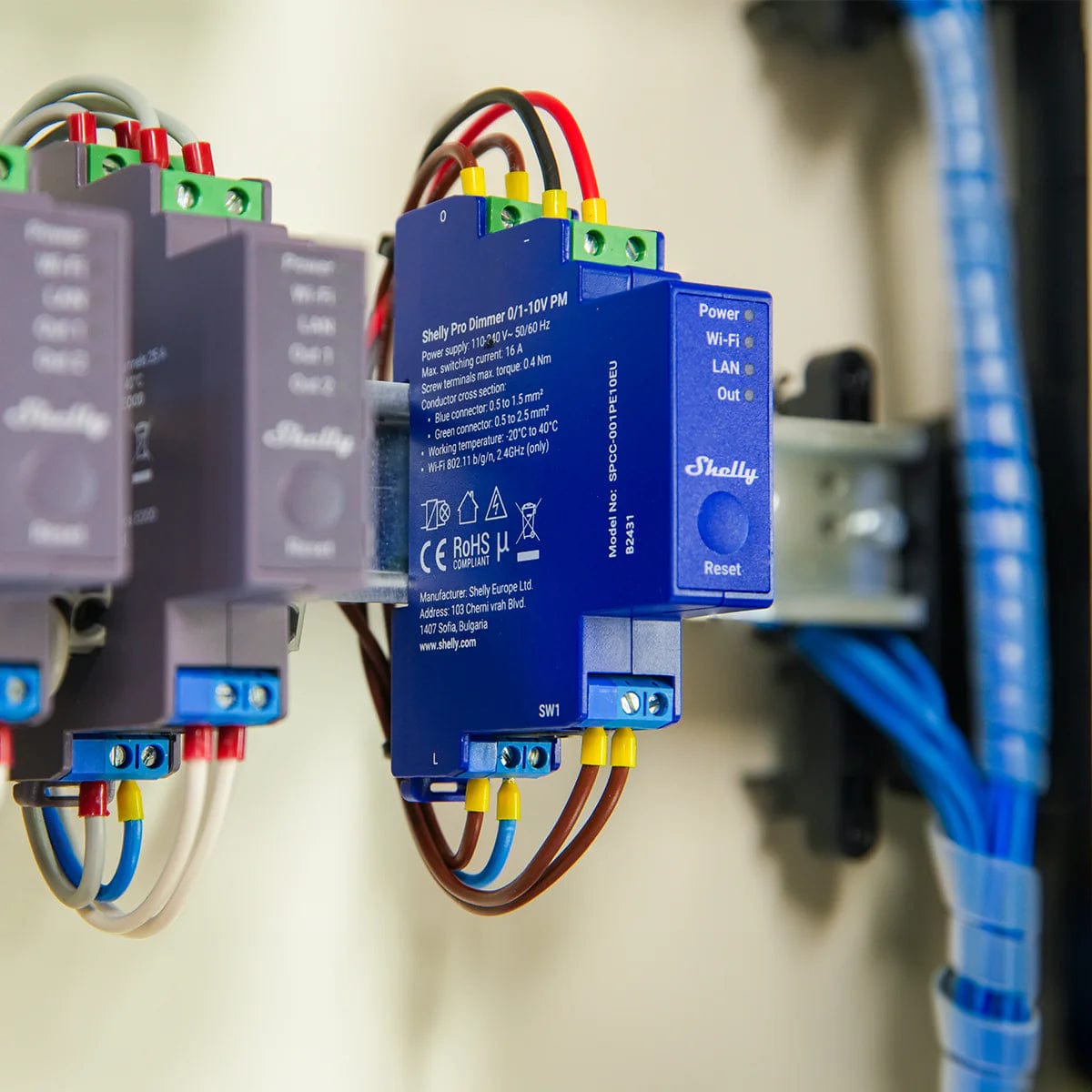

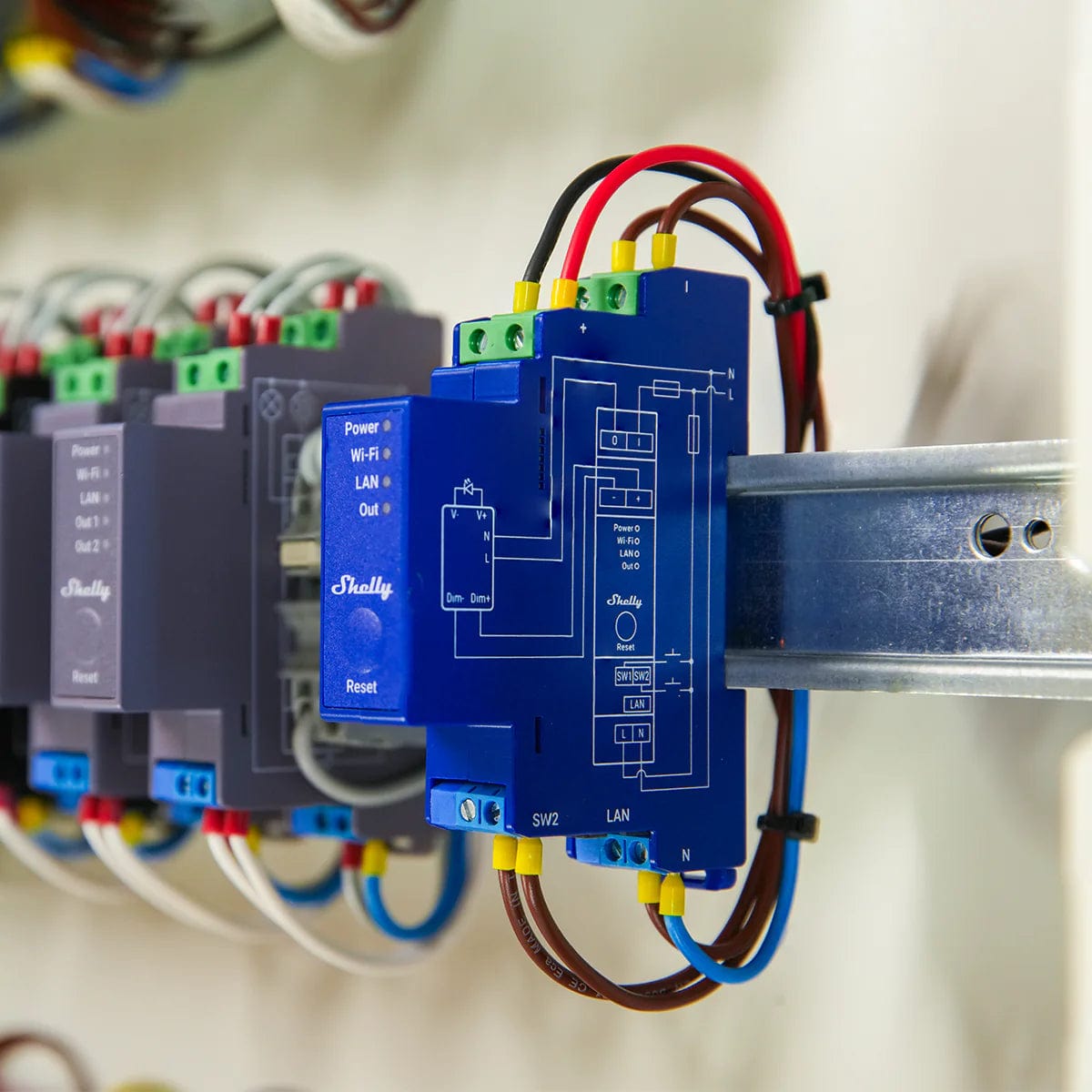

Enhanced with temperature, overpower, and overvoltage load protection, the Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, the Shelly Pro line is perfect for homes, offices, stores, businesses, and manufacturing facilities, as well as new buildings.
Note:You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.
Shelly Pro - Five-year manufacturer warranty
All Shelly Pro products carry a five-year manufacturer warranty.
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Do not connect the device to appliances exceeding the given max load.
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
DIN rail mountable
Wi-Fi and Bluetooth-operated
Diverse driver integration: Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.)
Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed
Ethernet connectivity
Scripting: Allows creating automation scenarios through scripts.
One/dual button dimming mode: Use with physical switches
Night Mode: Enables to set a specific brightness during nighttime
Auto on/off timers: Enables auto on/off timer setting
Safety: Оver current/voltage/power protection
Virtual components: A special set of components that do not exist in the device initially and are created dynamically by the user
Wi-Fi Range Extender & BLE Gateway
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
Supports KNXnet / IP communication
Specifications
Size (HxWxD)
94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight
70 g / 2.5 oz
Screw terminal max torque
0.4 Nm / 3.54 lbin
Conductor cross section
0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
Conductor stripped length
6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
Mounting
DIN
Shell material
Plastic
Shell colour
Blue
Connectors color
Green
Blue
Ambient working temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max. altitude
2000 m / 6562 ft
Power supply
110 - 240 V~
Power consumption
< 3 W
Neutral not needed
No
0-10V/1-10V voltage control type
Current sourcing
External protection
16 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Max. switching voltage
240 V~
Max. switching current
16 A
Voltmeter (AC)
Yes
Ammeter (AC)
Yes
Power and energy meters
Active and apparent power
Active and apparent energy
Power factor
Fundamental active and fundamental reactive energy
Measurement data storage
No
Internal-temperature sensor
Yes
Wi-Fi
Protocol
802.11 b/g/n
RF band
2412 - 2472 МHz
Max. RF power
< 20 dBm
Range
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth
Protocol
4.2
RF band
2402 - 2480 MHz
Max. RF power
< 4 dBm
Range
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
