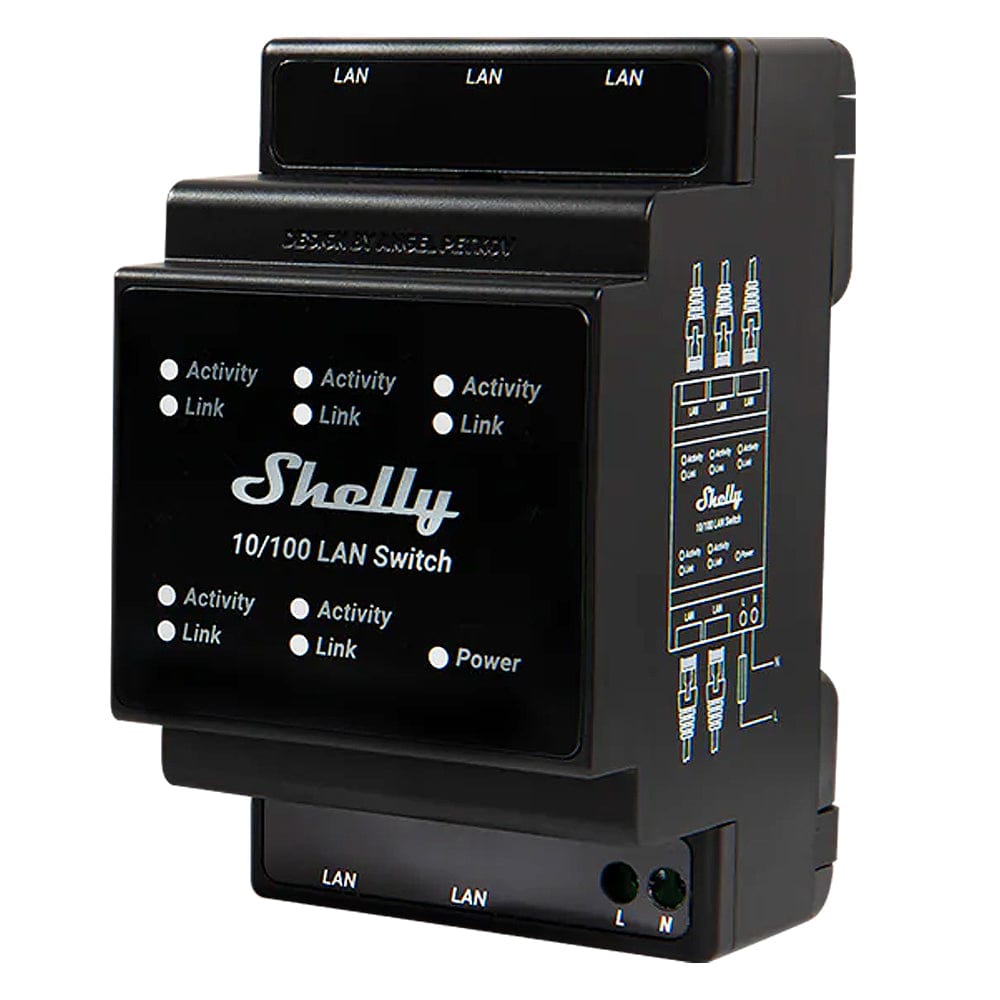

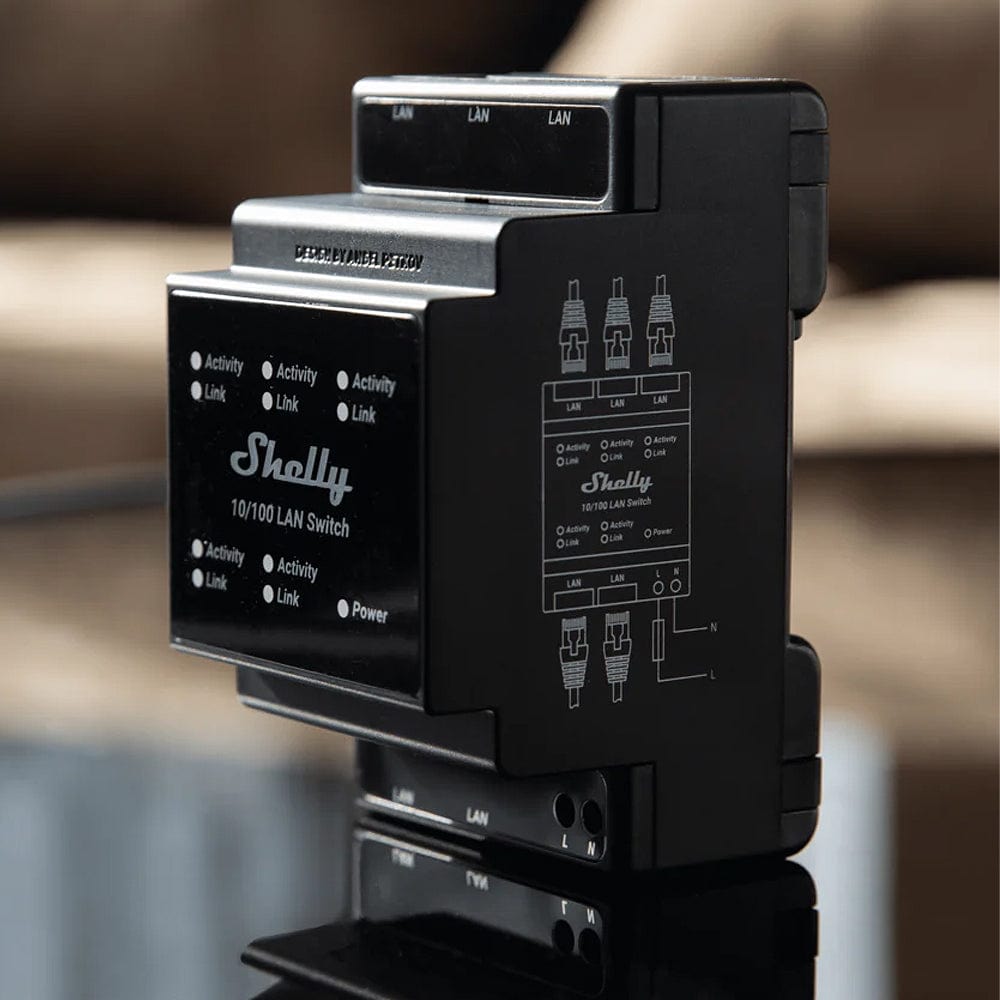

The Shelly LAN Switch is a DIN-mountable10/100mbps Ethernet switch withfive RJ45 ports, engineered for reliability and performance.

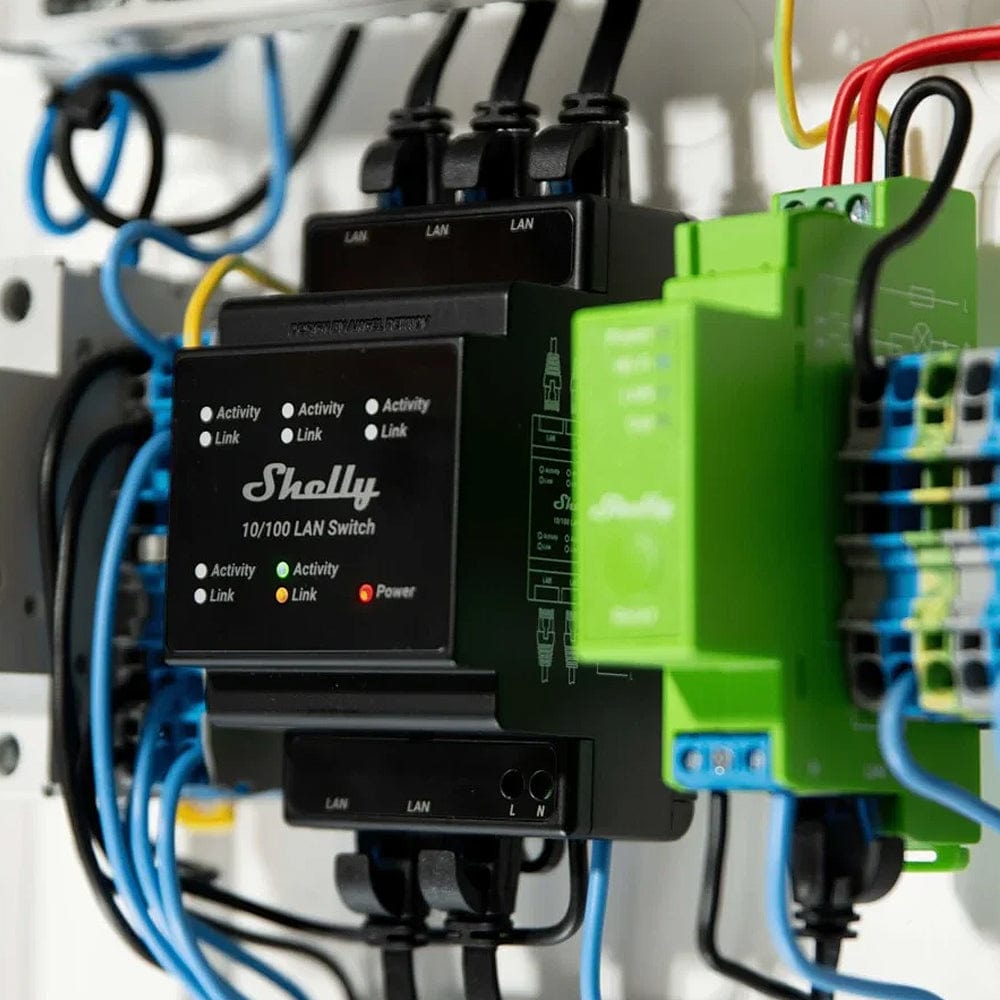

Designed to fit perfectly inside your existing breaker box, it simplifies network management, allowing for a cleaner and more efficient setup. Even if you hadn't initially planned your breaker box to accommodate Shelly devices, the Shelly LAN Switch eliminates the need for complex rewiring or modifications. Simply install the switch and instantly enhance the network stability of your devices, ensuring seamless operation without interference.
The Shelly LAN Switch provides a straightforward solution for reliable connection without the need for extensive electrical modifications. Now, you only need a single RJ45 LAN cable inside your breaker box to connect your devices! Its shared form factor with the Shelly Pro line devices ensures it fits perfectly in a Shelly-occupied breaker box, simplifying installation and maintaining an organised setup.
Power the device at 110-230V, eliminating the need for adapters. Only plug in or unplug the LAN cable only when the device is powered off!
Note:You may require a neutral wire to use this product.Please research the device and your home wiring (safely, see below) before purchasing.
⚠️Caution - Read Before Buying⚠️
Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
Danger of electrocution.The mounting/installation of the device should be performed by a qualified person (electrician)
Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee(if any)
Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
DIN - mountable: Designed to meet the global DIN rail standardization and fit perfectly with all your Pro relays
Direct AC Power: Power the device at 110-230 V~, 50/60 Hz, eliminating the need for adapters
Plug & Play: Hassle-free installation and configuration, allowing you to quickly set up and optimize your network
LED indicators - visual indication of power, links and activity
10/100mbps network speed
Specifications
Size (HxWxD)
96x53x59mm
Weight
87g
Screw terminal max torque
0.4 Nm / 3.54 lbin
Conductor cross-section
0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length
6 to 7mm
Mounting
DIN rail
Shell material
Plastic
Shell colour
Black
Connectors color
Green
Ambient working temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max. altitude
2000 m / 6562 ft
Power supply
110 - 240 V~ 50/60 Hz
Power consumption
< 1 W
External protection
Tripping characteristic B or C,
max. 16A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3
Communication/negotiation mode
Тhe switch is fully capable in auto-negotiation mode as per IEEE 802.3(Half duplex (HDX), Full duplex (FDX), Back pressure, pause, Flow control (IEEE 802.3))
