SenseCAP Watcher
Price:
Sale price
£94.50
Stock:
Awesome Extras

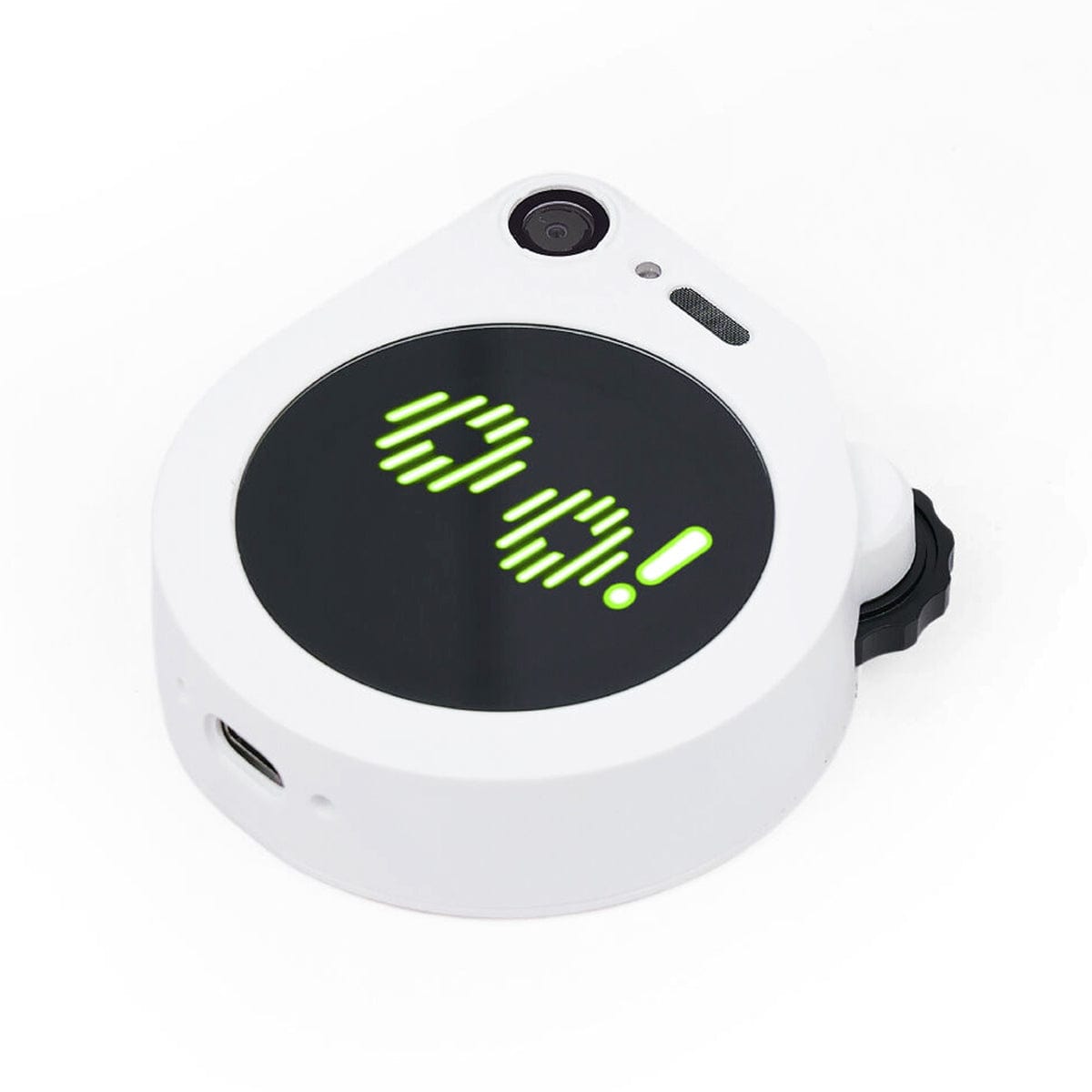

The SenseCAP Watcher is an AI-powered device made to monitor and interact with your environment.
Using the ESP32-S3 platform, it uses the Himax WiseEye2 HX6538 AI chip with an Arm Cortex-M55 and Ethos-U55, which allows it to process image and vector data effectively. Equipped with a camera, microphone, and speaker, the Watcher can see, hear, and respond to its surroundings. It works with a multitude of platforms including Raspberry Pi, XIAO ESP32 and Arduino. and can be used with popular platforms such as Home Assistant and Node-RED.
With the LLM-enabled SenseCraft suite, it understands commands, observes its environment, and responds accordingly. Made to fit into various spaces, the Watcher can monitor areas and react to specific events, making it a great choice for home, office, or other environments.
For connectivity, it includes two USB-C ports: one on the back for power supply only and another on the bottom for both power and programming. It also has a microSD card slot and a Grove connector to expand your Grove projects!
Want to add an AI agent to popular MCUs and SBCs such as Arduino/ ESP32/ Raspberry Pi? Simply connect it to Watcher via UART or HTTP or USB, and you can explore the new frontier of intelligence.
It has open-source support, which allows for customisation and expansion of the watcher's capabilities. extensive documentation and resources are available to support integration and development.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
- Advanced AI Processing
- Multi-Sensory Capabilities
- LLM-Enabled SenseCraft Suite
- Compact and Flexible Design
- Open-Source Support for Customisation
- Customisable Emotional Responses
- Compatible with Home Assistant
- Product Number: Seeed 113991275
No Subscription Required
SenseCraft AI Services are tailored to your needs.
Start with Basic, completely FREE for low-frequency: 15min/request for image analysis, 200 chats/month with LLMs.
Need more? Upgrade to Pro, pay only for what you consume, NO commitment to recurring subscription fees! Plus, each NEW device includes a FREE Pro package! Top up as needed.
Want to avoid fees altogether? Choose On-Premise. Just deploy and use with no additional costs!
For more information please refer to Price Description page.
What's on Board
Specifications
| MCU | ESP32-S3 @240MHz 8MB PSRAM |
| Built-in AI Processor | Himax HX6538 (Cortex M55 + Ethos-U55) |
| Camera | OV5647 120° FOV |
| Fixed Focal 3 meters | |
| Wi-Fi | IEEE 802.11b/g/n-compliant |
| 2.4GHz Band | |
| Wireless Range: Up to 100 meters (open space test) | |
| Bluetooth LE | Bluetooth 5 |
| Antenna | Built-in Wi-Fi and BLE antenna |
| Display | Touchscreen with 1.45", 412 x 412 resolution |
| Microphone | Single microphone |
| Speaker | 1W Speaker Output |
| Wheel | Supports scrolling up&down and button |
| LED | 1x RGB light for indication |

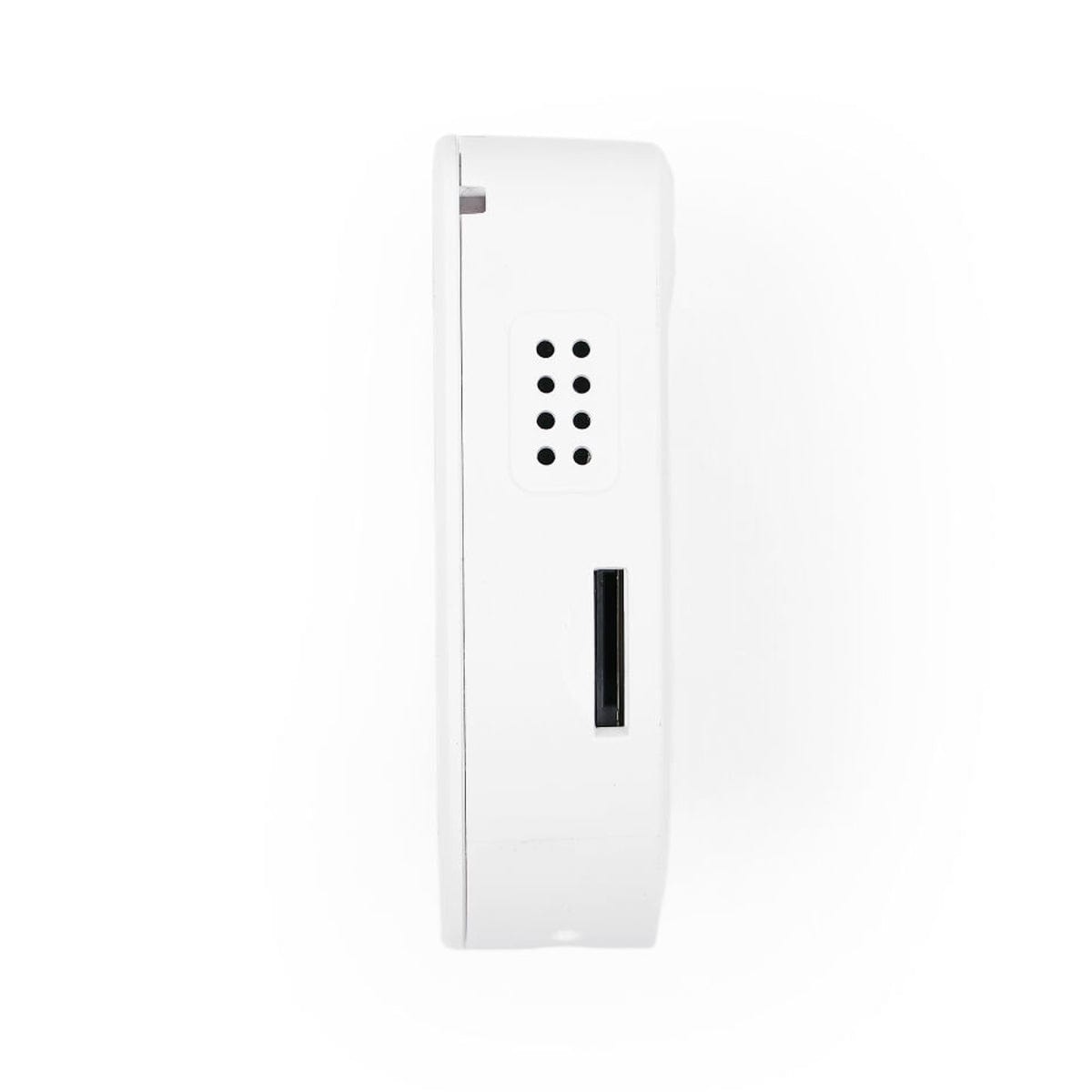

| MicroSD Card Slot | Supports up to 32GB FAT32 microSD card |
| Flash | 32MB Flash for ESP32-S3 |
| 16MB Flash for Himax HX6538 | |

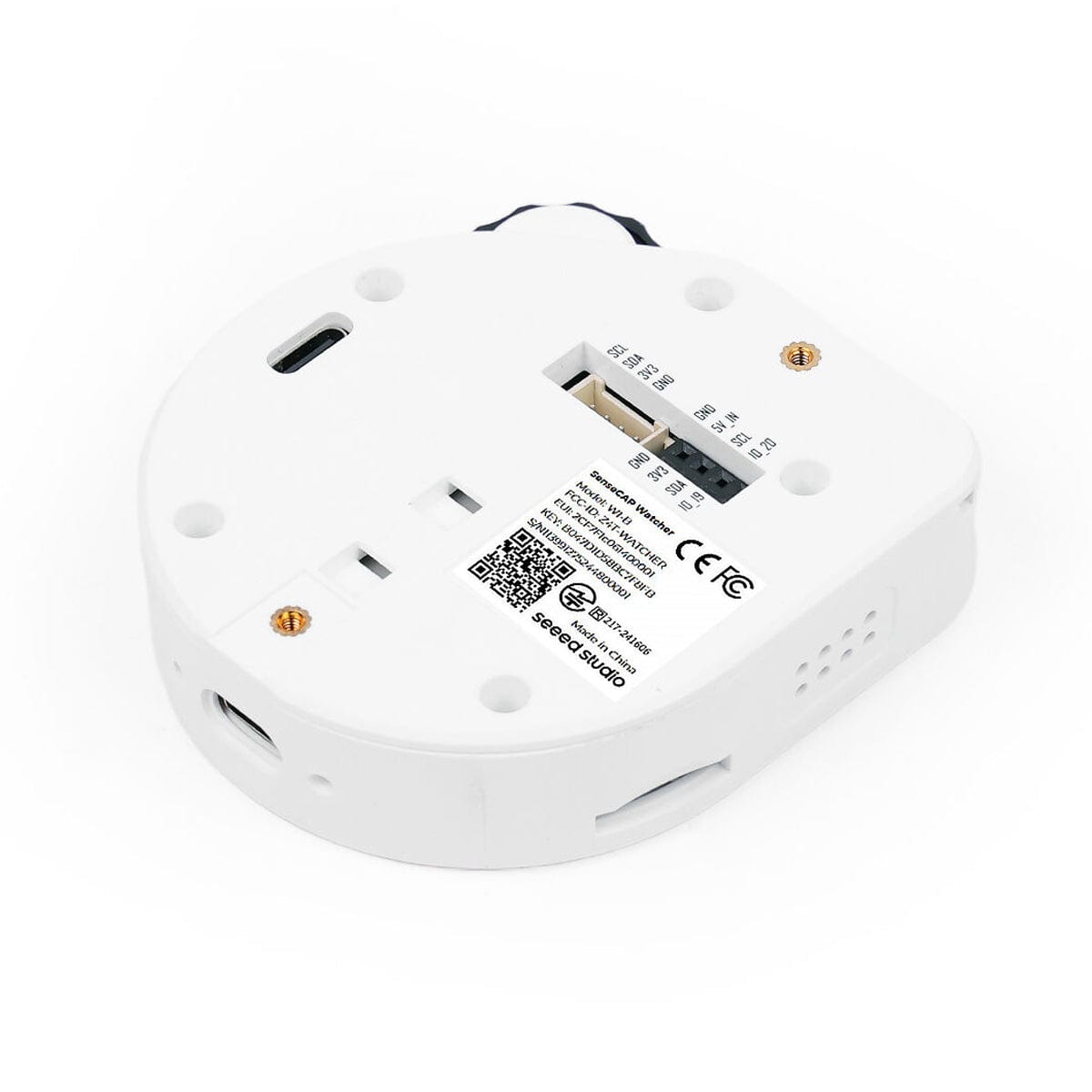

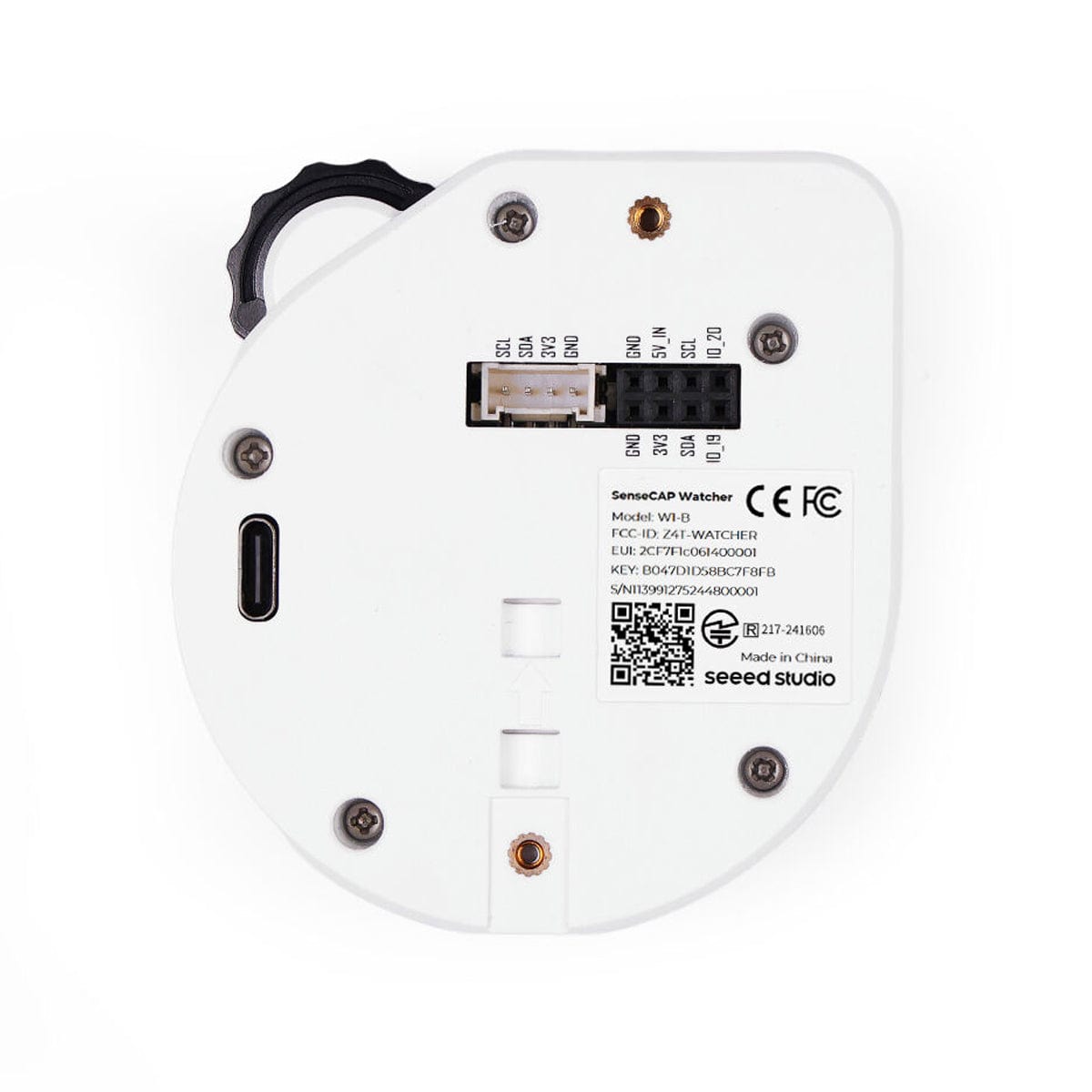

| Extension Interface | 1xGrove IIC interface |
| 2 x 4 Female header (1xIIC, 2xGPIO, 2xGND, 1x3.3V_OUT, 1x5V_IN) | |
| USB-C | 1x USB-C on the back(power supply only) |
| 1x USB-C on the bottom(power supply and programming) | |
| Reset Button | 1x RST button in the bottom hole |
| Power Supply | 5V DC power |
| Battery | 3.7V 400mAh Li-ion battery as backup power |
| Operating Temperature | 0 ~ 45°C |

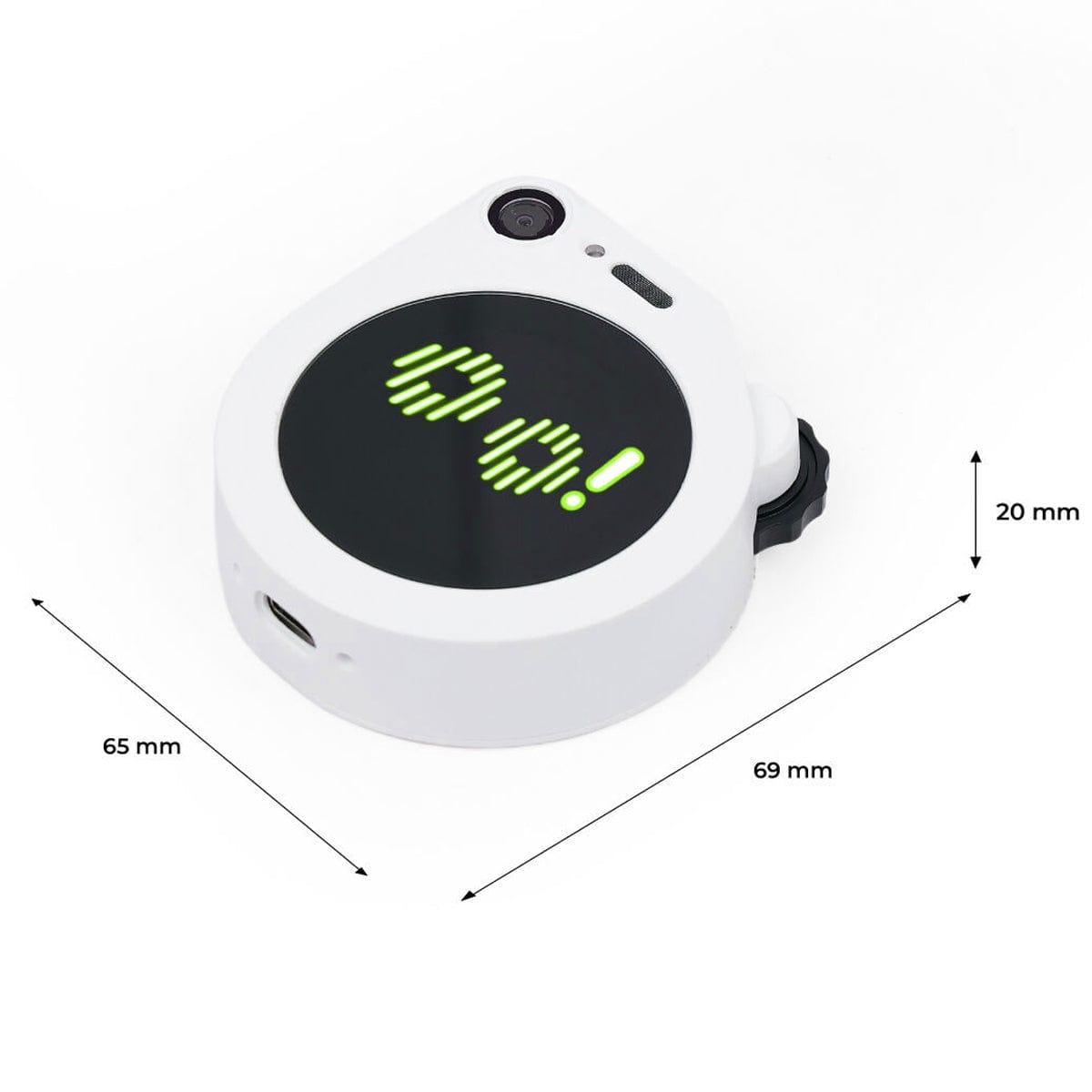

| Dimensions | 69 x 65 x 20 mm |
| Mounting Bracket | Supports wall, desktop and bracket installation |
| 1x Universal wheel and base plate with adhesive | |
| 1x 1/4" Female adapter set |
Connection Examples - Raspberry Pi - Arduino - Xiao - PC
Resources

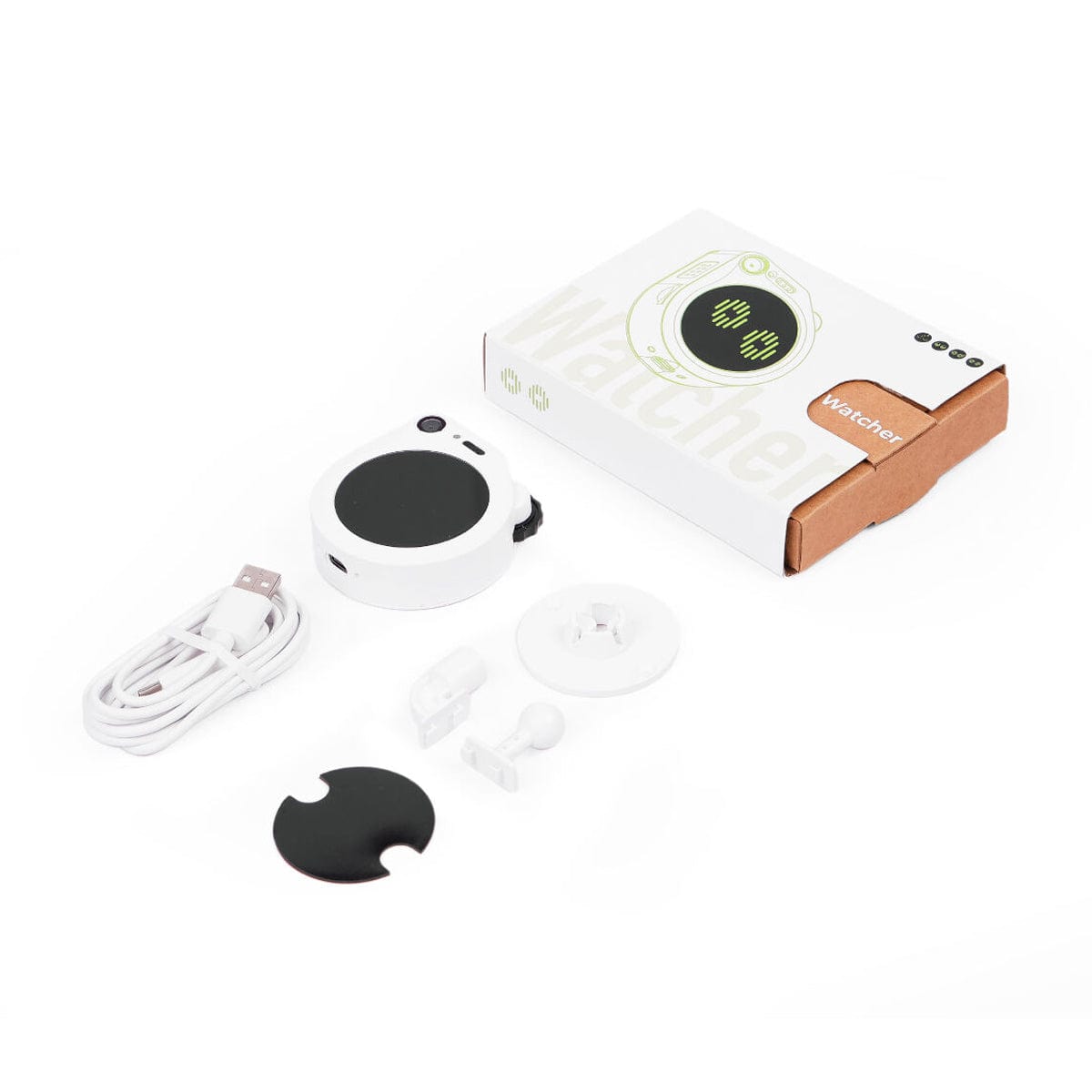

Package Contents
- 1x SenseCAP Watcher
- 1x Universal wheel and base plate with adhesive
- 1x 1/4" Female adapter set
- 1x USB Type-C cable
- 1x 3 x 10mm Screw
