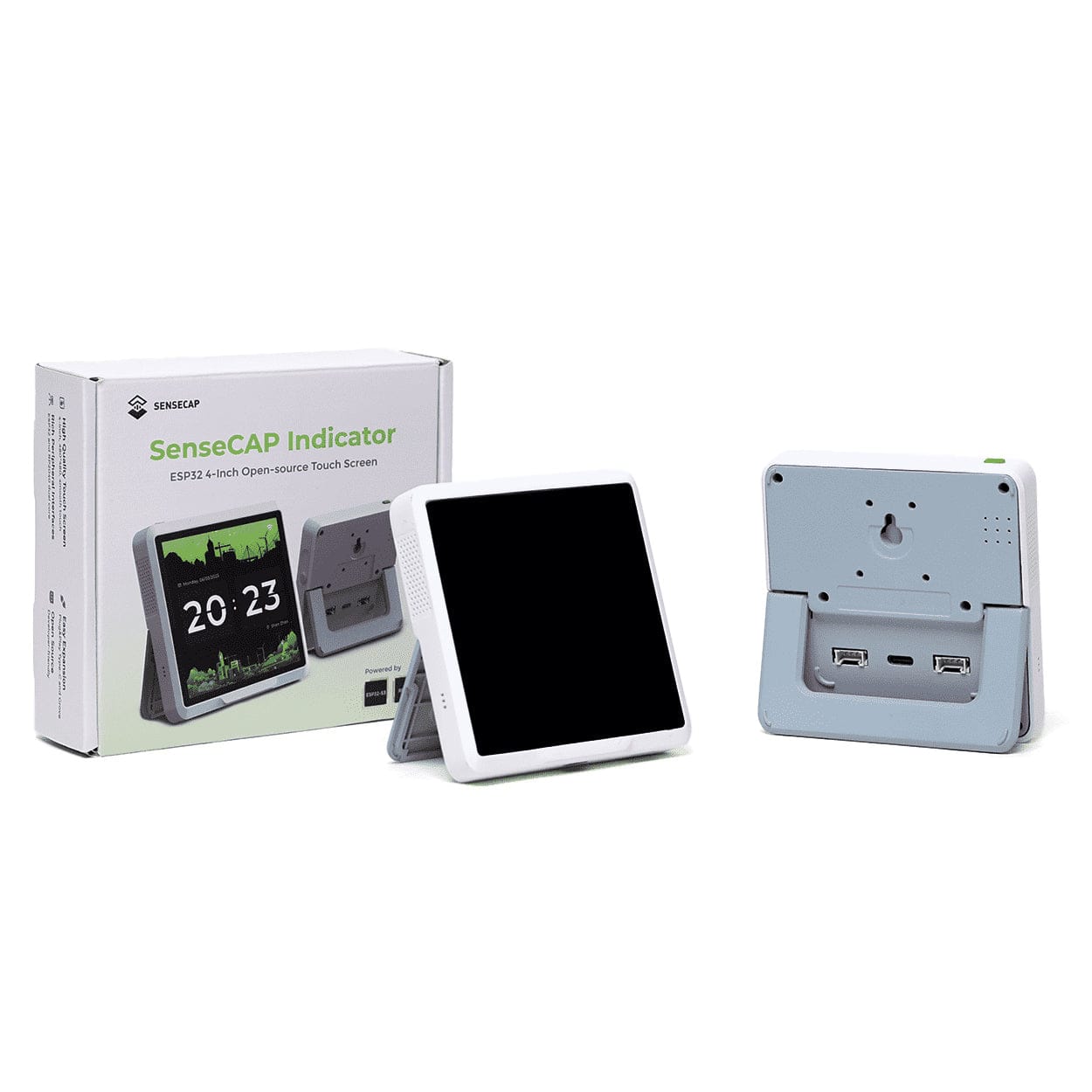

The SenseCAP Indicator D1L is a 4" touchscreen IoT LoRa development platform powered by an ESP32S3 and RP2040 dual-MCU system.
This D1L variant of the SenseCAP Indicator includes Wi-Fi, Bluetooth and LoRa communication using the SX1262 transceiver, making it suitable for developing long-range, low-power wireless applications. The D1L variant does not include any sensors.
The embedded SX1262 LoRa® module enables you to build the LoRa application and connect your local LoRa sensors to the Cloud via Wi-Fi. For example, you could build a LoRa hub device to connect your LoRa sensors to your smart home ecosystem to implement Matter over Wi-Fi. In this way, the LoRa devices could be connected to the Matter ecosystem via Wi-Fi, without the need to buy a new Matter-compatible device.
Designed for flexibility, the D1L runs fully open-source hardware and firmware and is compatible with the wider SenseCAP ecosystem. It is intended for use in wireless display terminals, sensor interfaces, and other custom LoRa-based IoT deployments.
A USB-C cable is included for powering the device (5V 1A required).
SenseCAP Indicator Model Comparison
There are four models of the SenseCAP Indicator, which might be a little confusing. Here's a comparison table to help you find the right version for your project:
LoRa®WAN/(G)FSK, 21dBm Max Transmitted Power Sensitivity: -136dBm @ SF12 BW = 125KHz RX Sensitivity, up to 5km (depending on gateway antenna and environments)
