Semi-flexible Polycrystalline Silicon Solar Panel (18V 10W) by Waveshare - The Pi Hut

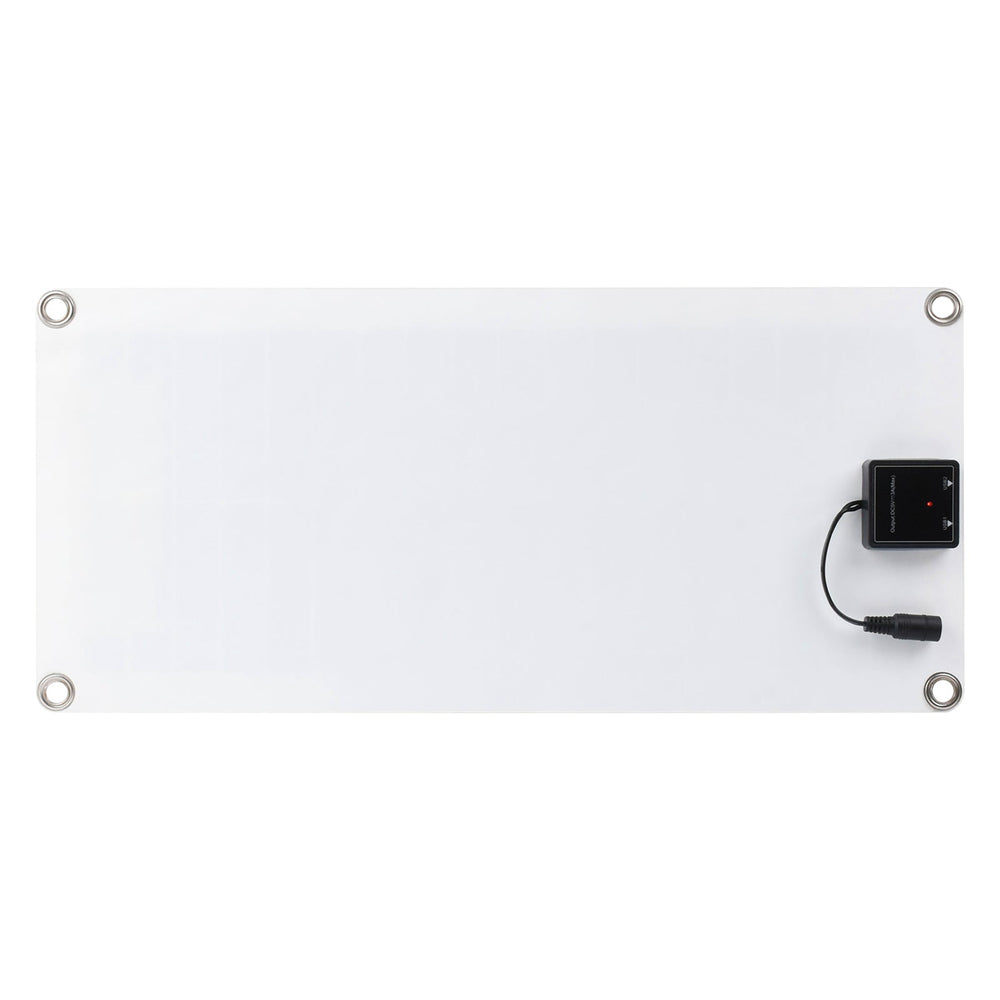

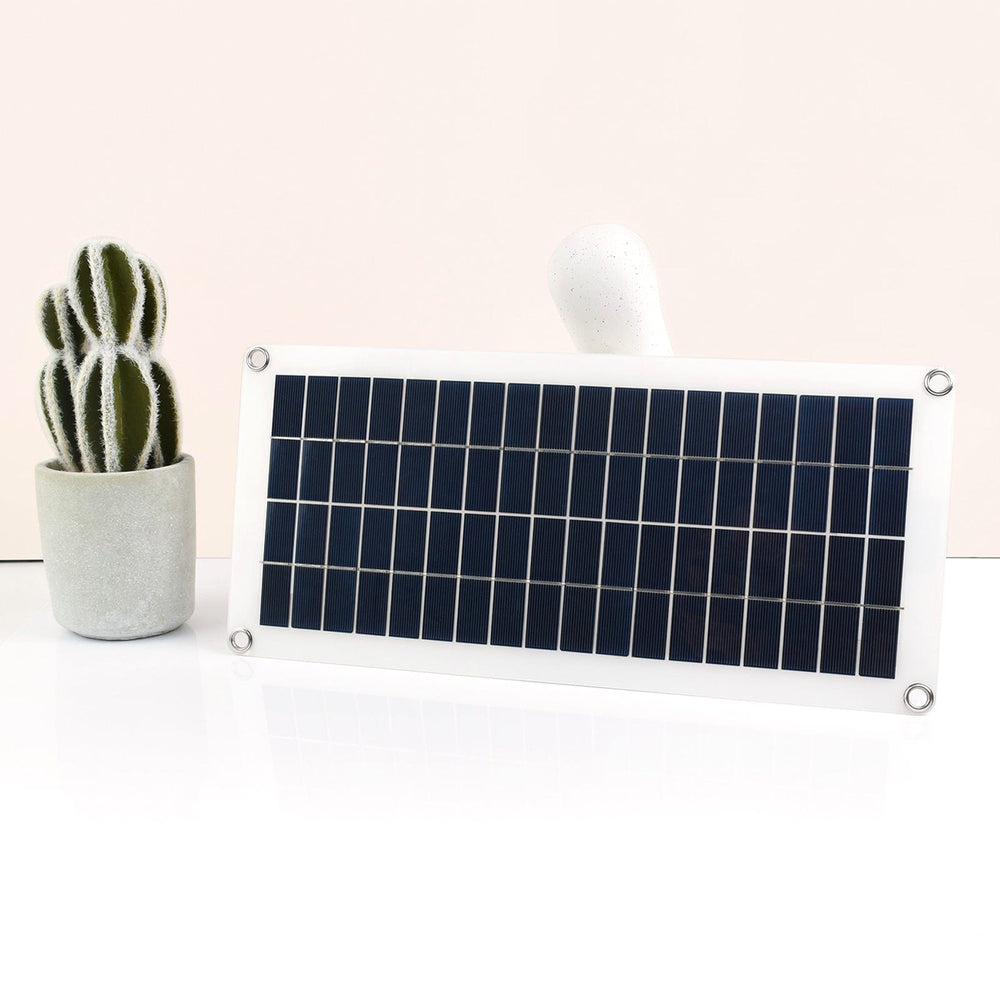

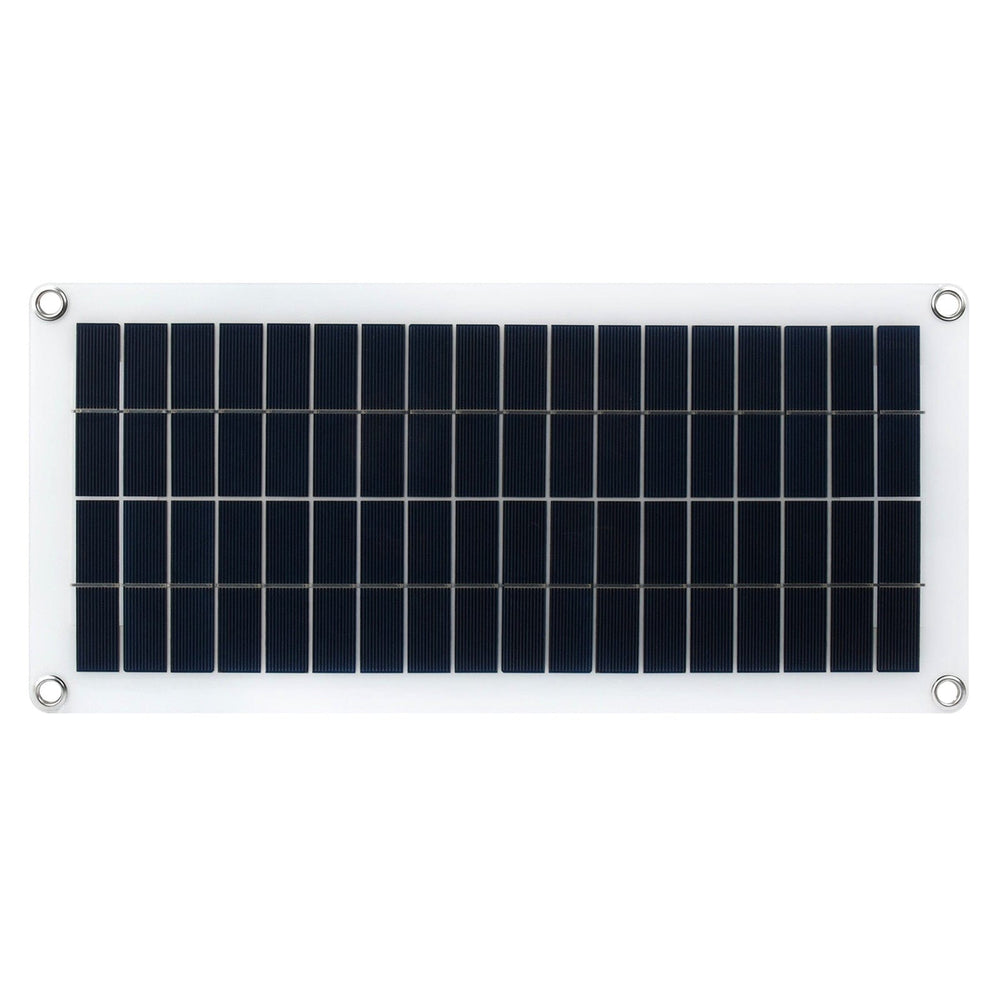

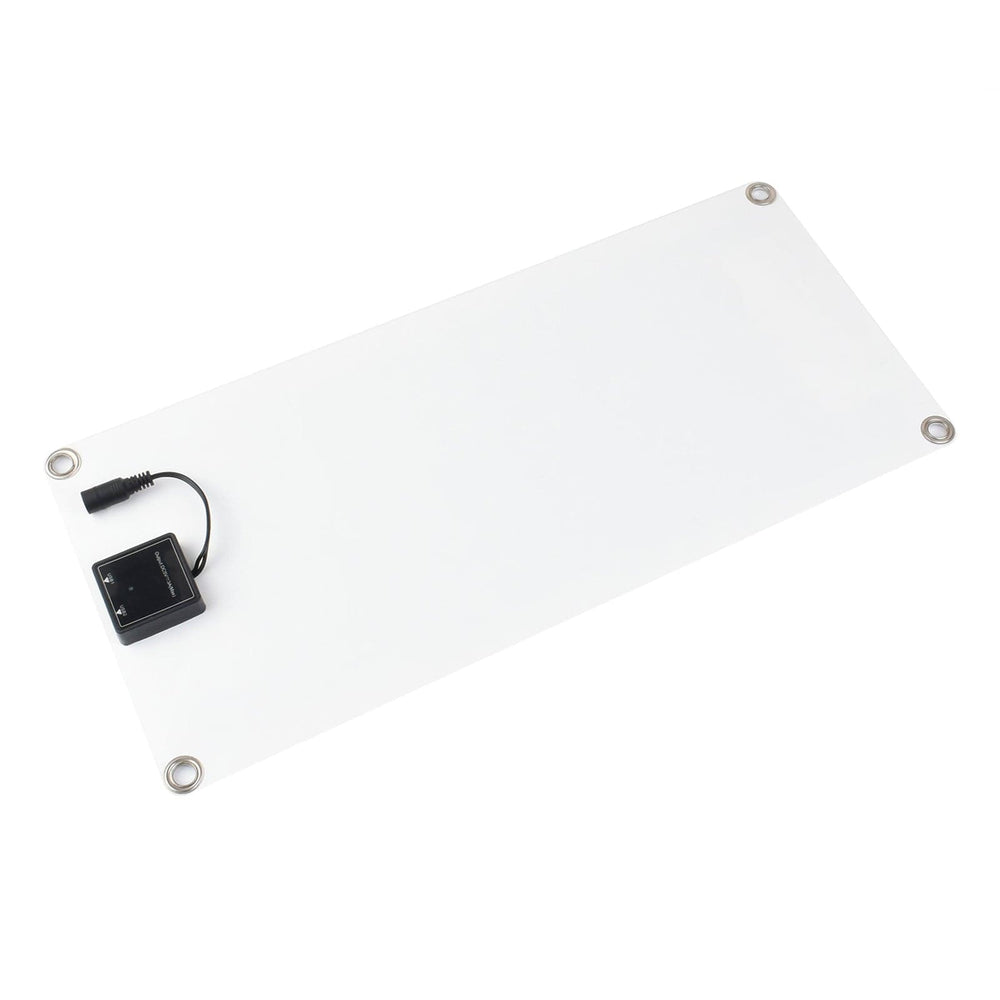

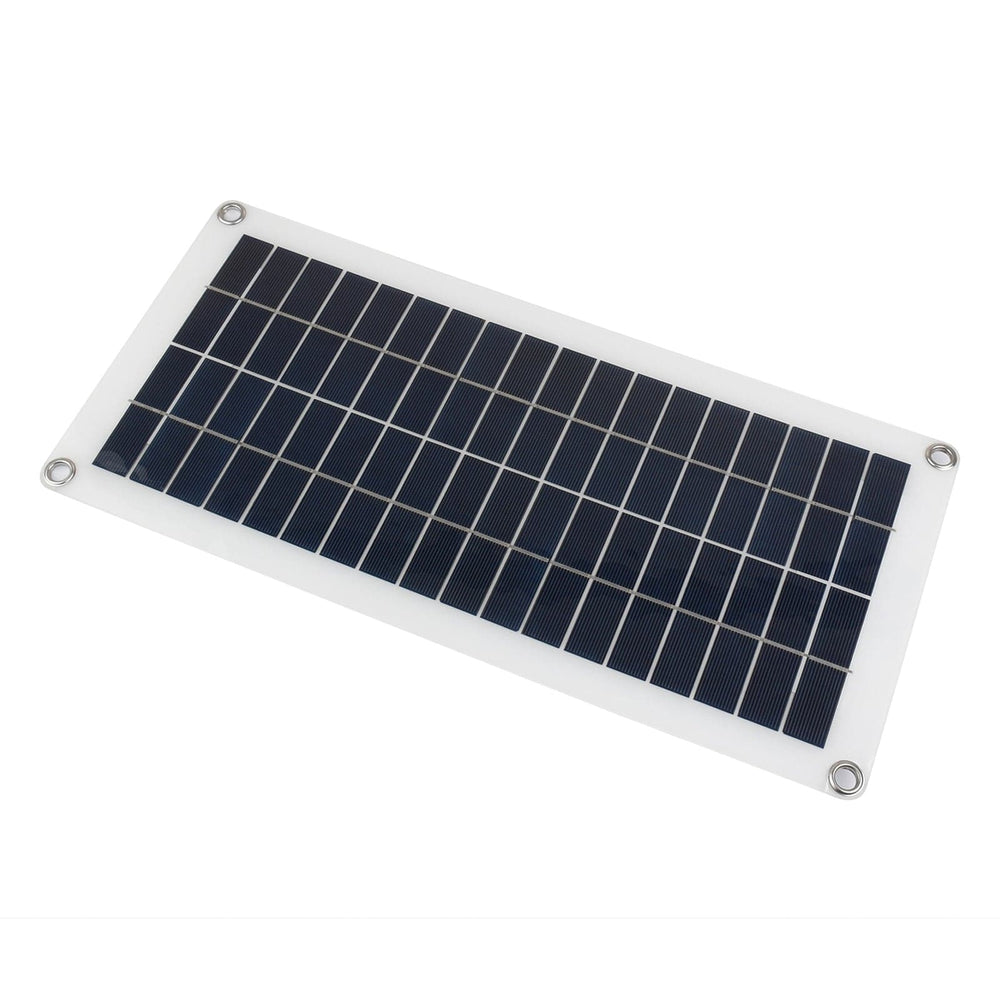

Semi-flexible Polycrystalline Silicon Solar Panel (18V 10W)

WaveshareSKU: WAV-24167

£12.50

incl. VAT

excl. VAT

Only 16 units left

Awesome Extras

Solar Power Management Module for 6V-24V Solar Panel by Waveshare - The Pi Hut

Waveshare Solar Power Management Module for 6V-24V Solar Panel

£8.70 incl. VAT excl. VAT

Solar Power Manager (C) by Waveshare - The Pi Hut

Waveshare Solar Power Manager (C)

£19.20 incl. VAT excl. VAT

Monocrystalline Silicon Solar Panel by Waveshare - The Pi Hut

Waveshare Monocrystalline Silicon Solar Panel

£9.60 incl. VAT excl. VAT

FireBeetle 2 ESP32-E IoT Microcontroller by DFRobot - The Pi Hut

DFRobot FireBeetle 2 ESP32-E IoT Microcontroller

From £9.50 incl. VAT excl. VAT

This Solar Panel consists of several crystals of silicon in a single PV cell that gives a high degree of energy transfer efficiency, with bypass diodes to minimize the effects of shadows. On top of that, it also has a high power density, high-temperature coefficient, and eco-friendly production due to less waste being produced, and the manufacturing process requires very few fossil fuels.

With its thin and portable design, different outputs and a host of accessories, this really is a great addition to your next outdoor project!

These are compatible for use with our 3 solar power managers, A, B and C

Features

Adopts semi-flexible polycrystalline silicon solar panel, thin and portable, convenient for outdoor use
Integrated with 5V voltage regulator circuit, 2x USB power outputs for external 5V devices, onboard working status indicator
Reserved DC5521 power output port for connecting to power manager module or other controllers which support 18V solar panel
Comes with multiple accessories and adapter cables

What's on Board

Specifications

SOLAR CELL TYPE	Polycrystalline silicon
MATERIAL	Semi-flexible laminate (not capable of excessive bending)
SOLAR PANEL POWER	10W
DC5521 FEMALE PORT	Directly power output from the solar panel without conversion
	Operating voltage: 18V ± 5%
	Operating current: 600mA ± 5% (Max)
	Open circuit voltage: 21.6V ± 5%
2× USB 5V PORT	Power output after 5V regulator circuit
	Operating voltage: 5V (Requires good sunlight for stable 5V output, it is not recommended for use in sunless or weak light conditions)
	Output current: 1.5A (total output of the two USB ports)

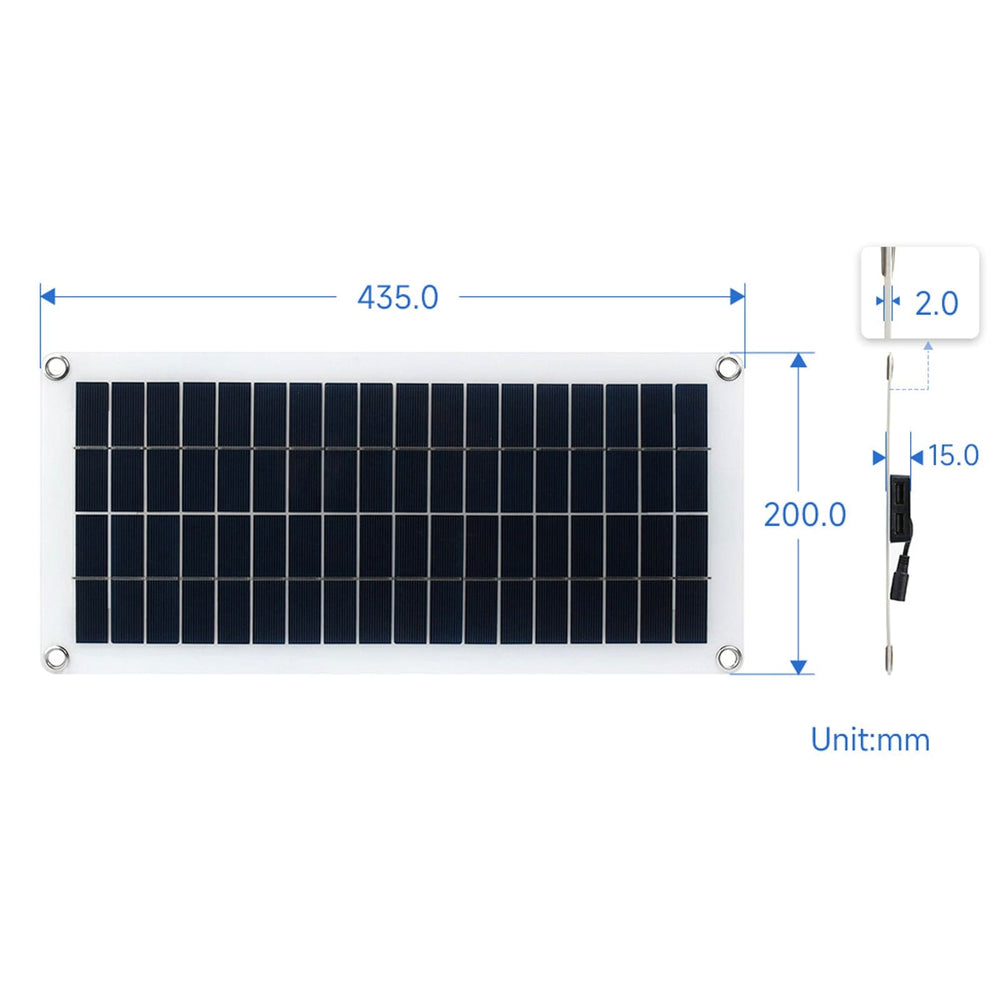

DIMENSIONS	435 × 200mm

Package Contents

1x Semi-flexible Polycrystalline silicon Solar Panel
1x Alligator Clip
4x Suction Cup
2x Spring Snap Hooks
1x USB Cable
