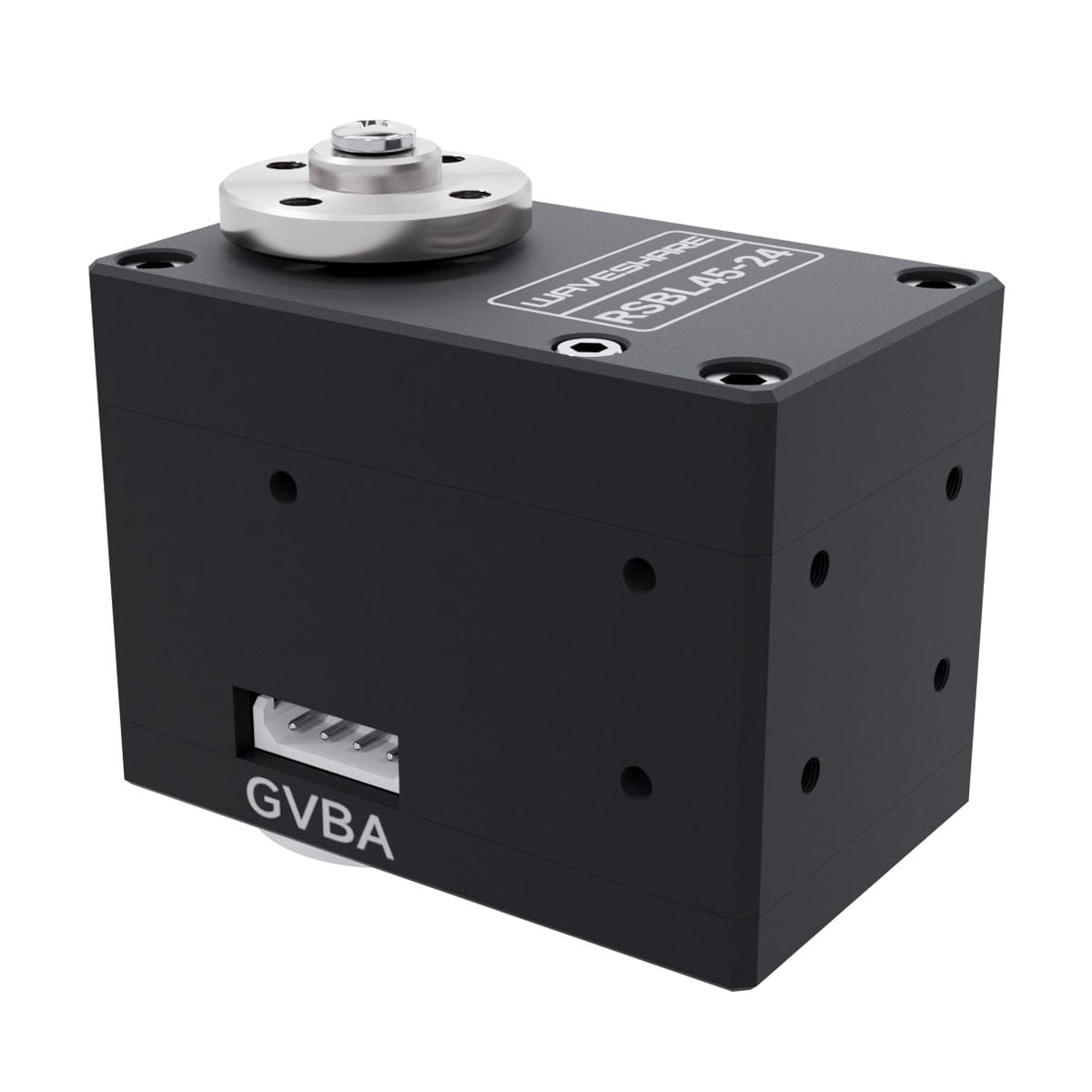

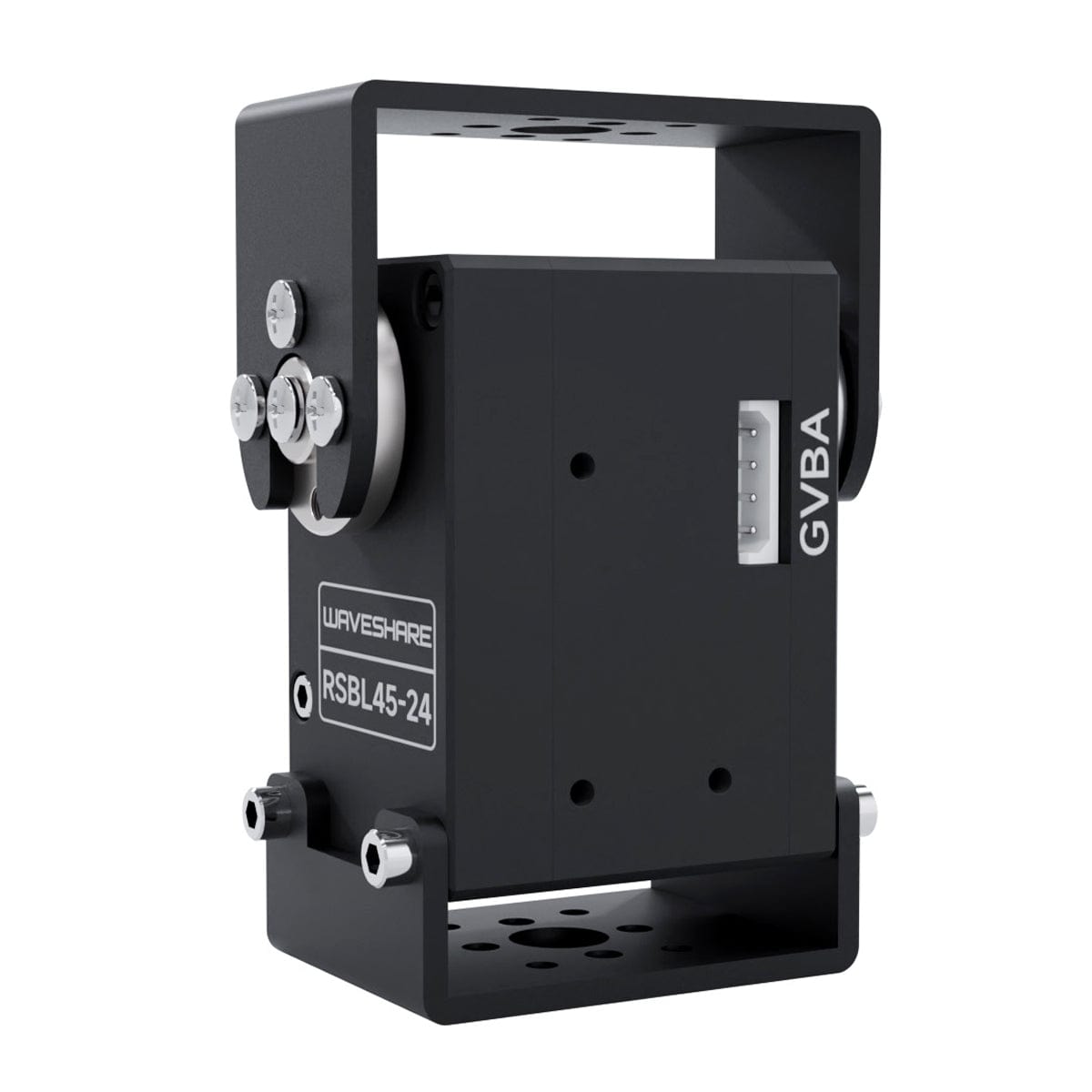

The RS485 servo motor is a 24V brushless DC motor that has 45W of power, making it ideal for precision-driven tasks such as robotics and automation. It has a 360° magnetic encoder for extended angle control, with great accuracy reaching 360°/4096. This motor can be used in series to control up to 253 servo motors simultaneously (with sufficient power supply), and it provides real-time feedback from each one.

Its design allows you to set any angle as the servo motor's middle position, making assembly easier and more flexible. Additionally, the motor includes an acceleration start/stop function for a more gradual motion, enhancing control over movement. This servo is great for projects where precision and adaptability are essential.

Click here for the 35kg.cm version in our store

Features

  • Can be used in series, controlling up to 253 servo motors simultaneously (provided sufficient power supply) and obtaining feedback information from each servo motor
  • 360° magnetic encoder allows for a wider range of angle control
  • High precision with angle control accuracy reaching 360°/4096
  • Any angle can be set as the servo motor's middle position, making assembly more convenient
  • Acceleration start/stop function provides smoother movement
  • Compact structural design and nice-looking appearance
  • Wide voltage input range of 9-24V, can be directly powered by 2S or 3S lithium batteries
  • High torque, reaching up to 45kg.cm@24V
  • Programmable working modes: servo mode for angle control or motor mode for continuous rotation

Specifications

Rotation Angle 360° (0~4095)
Position Sensor Resolution 0.088° (360°/4096)
Mechanism Limit Angle No Limit
Working Voltage 9 ~ 24 V (typ. 24V)
Gear High-precision steel gear (reduction ratio 1:353)
No-load Speed 0.142sec/60 degree 70RPM@24V
Encoder Type 360° magnetic encoder
ID Range 1 ~ 253 (1 by default)
Baudrate 38400bps ~ 1Mbps (1Mbps by default)
No-load Current 160mA
Locked-rotor Current 2.3A
KT 19kg.cm/A
Weight 100g
Feedback Position, Load, Speed, Input Voltage, Current, Temperature

Connection Example - Bus Servo Driver HAT

Resources

Package Contents

  • 1x 45kg.cm RS485 Servo Motor
  • 1x Cable Pack
  • 1x Screw Pack
