RS485 Servo Motor (35kg.cm)

WaveshareSKU: WAV-28094
Price:
Sale price £95
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

Serial Bus Servo Driver HAT for Raspberry Pi (with ESP32)Serial Bus Servo Driver HAT for Raspberry Pi (with ESP32)
RS485 Servo Motor (45kg.cm)RS485 Servo Motor (45kg.cm)
WaveshareRS485 Servo Motor (45kg.cm)
Sale price £95 incl. VAT excl. VAT
25-in-1 Compact Precision Screwdriver Set - The Pi Hut25-in-1 Compact Precision Screwdriver Set - The Pi Hut
The Pi Hut25-in-1 Compact Precision Screwdriver Set
Sale price £9 incl. VAT excl. VAT

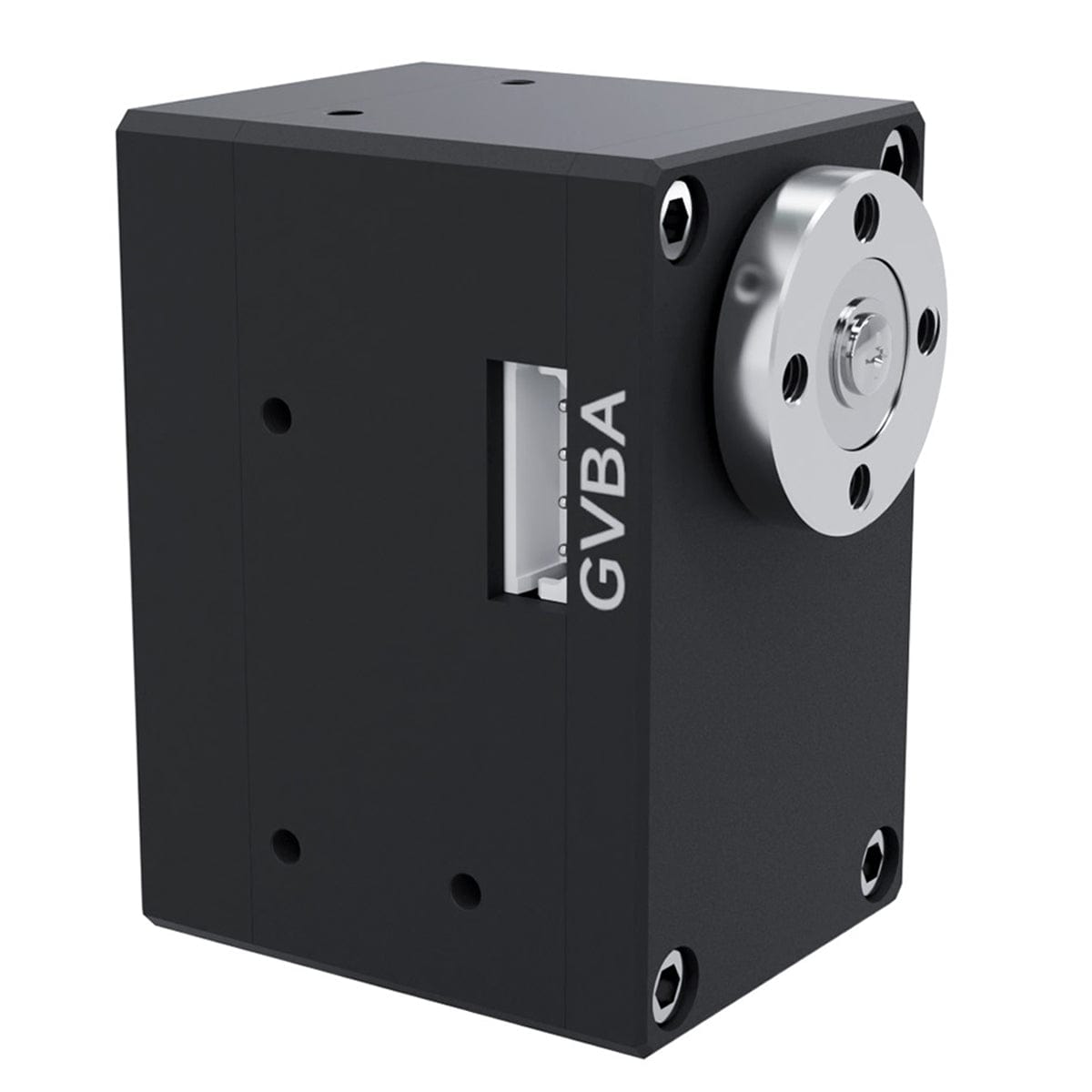

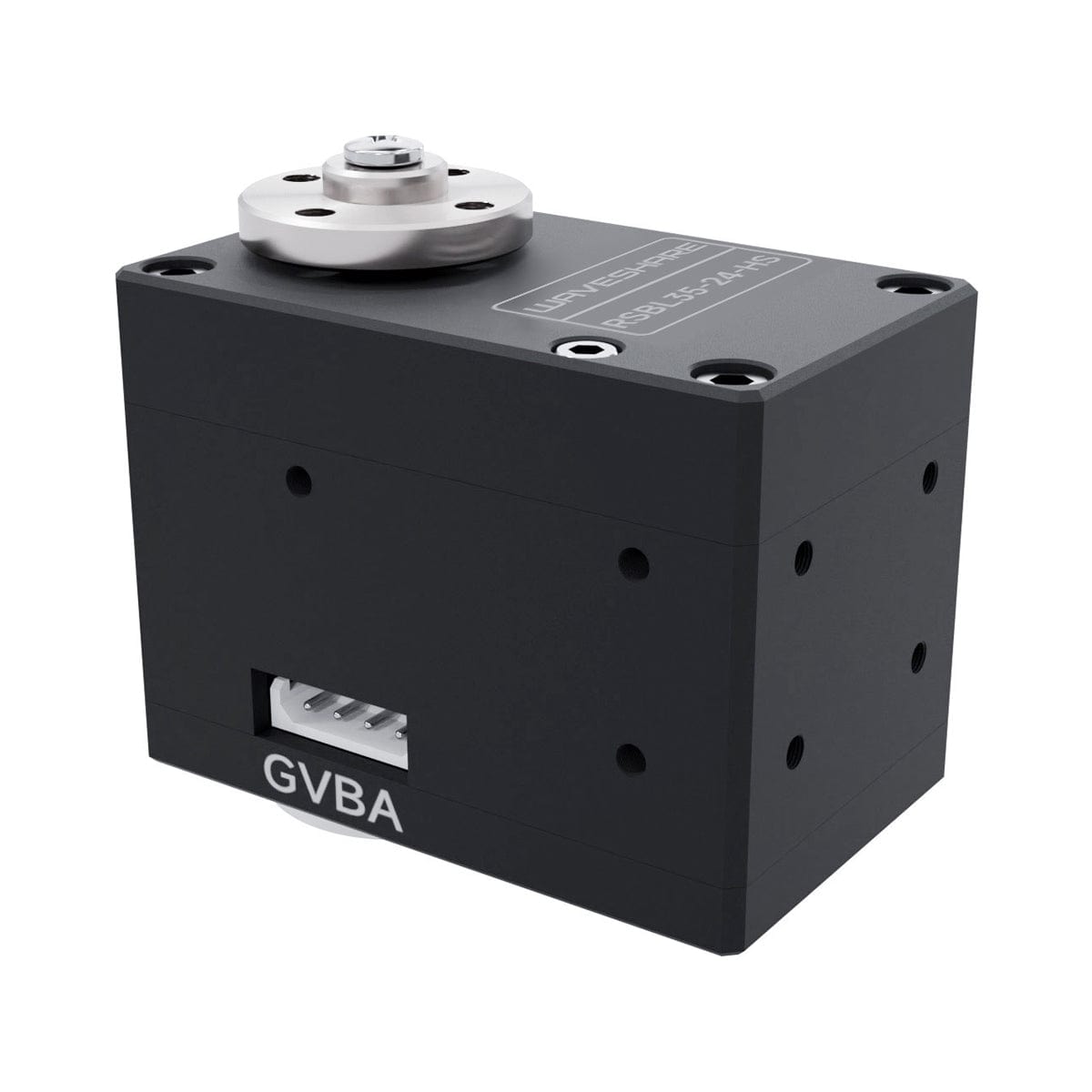

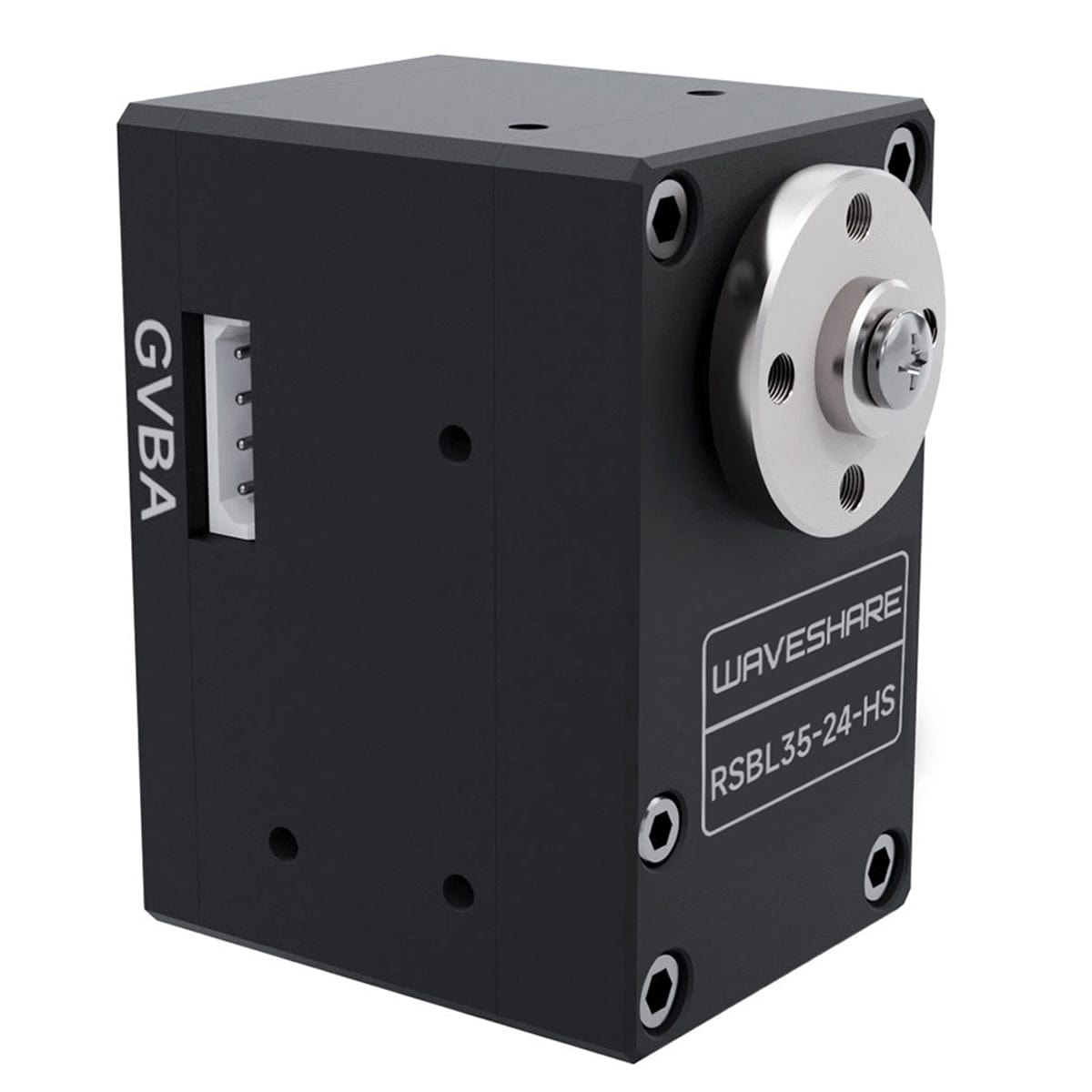

This 35KG.cm RS485 is a programmable serial servo motor that you can program to set any angle as the middle position, and it has 360° controllable angles and multi-turn continuous rotation. The built-in acceleration start/stop function gives it more natural movements

It has a locked-rotor torque of 120 kg.cm, an aluminium alloy case, a brushless motor, a steel gearbox, and a 360° high-precision magnetic encoder. The motor also includes an external steel primary multi-servo disk.

The motor has two connectors on each unit that allow multiple servo motors to be connected in series. Up to 253 servo motors can be controlled simultaneously with a decent power supply. Each motor provides real-time feedback, including its current angle, load, voltage, and mode, allowing for precise monitoring and control. The 360° magnetic encoder has a wide range of angle control with an accuracy of 360°/4096. The ability to set any angle as the middle position makes assembly a piece of cake.

Click here to find the 45kg.cm Servo in our store

Features

  • Can be used in series, controlling up to 253 servo motors simultaneously (provided sufficient power supply) and obtaining feedback information from each servo motor
  • 360° magnetic encoder allows for a wider range of angle control
  • High precision with angle control accuracy reaching 360°/4096
  • Any angle can be set as the servo motor's middle position, making assembly more convenient
  • Acceleration start/stop function provides smoother movement
  • Compact structural design and nice-looking appearance
  • Wide voltage input range of 9-24V, can be directly powered by 2S or 3S lithium batteries
  • High torque, reaching up to 35kg.cm at 24V
  • Programmable working modes: servo mode for angle control or motor mode for continuous rotation

Specifications

Torque 35KG.cm@24V
Rotation Angle 360° (0-4095)
Position Sensor Resolution 0.088° (360°/4096)
Mechanism Limit Angle No Limit
Working Voltage 9 - 24 V (typ. 24V)
Gear Steel Gear (reduction ratio 1:232)
No-load Speed 0.087sec/60degree 115RPM@24V
Encoder Type 360° Magnetic Encoder
ID Range 1 ~ 253 (1 by default)
Baudrate 38400bps ~ 1Mbps (1Mbps by default)
No-load Current 200mA
Locked-Rotor Current 1.8A
KT 19kg.cm/A
Weight 190g
Feedback Position, Load, Speed, Input Voltage, Current, Temperature

Connection Example - Bus Servo Driver HAT Drive Board

Resources

Package Contents

  • 1x RS485 Metal Servo Motor

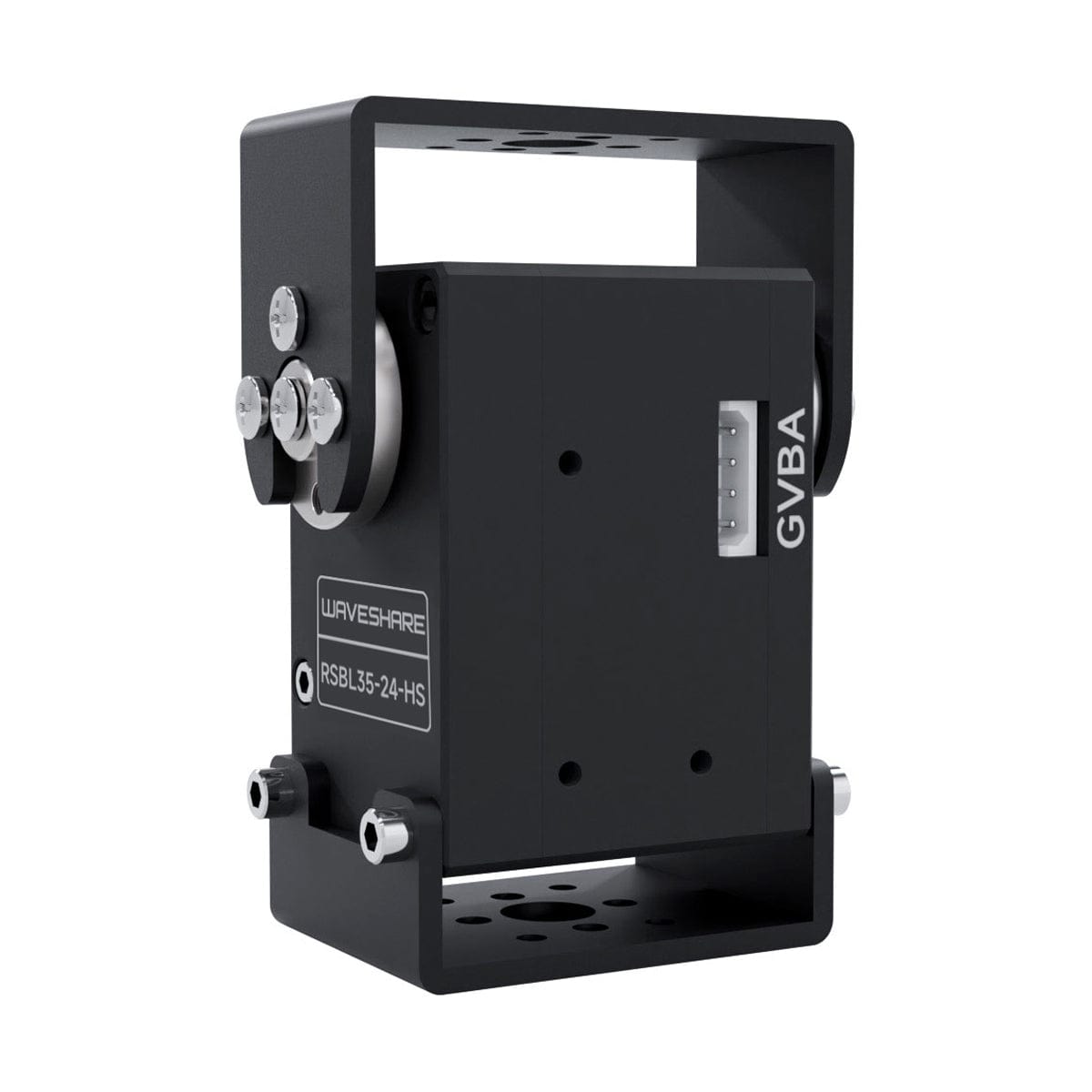

  • 2x Robot Arm Models
  • 1x Cable Set
  • 1x Screw Set
