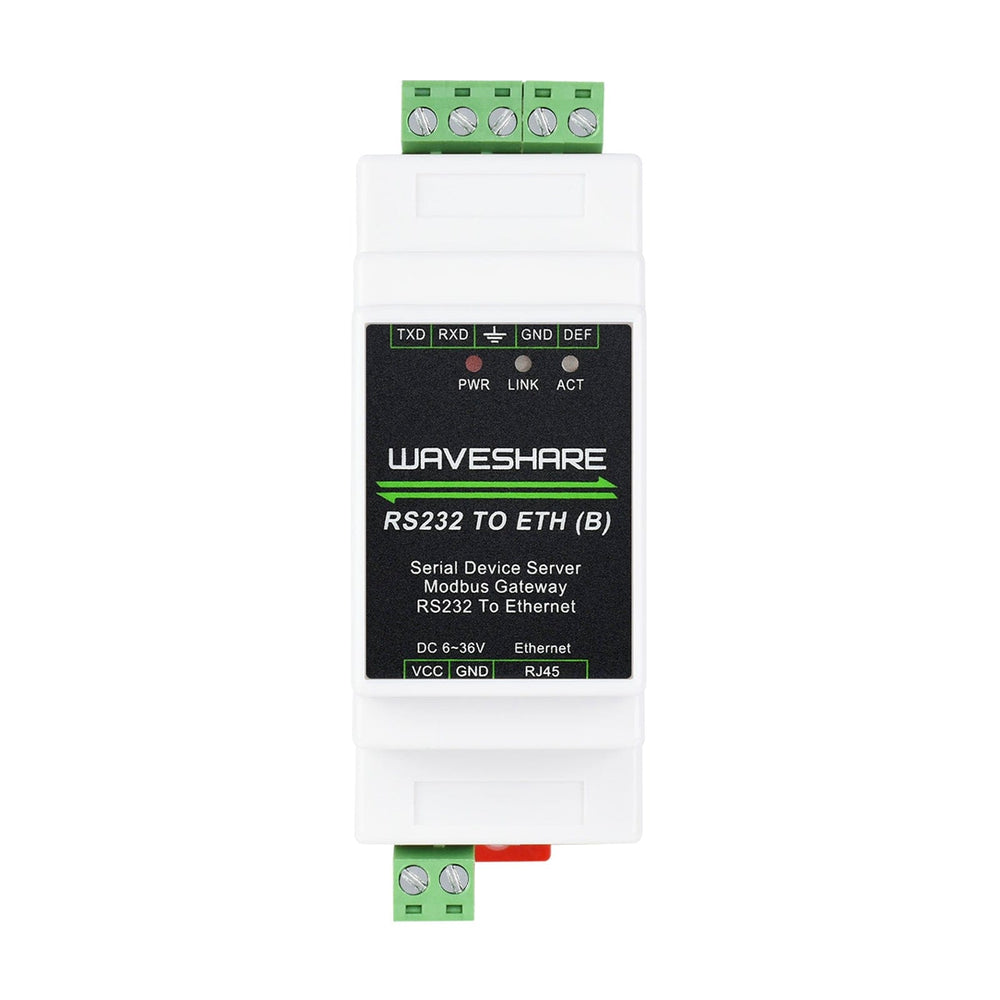

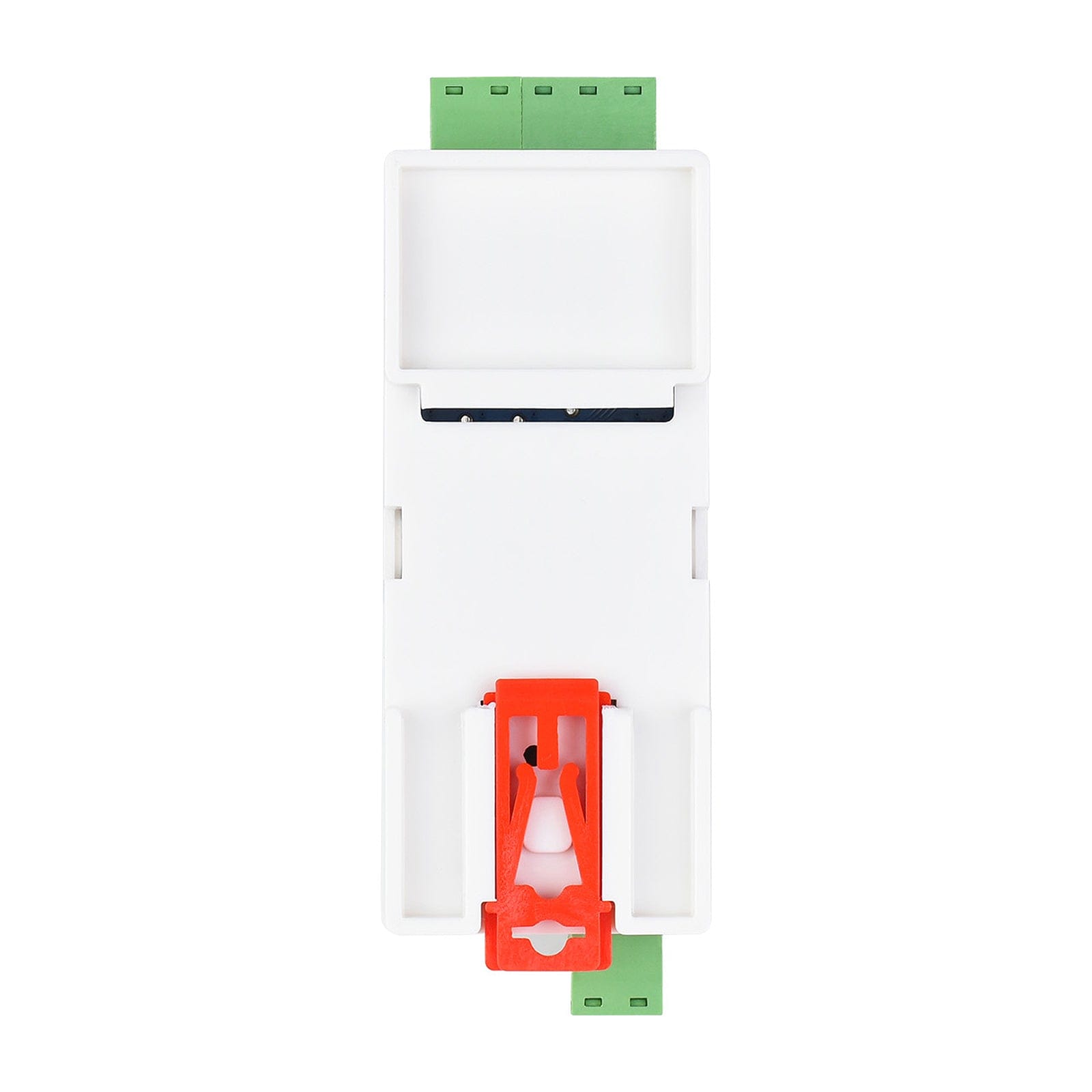

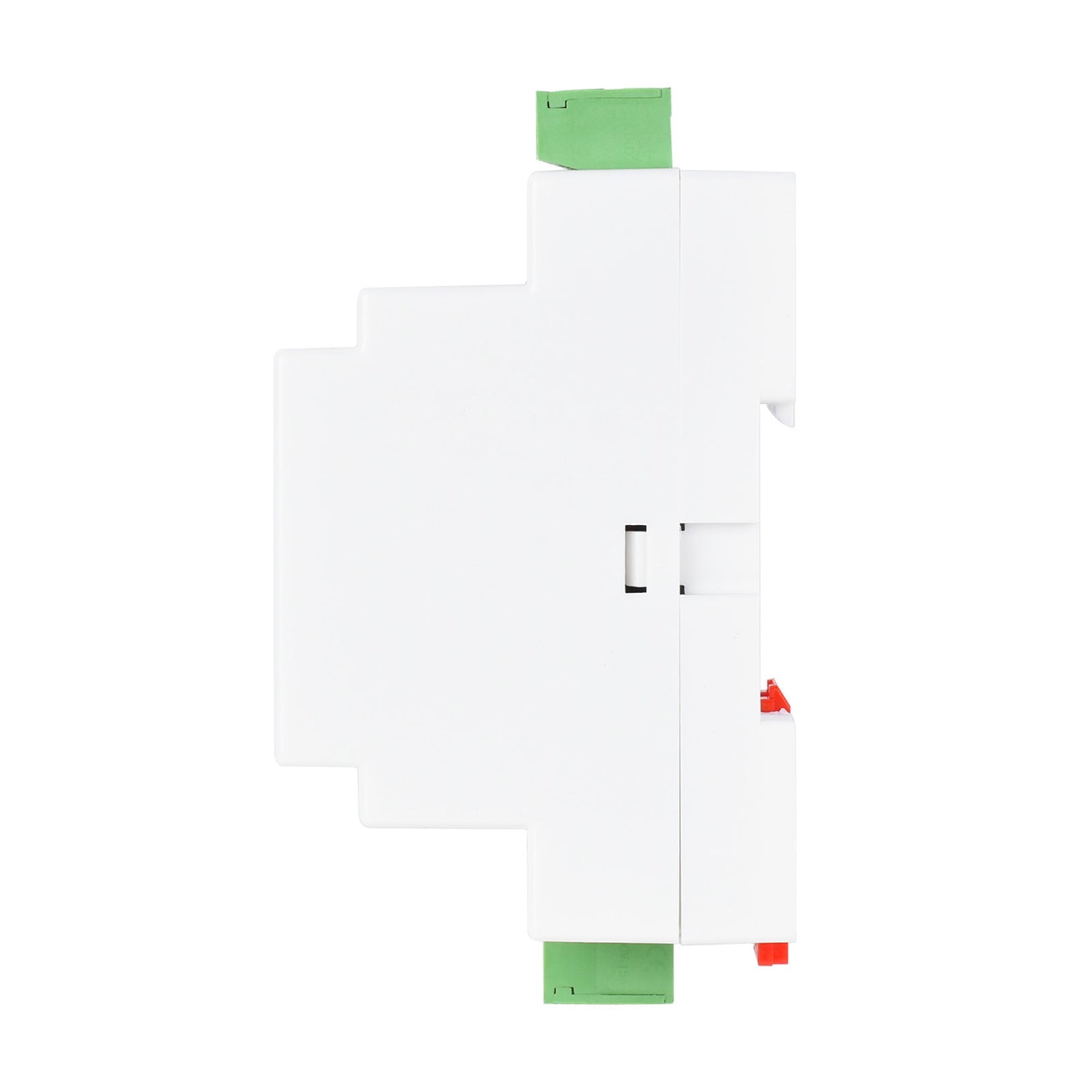

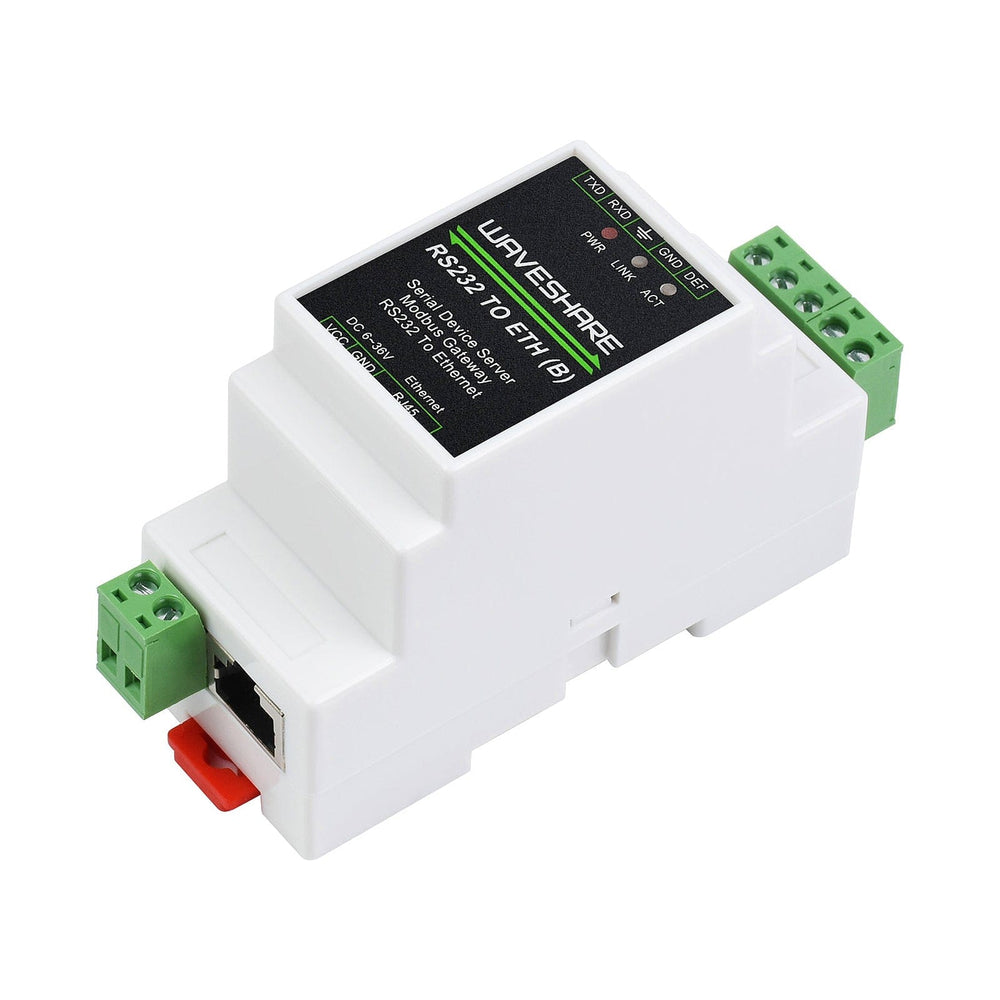

RS232 to RJ45 Ethernet Module

WaveshareSKU: WAV-23950
Price:
Sale price £19.90
incl. VAT
excl. VAT
Stock:
Only 18 units left
Quantity:

Awesome Extras

WaveshareRS232 To RJ45 Ethernet Module (PoE)
Sale price £22.20 incl. VAT excl. VAT

This RJ45 Ethernet Module transmits bi-directional transparent data between RS232 and the RJ45 ethernet connection. It has many forms of communication, including TCP Server / TCP Client / UDP Mode / UDP Multicast. There is a more flexible conversion between different protocols with its MQTT/JSON To Modbus feature and a Modbus gateway support that is suitable for a Modbus gridding upgrade, that can be used with specific configuration software.

With its multi-configuration methods, NTP protocol support (used to synchronize with computer clock time sources in a network) Multi hosts roll-polling support, screw terminals for power support, a rail mount case design to combine multi-rail mounted serial servers together, and small in size for easy installation. This module is great for your transmitting and communication needs.

For the upgraded PoE ethernet module, click here

Features

  • TCP server, TCP client, UDP mode, and UDP multicast. As a TCP client, it also supports TCP server-side functions. Supports 30 TCP connections as a TCP server and 7 destination IPs as a TCP client.
  • Baud rate of 1200~115200bps, the data bit supports 5~9 bits, and the parity bit can be no check, odd check, even check, mark, or space.
  • Sends MAC address on device connection, which is convenient for cloud management of devices.
  • Secondary development kit DLL development library for computer-side search and configuration of devices.
  • Web browser configuration, support DHCP dynamic acquisition of IP, DNS protocol connection name server addresses.
  • Remote search for devices, configure device parameters and upgrade device demos in the cloud.
  • Remote viewing of the TCP connection status, serial port data sending, and receiving the status of the device through software. The virtual serial port supports the data monitoring function.

What's on Board

Specifications

Product RS232 TO ETH (B)
Product Type Serial server, Modbus Gateway, MQTT Gateway
Basic Function Bi-directional transparent data transmission between RS232 and Ethernet
Communication interface RS232 port x 1, Ethernet port x 1
Power supply 6 ~ 36V DC screw terminal
Isolation Protection Power isolation, Signal isolation
Communication -
Ethernet Common network port
10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port Isolated RS232
Serial Specifications -
Baudrate 300 ~ 115200 bps
Parity bit None, odd, even, mark, space
Data bit 5 ~ 9 bits
Flow control N/A
Software -
Protocol ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration Host, web browser, device management functions library
Communication method TCP/IP direct communication, VCOM
Operating mode TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
Others -
Operating temperature -40℃ ~ 85℃
Humidity range 5% ~ 95% relative humidity
Dimensions L × W × H: 87 × 36 × 59 mm

Resources

Package Contents

  • 1x RS232 To RJ45 Ethernet Module
