RP2350 MCU Board with 1.28" Round IPS LCD

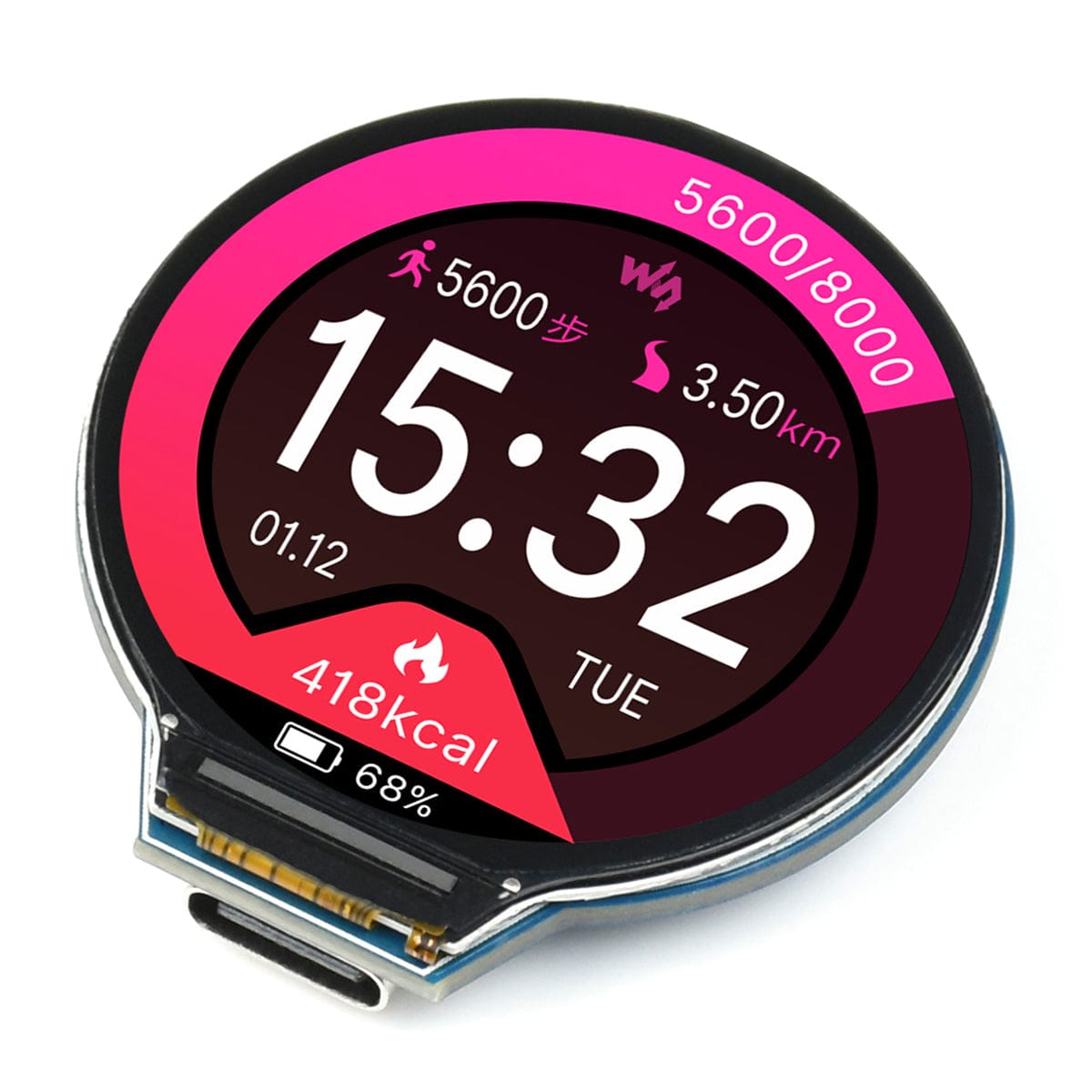

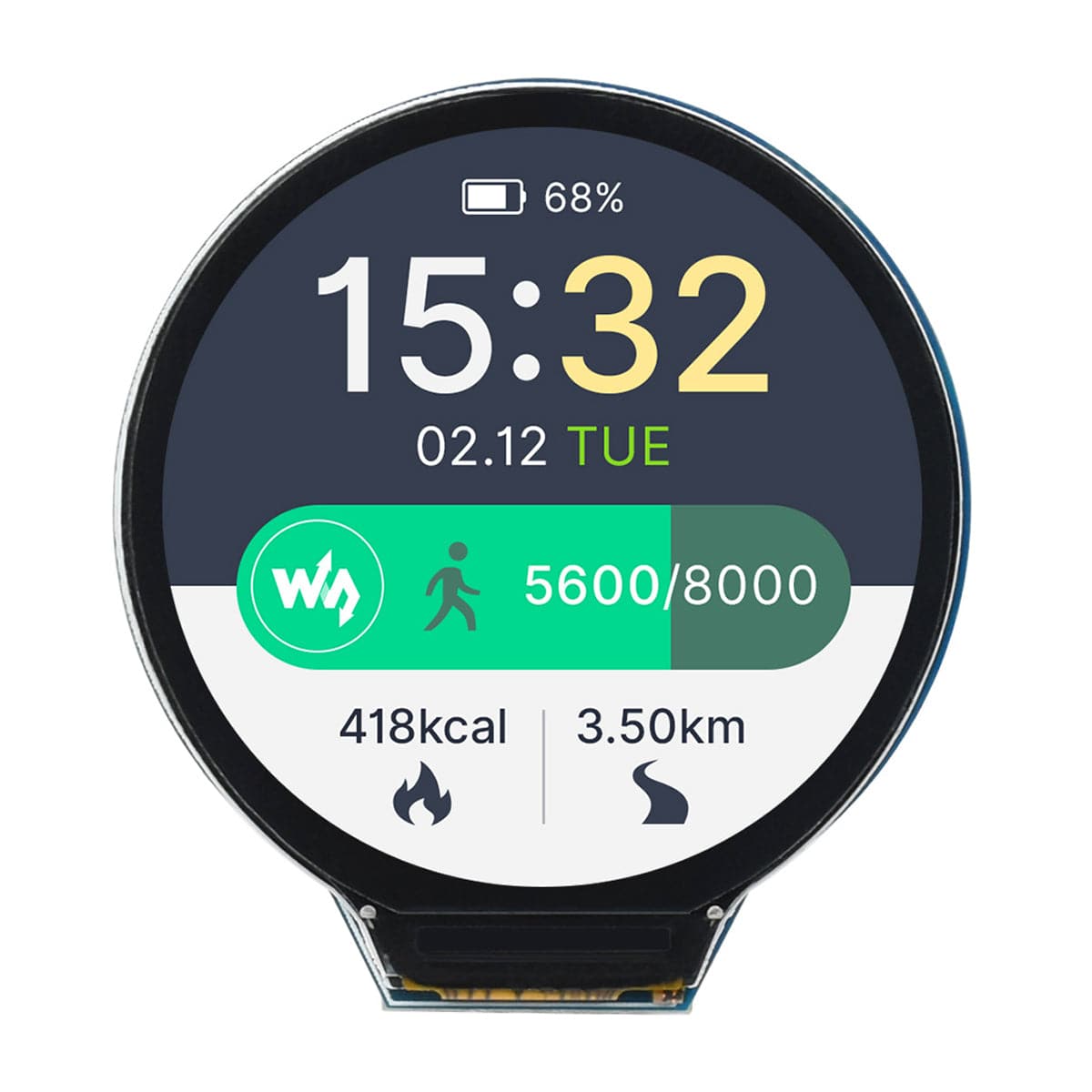

This RP2350 display has a 1.28" round IPS LCD display with a resolution of 240 x 240 pixels and 65K colours, providing vibrant and colourful images. This board also has a Li-ion battery recharge manager and a 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), making it great for motion-sensitive projects and portable designs. A Type-C connector is included for power, program burning and convenience.

Powered by the RP2350 microcontroller, it has a dual-core, dual-architecture design with a dual-core Arm Cortex-M33 processor and a dual-core Hazard3 RISC-V processor (So many dual-cores!). With flexible clock speeds of up to 150 MHz, 520KB of SRAM, and 4MB of onboard Flash memory, it is a great asset for those more demanding projects!

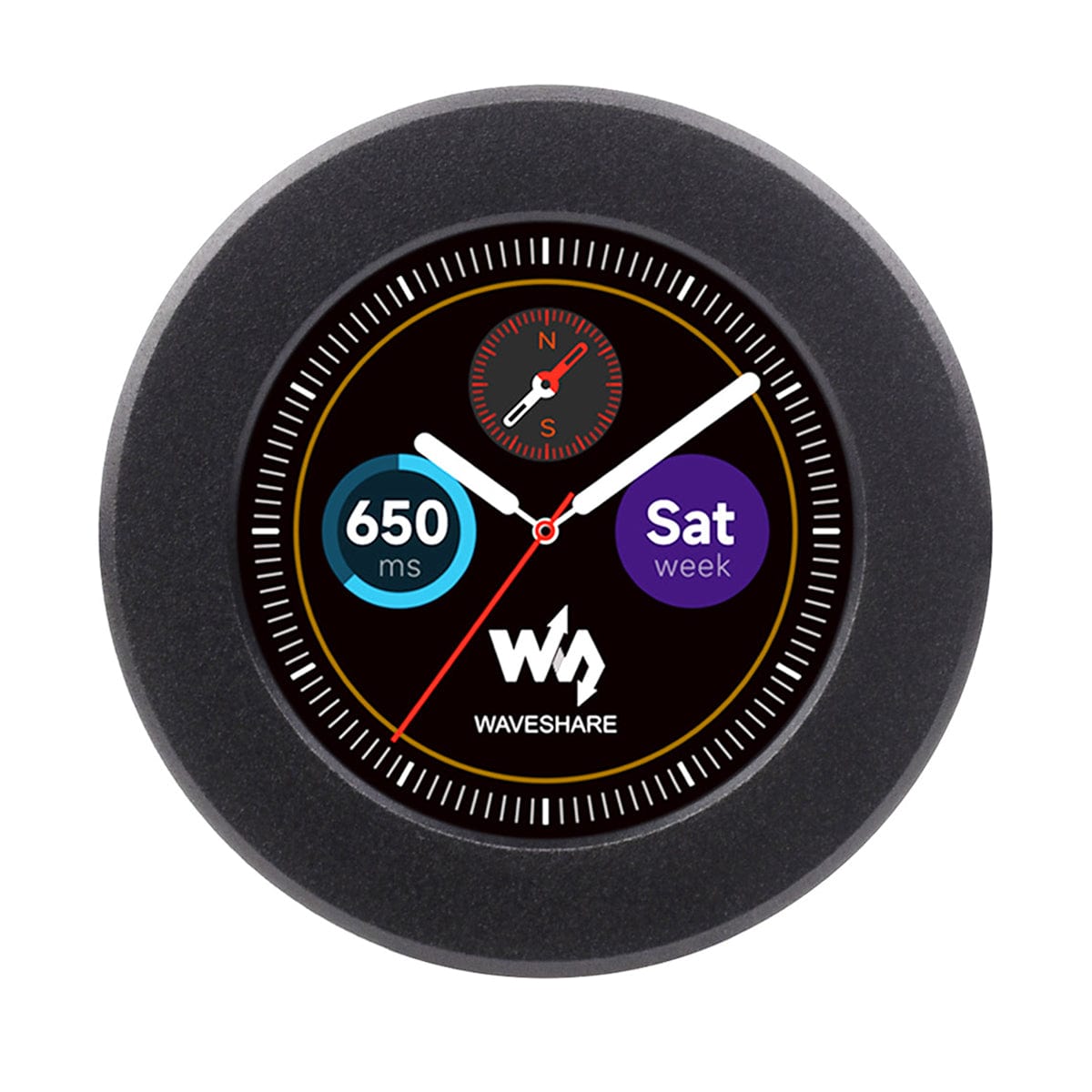

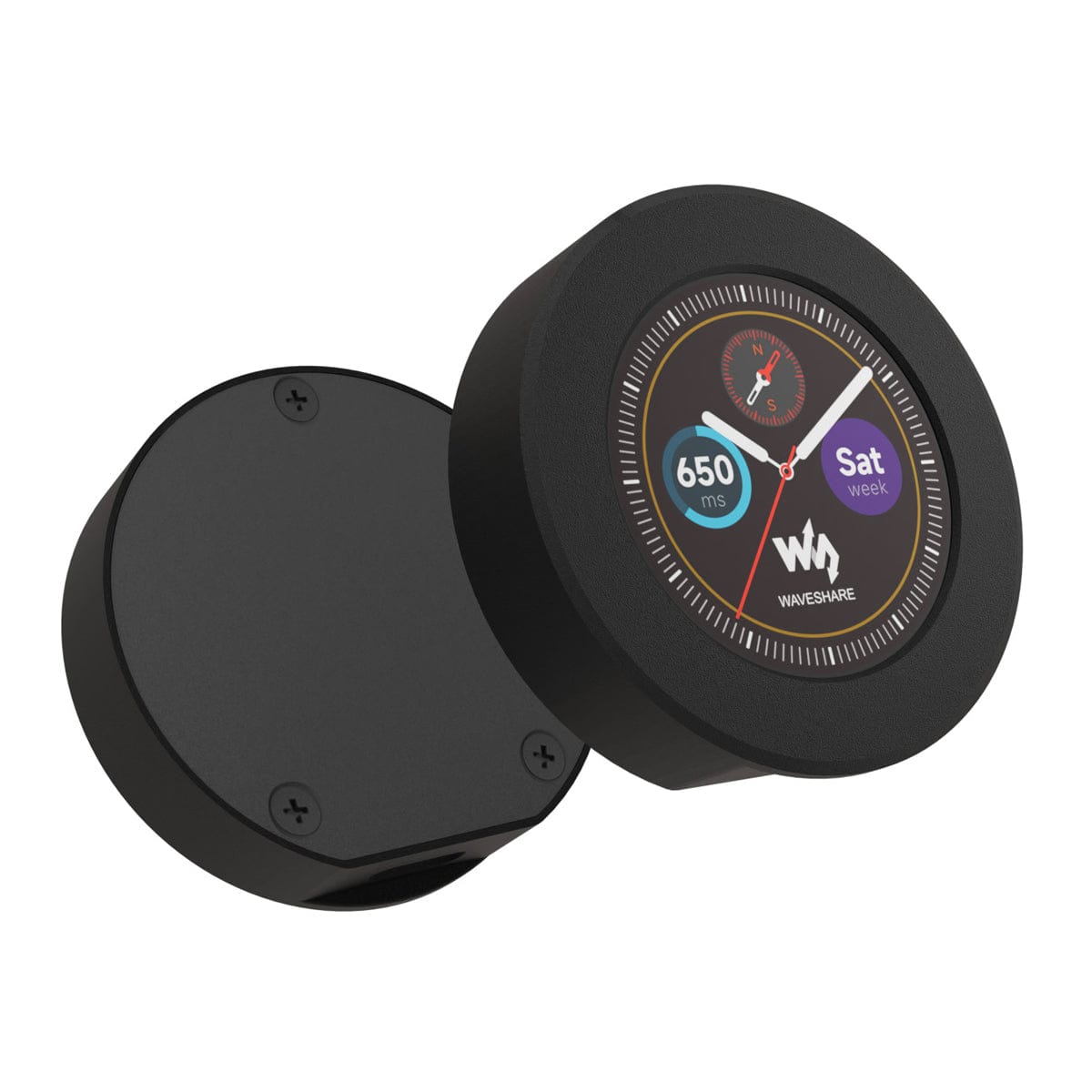

There is an optional CNC metal case that helps with heat dissipation. Please select which option you want before adding to the cart!

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely).

Features

• RP2350 microcontroller chip
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of onboard Flash memory
• Type-C connector, keeps it up to date, easier to use
• Onboard 1.28" 240 x 240 pixels 65K colourful IPS LCD for clear colour pictures
• Lithium battery recharge/discharge header, suitable for mobile devices
• All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 24x controllable PWM channels
• Temperature sensor
• 12x Programmable I/O (PIO) state machines for custom peripheral support

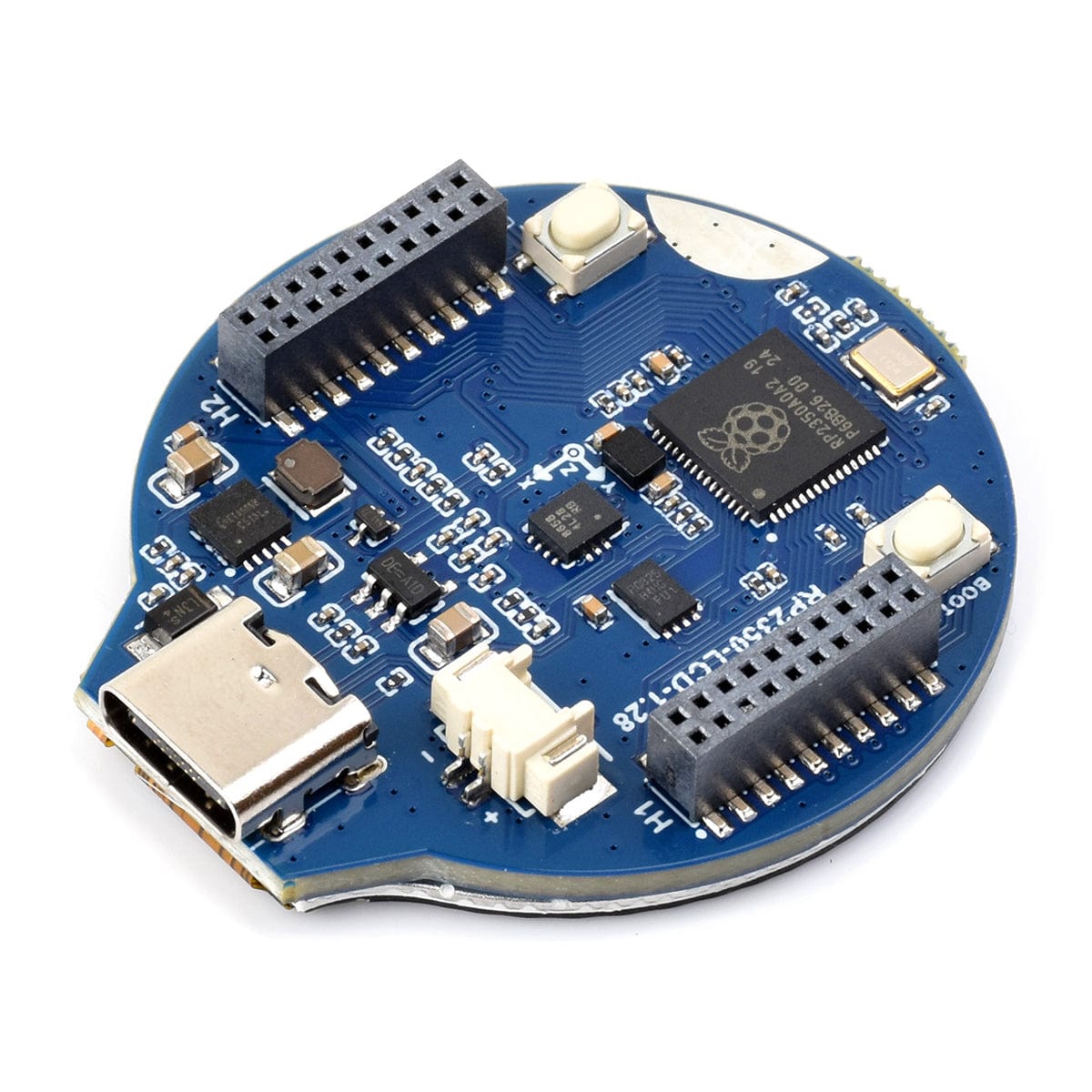

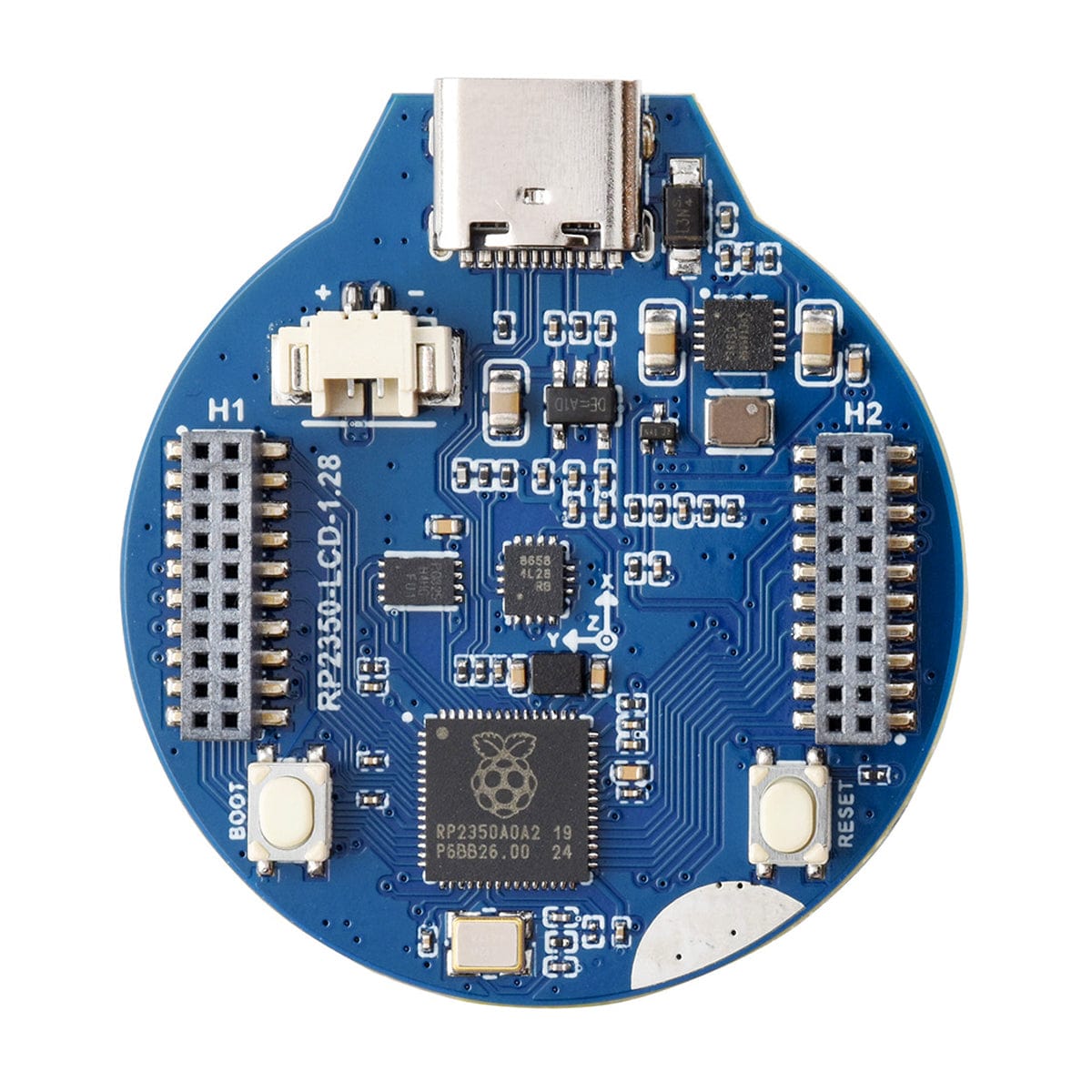

What's on Board

1. USB Type-C connector
   for program burning, USB 1.1 with device and host support
2. ETA6096
   Lithium battery recharge manager
3. Battery Header
   MX1.25 header, for a 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
4. QMI8658
   IMU includes a 3-axis gyroscope and a 3-axis accelerometer
5. 1.27mm pitch headers
   Adapting all GPIO and Debug pins
6. P25Q32SH-UXH-IR
   4MB NOR-Flash
7. RP2350
   Dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, up to 150 MHz operating frequency
8. RESET Button
9. BOOT Button
   Press it when resetting to enter download mode

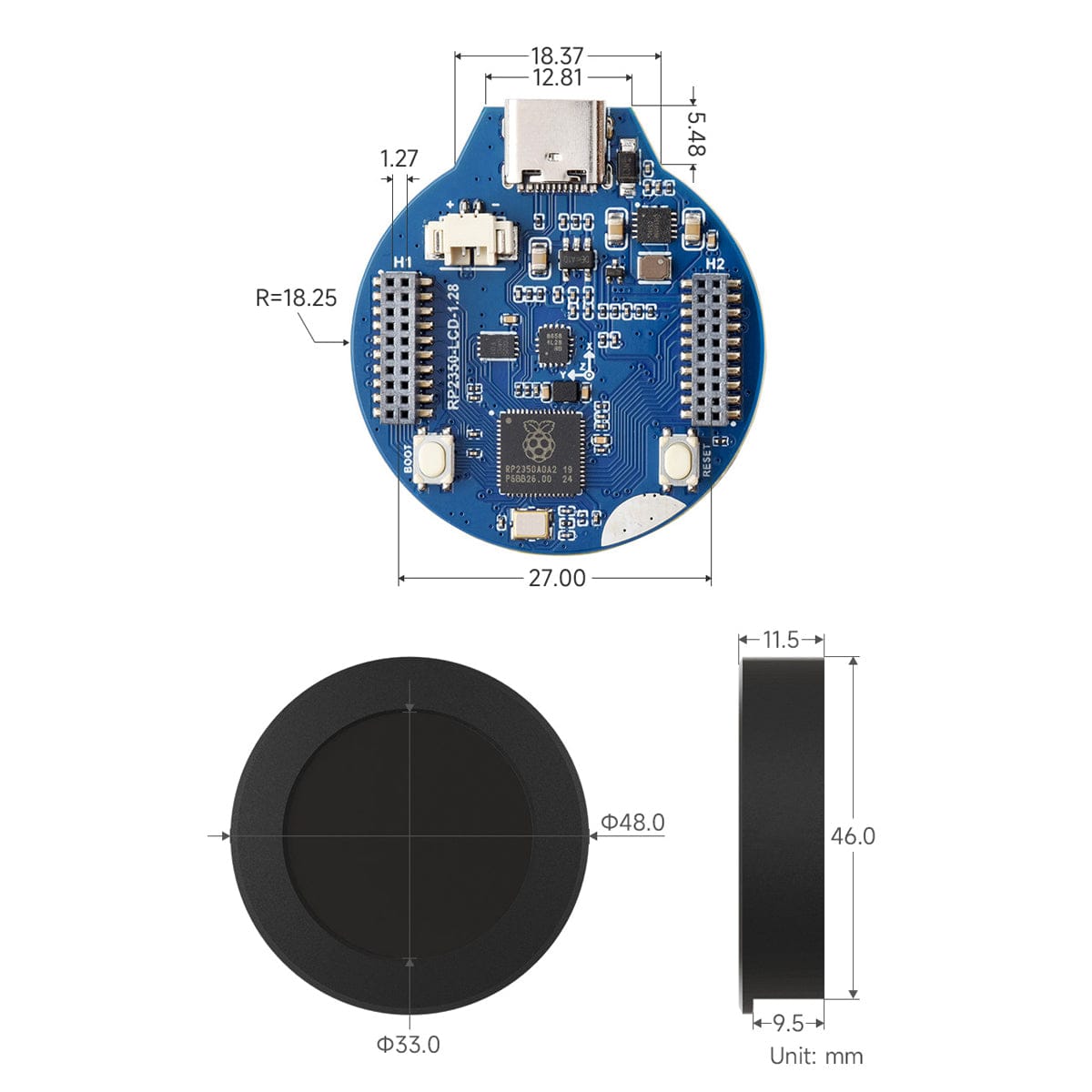

Specifications

Resources

• Product Wiki
• Schematic
• GC9A01A Datasheet
• QMI8658A Datasheet

Pinout

Package Contents

Board Only

• 1x RP2350 MCU Board

With a CNC Metal Case

• 1x 1x RP2350 MCU Board with CNC Case
