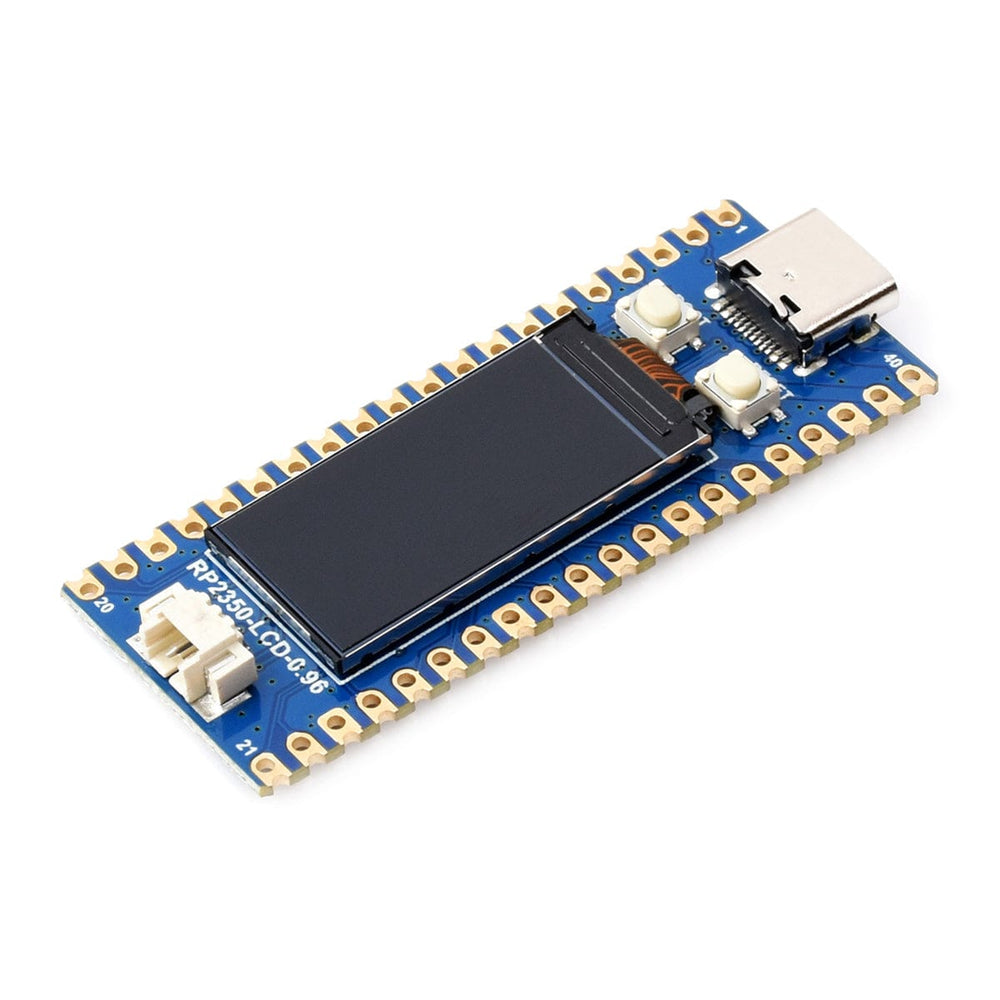

RP2350 Development Board with 0.96" LCD Display (160 x 80)

This is a small development board built around the RP2350 microcontroller. It combines a dual-core Arm Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, running at flexible clock speeds of up to 150 MHz. With 520KB of SRAM and 4MB of onboard Flash memory, it provides plenty of storage for a variety of projects.

There's a 0.96" IPS LCD display with a resolution of 160 x 80 pixels and 65K colours, which gives you a colourful and vibrant screen. A handy USB-C connector is provided for power, programming, and debugging.

The board includes a lithium battery recharge/discharge header. It also has the MP28164 DC-DC chip, an effective buck-boost regulator capable of supporting a maximum load current of 2A. Last but not least, it supports multiple connectivity options, including GPIO, UART, SPI, and I2C. This gives you more freedom to connect to different devices and expands the possibilities of your next project!

This comes in two options: Board Only and With Soldered Headers. Please choose which one you want before adding it to your cart!

Please note: this board uses a tiny MX1.25 connector for LiPo power. Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely).

Features

• RP2350A Microcontroller Chip
• Dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of onboard Flash memory
• USB-C connector, keeps it up to date, easier to use
• 0.96" 160 x 80 pixels 65K colourful IPS LCD display
• Lithium battery recharge/discharge header, suitable for mobile devices
• DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26x multi-function GPIO pins
• 2x SPI, 2x I2C, 2x UART, 4x 12-bit ADC, 16x controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12x Programmable I/O (PIO) state machines for custom peripheral support

What's on Board

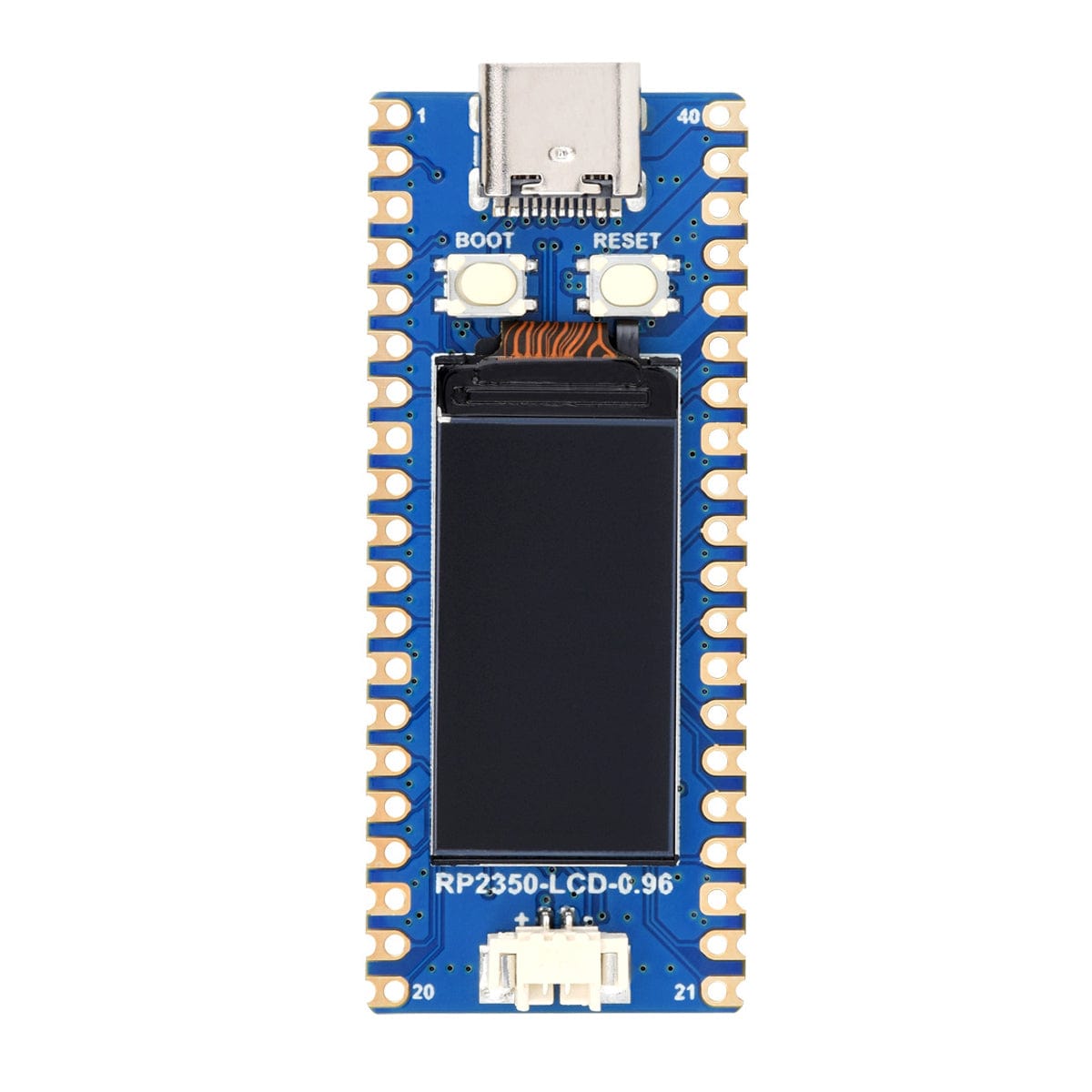

1. USB Type-C connector
   For program downloading, supports USB1.1 hosts and slave devices
2. BOOT button
3. RESET button
4. 0.96" IPS LCD display
   160 x 80 pixels, 65K colourful
5. Battery header
   MX1.25 header, for a 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
6. MP28164
   DC-DC buck-boost chip
7. ETA6096
   Lithium battery recharge manager
8. RP2350A
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
9. P25Q32SH-UXH-IR
   4MB NOR-Flash
10. DEBUG points
11. Pinout
    Compatible with Raspberry Pi Pico 2

Resources

• Product Wiki
• Schematic

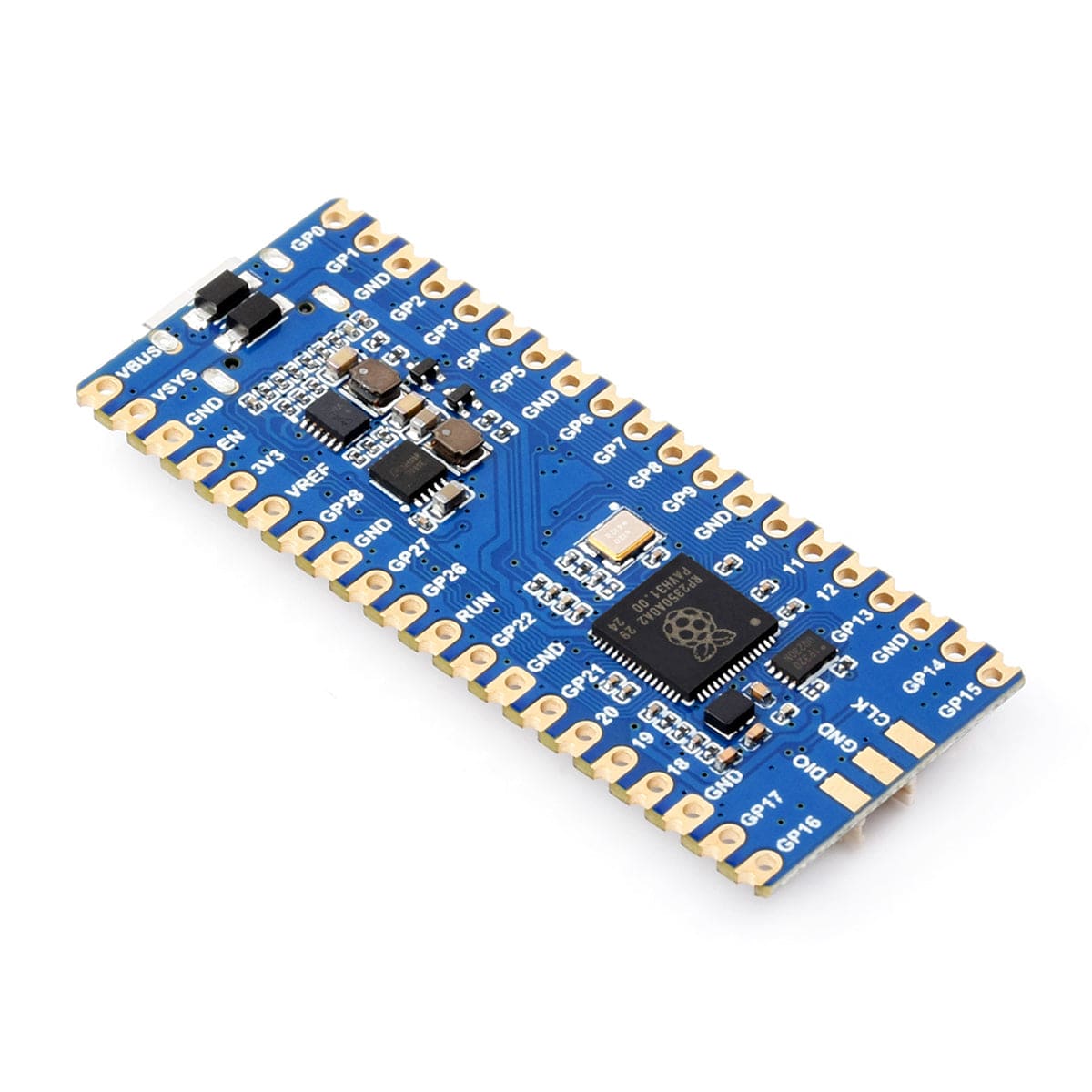

Pinout

Package Contents

Board Only

• 1x RP2350 Development Board

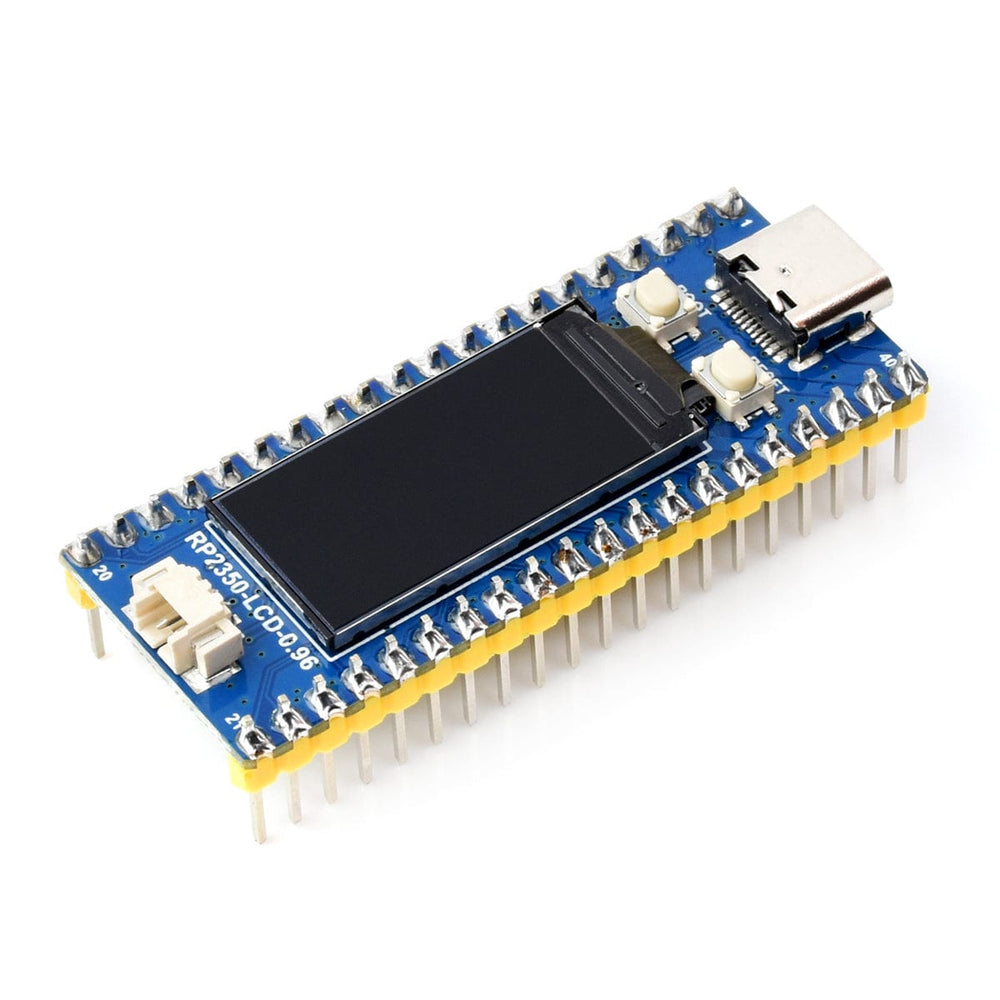

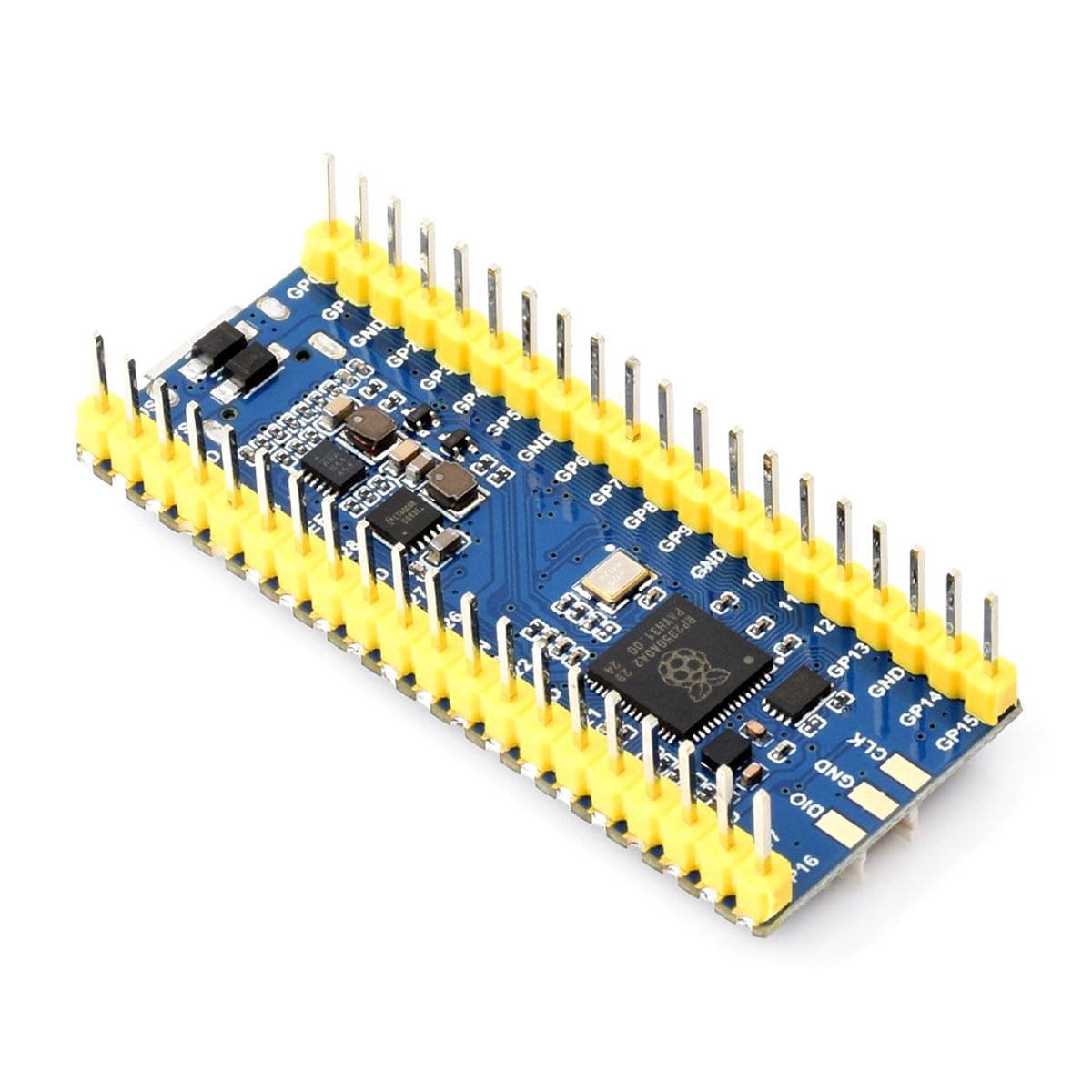

With Soldered Headers

• 1x RP2350 Development Board with Soldered Headers
