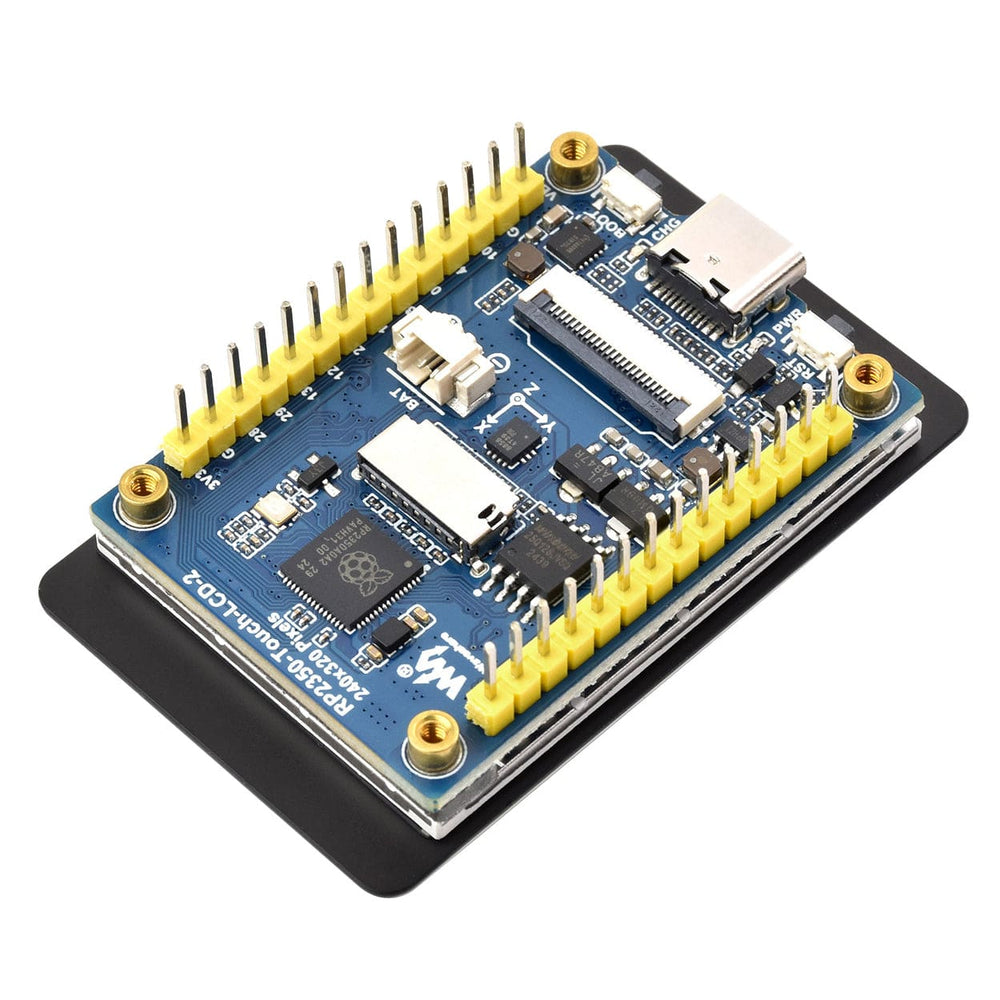

RP2350 2" Capacitive Touch Display Dev Board with 6-Axis IMU

WaveshareSKU: WAV-30711
Price:
Sale price £12.40
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

USB-A to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
USB-C to USB-C Cable - Black by The Pi Hut - The Pi Hut
The Pi HutUSB-C to USB-C Cable - Black
Sale priceFrom £2.25 incl. VAT excl. VAT
SanDisk MicroSD Card (Class 10 A1) by SanDisk - The Pi Hut
SanDiskSanDisk MicroSD Card (Class 10 A1)
Sale price £8 incl. VAT excl. VAT
120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut
Molex PicoBlade 2-pin Cable - 200mm by The Pi Hut - The Pi HutMolex PicoBlade 2-pin Cable - 200mm by The Pi Hut - The Pi Hut
The Pi HutMolex PicoBlade 2-pin Cable - 200mm
Sale price £0.80 incl. VAT excl. VAT

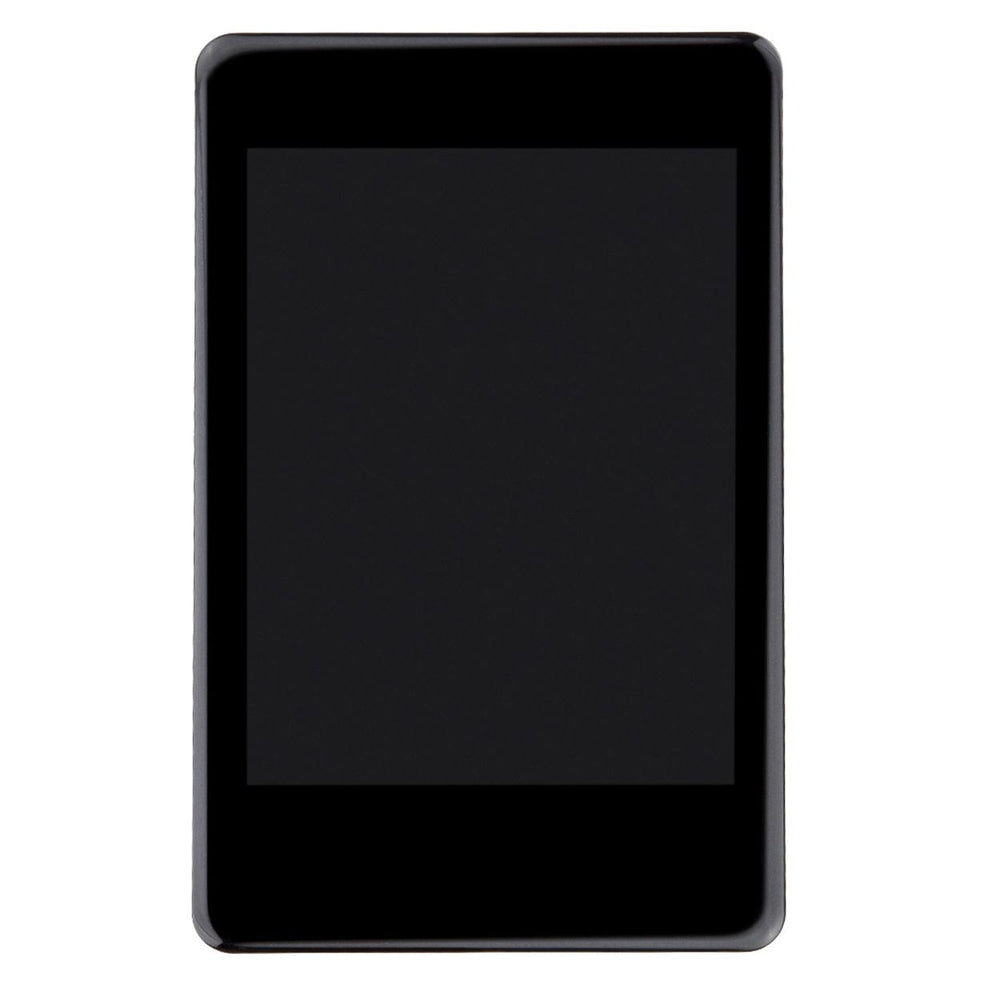

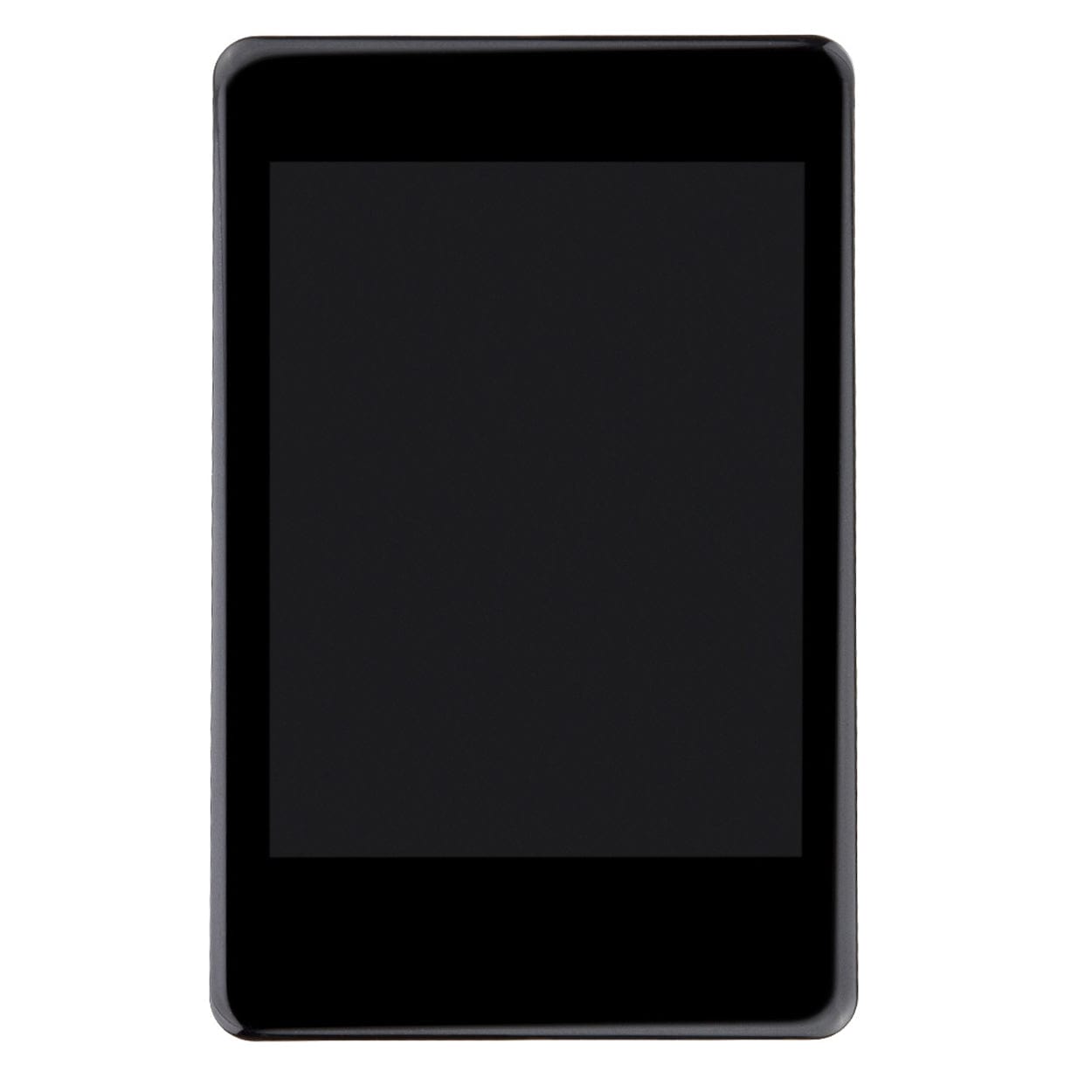

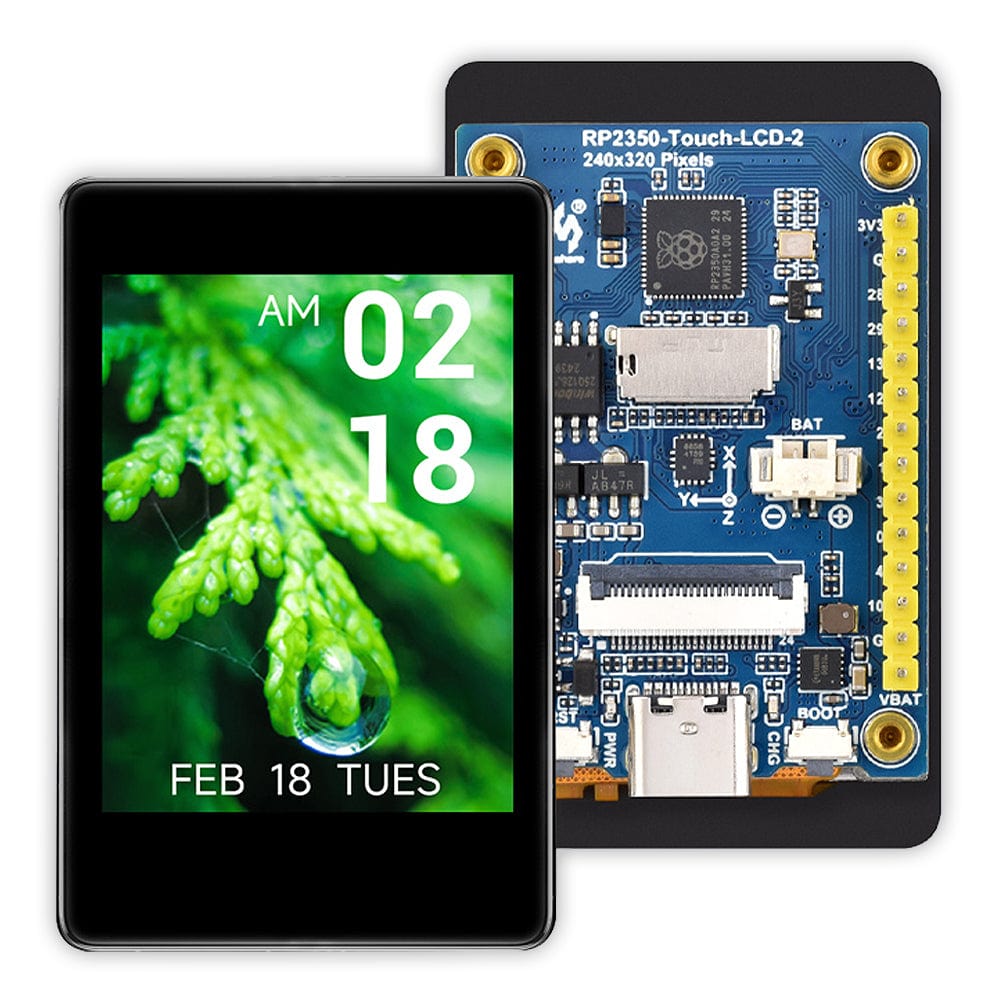

This display dev board from Waveshare is powered by a Raspberry Pi RP2350 microcontroller and includes a 2" IPS LCD capacitive touch display, a 6-axis IMU, Micro SD slot, PicoBlade LiPo charging, camera interface and more!

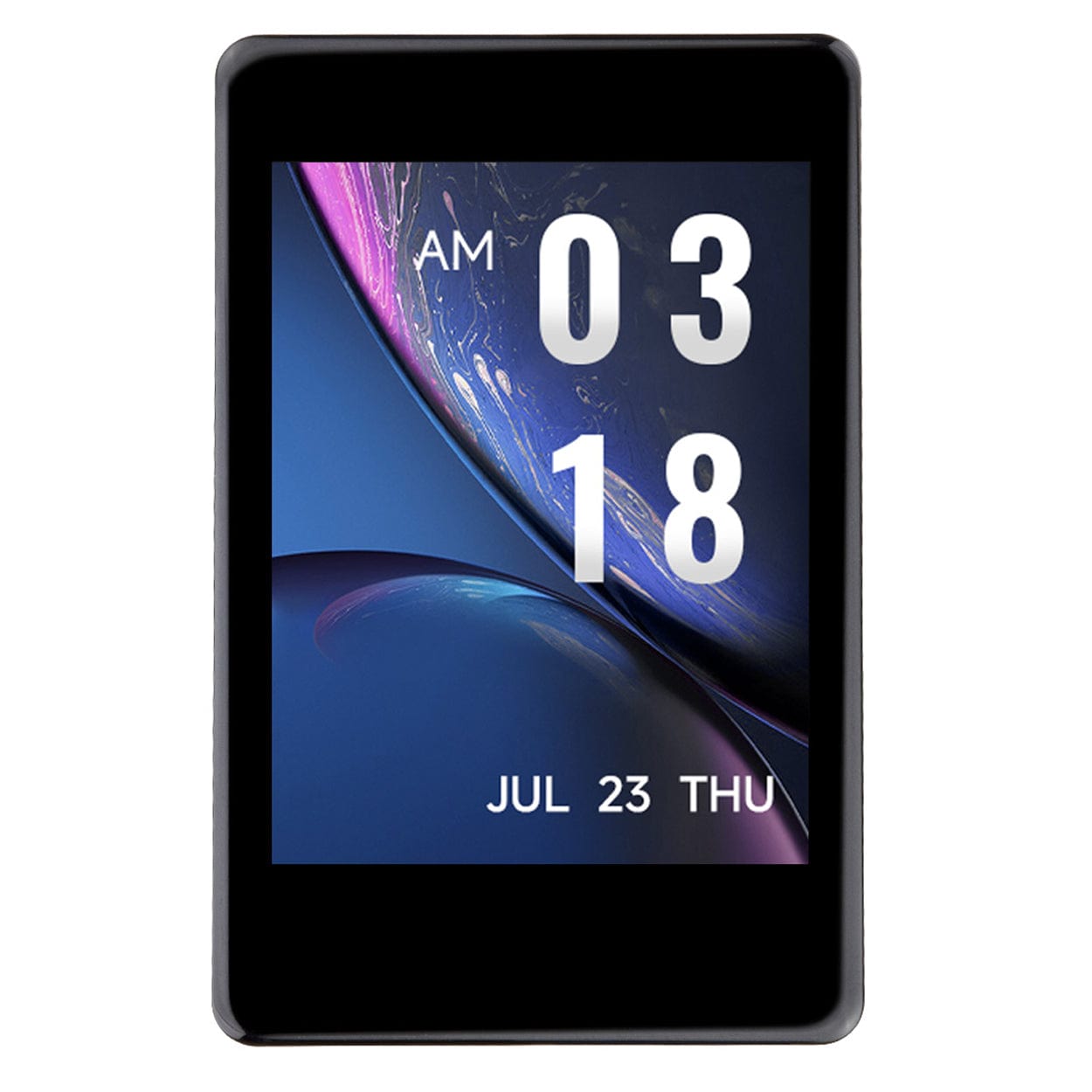

Powered by an RP2350 microcontroller (needs no introduction!) and backed up 16MB flash, this compact display dev board features a 2" 240x320 IPS LCD offering 262k colours and capacitive touch.

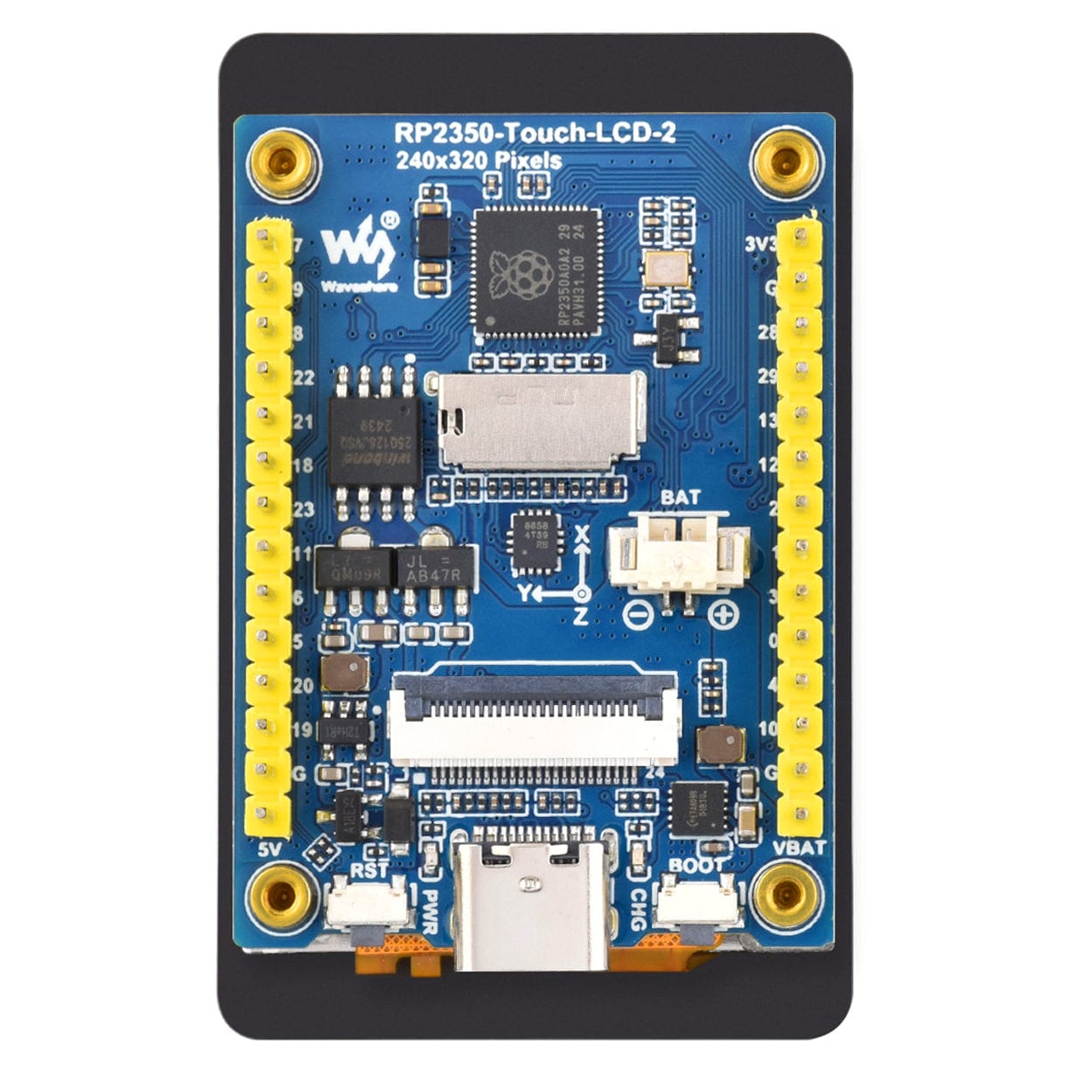

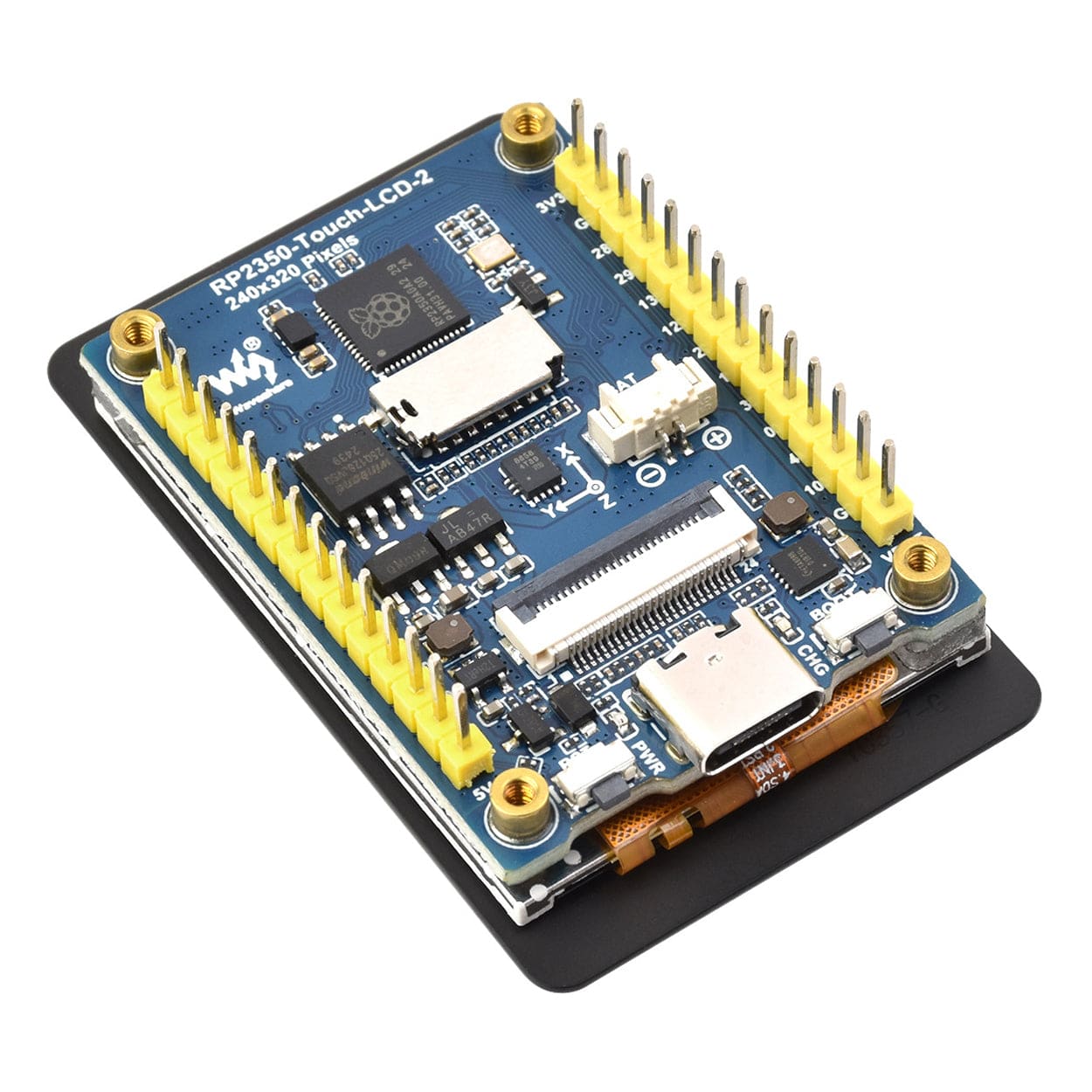

At the business end, you'll find a USB-C port for power and programming, a 6-axis IMU, MX1.25/PicoBlade LiPo charging circuit, slot for a MicroSD card and RESET/BOOT buttons. Pre-soldered pin headers offer access to a healthy number of GPIO pins for your projects too!

Waveshare have also added an interface for an OV2640 or OV5640 camera module (camera not included) for image and video capture, should your project need it.

Demo code examples are available over on the product wiki to get you started with various platforms.

Camera module not included

Features

  • Powered by Raspberry Pi RP2350 microcontroller
    • Dual-core ARM Cortex-M33 and dual-core Hazard3 RISC-V architecture
    • Flexible clock speed up to 150 MHz
    • 520KB SRAM
  • 16MB onboard flash memory
  • 2" IPS LCD display (240x320 resolution, 262K colours)
  • Capacitive touchscreen with I2C connection and interrupt support
  • Camera interface for OV2640/OV5640 modules (camera not included)
  • 6-axis IMU with 3-axis accelerometer and 3-axis gyroscope
  • MicroSD card slot
  • MX1.25/PicoBlade lithium battery charging and discharge circuit
  • USB-C for power and programming
  • USB 1.1 with device and host support
  • Drag-and-drop programming using USB mass storage
  • Supports low-power sleep and dormant modes
  • 22 × GPIO pins with flexible pin function configuration
  • 2 × SPI, 2 × I2C, 2 × UART, 2 × 12-bit ADC, 14 × PWM channels
  • 12 × Programmable I/O (PIO) state machines
  • RESET and BOOT buttons

What's onboard?

Resources

Pinout

Package Contents

  • 1x RP2350 2" Capacitive Touch Display Dev Board with 6-Axis IMU

Camera module not included
