Round Semi-Circle Backlight LED - 50mm Diameter

Price:
Sale price £2.90
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

Alligator Clip to Male Jumper Wire - 6 Piece Set - The Pi HutAlligator Clip to Male Jumper Wire - 6 Piece Set - The Pi Hut
The Pi Hut Ultimate Resistor Kit - The Pi HutThe Pi Hut Ultimate Resistor Kit - The Pi Hut
The Pi Hut575-Piece Ultimate Resistor Kit
Sale price £6 incl. VAT excl. VAT

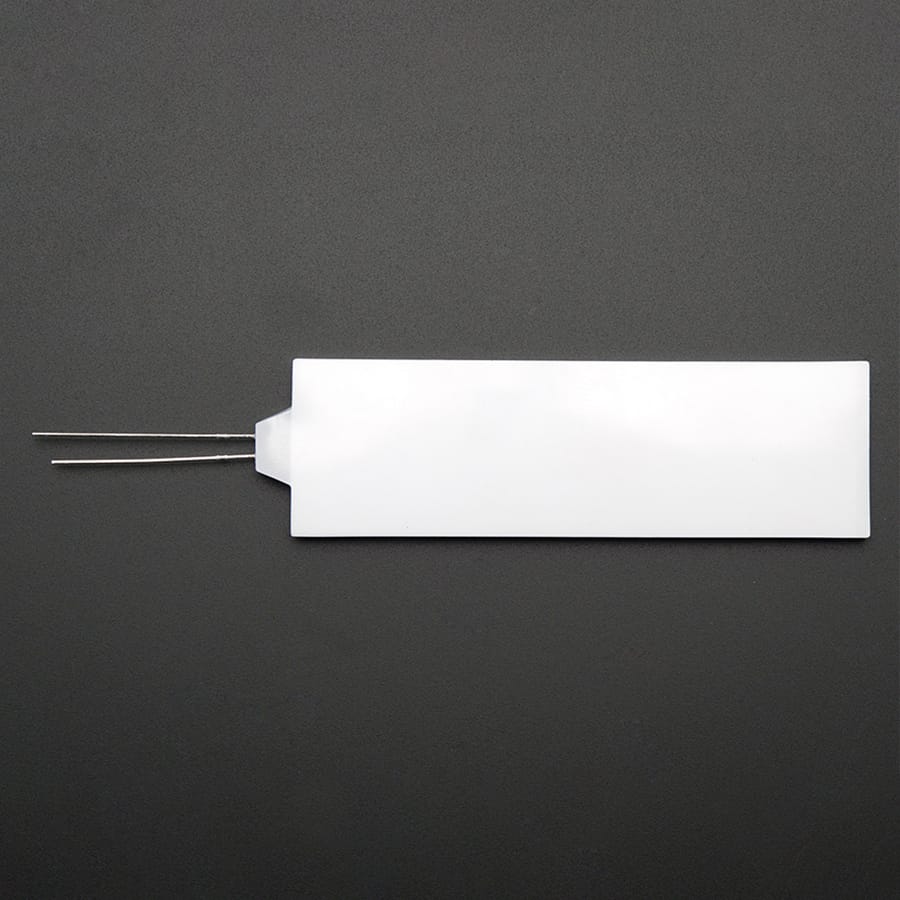

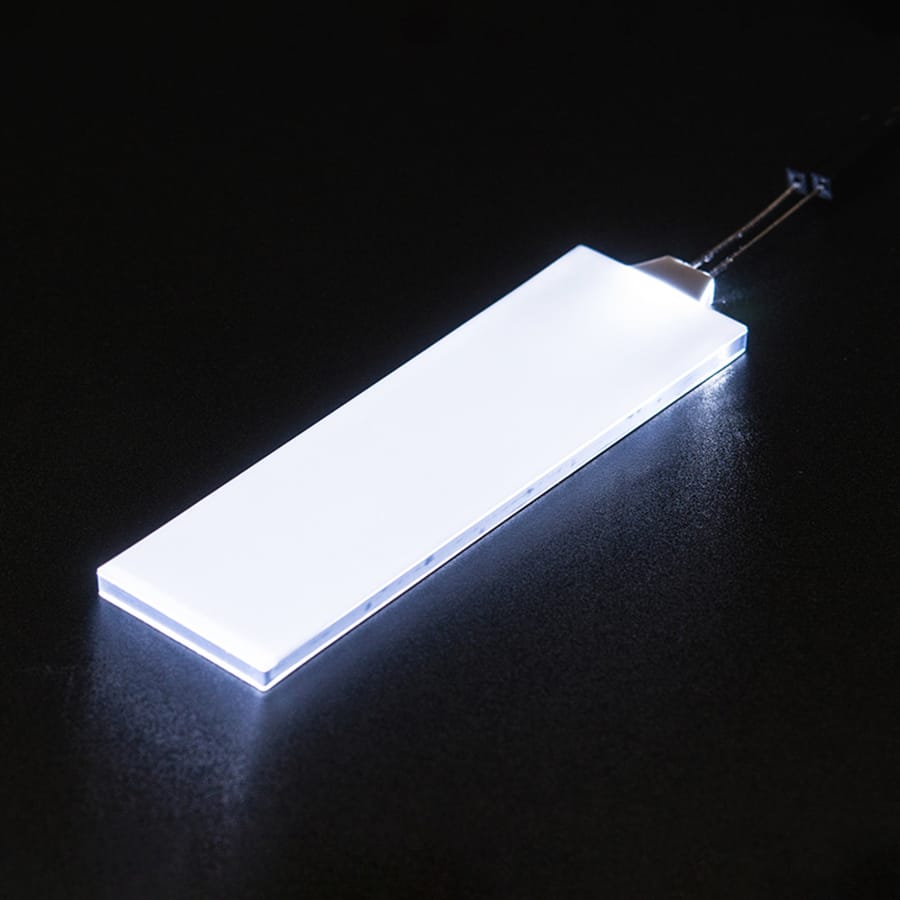

White LED Backlight Module - Medium 23mm x 75mm - The Pi HutWhite LED Backlight Module - Medium 23mm x 75mm - The Pi Hut
White LED Backlight Module - Large 45mm x 86mm - The Pi HutWhite LED Backlight Module - Large 45mm x 86mm - The Pi Hut
Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder WireAutosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire
Magnetic Silicone Soldering Mat - The Pi HutMagnetic Silicone Soldering Mat - The Pi Hut
The Pi HutMagnetic Silicone Soldering Mat
Sale price £11 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

These pretty circles of light are plastic diffused backlights, probably originally used in LCD gauge displays. Normally they're tucked behind the LCD and shine white light from below. Here, we've got the LEDs available individually, and they're really cool! Each LED is encased in a 2.2mm thick semi-circle of acrylic.

The acrylic is a special type that is very good at diffusing light, so even though there are only two white LEDs, it provides near-uniform lighting. The other flat side of the diffuse has a reflector on it so you only get light from the top (otherwise the backlight would lose 1/2 the brightness unnecessarily)

You can treat this 50mm diameter backlight just like an LED, light with ~3V at 30mA current, and you get a pretty shape that you can mask with vinyl or draw over with a marker. Gels can be used to change the colour. We think these would make great wearables without the need for EL or inverters. They're much brighter than EL and use less battery. The trade-off is these are not flexible at all.

Pinout - the two legs are labelled A and K. A is for your + voltage, K is for GND.

Technical Details
