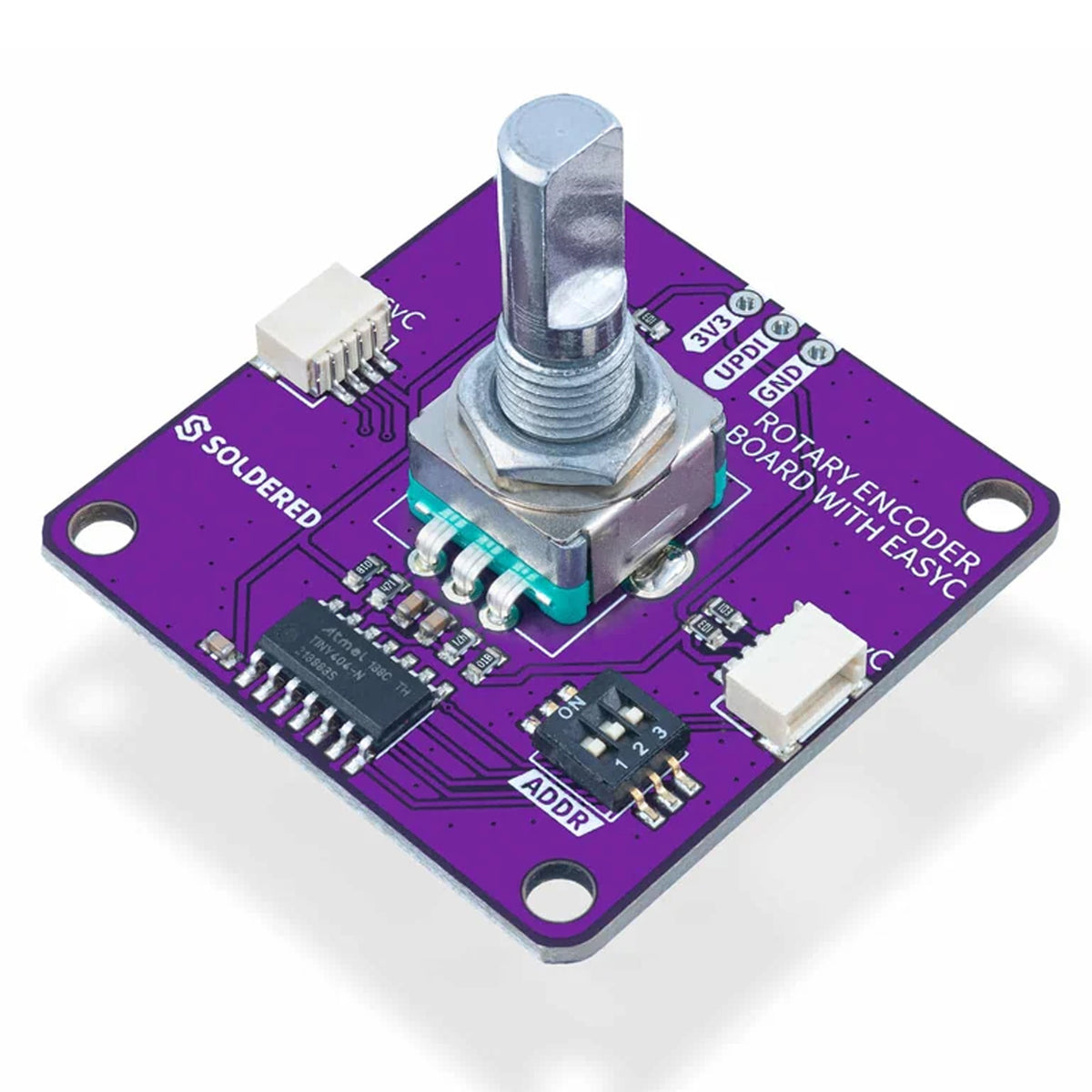

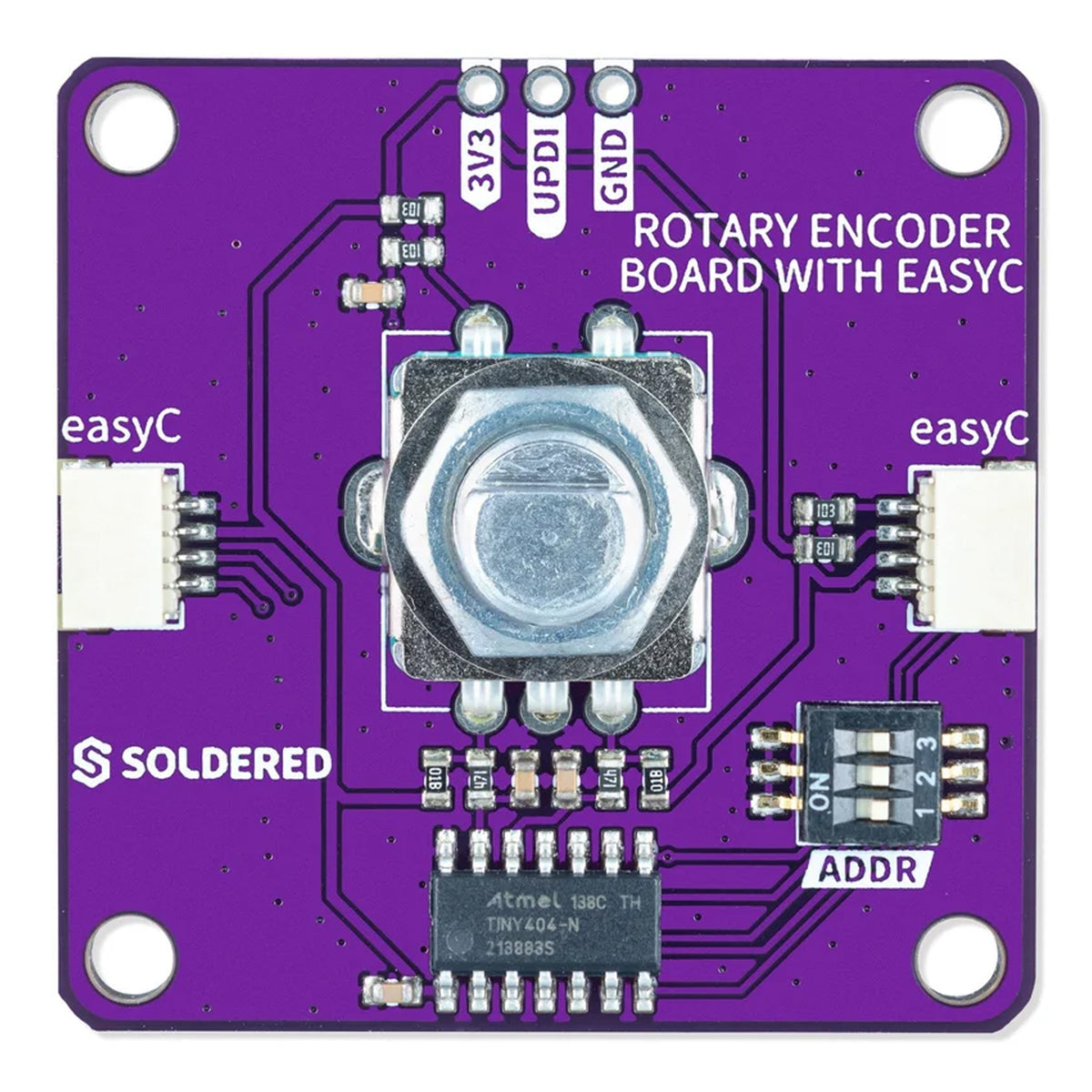

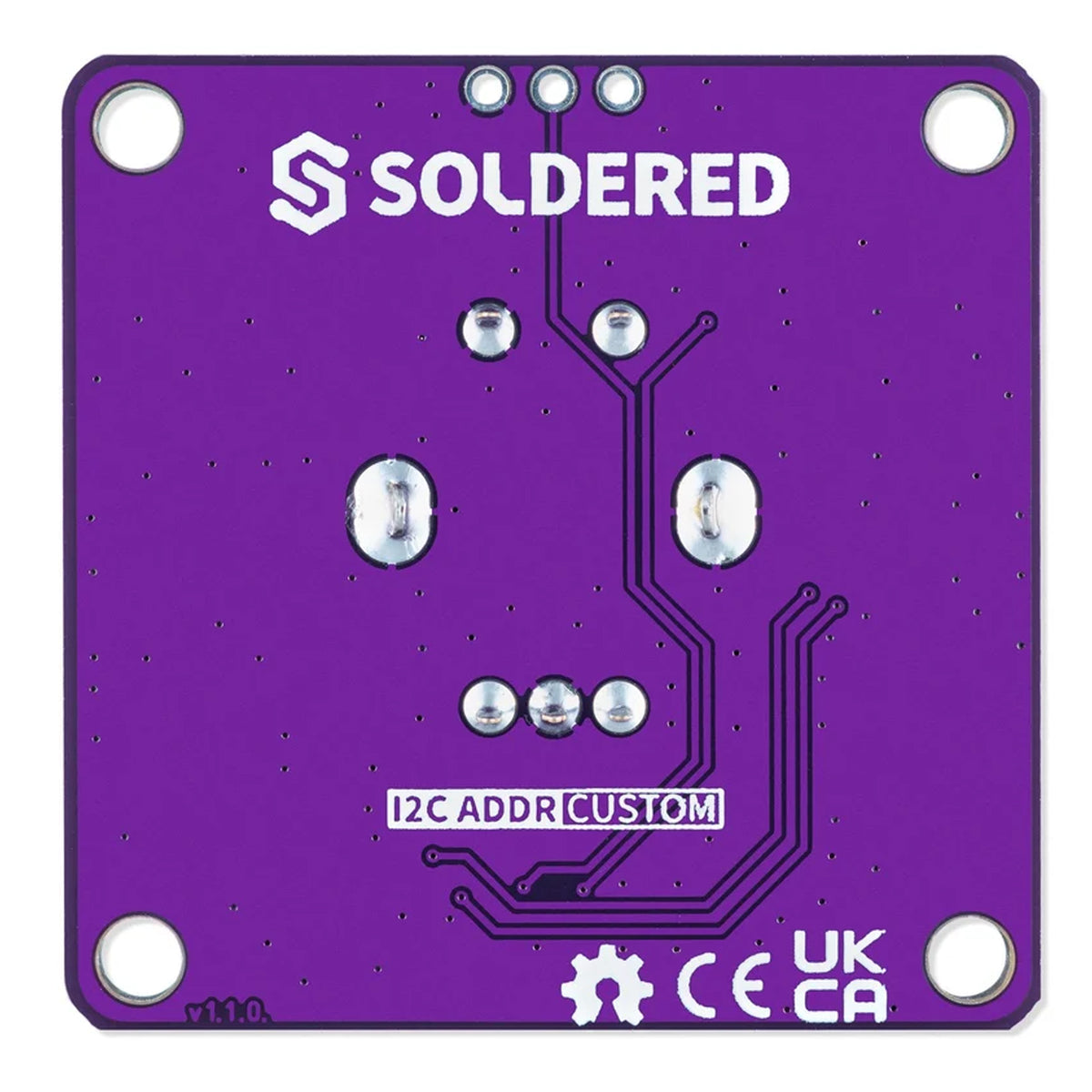

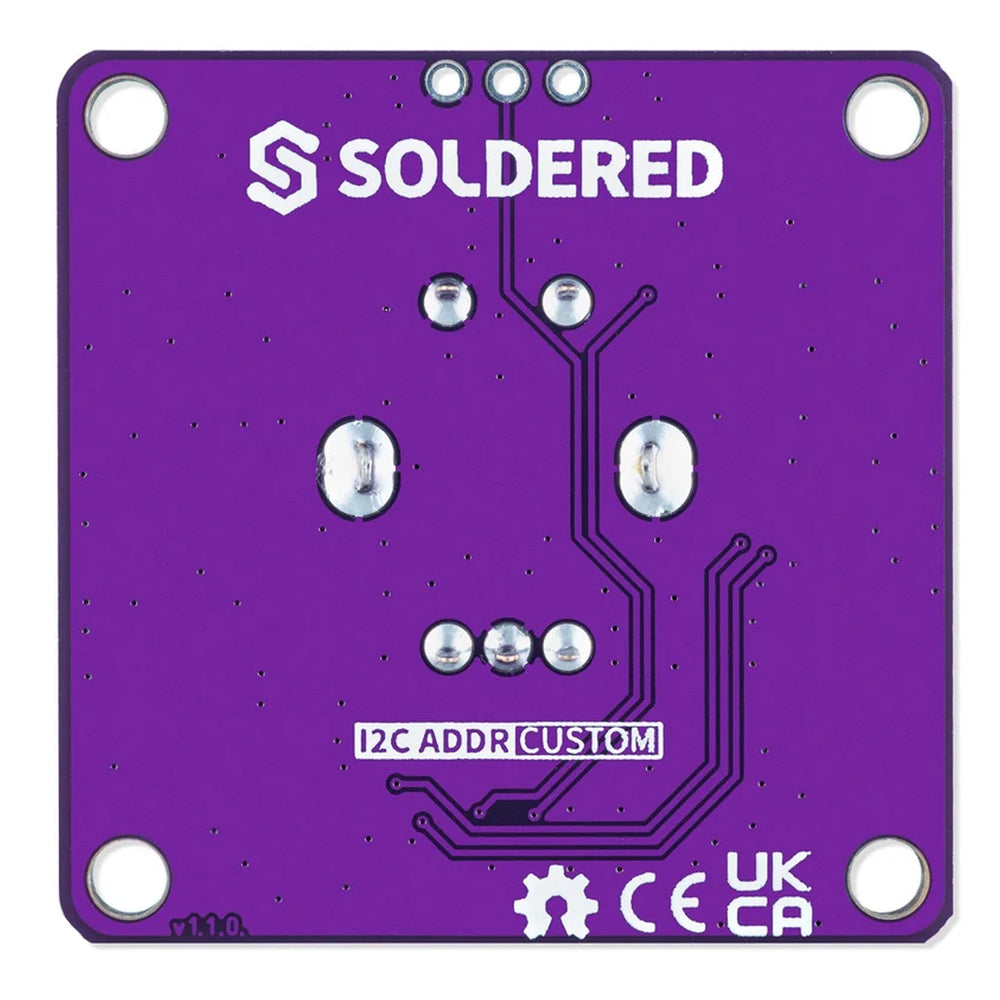

The Rotary Encoder Board With Qwiic provides precise rotational and push-button input, with an onboard ATtiny404 and dual Qwiic connectors for simple I2C integration with microcontroller projects.
Unleash the potential of digital control with the Rotary Encoder Breakout Board. Compact and powerful, this module makes working with rotary encoders easy.
Rotary encoders are versatile input devices that convert angular position or button movement into digital signals. With the ability to detect direction and distance of rotation, they are perfect for controlling a variety of equipment such as volume knobs on audio devices, motors in robotics, or navigation controls in user interfaces.
Our breakout board simplifies the use of rotary encoders by utilizing Qwiic technology, making it easily connectable with microcontrollers or other circuits. It accepts input from a rotary encoder and translates it into signals that your microcontroller can interpret. In addition to the aforementioned rotary encoder module, the board also features a small ATTiny404 microcontroller, as well as a switch for selecting the I2C address. This breakout board comes with 2 Qwiic connectors for easy plug-and-play into the Qwiic system. If you don't want to use Qwiic, the module can also be used via standard headers.
Features
Rotary encoder breakout board with Qwiic connectors for easy microcontroller integration
Detects rotation direction and distance for precise angular position measurement
Built-in ATTiny404 microcontroller for signal processing
I2C address selection switch for multiple board configuration
2 Qwiic connectors for plug-and-play connectivity
Standard header pins available as alternative connection method
Suitable for audio controls, robotics, and UI navigation applications
Compact design simplifies integration into existing circuits
Specifications
Input voltage: 3.3V
Rotary encoder PN: EC11E1534408
Microcontroller: ATTiny404
Signal translation for easy microcontroller interpretation
