The Room Sensor Enclosure (Size 3) is designed and manufactured for wall mounting applications such as air detectors, social distance monitoring, smart thermostats, sensor monitoring, lighting control systems, PIR sensors or any other projects which need a subtle, quality, workable enclosure.
The Size 3 Room Sensor Enclosure has overall dimensions of 51mm x 51mm x 25.5mm. Available with a solid or vented housing (select above), the enclosure lends itself to many different electronic applications.
Moulded from a UL94-V0 material, this 'Size 3' enclosure features a knockout on the base of the enclosure that allows cables to be inserted from the rear so that they are hidden once installed.
- Ideal for wall mount controls and smart applications such as lighting, security or network modules

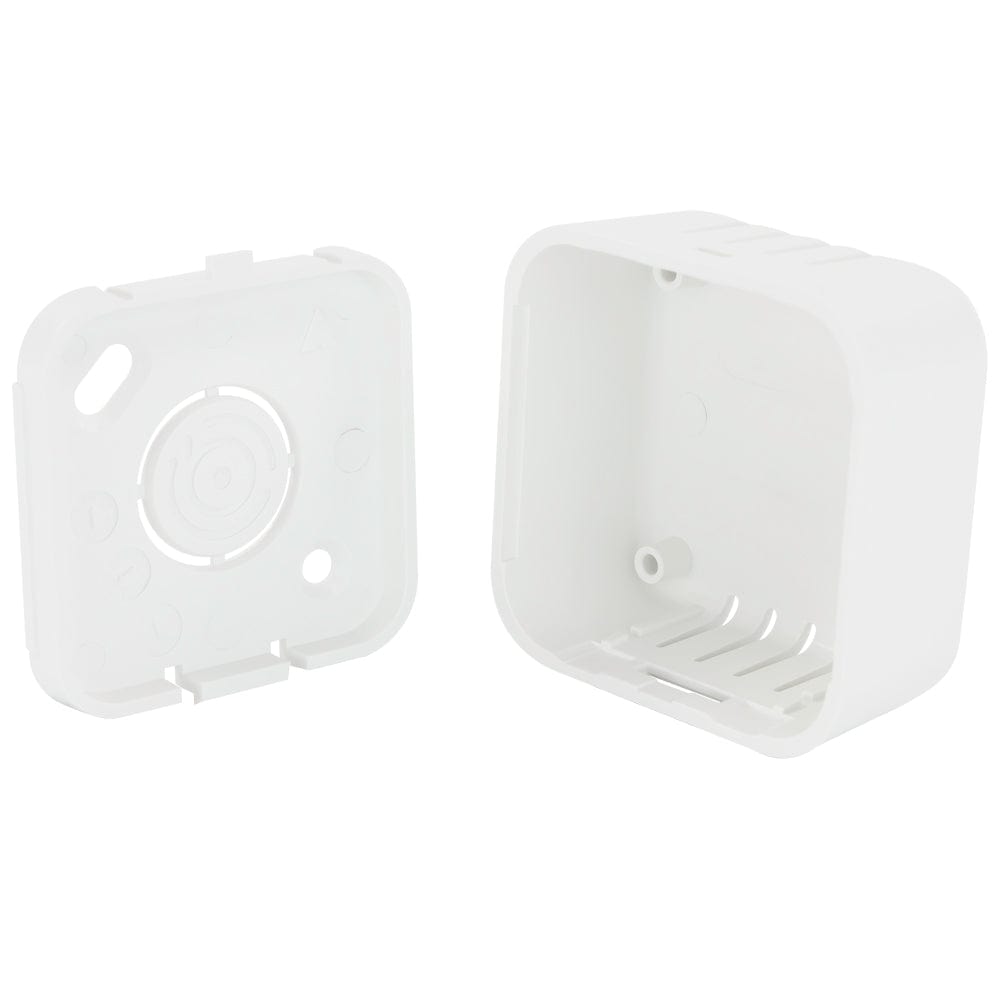

- Front and back clip together construction (tool required for disassembly once mounted)

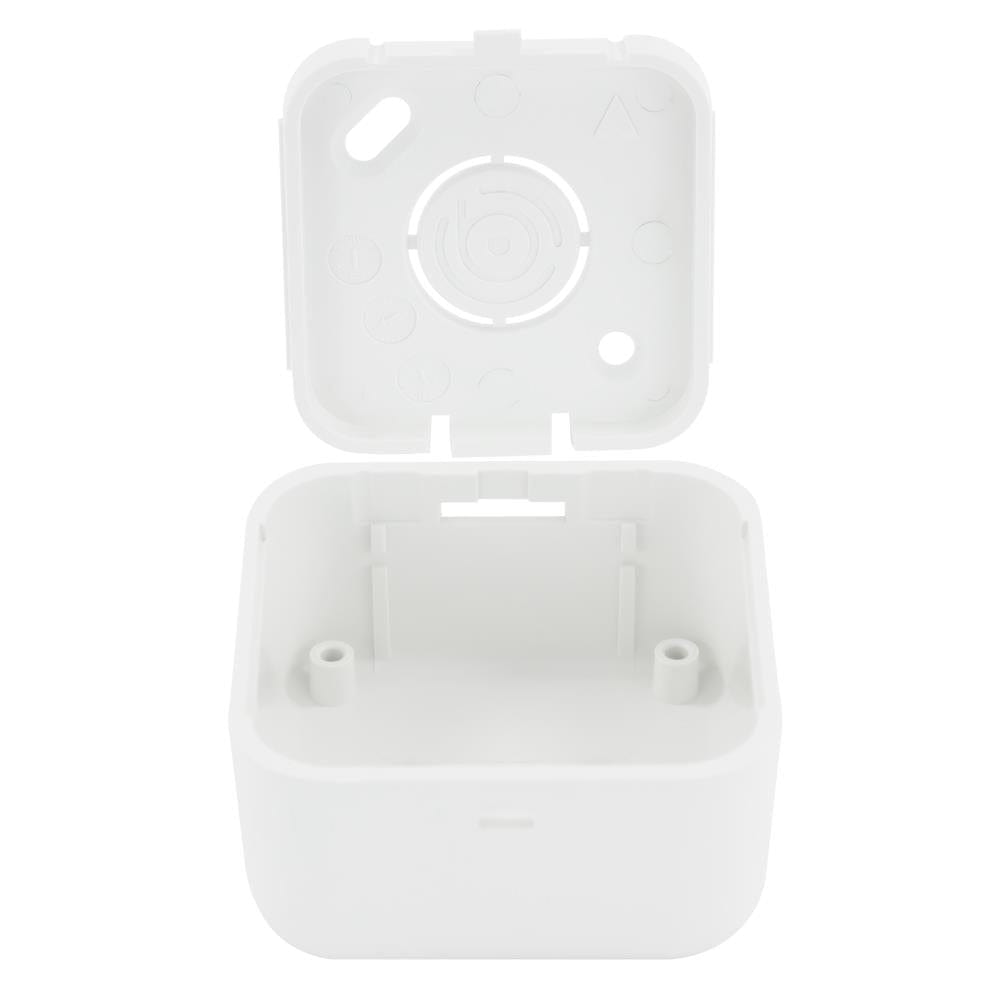

- Internal clips for snap-in PCB

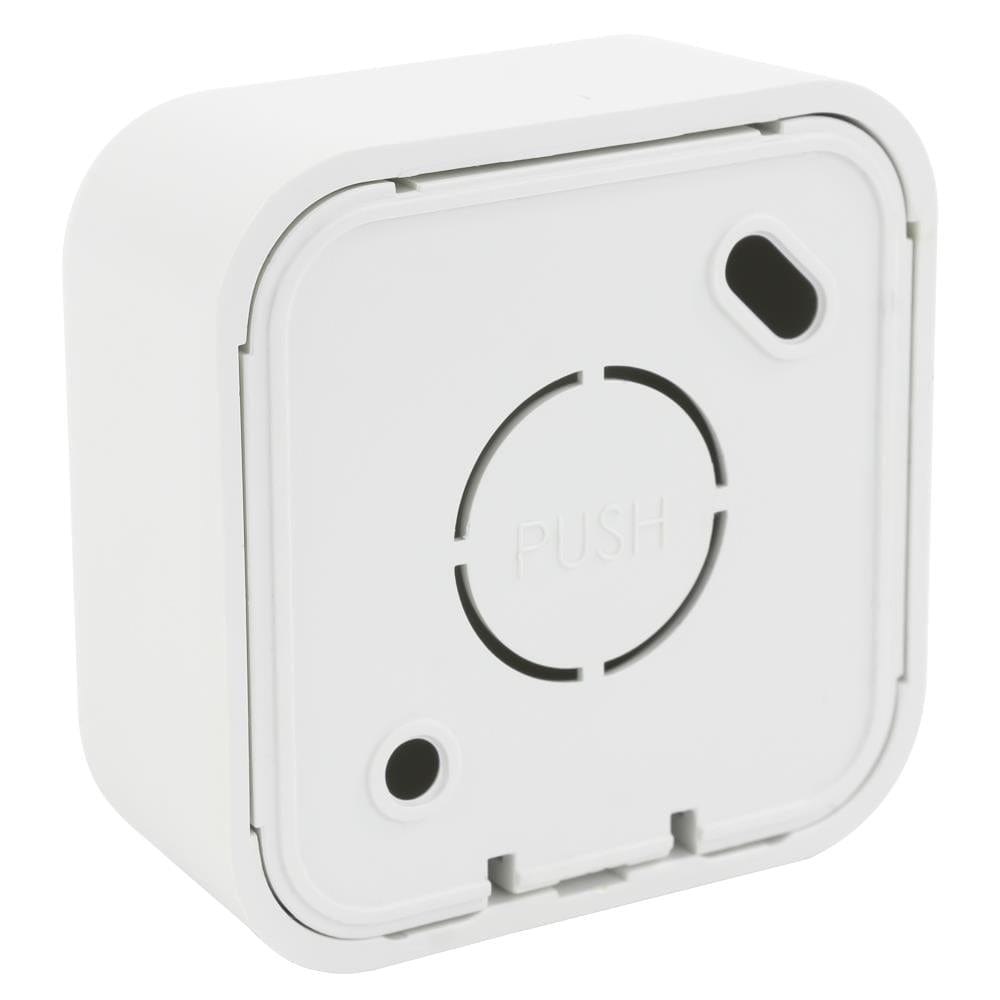

- Rear knockout for cable entry (20mm diameter)

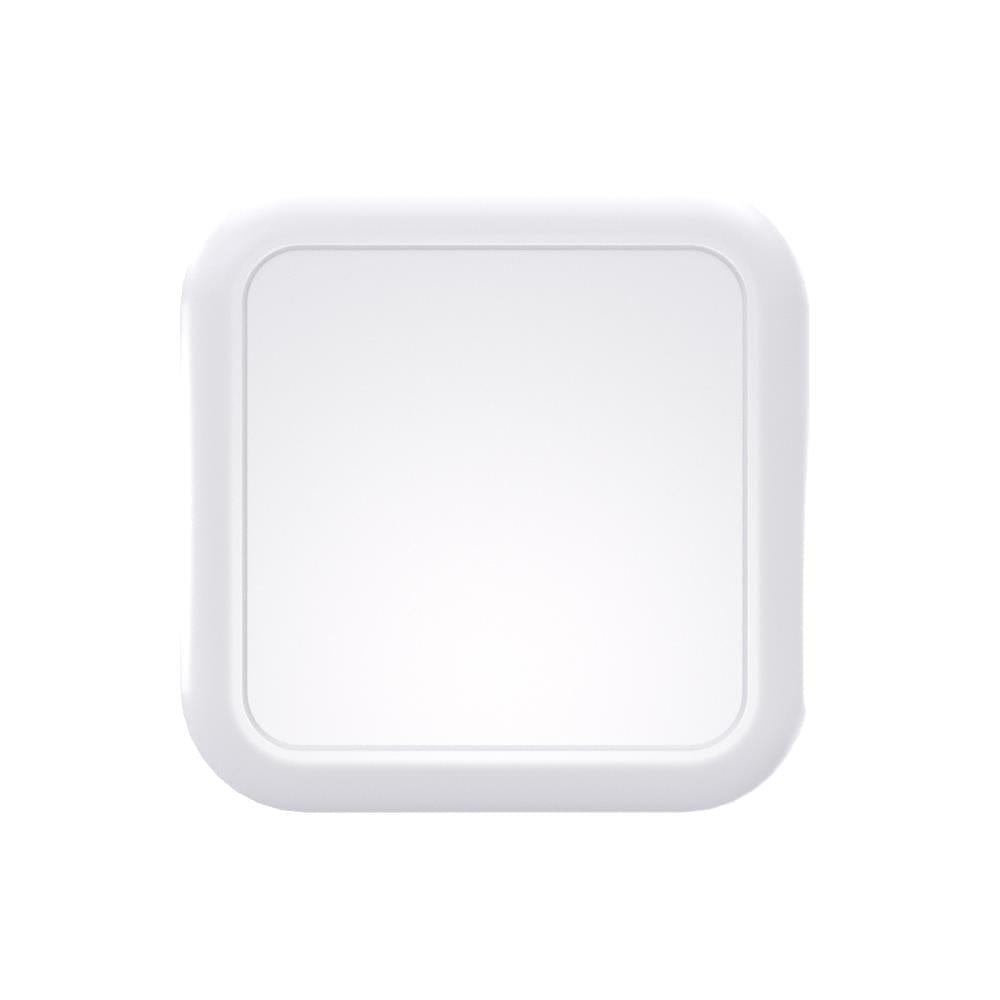

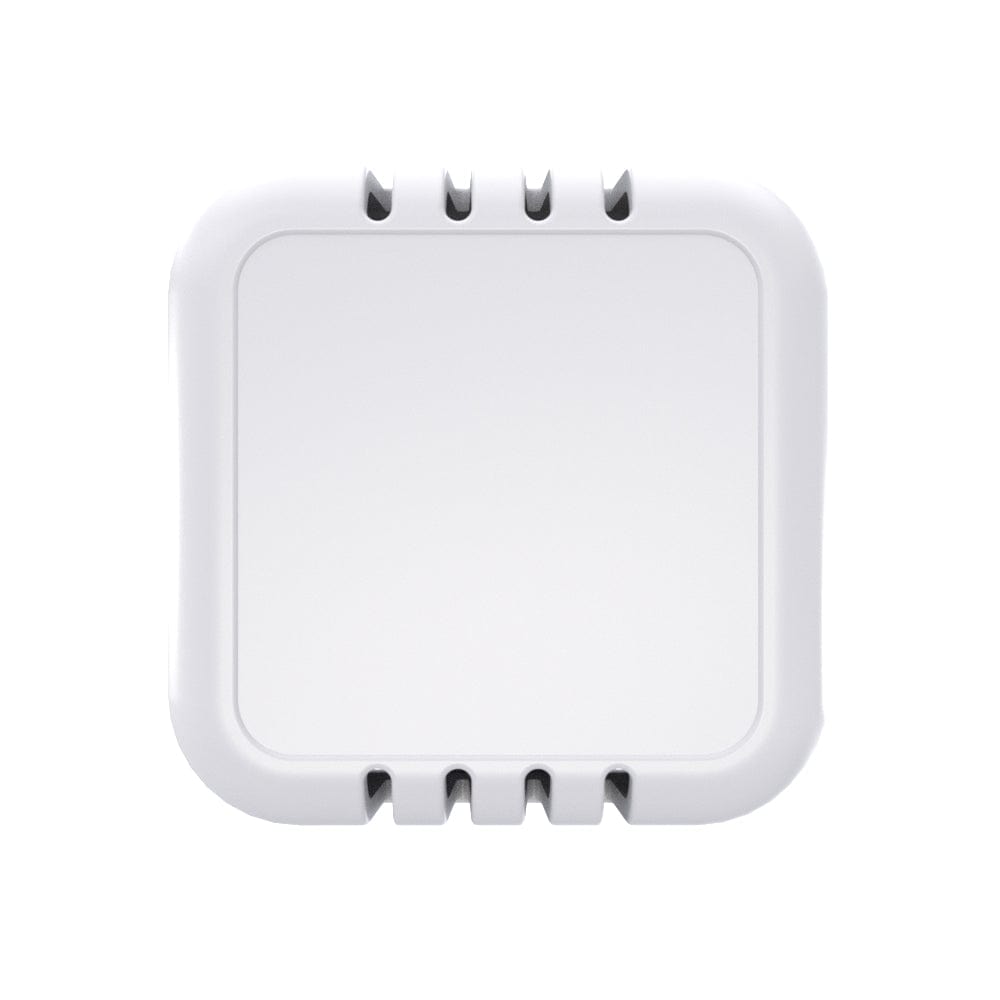

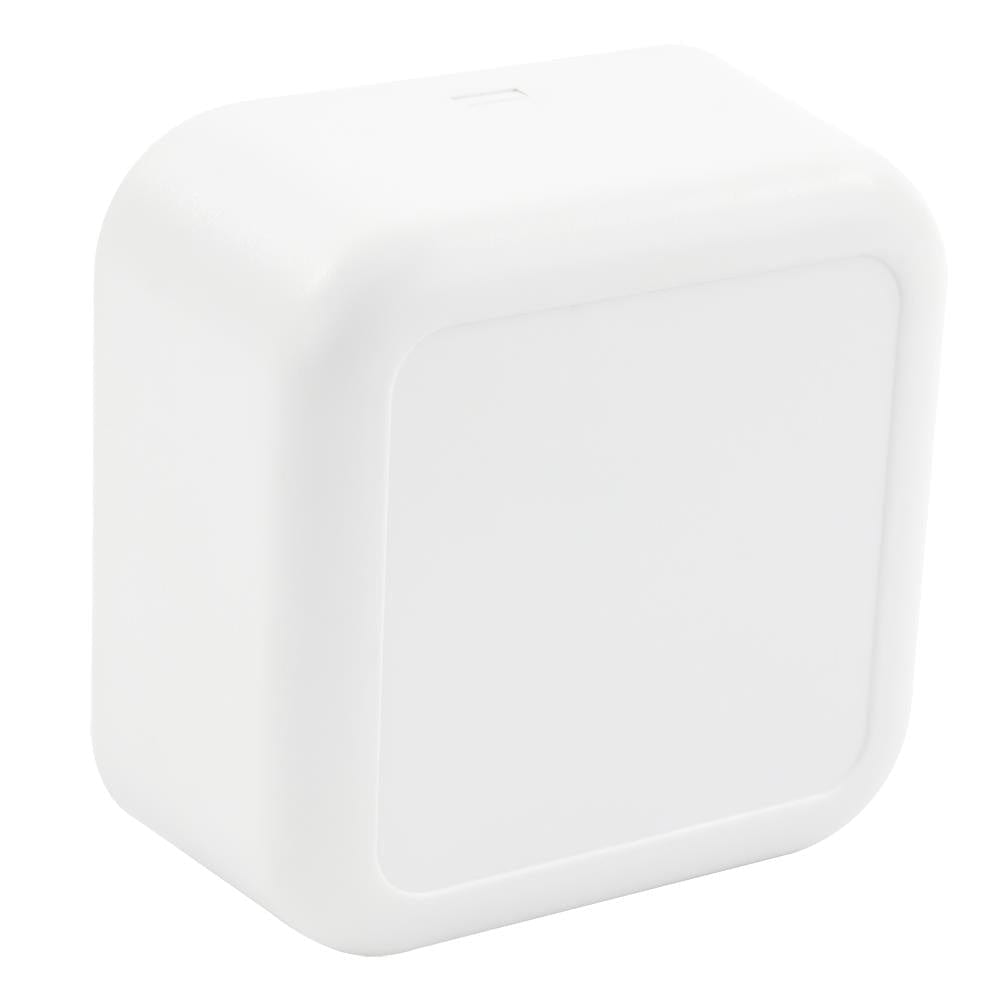

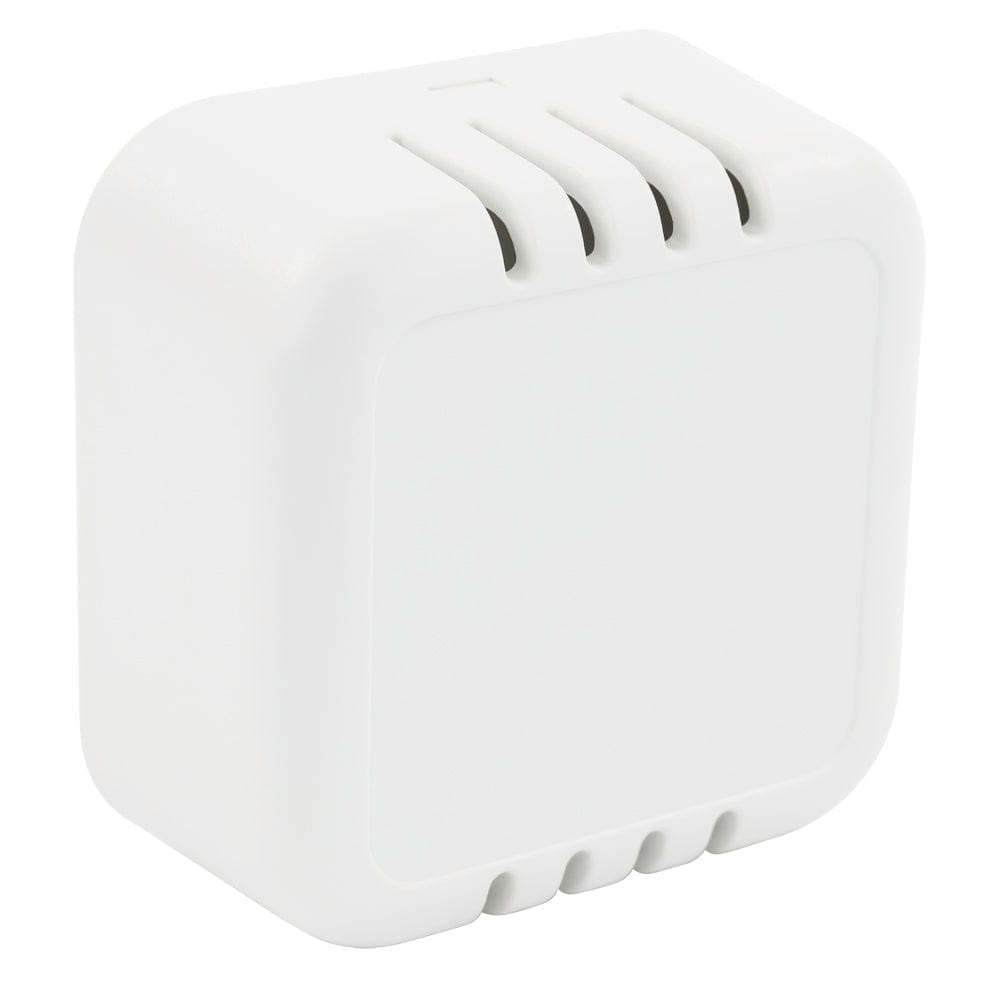

- Solid and vented versions available (select above)
- Recessed front face for overlays
- Recessed rear face for additional labelling
- Manufactured in the UK
|External Length (mm)||51|
|External Width (mm)||51|
|External Height (mm)||25.5|
|Internal Length (mm)||46|
|Internal Width (mm)||46|
|Internal Height (mm)||17|
|Material Type||ABS UL94-V0|
|Country Of Origin||Great Britain (GB)|
