Room Sensor Enclosure - Size 1

(2 Reviews)
Version:Solid
Price:
Sale price £3
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

(1 Reviews)
CamdenBossRoom Sensor Enclosure - Size 3
Sale price £2 incl. VAT excl. VAT
(1 Reviews)
The Pi HutFlanged Weatherproof Enclosure With PG-7 Cable Glands
Sale price £8.70 incl. VAT excl. VAT

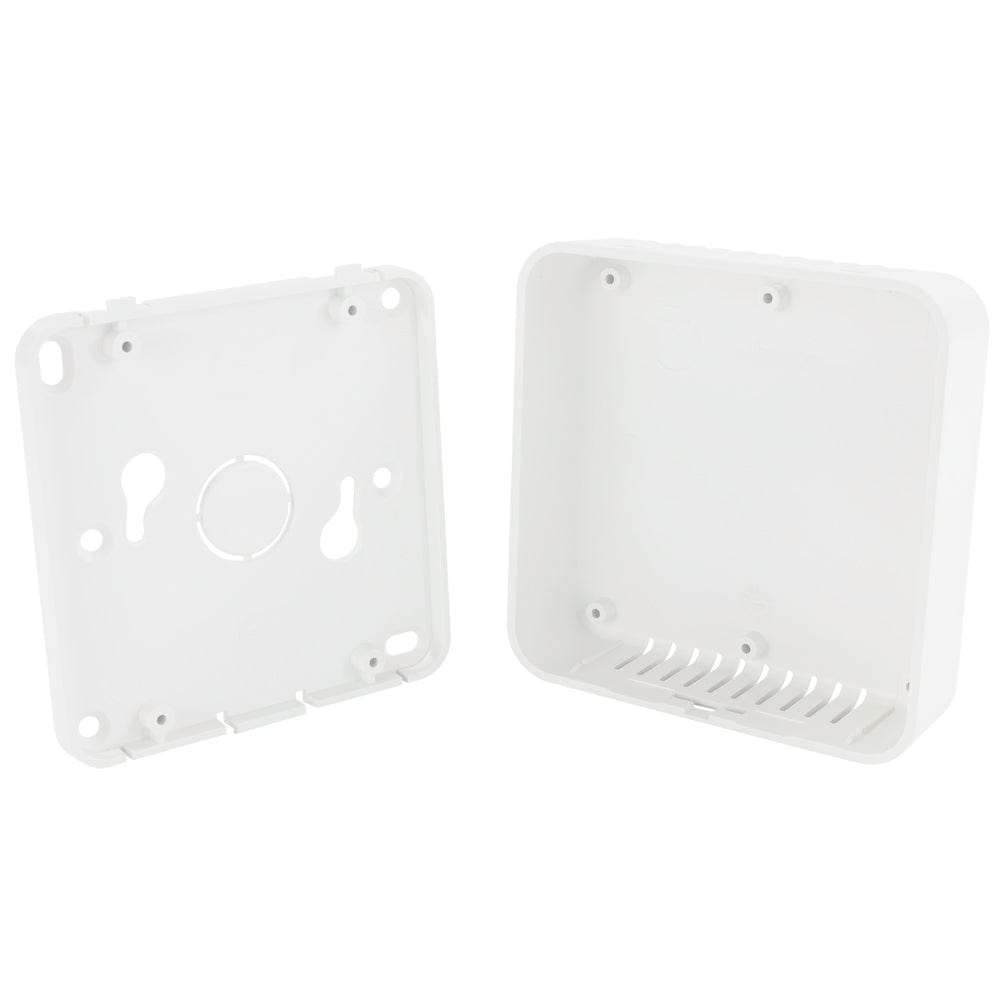

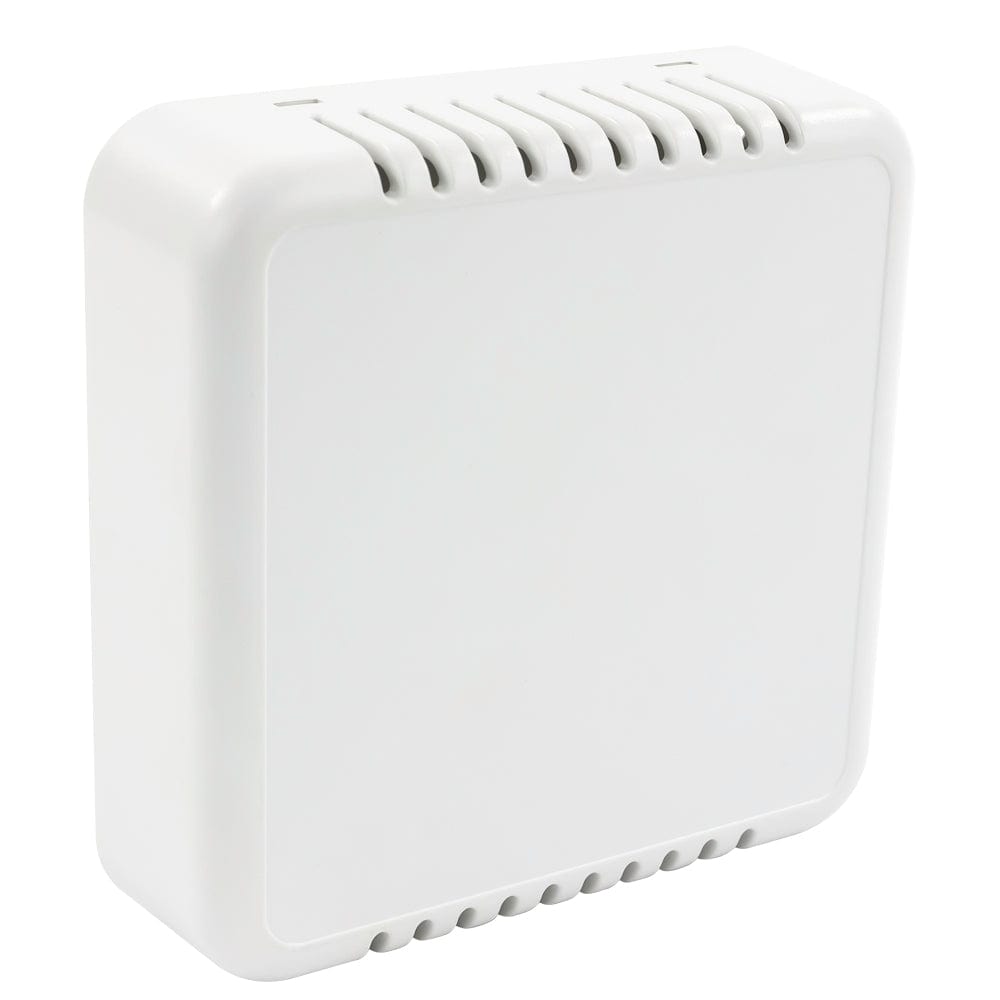

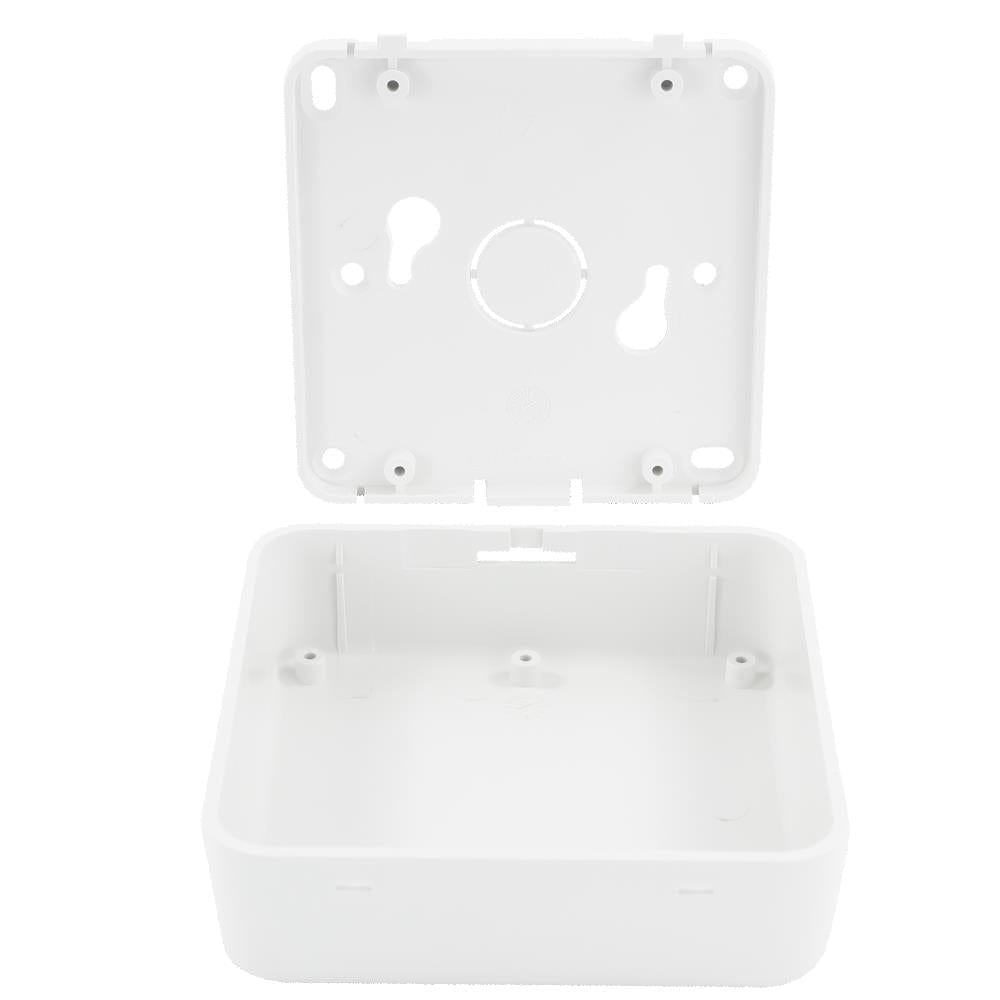

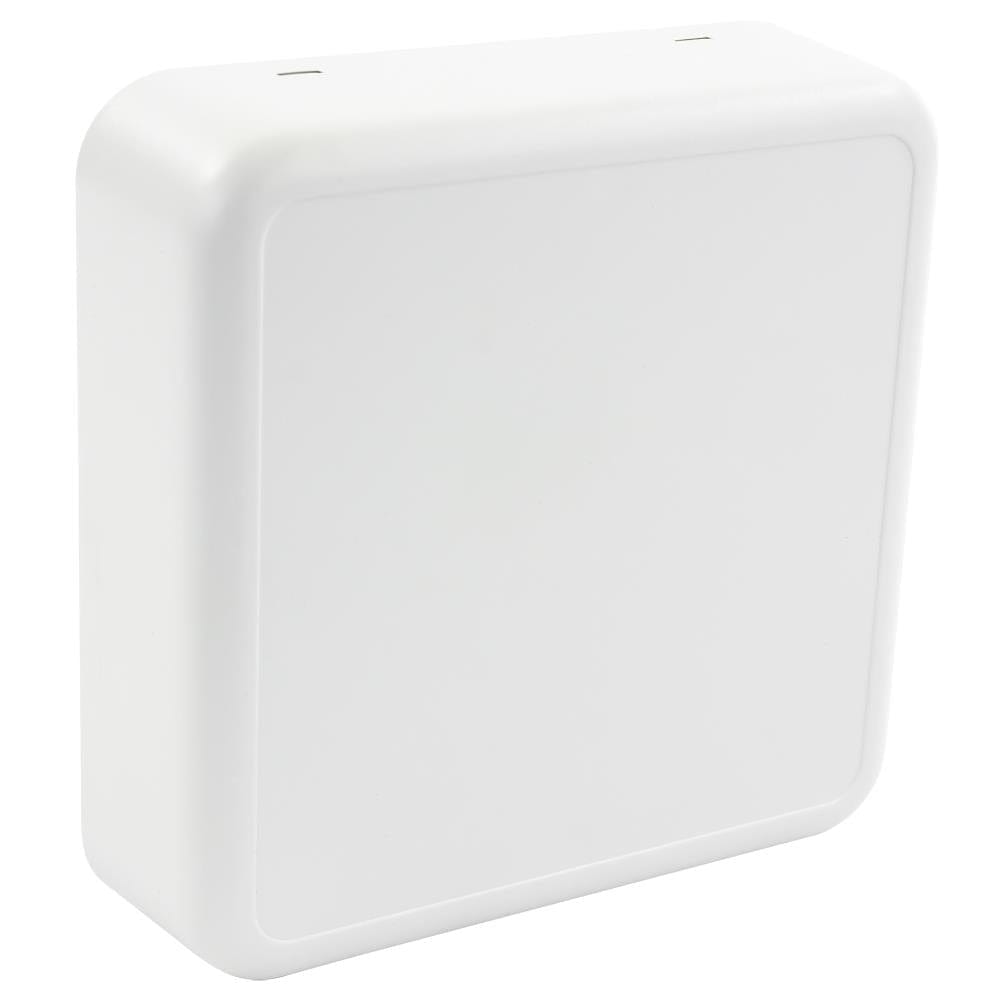

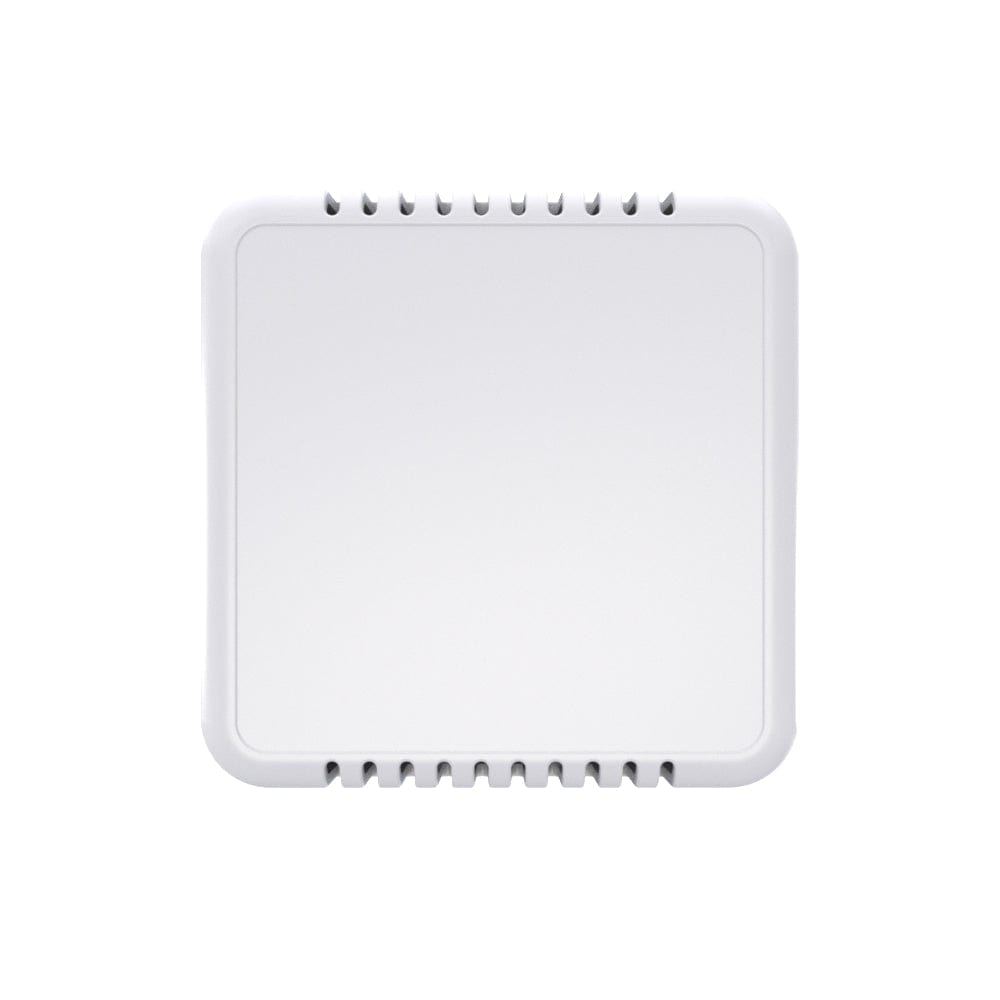

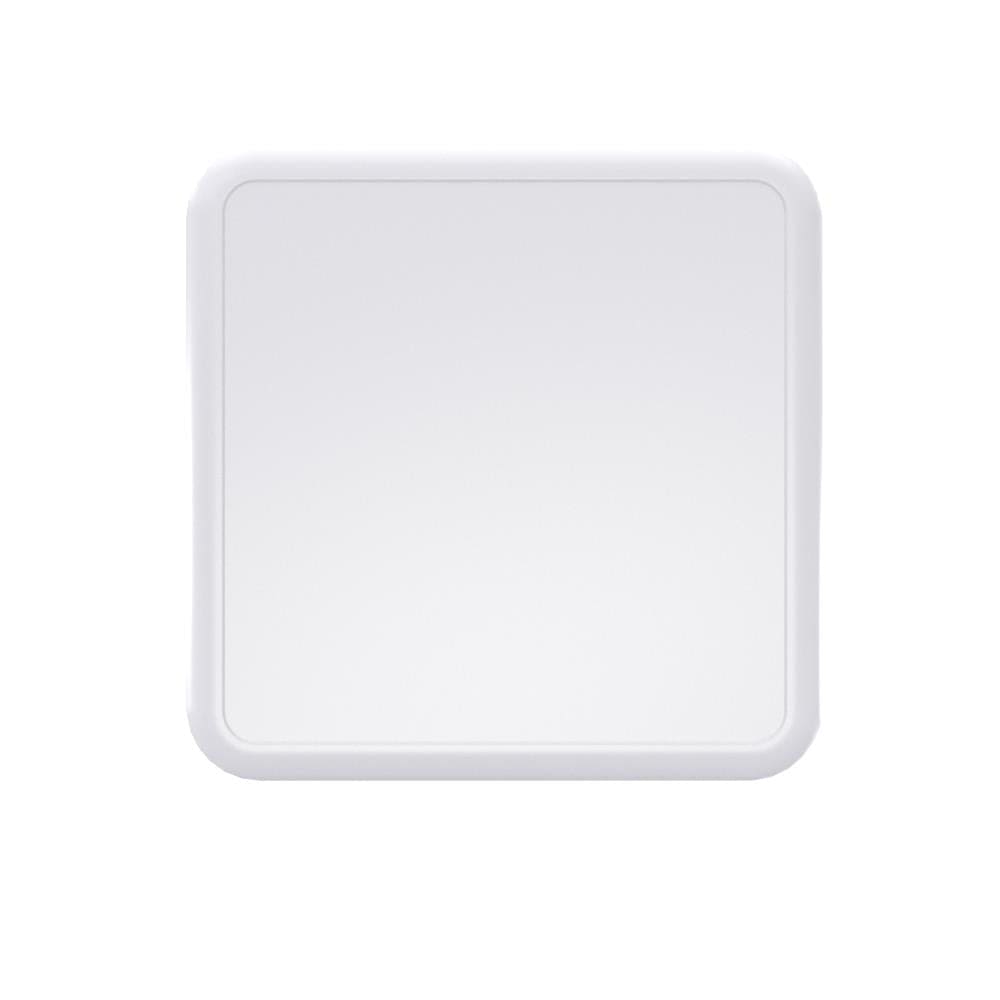

The Room Sensor Enclosure (Size 1) is designed and manufactured for wall mounting applications such as air detectors, social distance monitoring, smart thermostats, sensor monitoring, lighting control systems, PIR sensors or any other projects which need a subtle, quality, workable enclosure.

The Size 1 Room Sensor Enclosure has overall dimensions of 86mm x 86mm x 25.5mm. Available with a solid or vented housing (select above), the enclosure lends itself to many different electronic applications.

Moulded from a UL94-V0 material, this 'Size 1' enclosure is capable of mounting directly onto a UK single gang back box and also features a knockout on the base of the enclosure that allows cables to be inserted from the rear so that they are hidden once installed.

Also available in Size 2 (smaller) and Size 3 (smallest)!

Features

  • Ideal for wall mount controls and smart applications such as lighting, security or network modules
  • Front and back clip together construction (tool required for disassembly once mounted)
  • Internal PCB Mount pillars moulded into the front and back sections of the housing
  • Internal clips for snap-in PCB
  • Fits onto UK single gang back boxes

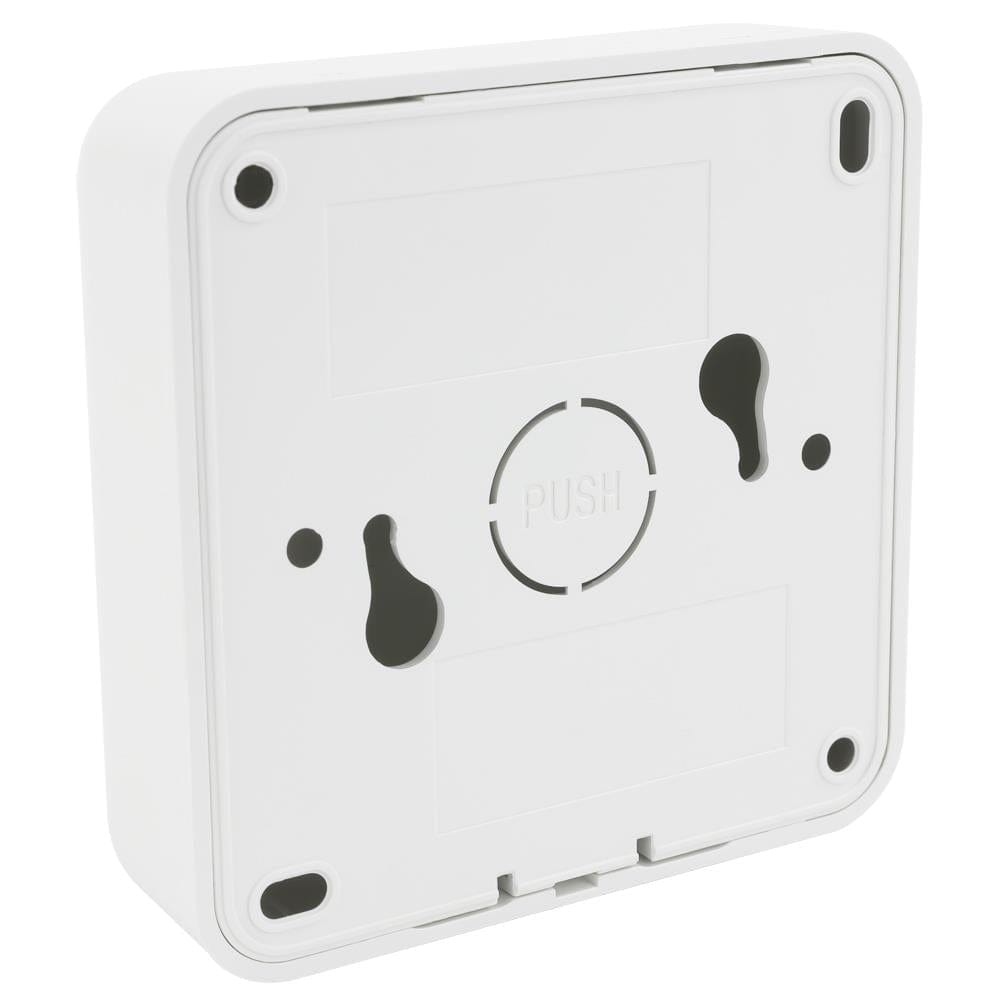

  • Rear knockout for cable entry (20mm diameter)
  • Solid and vented versions available (select above)
  • Recessed front face for overlays
  • Recessed rear face for additional labelling
  • Manufactured in the UK

Resources

Specifications

External Length (mm) 86
External Width (mm) 86
External Height (mm) 25.5
Internal Length (mm) 68
Internal Width (mm) 68
Internal Height (mm) 13
Weight (G) 50
Base Material Plastic
Material Type ABS UL94-V0
Colour White
UL Rating UL94-V0
IK Rating N/A
IP Rating IP40
Wall Mount Yes
Size 1
Solid Top Yes
Development Board N/A
Country Of Origin Great Britain (GB)
