Romeo - a Robot Control Board with Motor Driver (Compatible with Arduino)

Name: Romeo - a Robot Control Board with Motor Driver (Compatible with Arduino)
Brand: DFRobot
SKU: DFR0004
Price: 23.90 GBP
Availability: InStock

DFRobotSKU: DFR0004

£23.90

incl. VAT

excl. VAT

Only 10 units left

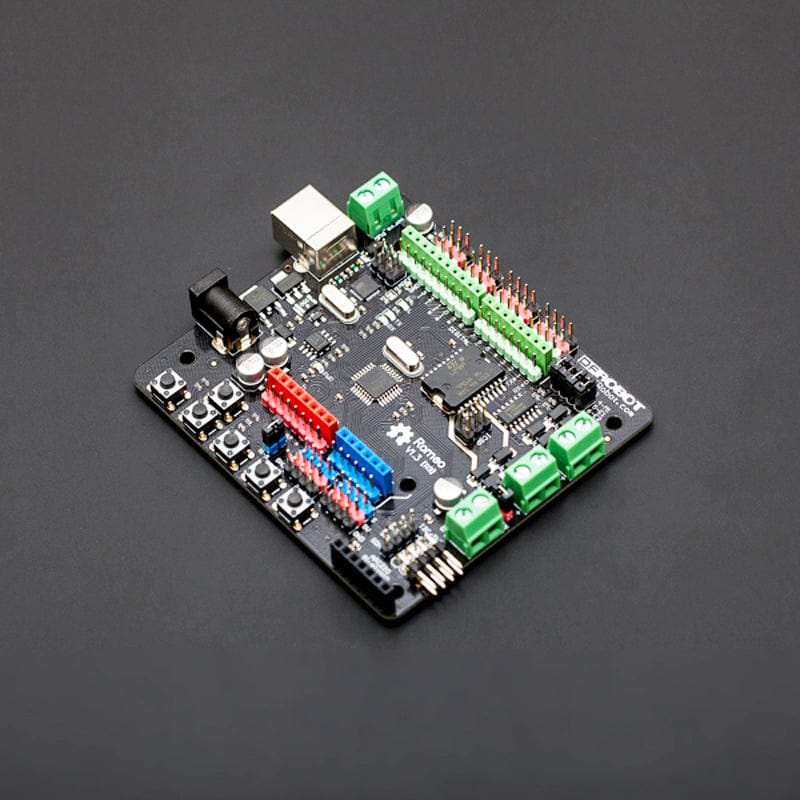

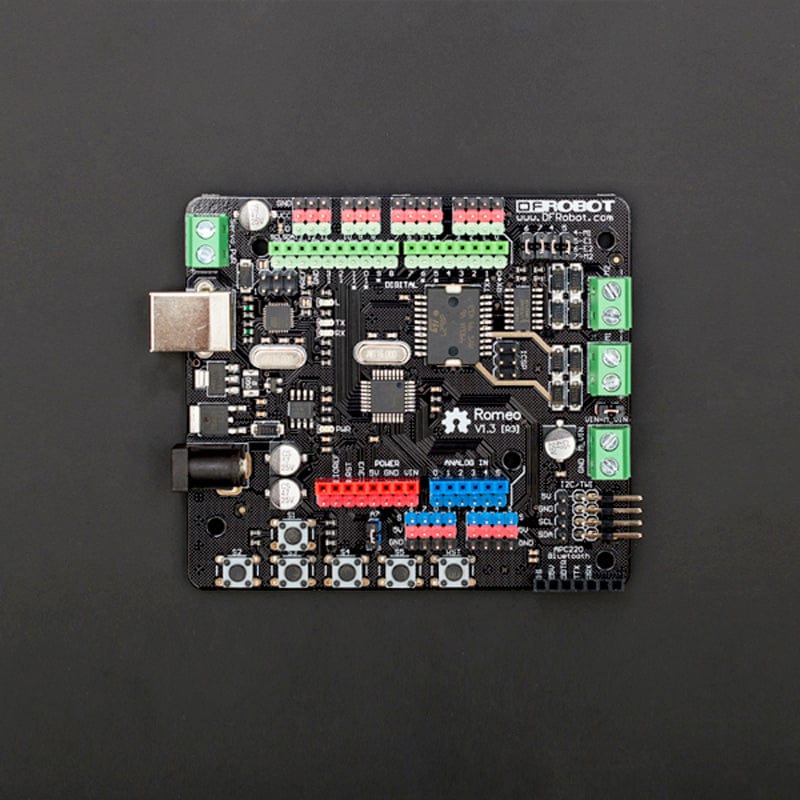

Romeo family is an All-in-One Robot control board especially designed for robotics applications from DFRobot. It benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with your shields. The integrated 2 way DC motor driver and wireless socket allows you to start your own robot project immediately without the need for an additional motor driver. Not just has the motor driver, Romeo is also designed to have extra power for servos which need more current.

Romeo is also featured with DFRobot's standard 3 Pin-out designed and compatible with Gravity series sensors and actuators. Hundreds of sensors are now plug-play with Romeo.

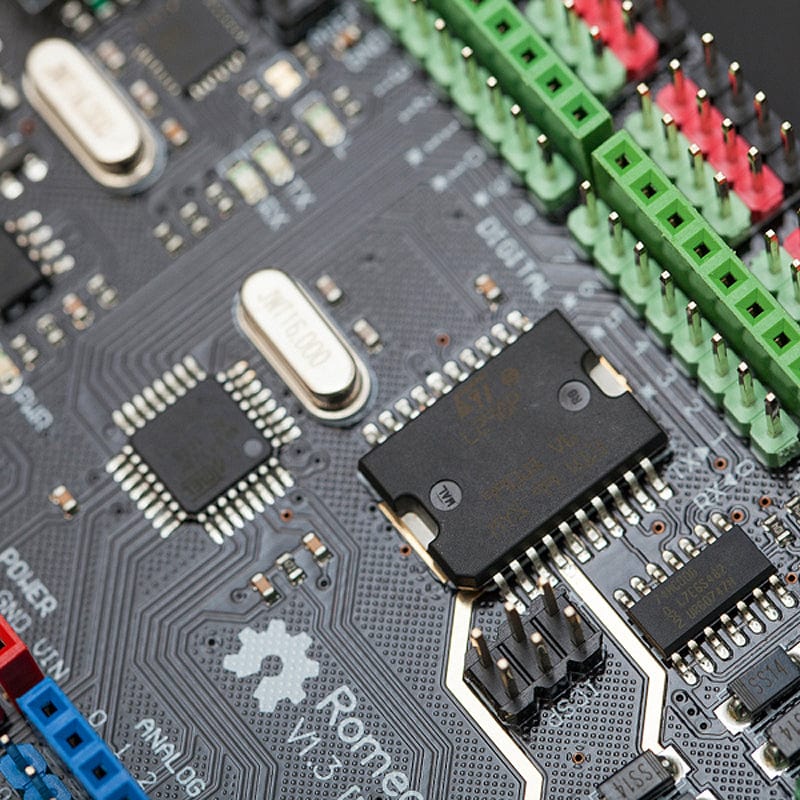

This is the first member in Romeo family that is born in 2009. It is not only the very first Arduino compatible robot controller but also the first Arduino-derived board in the market. The current version of Romeo is based on Arduino Uno. It has built-in 2x2A DC motor drivers and socket for bluetooth / APC220 Radio Communication Module communications. The integrated io sensor pinout allows it connect hundreds of different Gravity compatible sensors and modules. It has servo connector which is a plug & play. It is the ideal controller to build your own robot.

Romeo All in One Robot Controller Board Review by Arnab Kumar Das

DFRobot Arduino Compatible Microcontroller Selection Guide
Picture	*For IoT developers.

Specification

DC Supply:USB Powered or External 7V~12V DC
DC Output:5V /3.3V DC and External Power Output
Microcontroller: Atmega328
Bootloader: Arduino Uno
Compatible with the Arduino Uno pin mapping
8 Channels 10-bit Analog I/O
USB interface
5 key inputs
Auto sensing/switching power input
ICSP header for direct program download
Serial Interface TTL Level
Support Male and Female Pin Header
Integrated sockets for APC220 RF Module and DF-Bluetooth Module
Three I2C Interface Pin Sets(two 90°pin headers)
Two way Motor Driver with 2A maximum current
Gold plating pcb board
Size:90x80x14mm(3.54"x3.15"x0.55")
Weight:60 gram

Documents

DFRobot Arduino Compatible Microcontroller Selection Guide
WIKI (DFRduino Romeo-All in one Controller)
Romeo schematic (Compatible with both v1.1 and v1.2)
Romeo Layout
Romeo pinout Diagram
Romeo Tutorial French Version
Getting Started with DFRduino Romeo (German Language)
RC Hack based on Romeo
Hongkong biped robot using Romeo
Schematic (V1)

Projects

Project 1. Summer inspiration-DIY automatic curtain lift

List of hardware:

1. Romeo-All in one Controller(DFR0004)
2. IR Kit(DFR0107)
3. Adjustable Infrared Sensor Switch (SEN0019)
4. DC motor (12V- FIT0493, FIT0277)
5. 12V power adapter
6. Servo extension cable 300mm(FIT0033)
7. DC Barrel Jack Adapter-Male/Female(FIT0110/ FIT0151)
8. Misc. mechanical parts

Project 2. DFRobot AutoEco System takes care of your garden.

By following this project it will help to grow a vegetable garden, and automate some other processes in our house along the way.
List of basic hardware to setup an AutoEco Sys:

1. Romeo

2. X-Board

3. Light Sensor

4 .Gas Sensor

5 .Motion Sensor

6. Tempreture&Humidity Sensor

7. Waterproof temperature sensor
