Raspberry Pi Compute Module 4/5 Antenna Kit

Price:
Sale price £4.75
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

Coming Soon
Raspberry Pi Compute Module 5Raspberry Pi Compute Module 5
Raspberry PiRaspberry Pi Compute Module 5
Sale priceFrom £42.70 incl. VAT excl. VAT
Coming Soon
Raspberry Pi Compute Module 5 IO BoardRaspberry Pi Compute Module 5 IO Board
Raspberry PiRaspberry Pi Compute Module 5 IO Board
Sale price £19.20 incl. VAT excl. VAT
Raspberry Pi Compute Module 5 IO CaseRaspberry Pi Compute Module 5 IO Case
Raspberry PiRaspberry Pi Compute Module 5 IO Case
Sale price £14.40 incl. VAT excl. VAT
Raspberry Pi Compute Module 4 - The Pi HutRaspberry Pi Compute Module 4 - The Pi Hut
Raspberry PiRaspberry Pi Compute Module 4
Sale priceFrom £28.40 incl. VAT excl. VAT
Raspberry Pi Compute Module 4 IO Board - The Pi HutRaspberry Pi Compute Module 4 IO Board - The Pi Hut
Raspberry PiRaspberry Pi Compute Module 4 IO Board
Sale price £35.90 incl. VAT excl. VAT
Metal Enclosure for Compute Module 4 IO Board (with Cooling Fan) - The Pi HutMetal Enclosure for Compute Module 4 IO Board (with Cooling Fan) - The Pi Hut

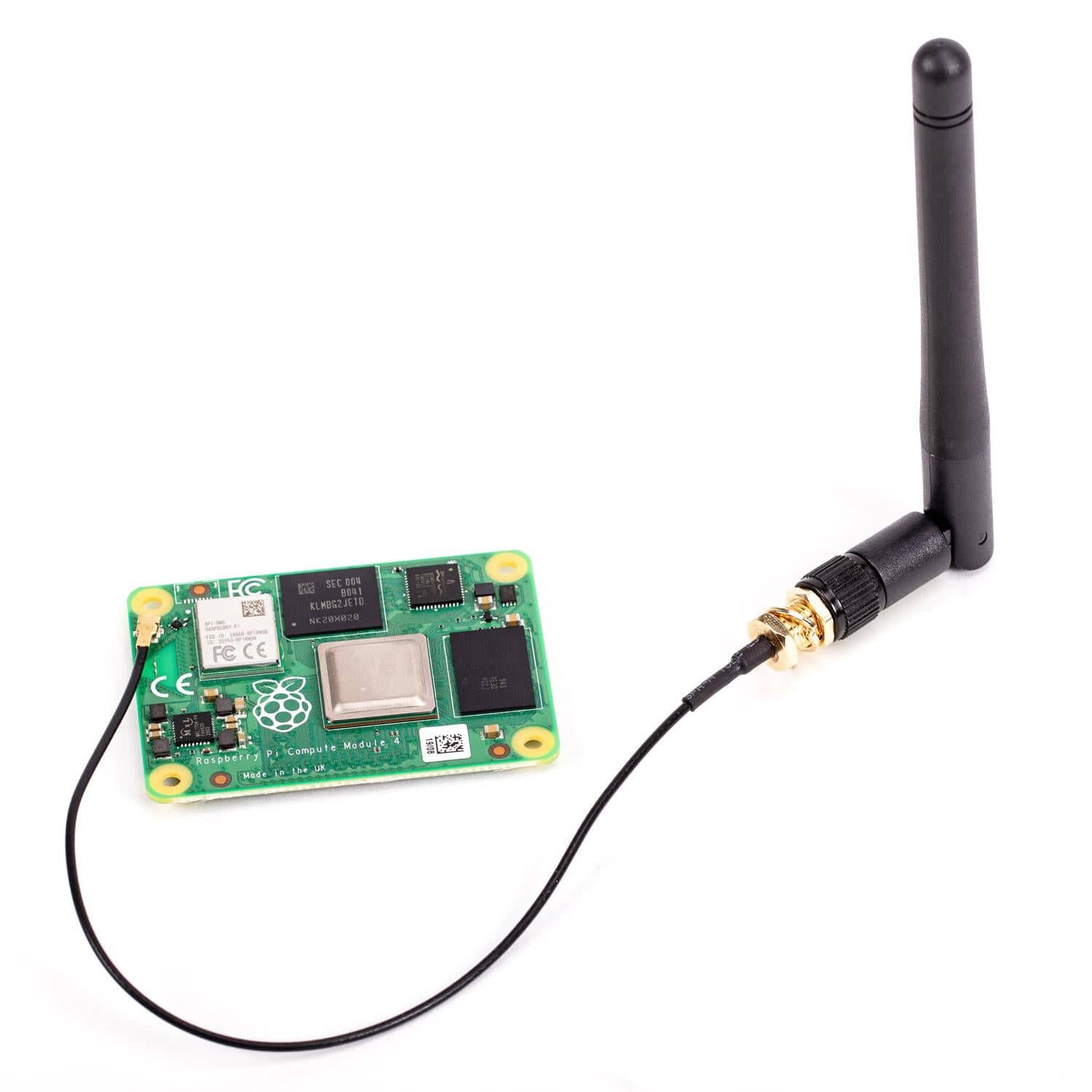

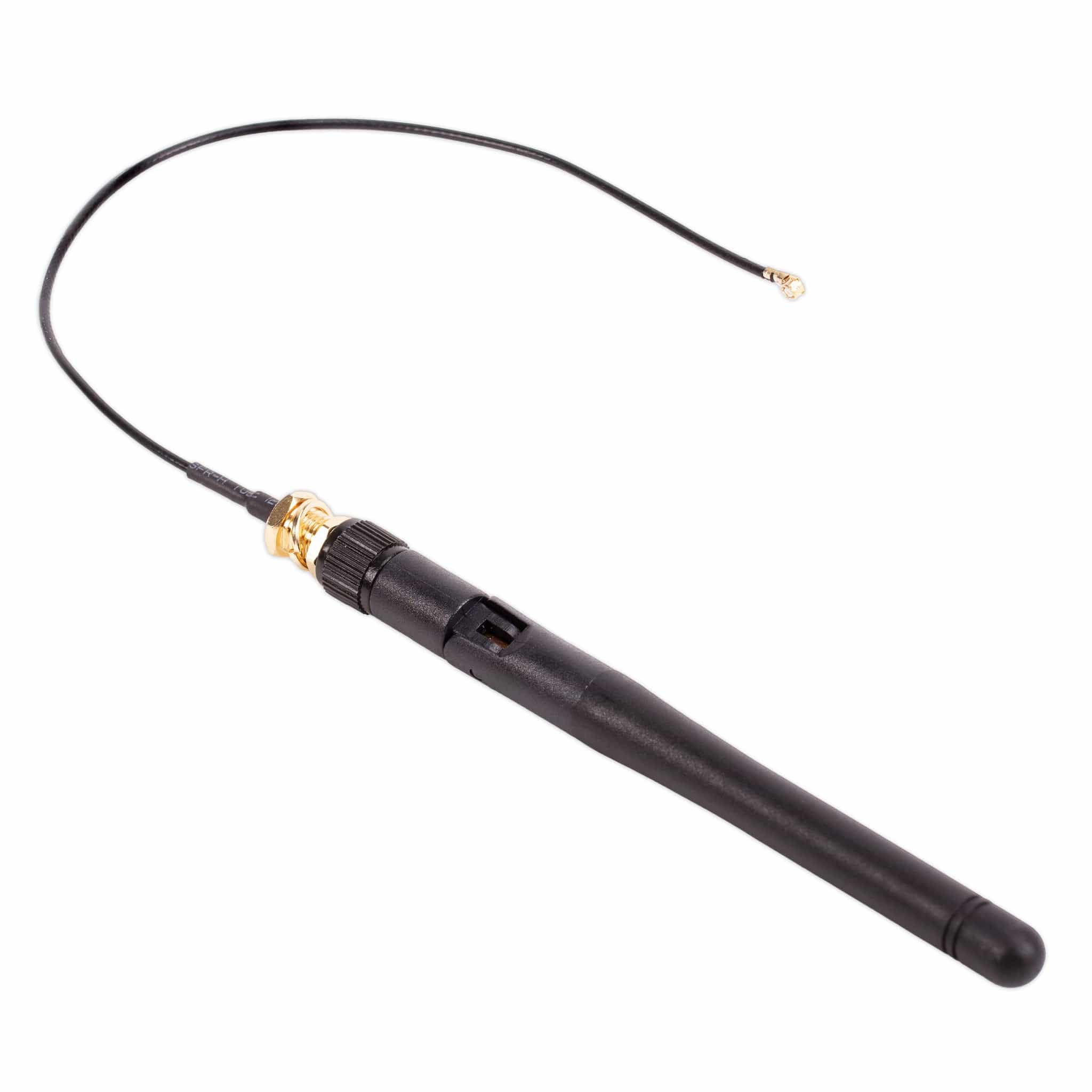

The official external antenna for your Compute Module 5 or 4. Certified for use with Raspberry Pi Compute Module 4 and Raspberry Pi Compute Module 5.

Note: CM4 and IO board not included.

Specifications

  • Frequency range: 2400-2500/5100-5800 MHz
  • Bandwidth: 100–700MHz
  • VSWR: ≤ 2.0
  • Gain: 2 dBi
  • Impedance: 50 ohm
  • Polarisation: Vertical
  • Radiation: Omnidirectional
  • Maximum power: 10W
  • Connector: SMA (female)

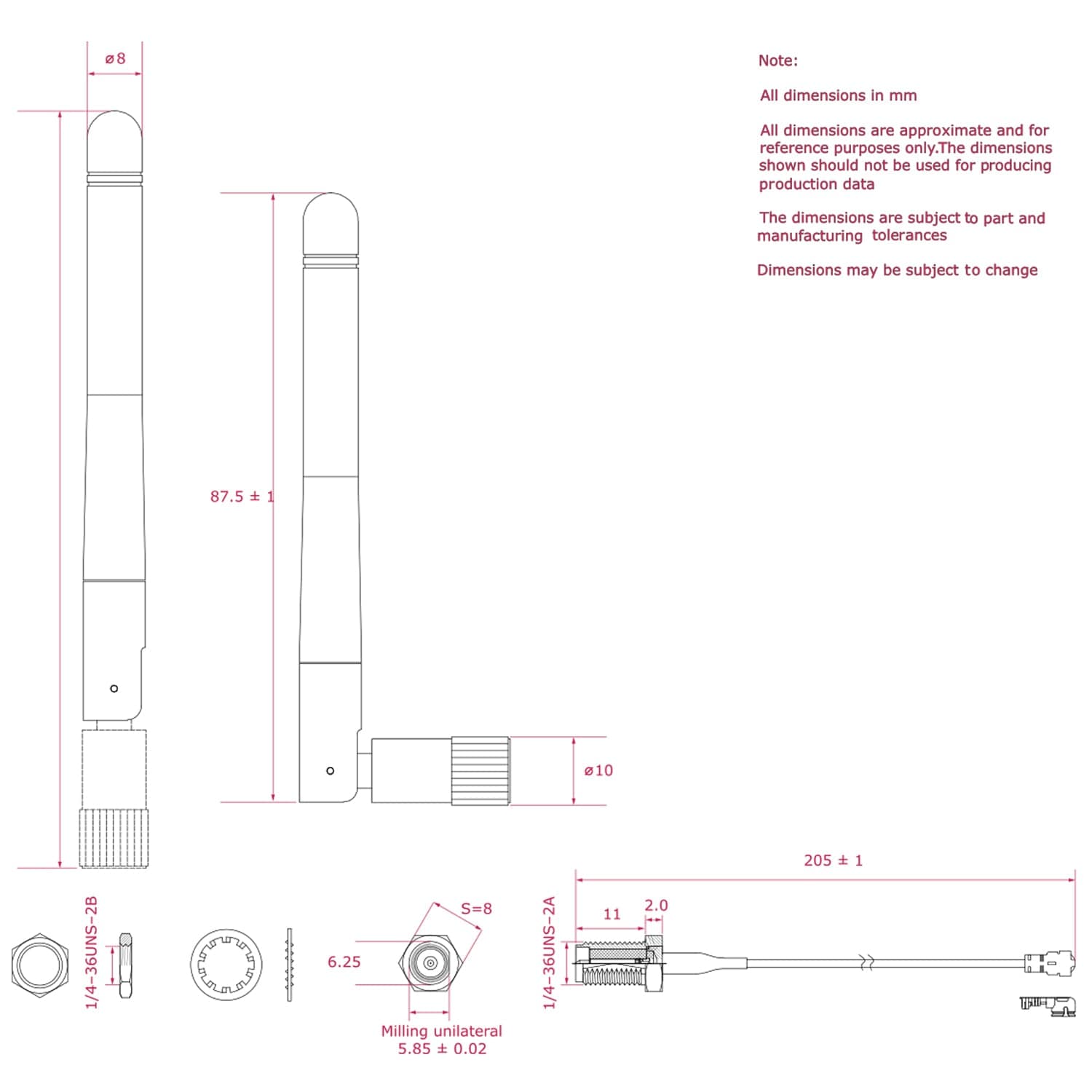

  • Antenna dimensions: 108 mm × 10 mm
  • Shell material: ABS
  • Installation: Screw
  • Operating Temperature: -35 to +75°C
  • Weight: ± 3 g

Resources

Fitting Instructions

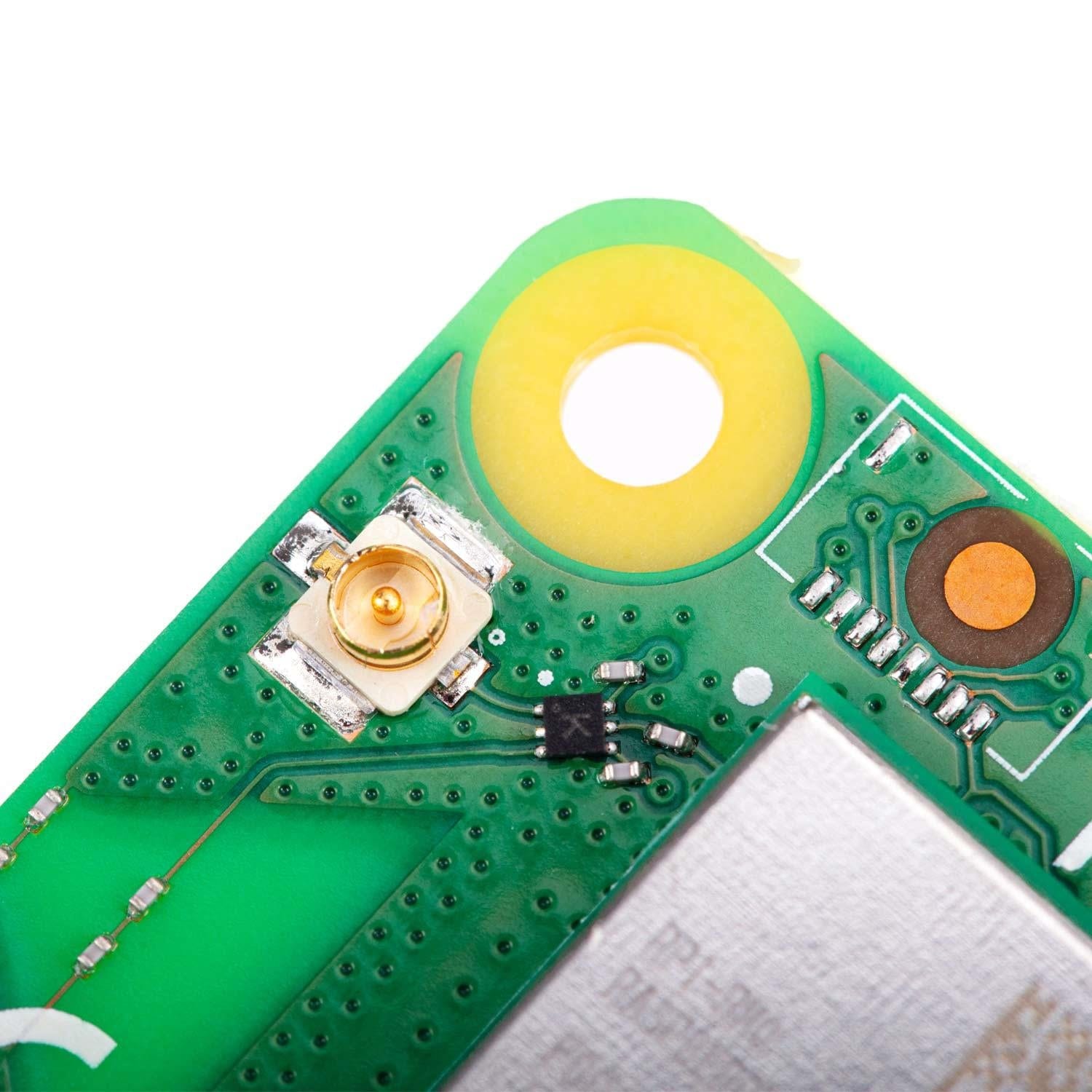

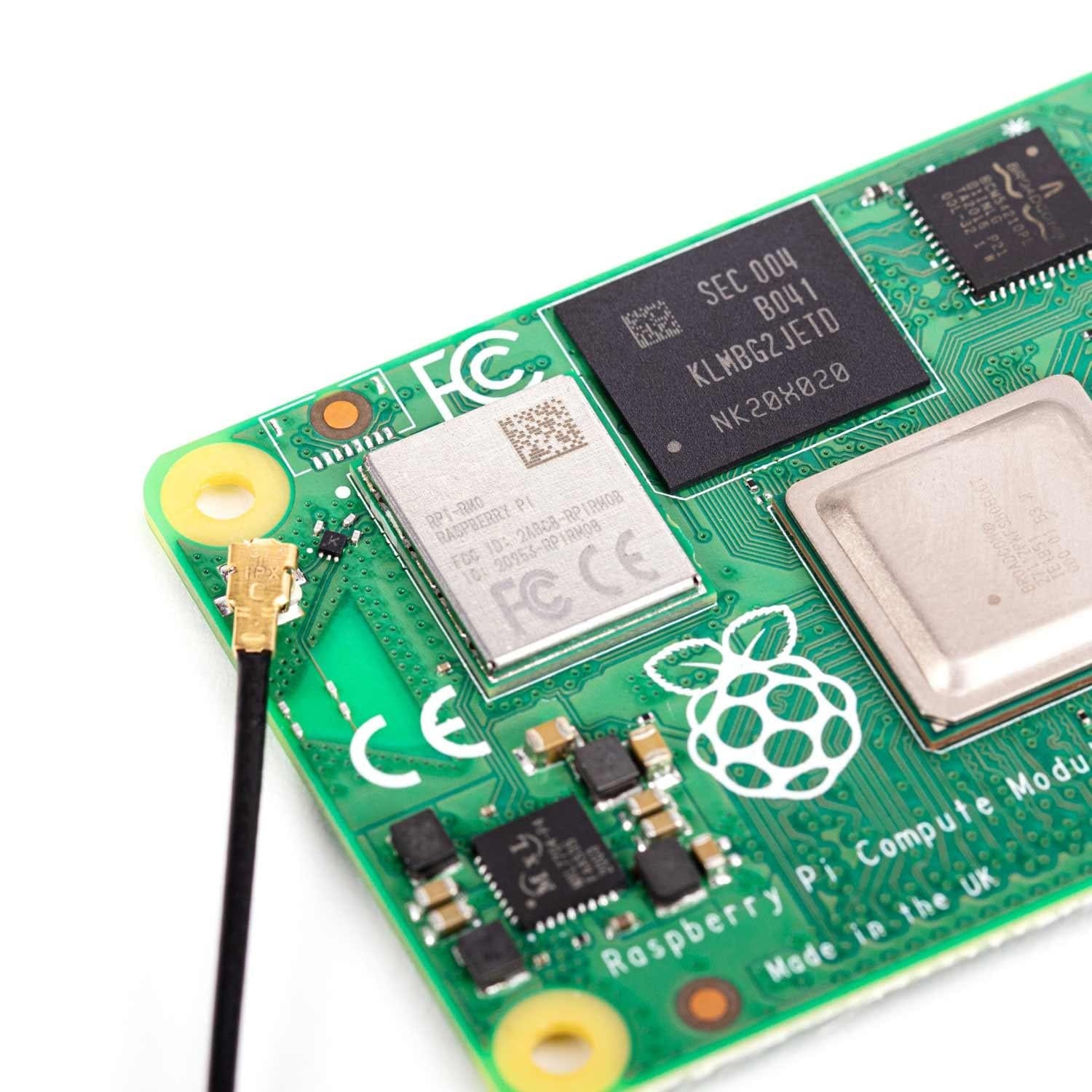

  • Connect the U.FL connector on the cable to the U.FL-compatible connector on Compute Module
  • Screw the toothed washer onto the SMA (male) connector on the cable, then insert this SMA connector through a hole (e.g. 6.4 mm) in the end-product mounting panel
  • Screw the SMA connector into place with the retaining hexagonal nut and washer

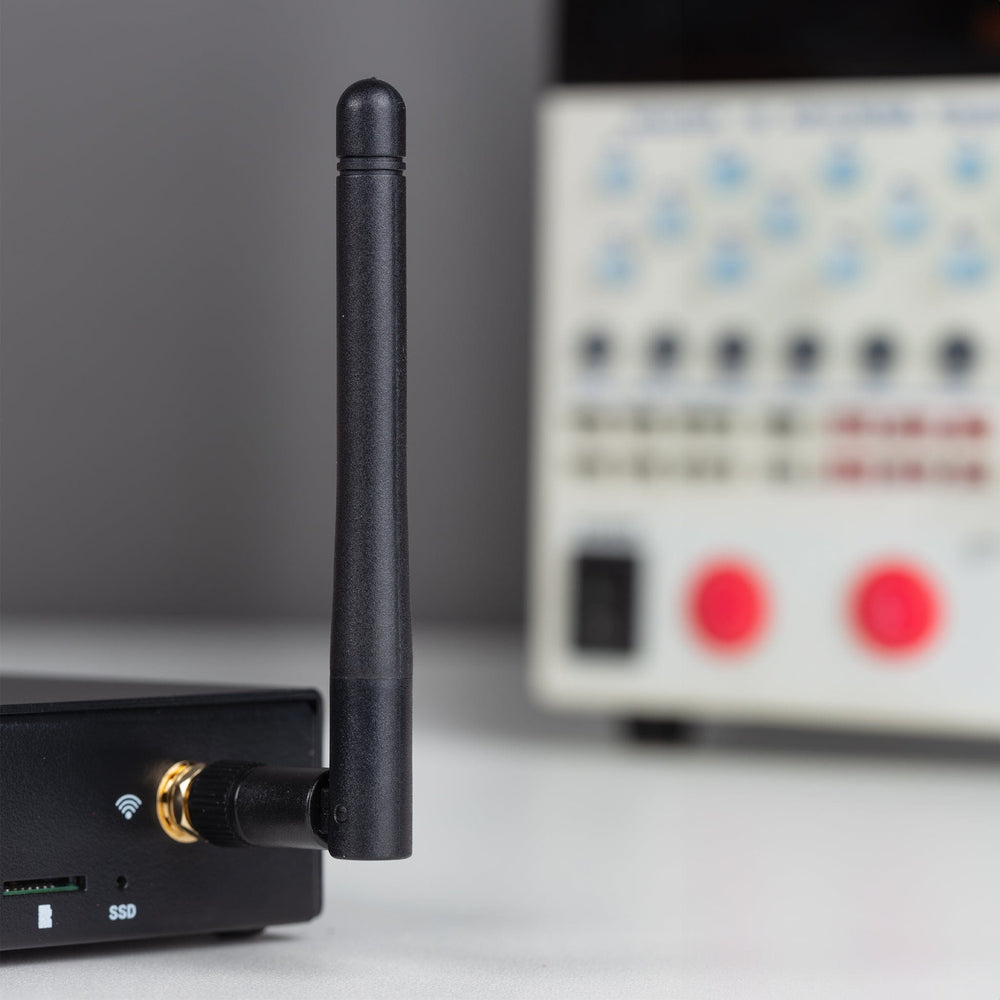

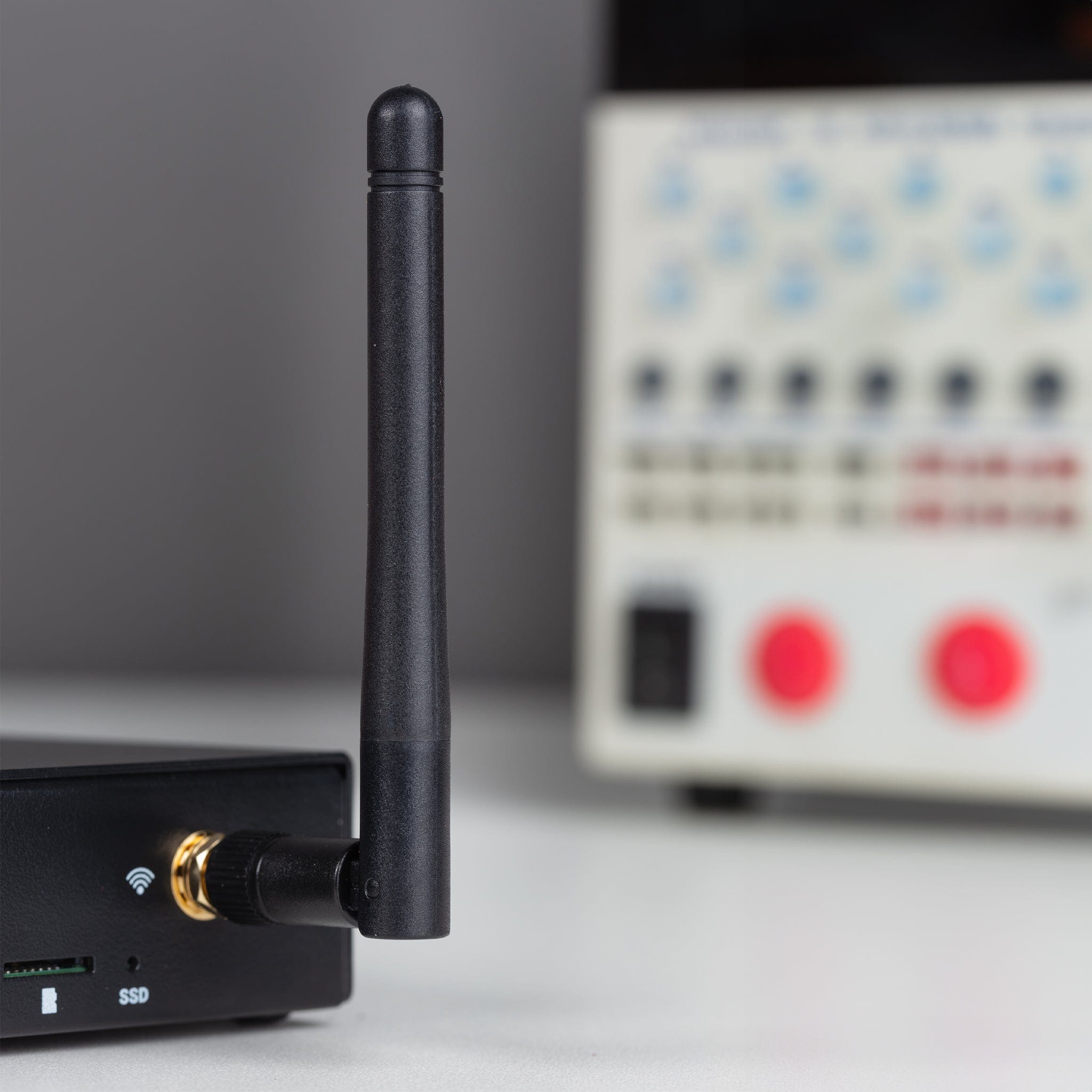

  • Screw the SMA (female) connector on the antenna onto the SMA (male) connector which now protrudes through the mounting panel
  • Adjust the antenna to its final position by turning it through up to 90°, as shown in the illustration below
  • To use the Antenna with your Compute Module, add a dtoverlay instruction in /boot/firmware/config.txt. Add the following line to the end of config.txt: dtparam=ant2

Compliance

The Raspberry Pi Compute Module 4/5 Antenna Kit has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.
