Qwiic adapter

Soldered ElectronicsSKU: SOL-333015
£1
incl. VAT
excl. VAT
Only 20 units left

Awesome Extras

Qwiic/STEMMA QT-Compatible Cable - JST-SH 4-Pin (50mm) by The Pi Hut - The Pi HutQwiic/STEMMA QT-Compatible Cable - JST-SH 4-Pin (50mm) by The Pi Hut - The Pi Hut
The Pi HutQwiic/STEMMA QT-Compatible Cable - JST-SH 4-Pin (50mm)
£1 incl. VAT excl. VAT
Qwiic Breakout by The Pi Hut - The Pi HutQwiic Breakout by The Pi Hut - The Pi Hut
The Pi HutQwiic Breakout
£2.30 incl. VAT excl. VAT
Qwiic Hub by The Pi Hut - The Pi HutQwiic Hub by The Pi Hut - The Pi Hut
The Pi HutQwiic Hub
£2.90 incl. VAT excl. VAT
120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
Half-Size Breadboard - White by The Pi Hut - The Pi HutHalf-Size Breadboard - White by The Pi Hut - The Pi Hut
The Pi HutHalf-Size Breadboard - White
£3 incl. VAT excl. VAT
Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi HutAutosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut
Warton MetalsAutosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire
From £8.80 incl. VAT excl. VAT

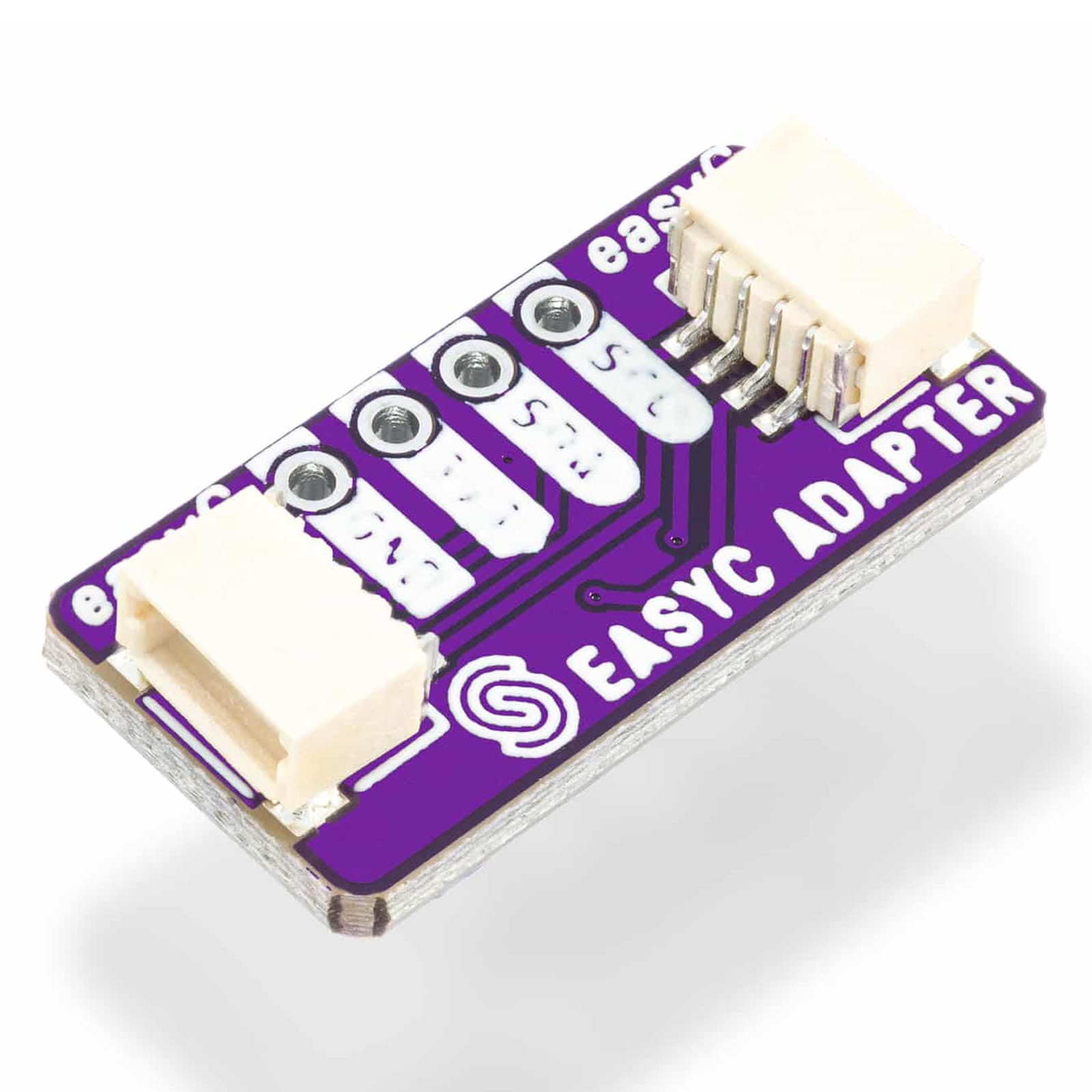

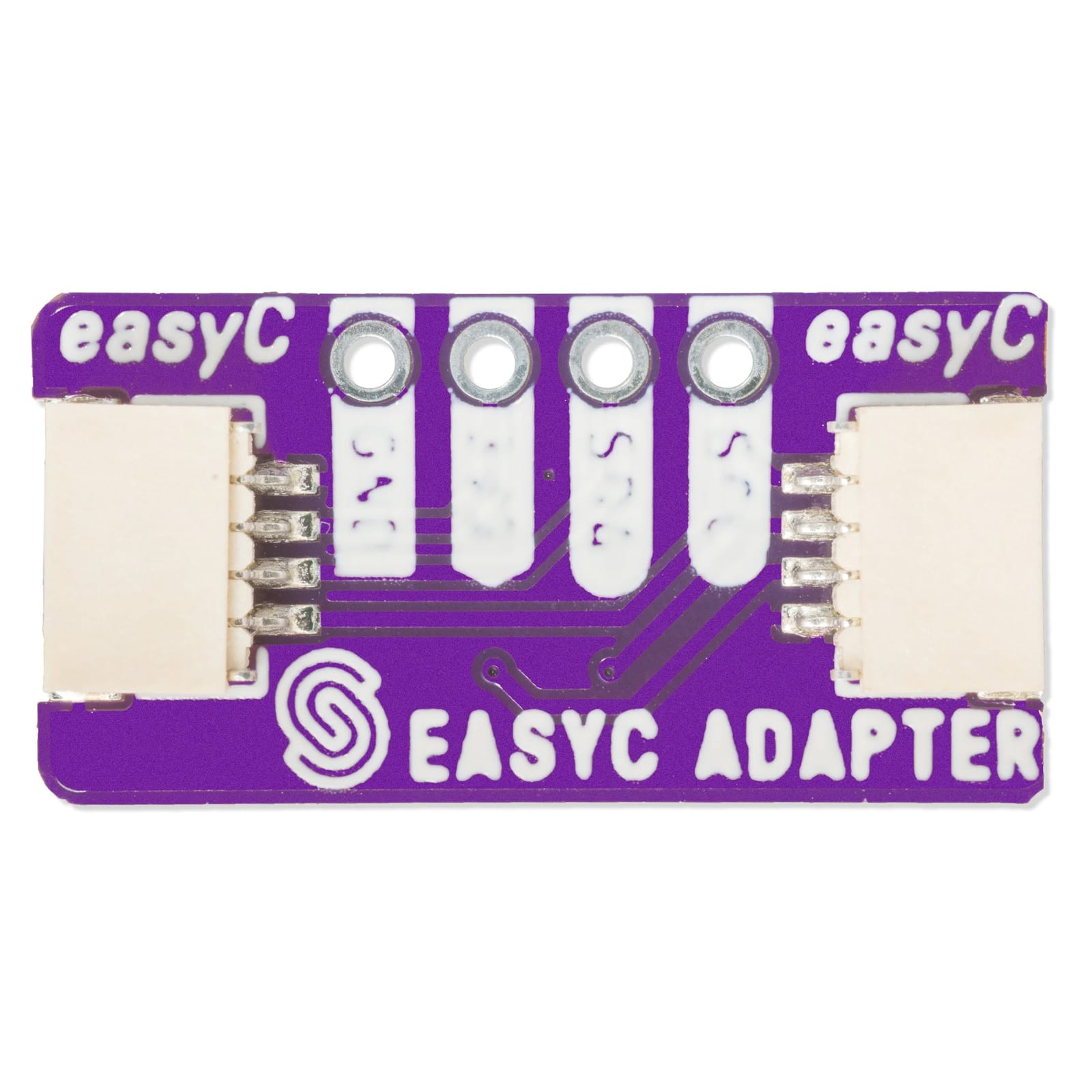

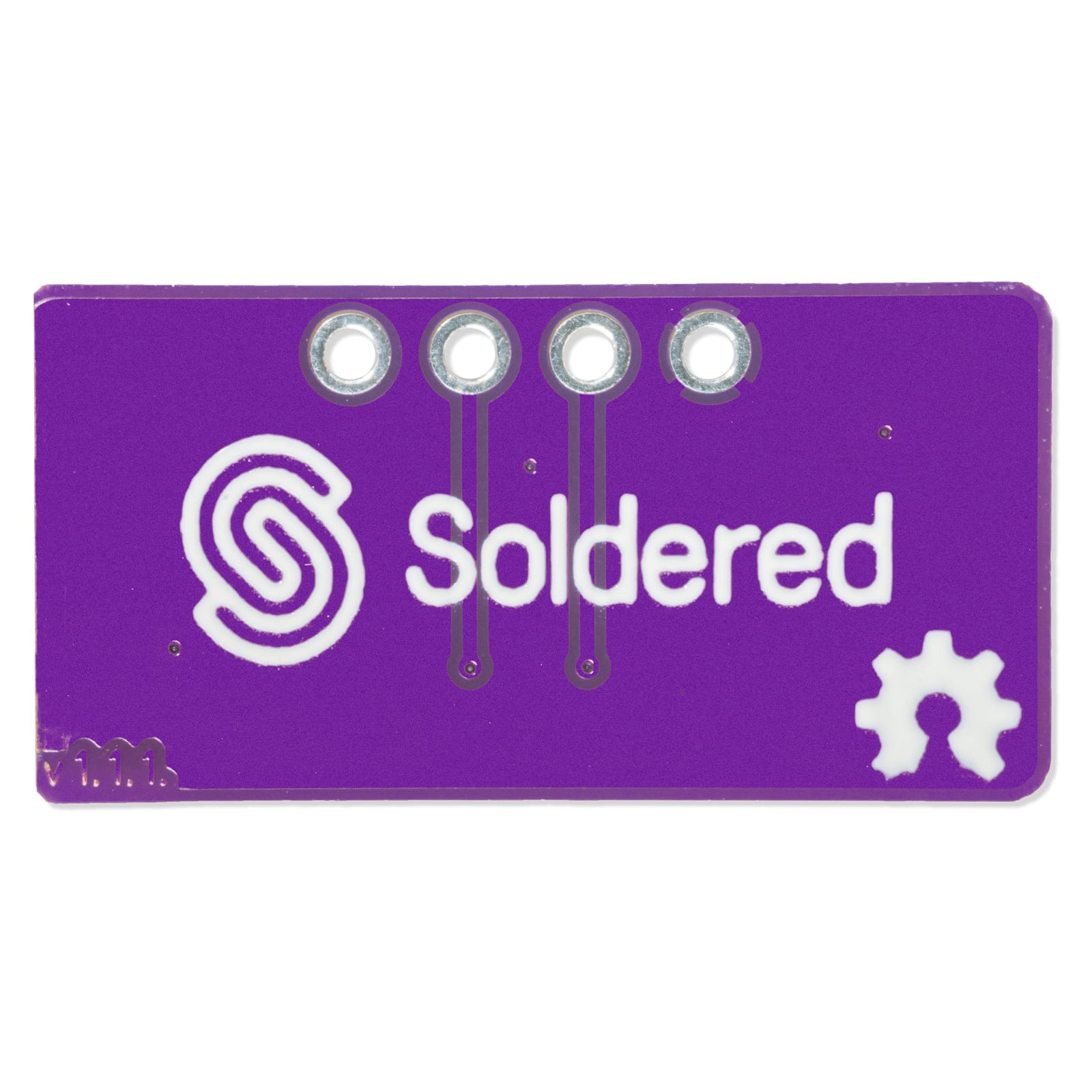

The Qwiic Adapter makes it easy to add Qwiic connectivity to existing I2C boards, allowing them to integrate seamlessly with modern Qwiic-based projects.

Do you have an old I2C board lying around that would be perfect only if it had Qwiic connectors? With the Qwiic adapter and a little bit of soldering, you can give it new life.

It will be able to connect easily to newer boards with Qwiic cables. The adapter has two Qwiic connection ports and four plated through-holes: SCL, SDA, 3.3V, and GND. It comes with pins that need to be soldered to the board.

Product usage tips: Connecting Qwiic devices to the adapter is the same as to any other Qwiic device. Choose a Qwiic cable and connect it to the adapter. That's it. To ensure the longevity of the adapter, avoid working with it in wet environments. Device operates at the 3.3V voltage level so higher voltages can burn it.

Features

    • Operating voltage: 3.3V
    • Communication: I2C
    • Connectors: Qwiic x2
    • Dimensions: 22 x 11mm

    Resources

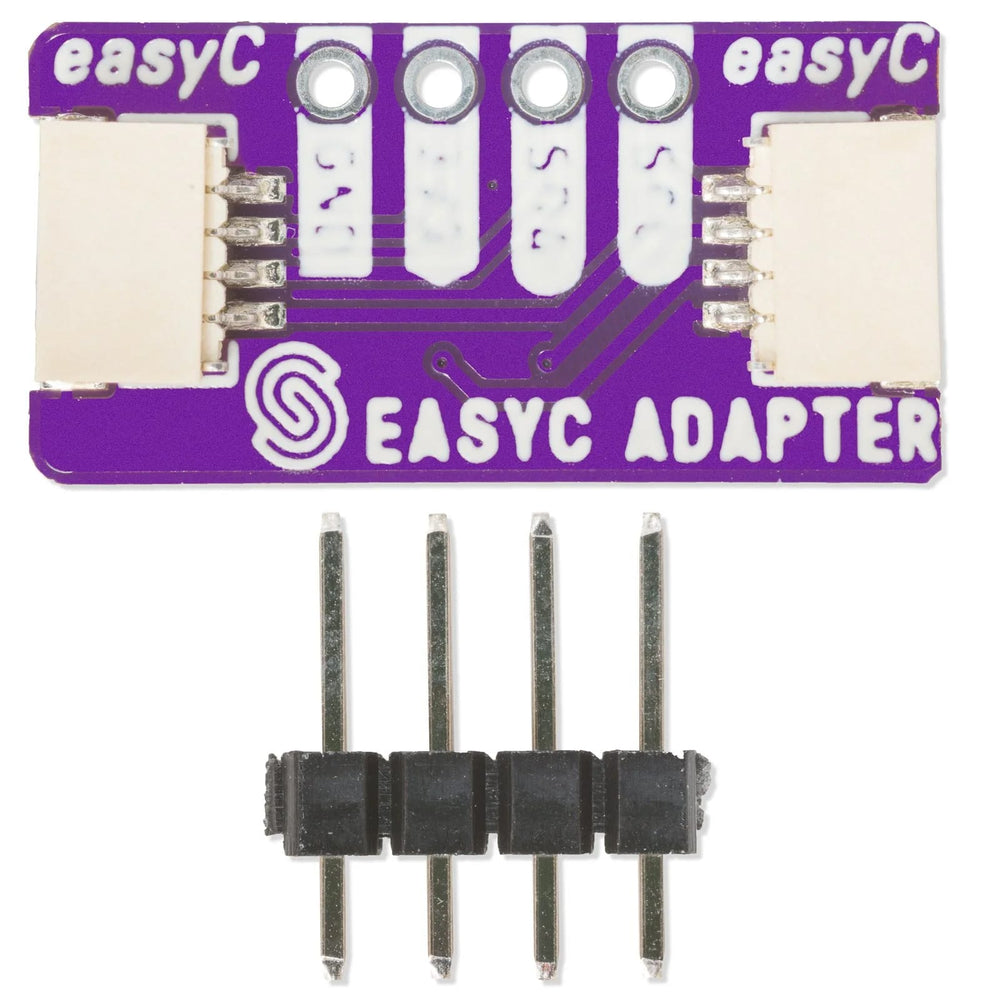

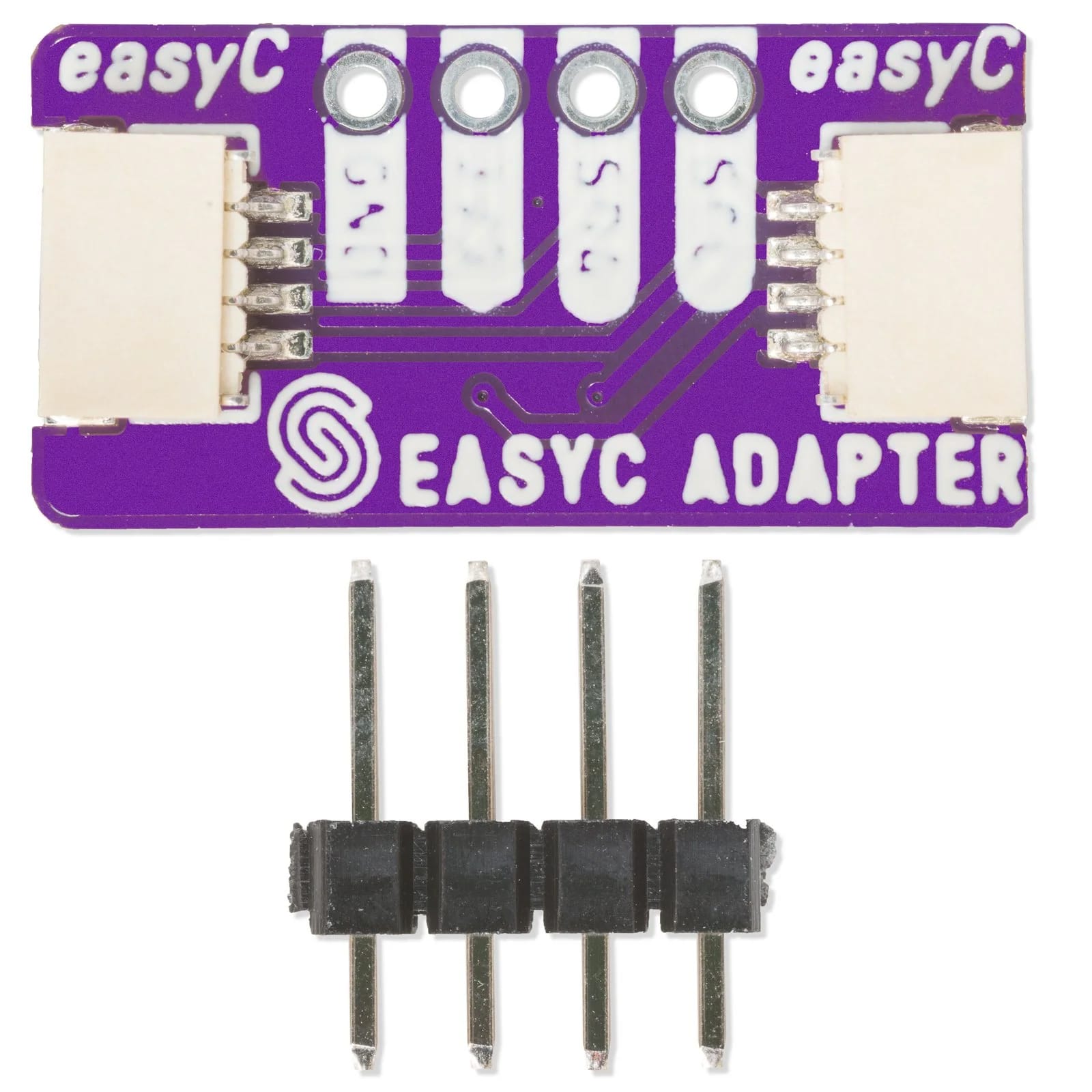

    Package Contents

    • 1x Qwiic adapter
    • 1x Header strip
