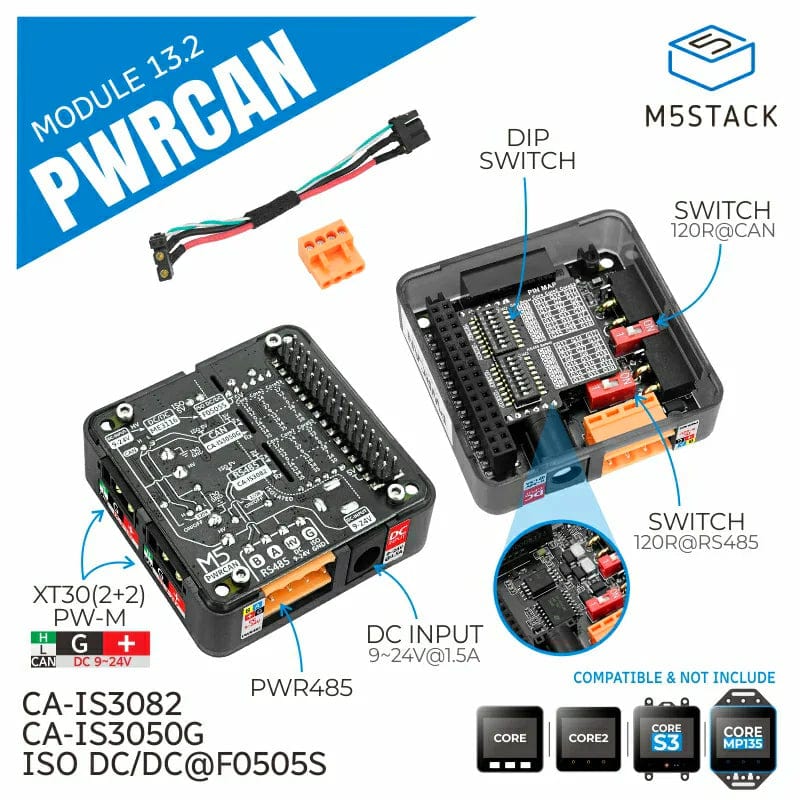

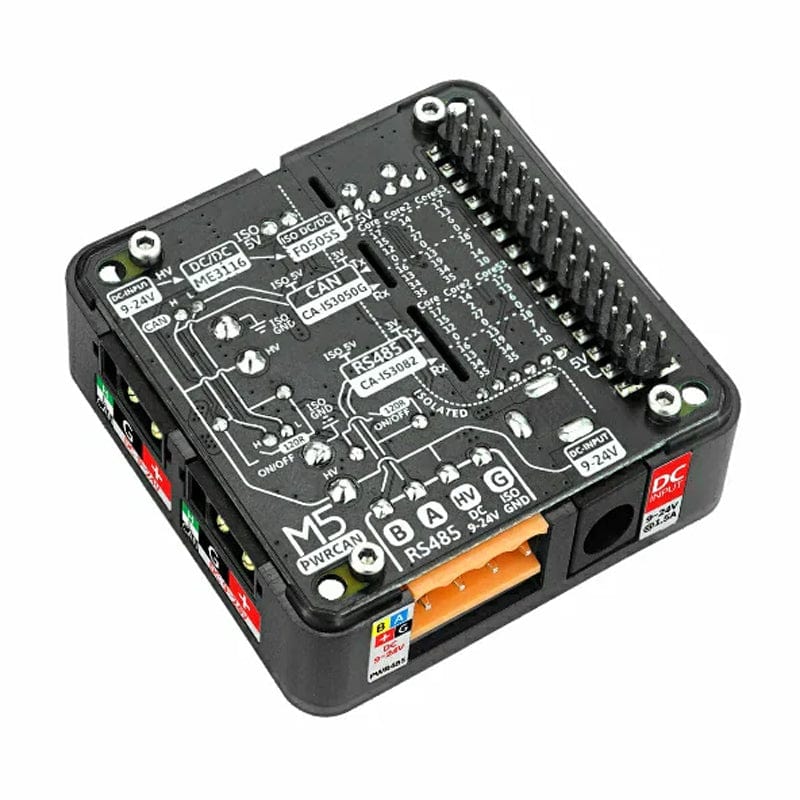

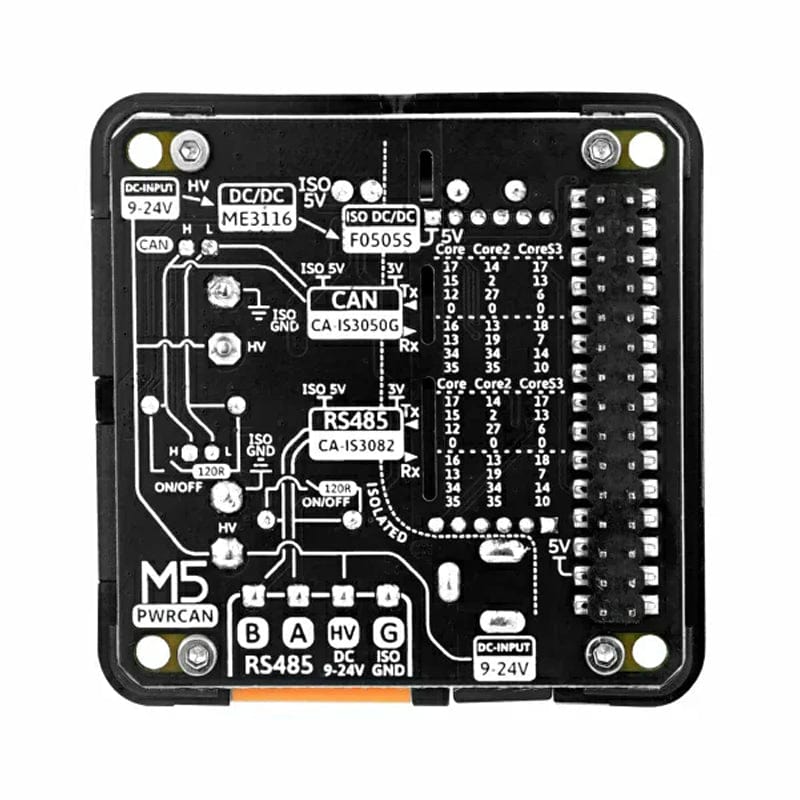

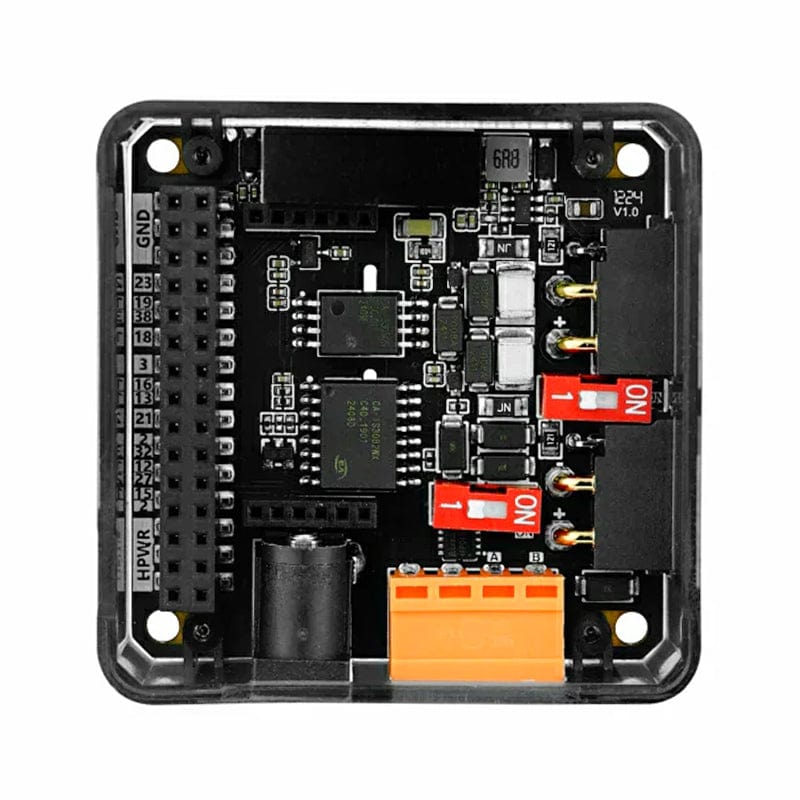

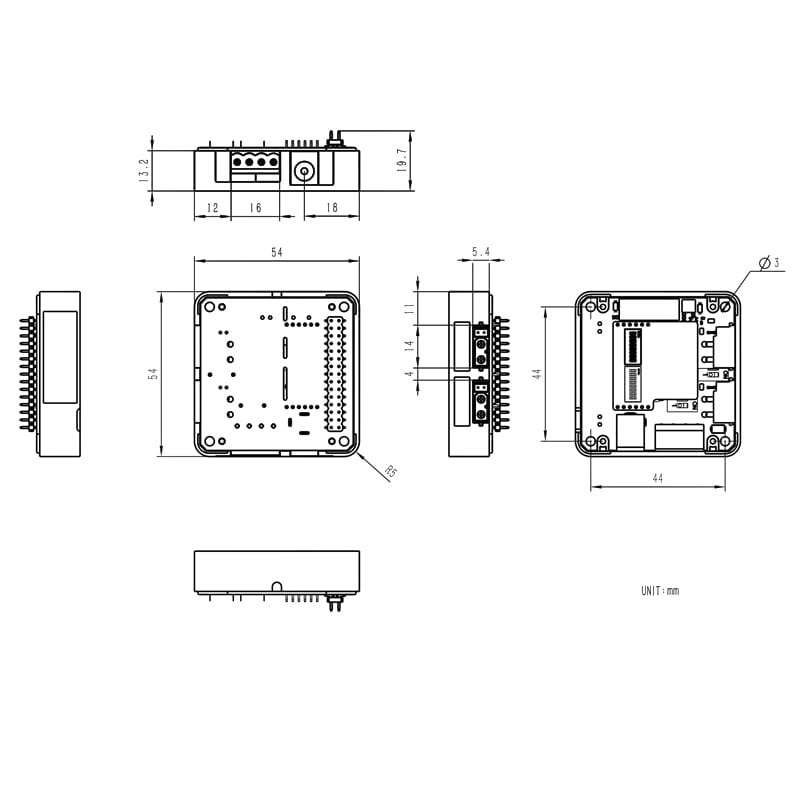

The PwrCAN Module 13.2 is a module for the PwrCAN bus, combining isolated CAN communication with a DC 9-24V power bus. It also has Pwr485 bus functionality with isolation and can supply an isolated 5V power source to the M5 host. The module uses the CA-IS3050G isolated transceiver for CAN communication and the CA-IS3082W isolated transceiver for RS485 communication. You can select the GPIOs for CAN and RS485 communication using dip switches, which also allow the selection of the 120-ohm termination resistors at the CAN and RS485 outputs.

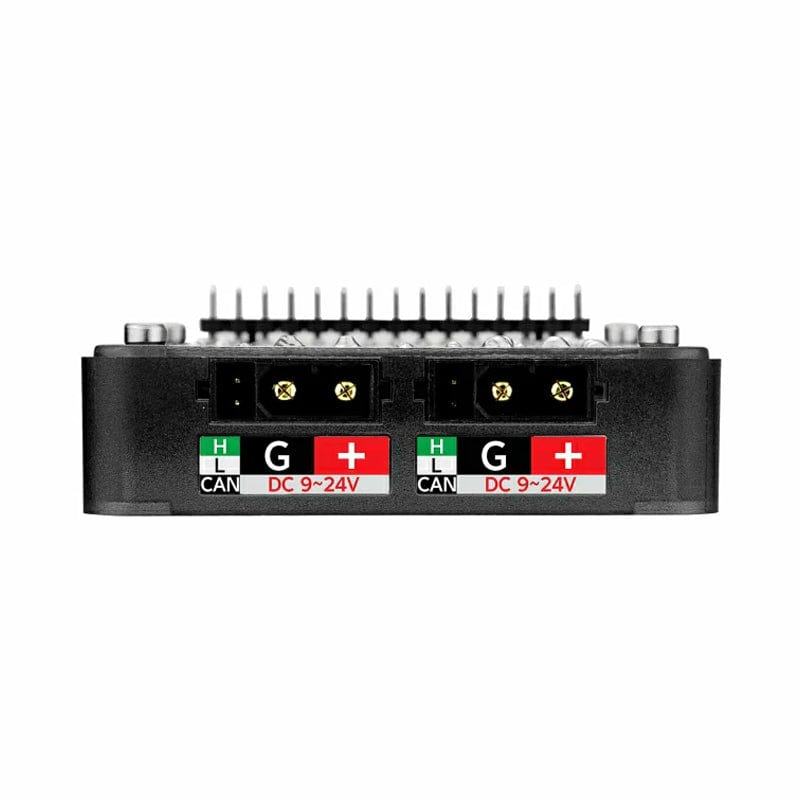

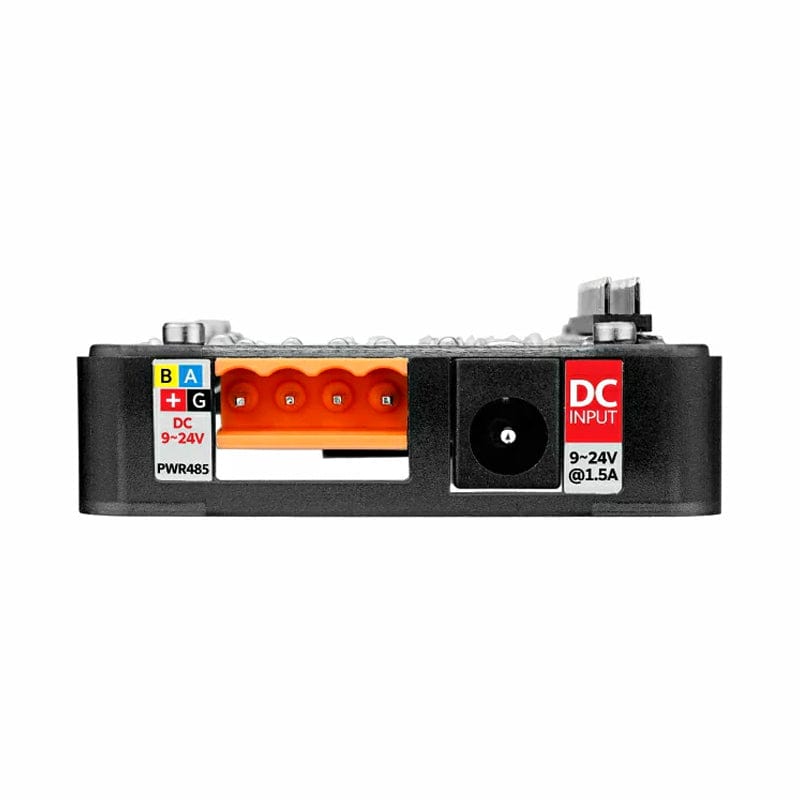

The module’s power bus supports a wide voltage input range from DC 9-24V, and the DC socket is directly connected to the HT3.96 and XT30 power connectors. A built-in isolated power module (F0505S-2WR3) provides power to the M5 host. This module is ideal for various projects, including robot control, protocol conversion, industrial automation and automotive communication systems.
