The Waveshare PCIe Gigabit Ethernet Side Adapter adds a secondary Gigabit Ethernet port to your Raspberry Pi 5 via PCIe, without blocking airflow or HATs.

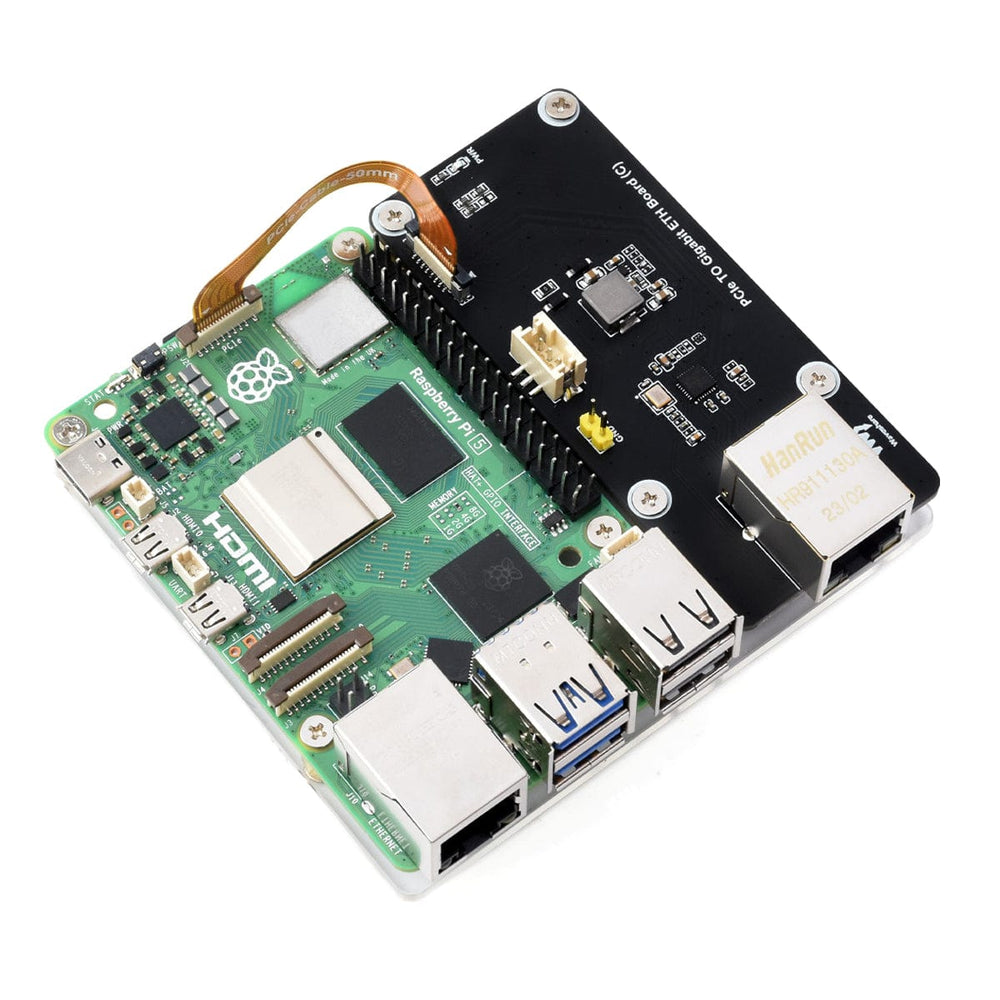

TheWavesharePCIe Gigabit Ethernet Side Adapter forRaspberry Pi 5offers a different arrangement to your usual on-top or underneath HAT, sitting next to the Raspberry Pi 5 rather than on top/bottom.
Thisside-on formatallows you to add a secondary Gigabit Ethernet interfacewhilst keeping hardware off of your Raspberry Pi, allowingunrestricted use of HATs, and ensuresactive coolersget the full airflow they need.

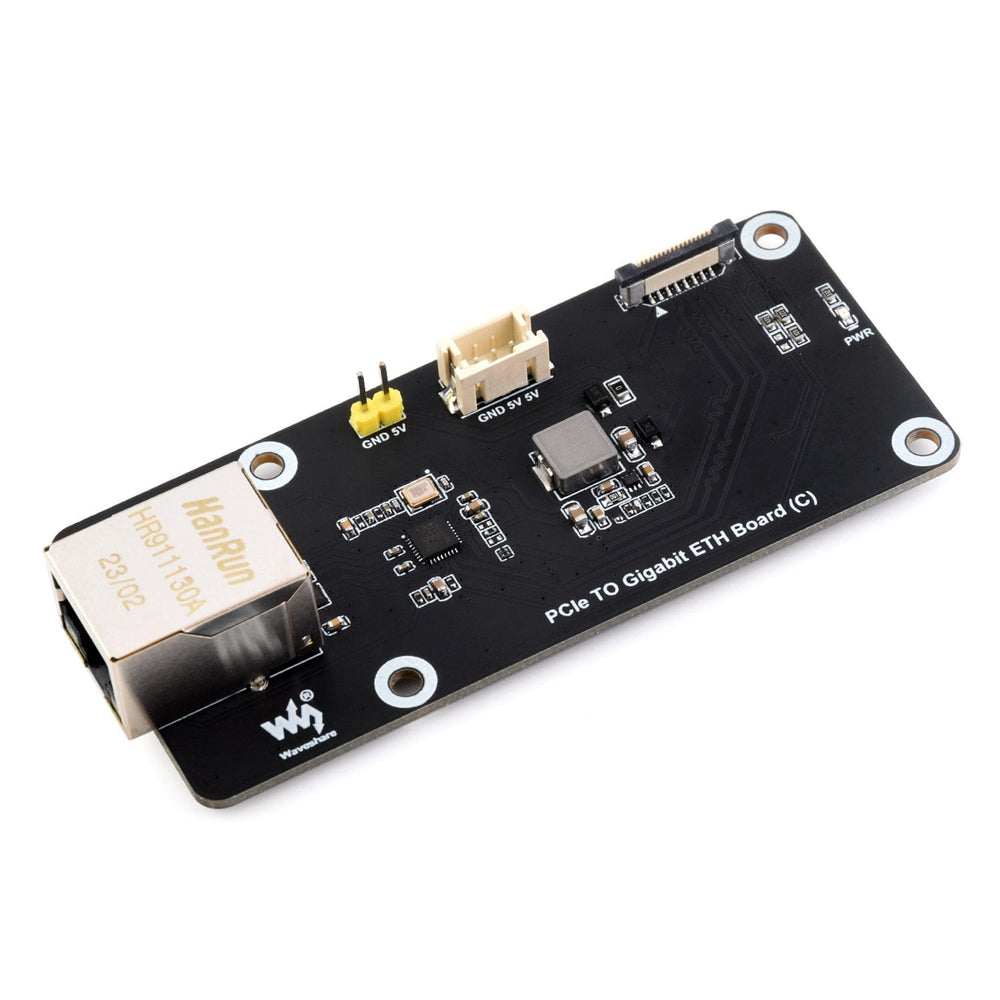

The adapter uses an RTL8111H controller to deliver Gigabit Ethernet via PCIe, offering 10/100/1000Mbps network speeds along with indication LEDs (green = 1000M, yellow = 100M). The board also includes the ability to connect 5V from your Raspberry Pi for additional power, but in most circumstances, this won't be required

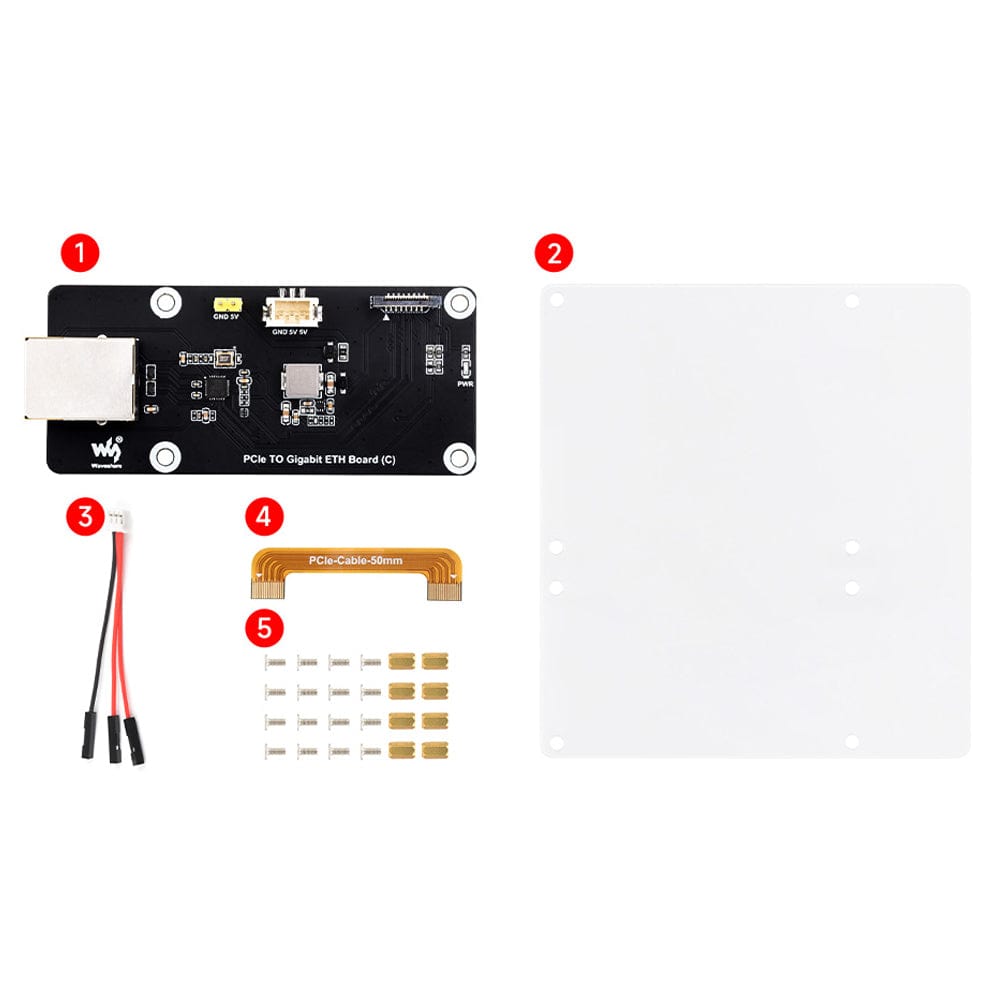

The package includes the adapter board, transparent acrylic mounting base, custom PCIe cable, GPIO power cable and a fixings pack.
Raspberry Pi not included
Features
Adds a secondary Gigabit Ethernet port to your Raspberry Pi 5 via PCIe
Side-mounted format
Supports 10/100/1000Mbps Ethernet speeds
Status LEDs indicate active connection

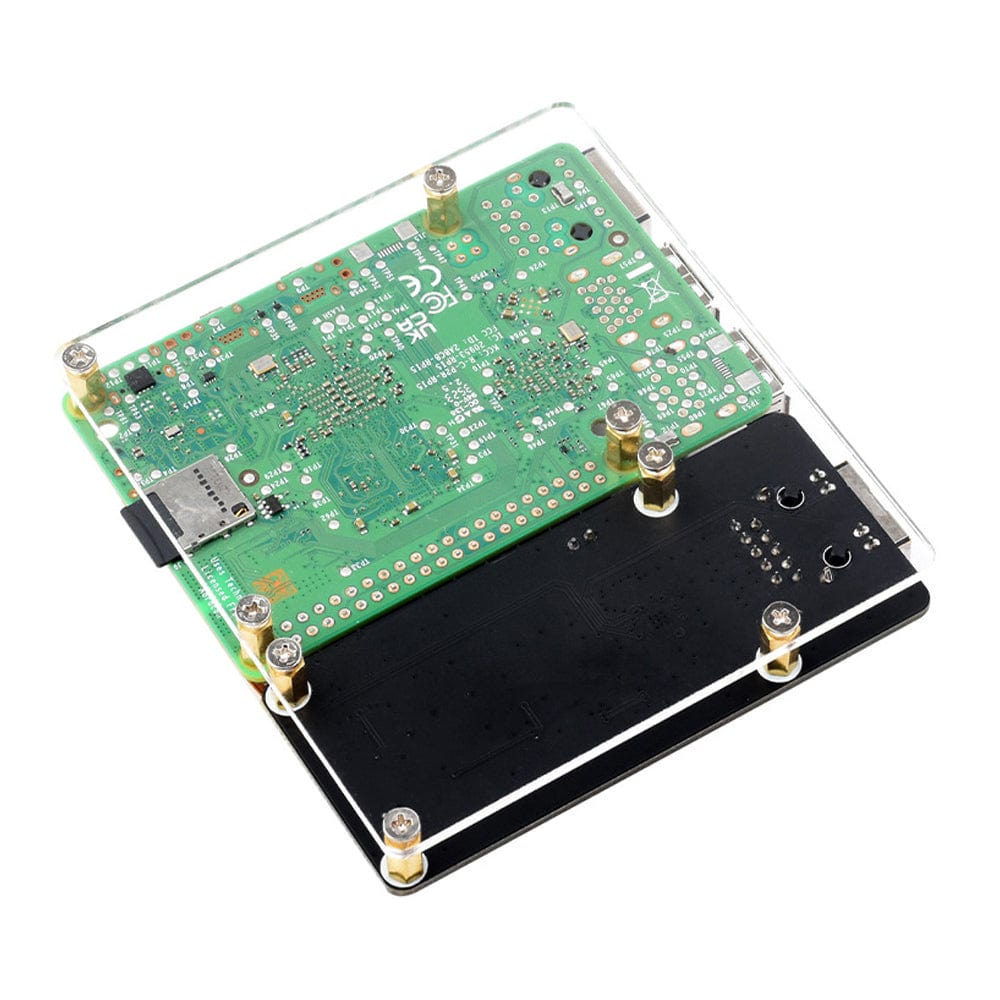

Includes mounting base
Specifications
Controller
RTL8111H
Ethernet port
RJ45 Gigabit Ethernet
PCIe interface
PCIe x1 GEN2
Power supply
5V
Network standard
10/100/1000Mbps
Indicator status
Accessing 1000M network: the green indicator keeps blinking
Accessing 100M network: the yellow indicator keeps blinking
