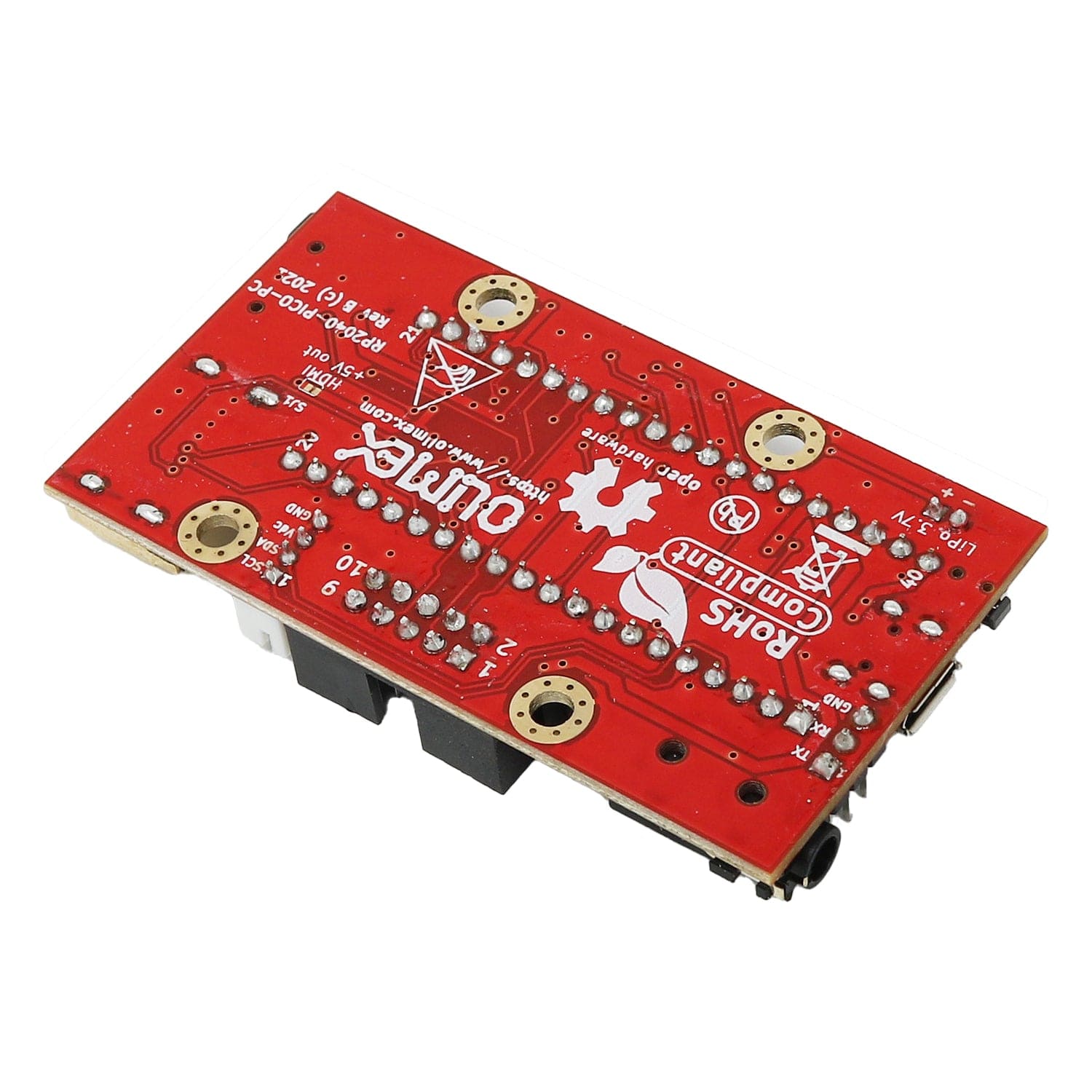

Olimex RP2040-PICO-PC for Raspberry Pi Pico

This board allows you to expand the capabilities of your Raspberry Pi Pico, essentially turning it into a very small PC!

The expansion harnesses the power of the Raspberry Pi Pico's IO to offer useful features such as HDMI out, USB-OTG for keyboards, Micro-SD slot for storage, LiPo support + charging, 3.5mm audio jack and more. A full list of the features can be found below.

A number of demo code examples are available to help you use each feature, enabling you to make your own program including as many as you need.

Features

• Raspberry Pi Pico connector
• Micro SD card
• HDMI connector
• UEXT connector
• I2C connector
• Audio codec and connector
• Li-po connector and charger
• Debug UART connector
• Four mount holes 3 mm
• Board dimensions: x mm

Resources

Hardware

• Schematic
• GitHub repository

Software

• Demo code

Package Contents

• 1x RP2040-PICO-PC board

Raspberry Pi Pico not included
