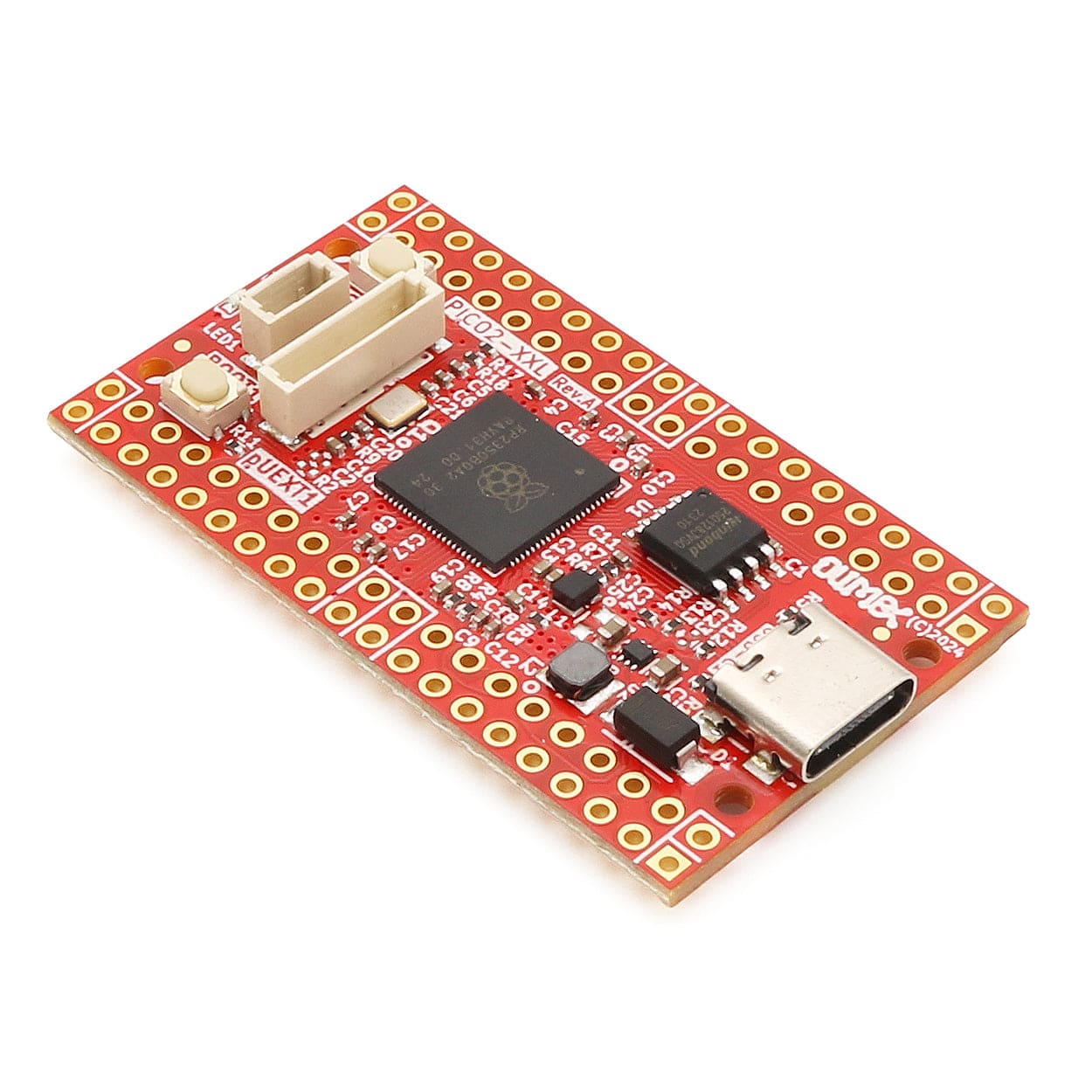

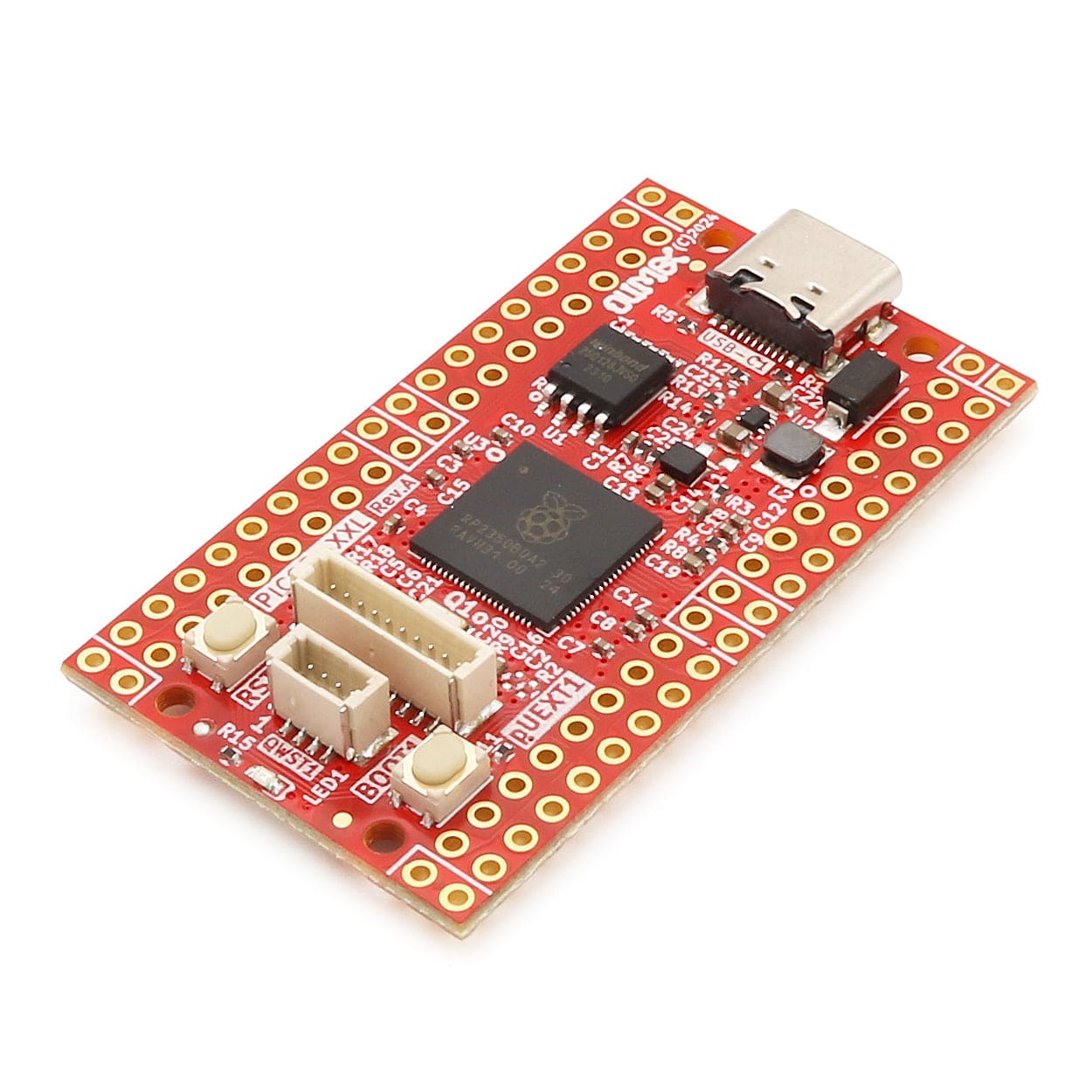

The Olimex PICO2-XXL is an RP2350-based development board exposing all 48 GPIO from the Raspberry Pi RP2350B microcontroller!

The board features USB-C for power and programming, RESET and BOOT buttons, upright Qwiic/Stemma QT port, status LED and a pUEXT connector.

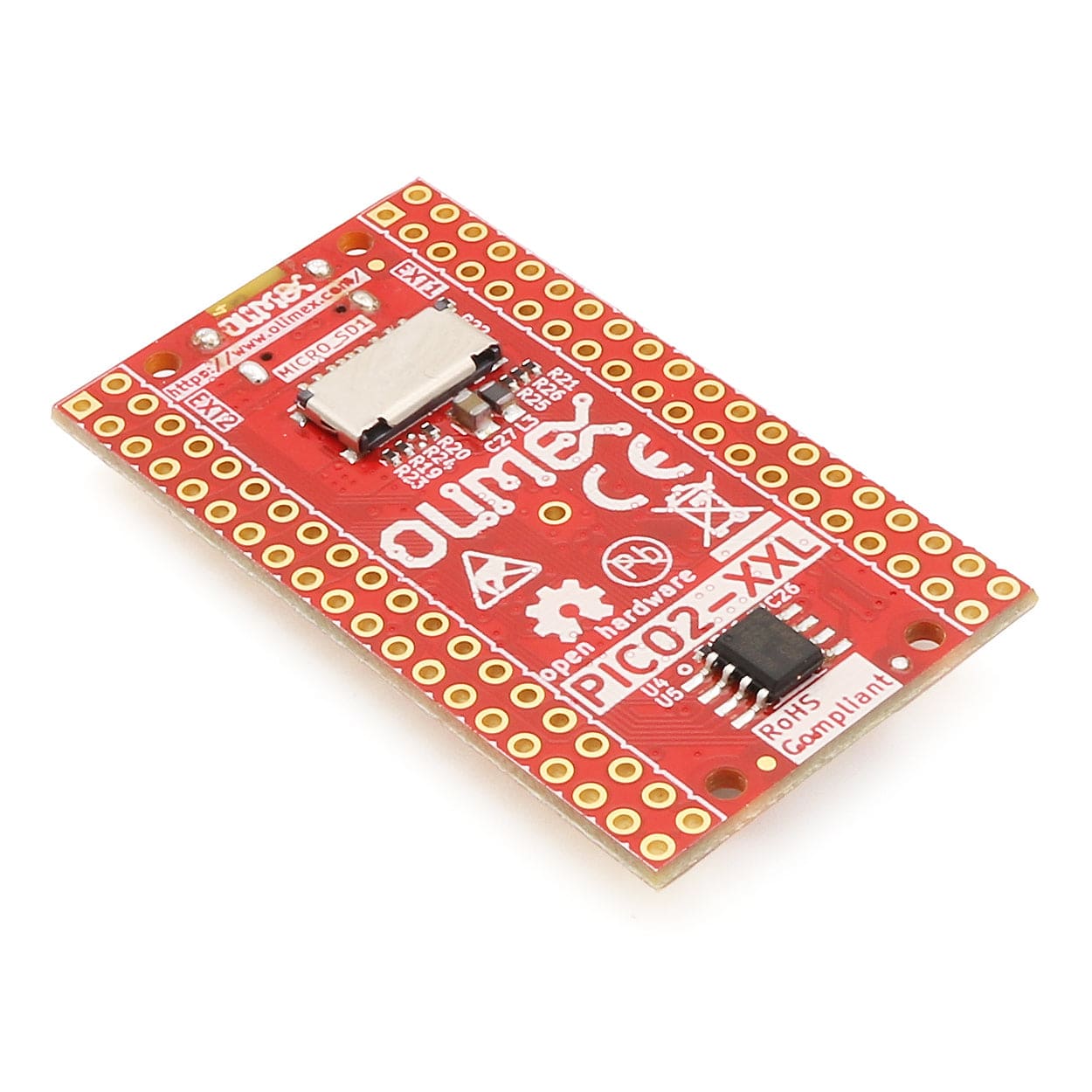

This XXL version of the Olimex PICO2 board range comes with some extra features - 16MB external flash (vs the 2MB on the PICO2-XL) and a compact MicroSD slot on the underside of the board.

The board features unpopulated pads for adding your own headers or soldering wires directly.

We also stock the Olimex PICO2-XL, a more affordable variant with 2MB external flash and no MicroSD slot.

Features

  • RP2350B Dual Cortex-M33 or dual RISC-V @ 150MHz
  • 520 KB on-chip SRAM
  • USB-C connector
  • BOOT and RESET buttons
  • 16MB QSPI flash
  • 8MB QSPI PSRAM
  • MicroSD card slot
  • UEXT connector
  • Qwiic/Stemma connector
  • Status LED
  • All 48 GPIOs exposed
  • Dimensions (50x28)mm

Resources

Documentation

Hardware

Software

Package Contents

  • 1x PICO2-XXL Development board
