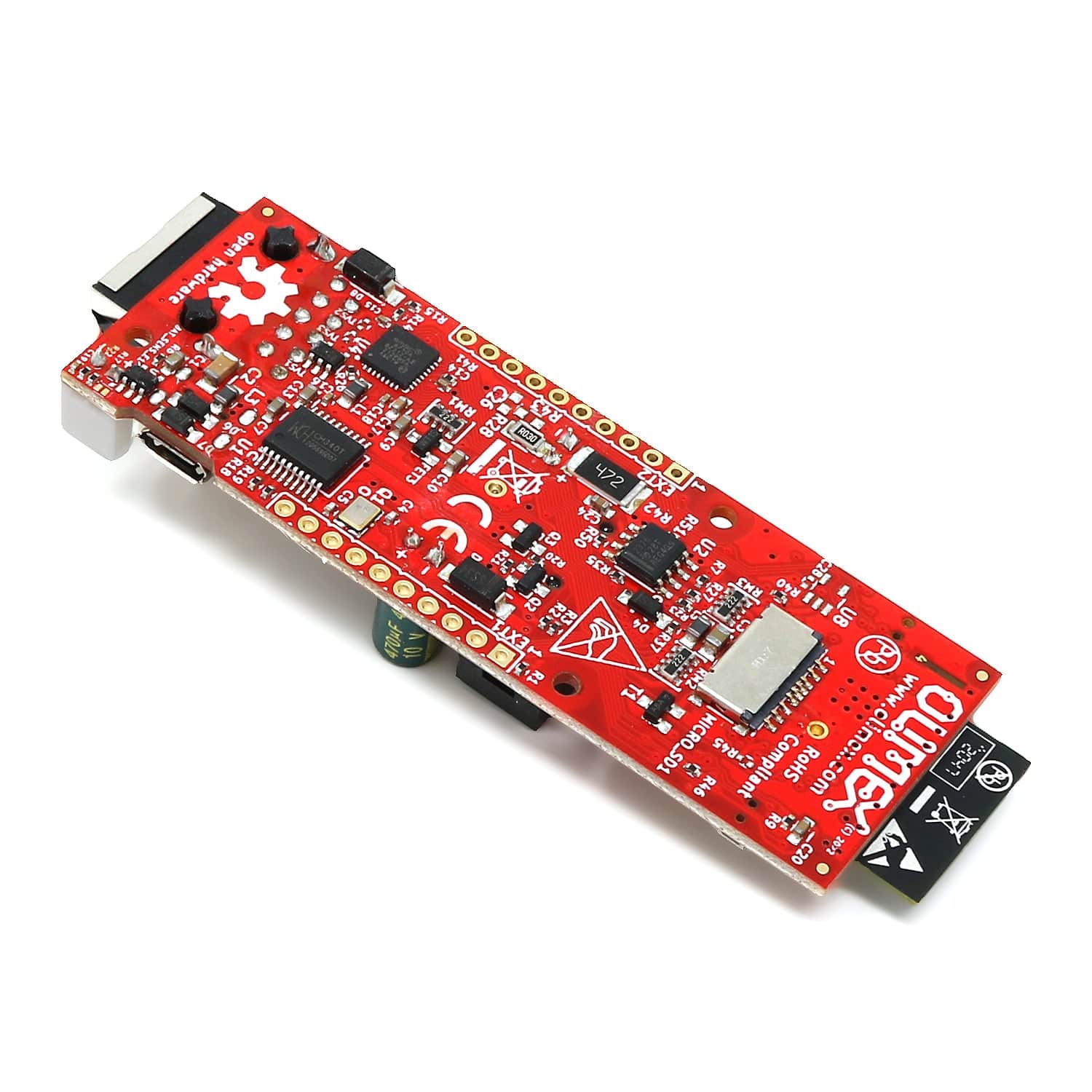

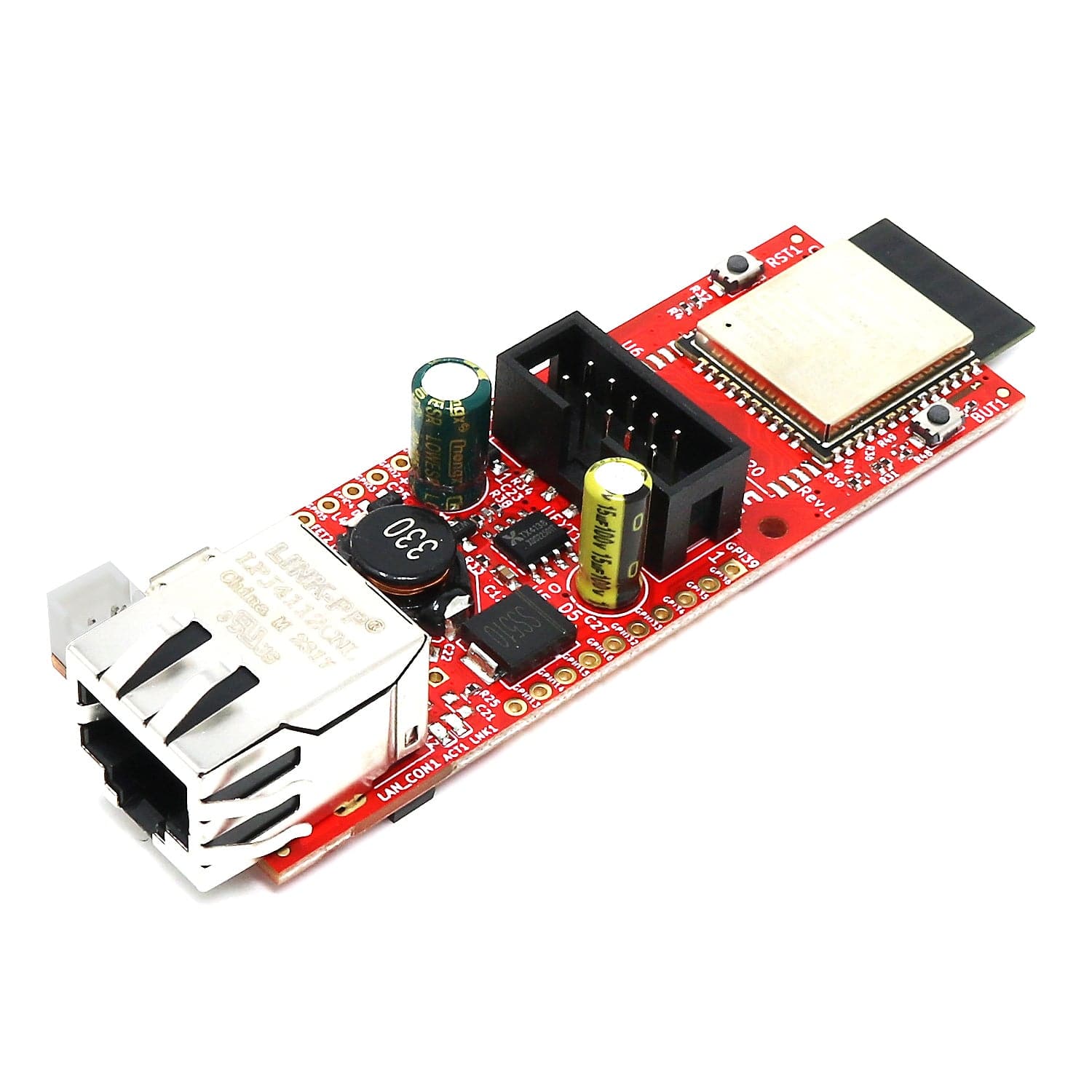

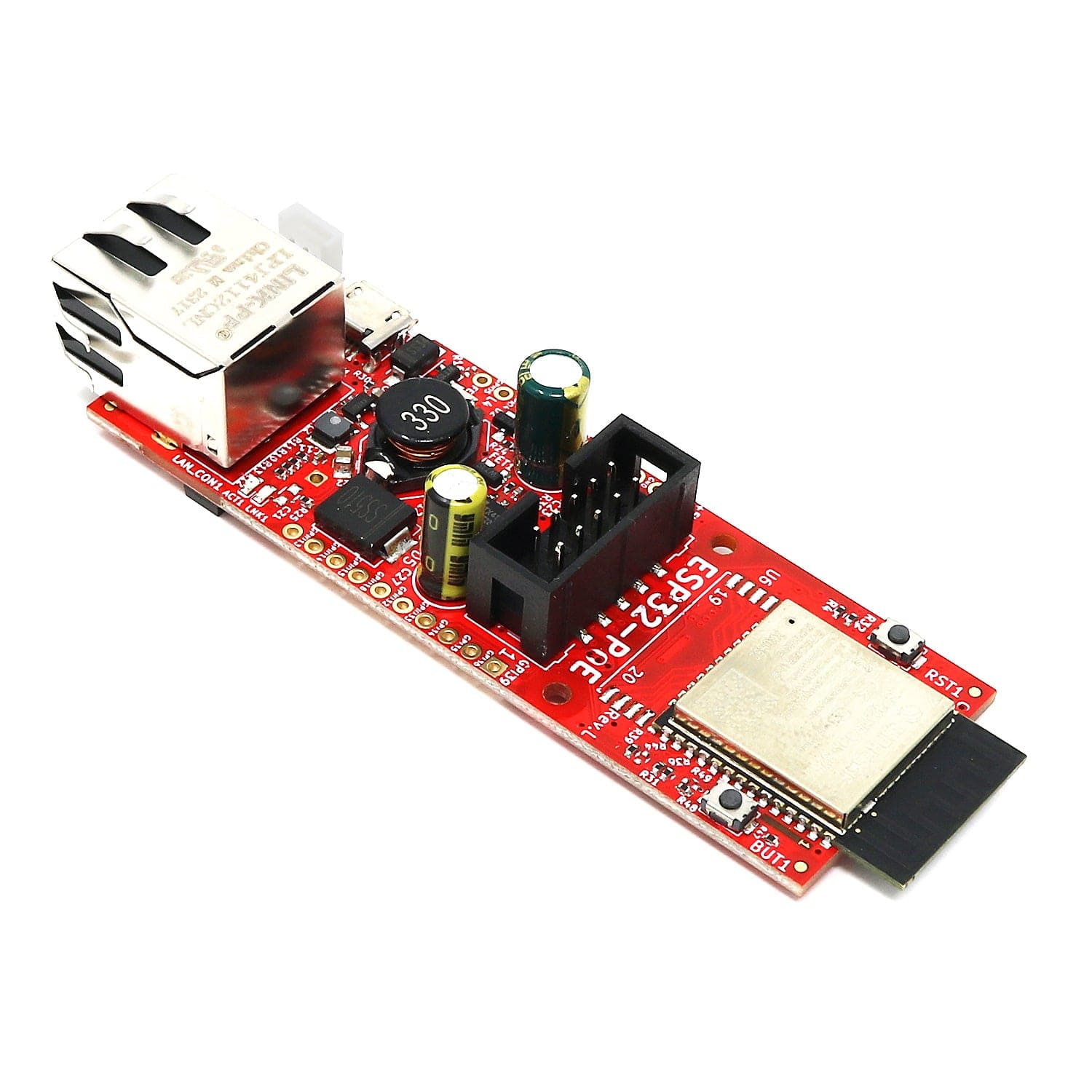

Olimex ESP32-POE Development Board

The Olimex ESP32-PoE is an ESP32-powered WiFI/BLE/Ethernet development board with a Power-Over-Ethernet feature. It is the perfect addition to any project that requires connectivity.

The PoE is currently handled by a TPS2375PW chip that is IEEE 802.3-compliant, including pre-standard (legacy) PoE support. PoE powering requires at least 37V DC to operate successfully. The board takes power from the Ethernet cable and can be expanded with sensors and more - the perfect solution for Internet-of-Things projects!

This board also features a LiPo battery connector and charger, MicroSD slot and RESET/user-programmable buttons. A micro-USB connection handles power and programming (be sure to grab a micro-USB cable as one isn't included).

Important: This board has no galvanic isolation from the Ethernet's power supply. When you program the board via the micro USB connector the Ethernet cable should be disconnected (if you have power over the Ethernet cable).

Features

• ESP32-WROOM-32E WiFi/BLE module
• Ethernet 100Mb interface with IEEE 802.3 PoE support
• LiPo battery charger
• LiPo battery connector
• UEXT connector
• User button
• Reset button
• Micro USB with programmer for ESP32 programming
• MicroSD card
• Two extension connectors 0.1" step spaced at 1"
• PCB dimensions: (80 x 28)mm ~ (3 x 1)"

Resources

Documents

• User manual
• Schematic
• GPIO map
• European Declaration of Conformity
• UKCA Declaration of Conformity

Hardware

• CAD files

Software Demos

• Simple Ethernet demo for ESP-IDF
• Works with default Arduino for ESP32 (if you have troubles refer to this document)
• Simple Ethernet and SD card demo for Arduino
• WIFI webserver and UEXT demo for Arduino
• LCD demo with MOD-LCD2.8RTP
• More Arduino examples on our GitHub pages

USB Drivers

• USB driver for Windows
• High-speed USB driver for Linux
• USB driver for Linux (for old kernels; pre-3.14.x)
• USB driver for Mac
• USB driver for Android

Package Contents

• 1x Olimex ESP32-POE board

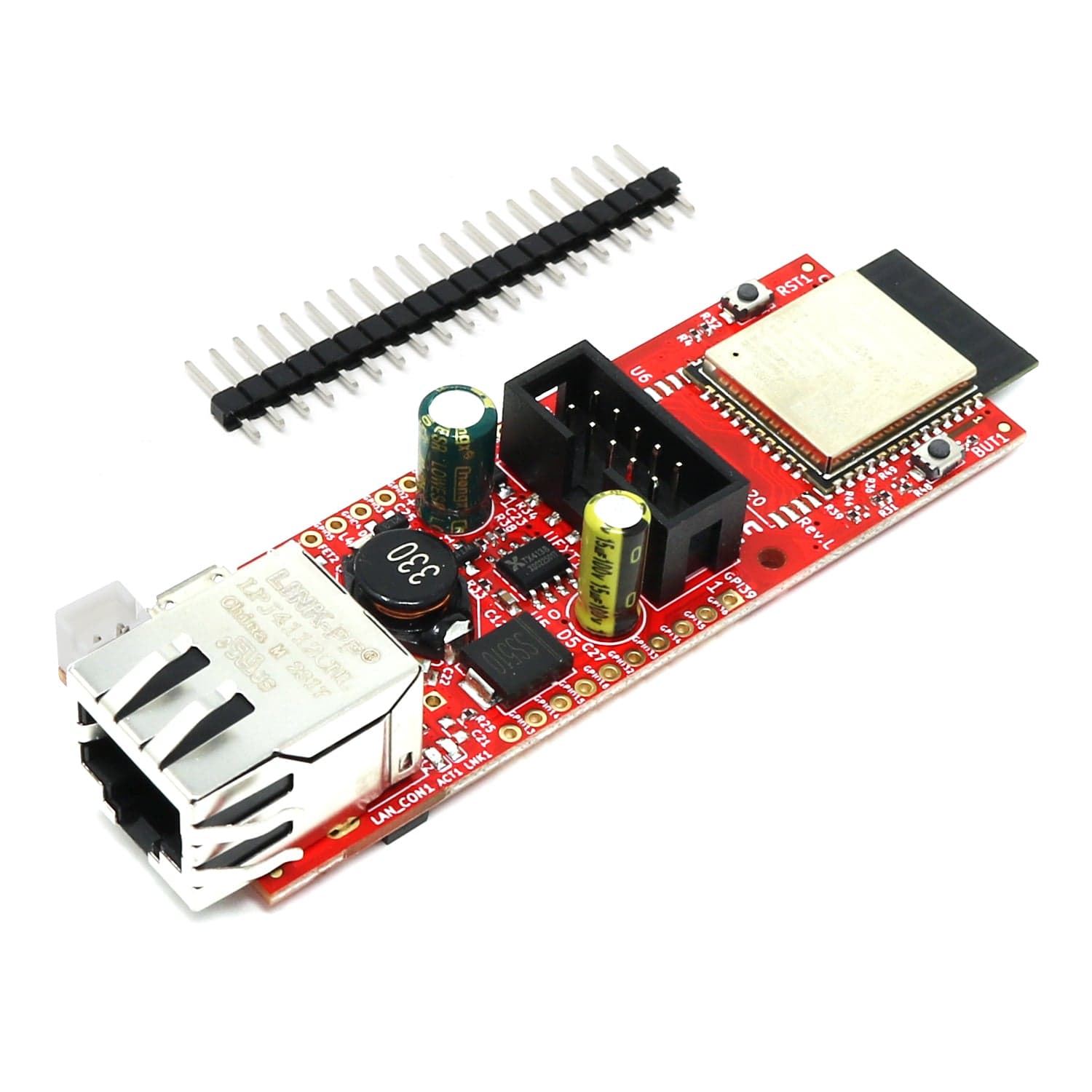

• 1x Header strip
