Neco Unit with LED (WS2812C) - The Pi Hut

Neco Unit with LED (WS2812C)

Name: Neco Unit with LED (WS2812C)
Brand: M5Stack
SKU: U163
Price: 11.90 GBP
Availability: InStock

M5StackSKU: U163

£11.90

incl. VAT

excl. VAT

Only 5 units left

Awesome Extras

M5Stack CoreS3 ESP32S3 loT Development Kit - The Pi Hut

M5Stack M5Stack CoreS3 ESP32S3

£57.90 incl. VAT excl. VAT

M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut

M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut

M5Stack M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit

£24 incl. VAT excl. VAT

Notify me

Grove - 4 pin Male Jumper to Grove 4 pin Conversion Cable (5 PCs per Pack) - The Pi Hut

Seeed Grove - 4 pin Male Jumper to Grove 4 pin Conversion Cable (5 PCs per Pack)

£2 incl. VAT excl. VAT

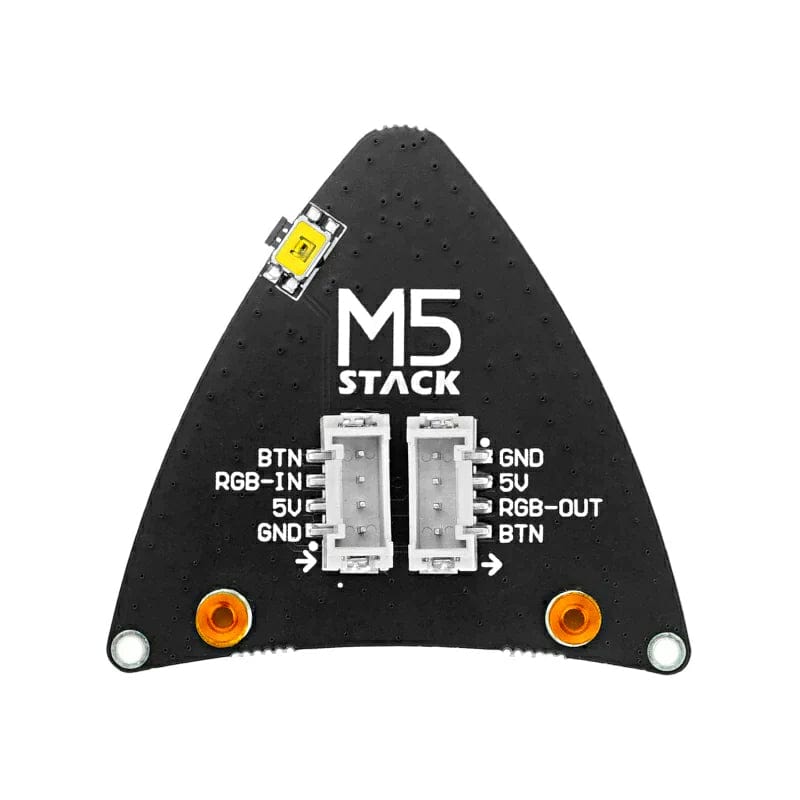

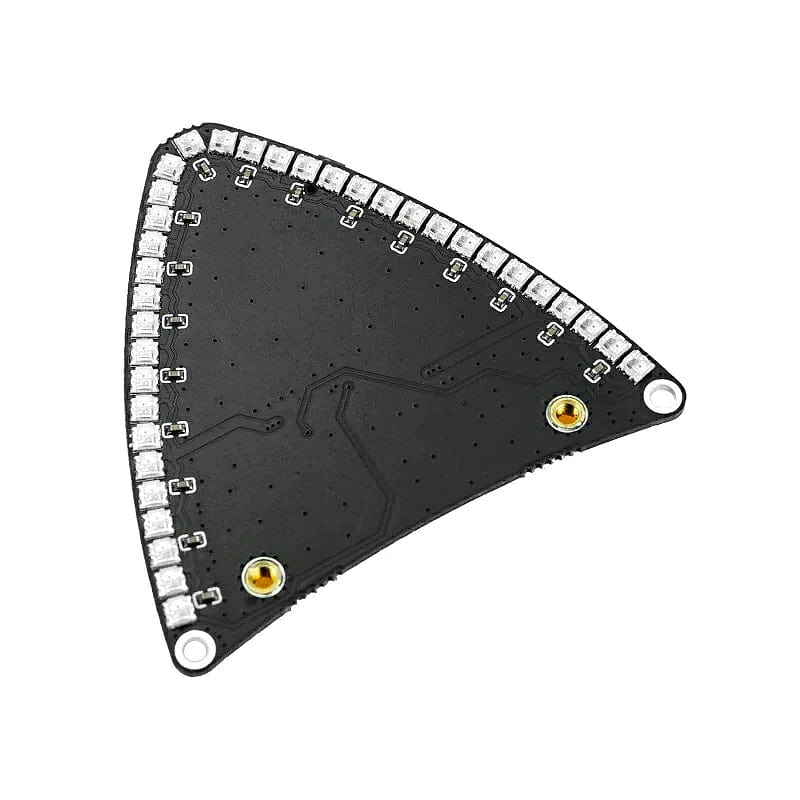

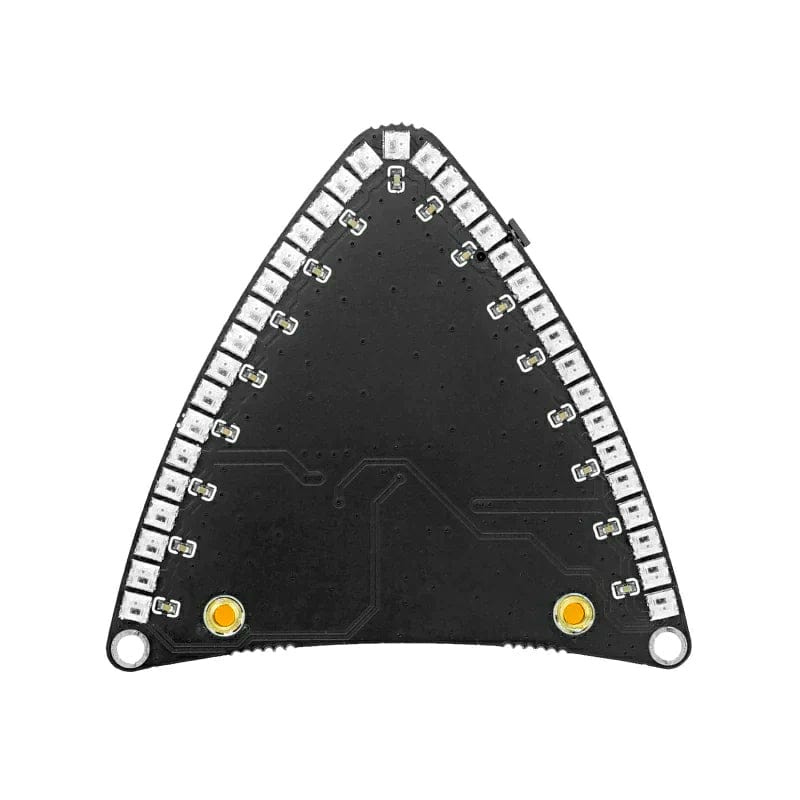

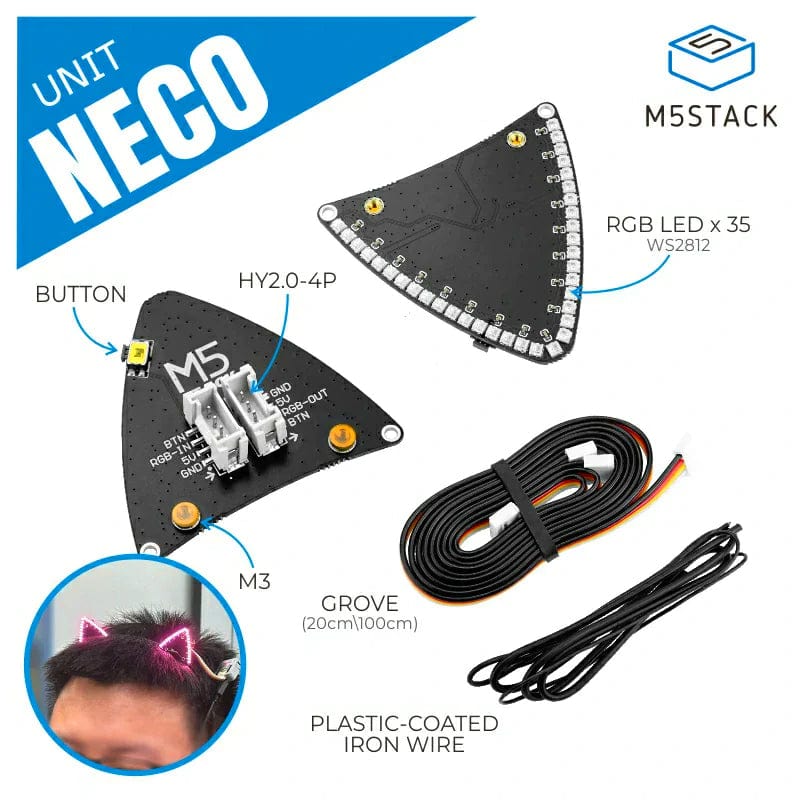

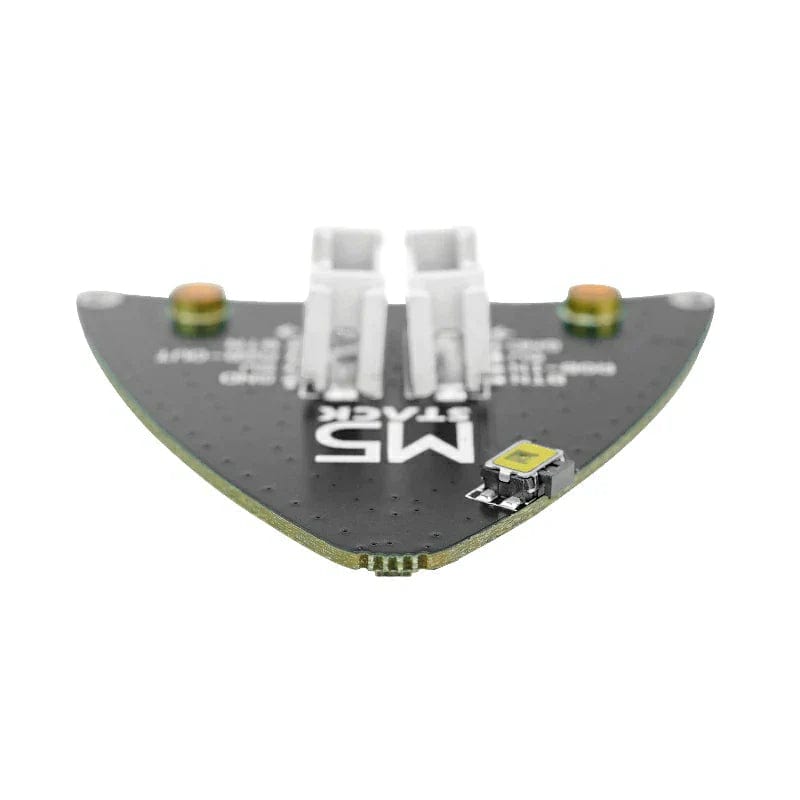

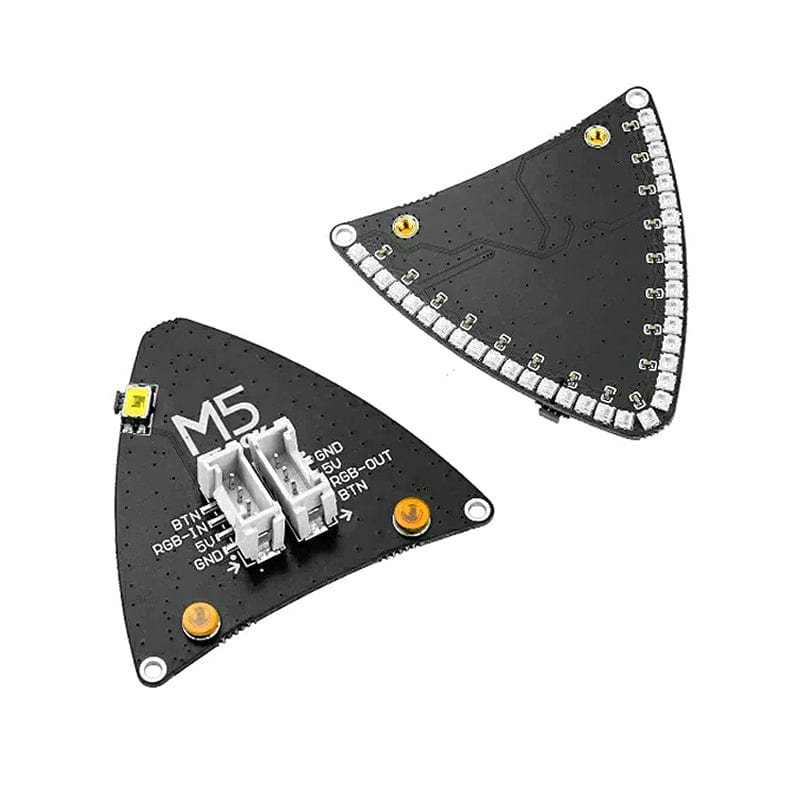

The Neco Unit is an RGB light board unit with a cat ear shape, including 35x WS2812C-2020 RGB lamp beads. It is equipped with two 4-pin grove ports for connecting the M5Stack host and expanding more units. In addition, there is a button to interact with the host and switch between different lighting effects. It is suitable for home decoration, stage performances and many other scenarios!

Note: If it is set to full brightness for a long time, it will cause the lamp bulbs to burn out, it is recommended to set the brightness to around 20.

Features

WS2812C-2020 RGB lamp bead
HY2.0-4P
Compatible with multi-platform development:
- UIFlow
- Arduino

Specifications

Resources	Parameters
RGB lamp bead	WS2812C-2020
Consumes current	5mA（each RGB lamp bead）
Brightness level	256 levels of brightness display
Connection method	Serial cascade interface
Operating temperature	0-85°C
Number of colors	16777216 colors
Product Size	41 x 46 x 1mm
Package Size	95 x 65 x 25mm
Product Weight	9.2g
Package Weight	34.7g
