Multifunctional Adapter (C) with M.2 Socket for Raspberry Pi 5

Raspberry Pi 5 is here and...we still have cables firing out of every direction of the board! Whilst it's not a problem for most projects, those wanting an 'all out the back' tidy desktop vibe need something like this board to re-route ports.

We already stock a simpler version of this multifunctional adapter for just re-routing ports, however if you also want to run an NVMe SSD without adding additional hardware - this latest 'C' version is for you.

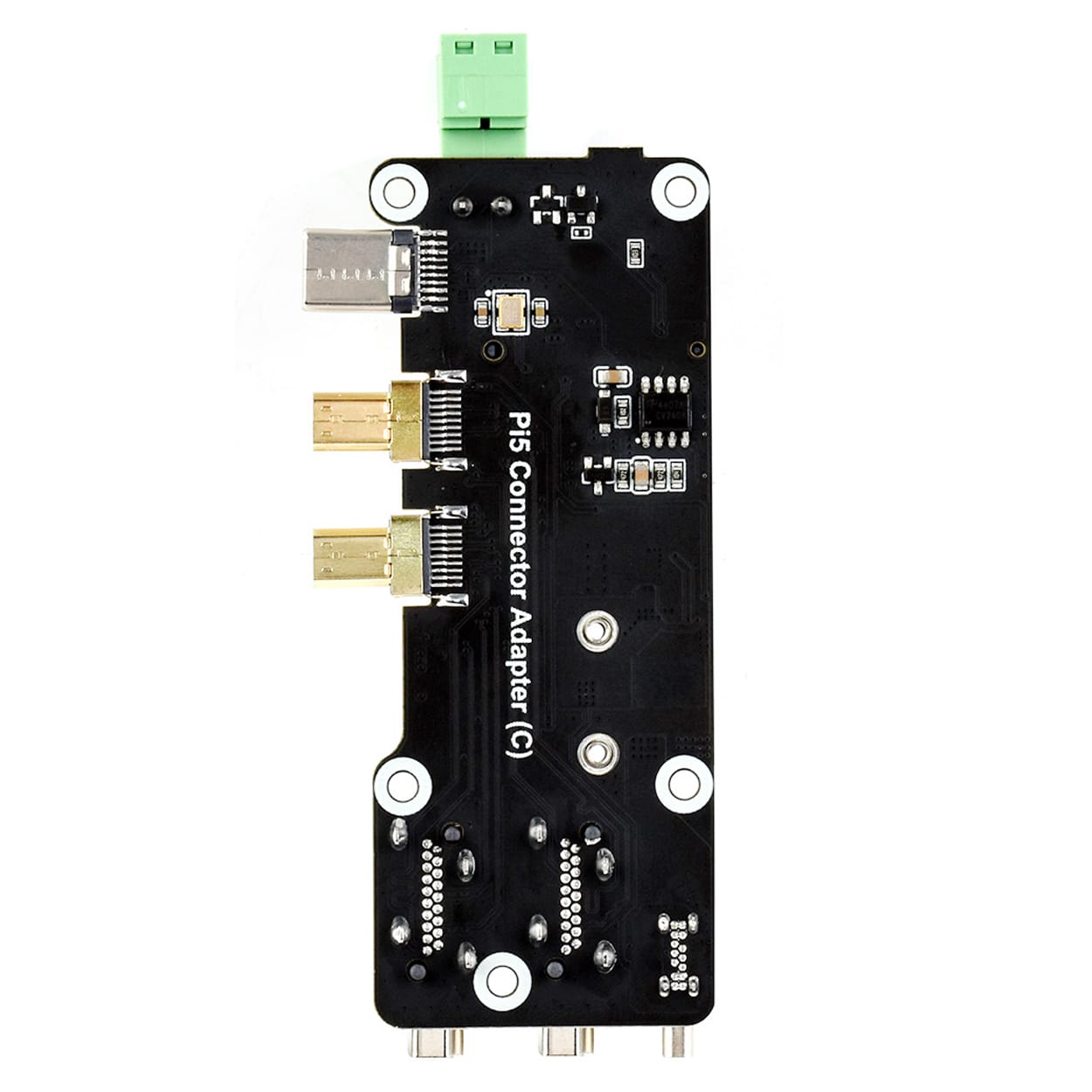

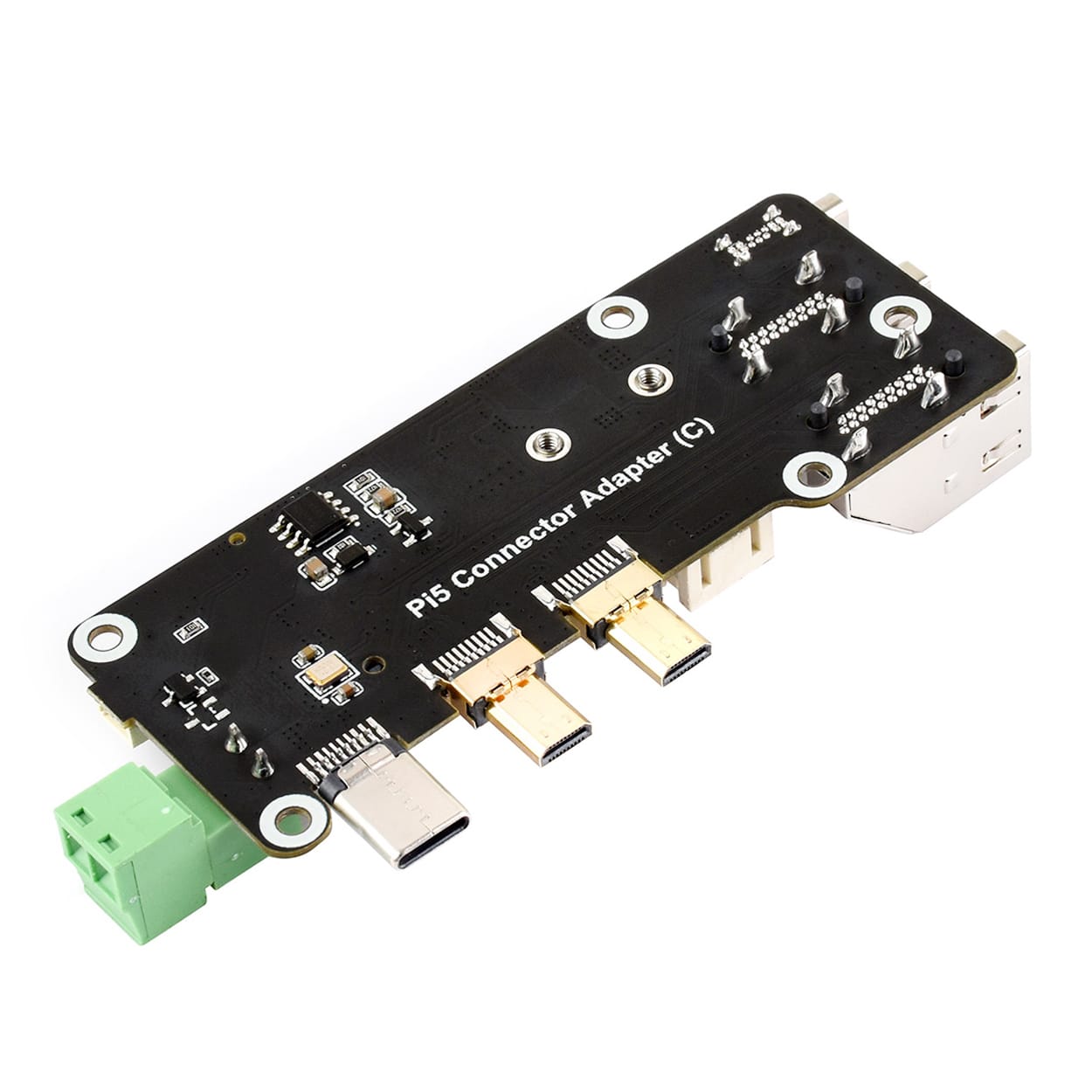

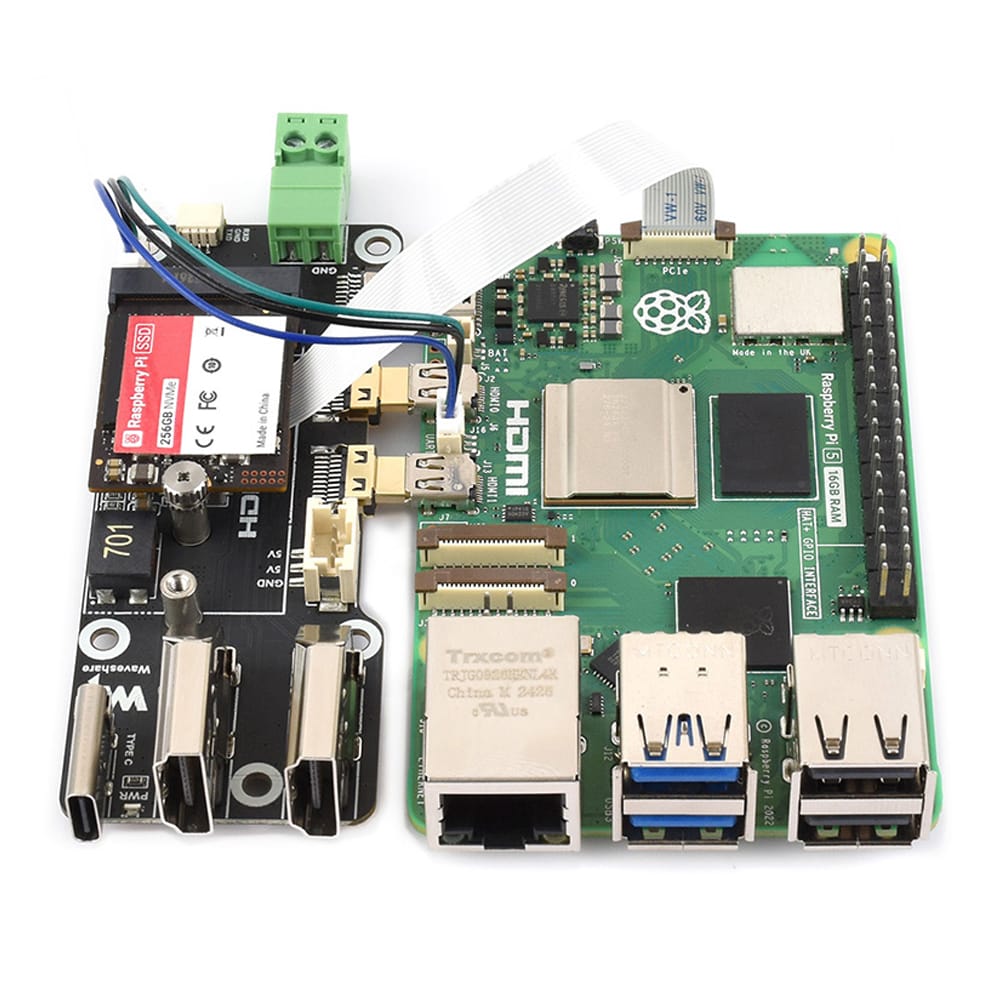

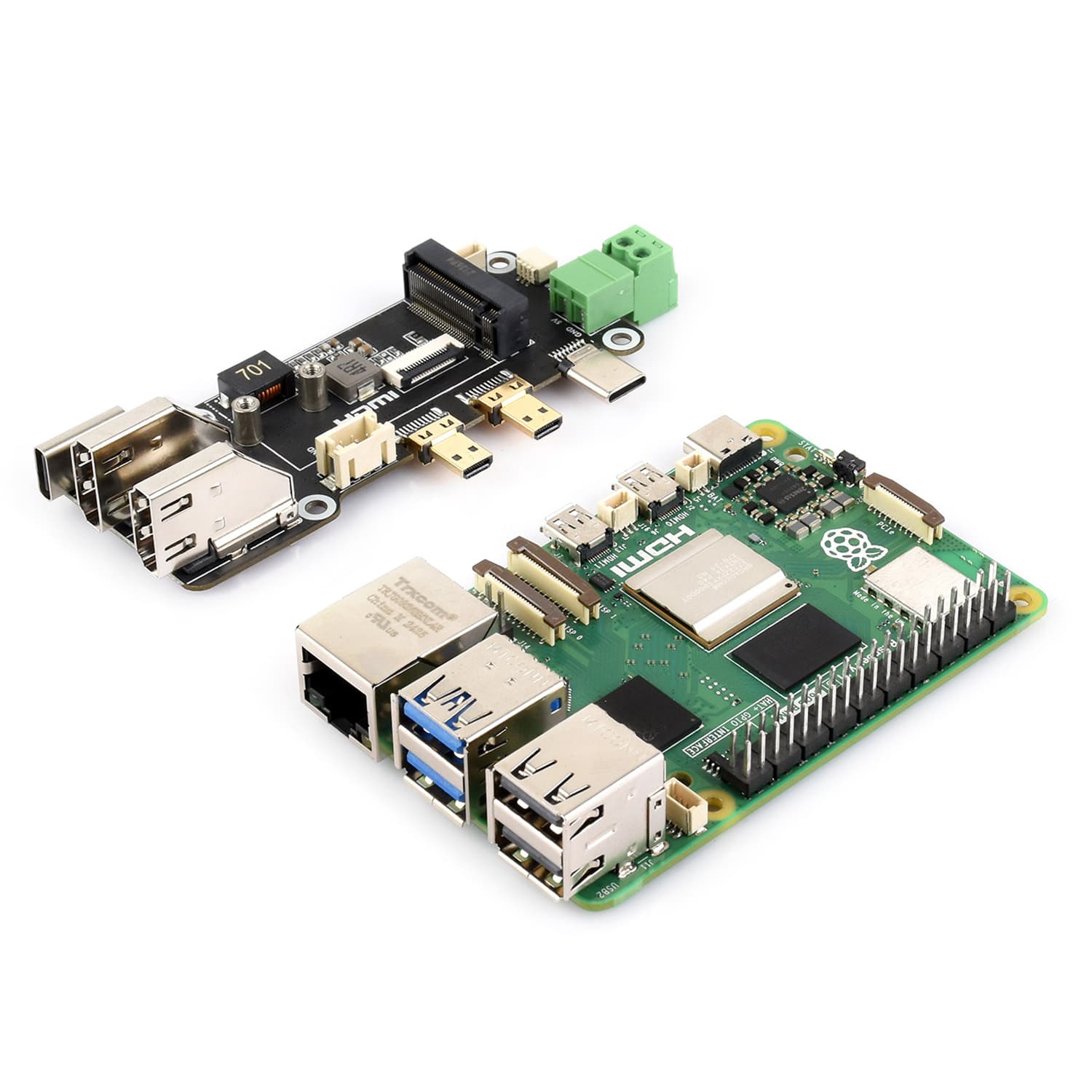

The Multifunctional Adapter (C) re-routes USB-C, UART (debug port) and HDMI (dual full-size HDMI) to the rear alongside the Pi's Ethernet and USB port, whilst also providing two power input options (USB-C or 5V screw terminal) and a handy extra 5V and GND output.

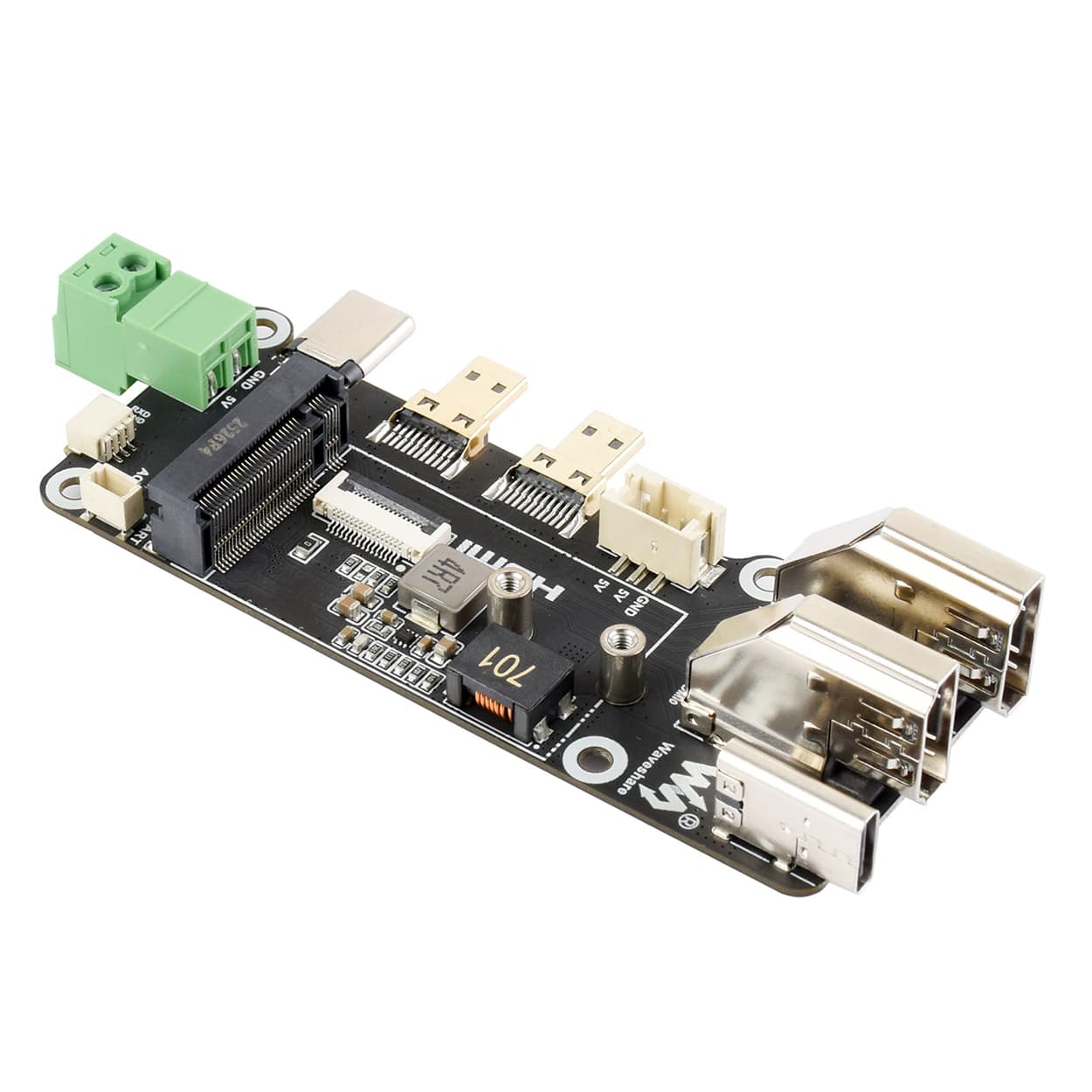

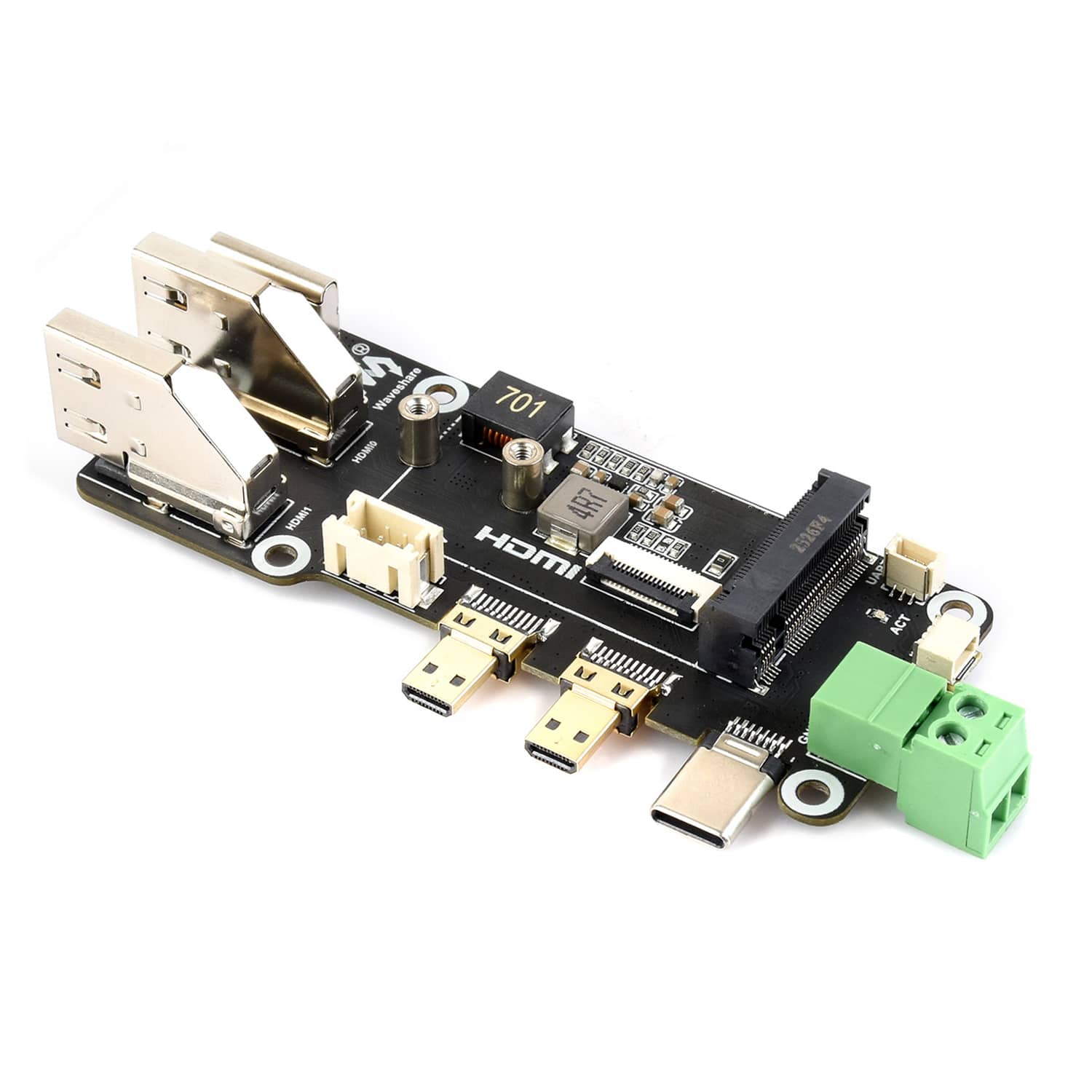

However, the knockout feature is the PCIe NVMe M.2 socket, which supports 2242 or 2230 NVMe SSDs/devices. They've managed to pack this in to the adapter without making it much larger, making it a real compact all-in-one for your Pi 5.

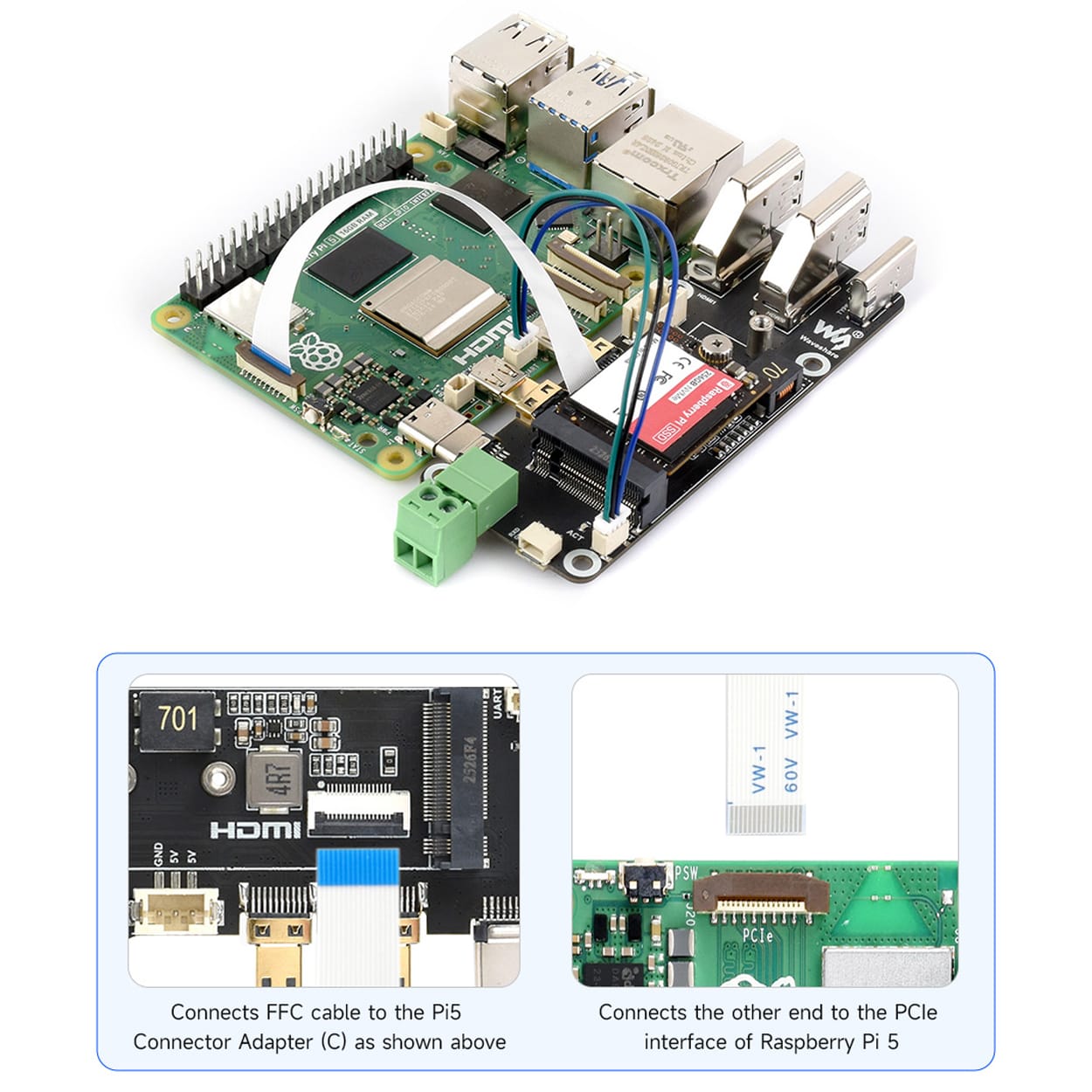

The adapter comes with a PCIe cable, UART connector cable for the debug port, and a 3-pin squid cable for the 5V/GND output, and an SSD mounting screw. Raspberry Pi and SSD not included.

Features

• Multifunctional adapter Designed for Raspberry Pi 5
• Rear-facing port routing
  • USB-C
  • UART debug port
  • Dual full-size HDMI
• PCIe NVMe M.2 socket

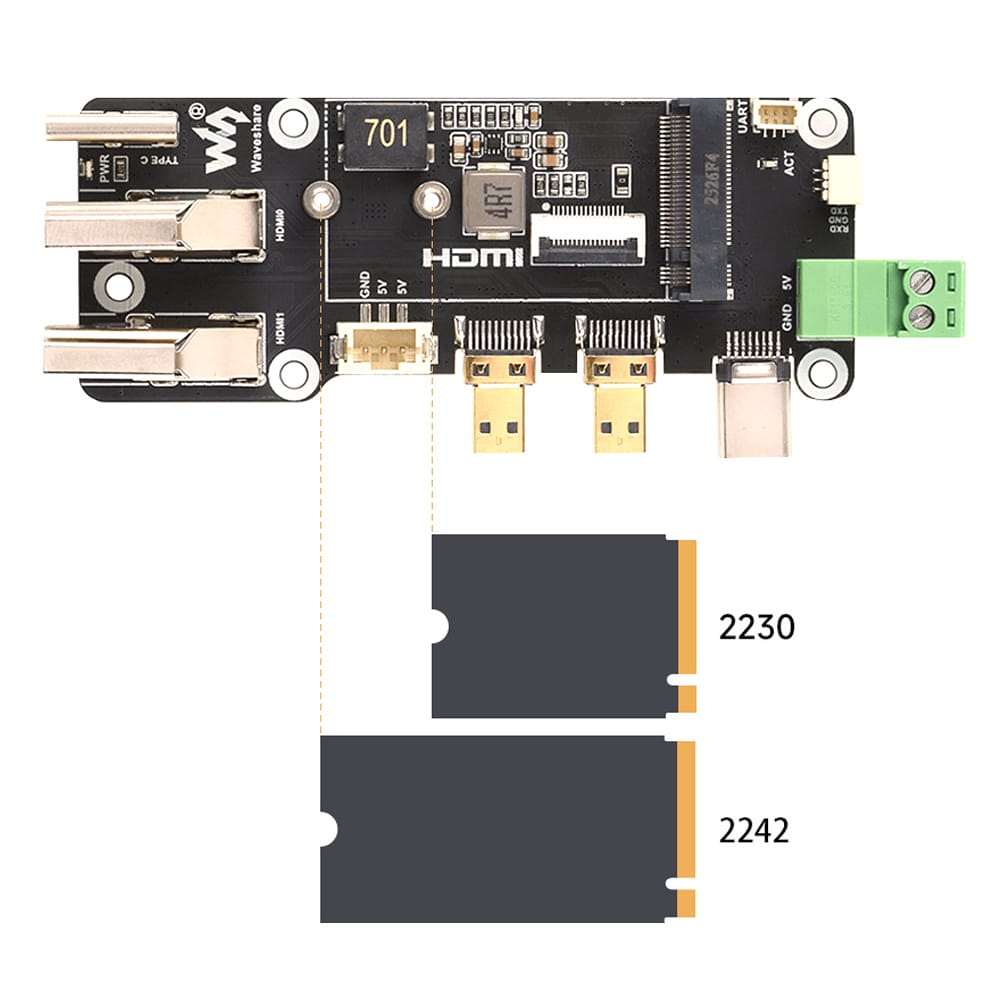

  • Supports 2242 and 2230 NVMe SSDs and devices
  • PCI-E×1 Gen2 or Gen3 mode
• USB-C or screw terminal power input (both 5V only)
• Additional 5V and GND output
• Power and activity LEDs

Resources

• Product wiki

Package Contents

• 1x Multifunctional Adapter (C) with M.2 Socket for Raspberry Pi 5
• 2x PCIe cables (100mm)
• 1x 3-pin UART cable
• 1x 3-pin squid cable (for 5V/GND output)
• 1x SSD mounting screw

Raspberry Pi and SSD not included
