Mini Base Board (B) for CM5

WaveshareSKU: WAV-30703
Price:
Sale price £23.10
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

Raspberry Pi Compute Module 5 by Raspberry Pi - The Pi HutRaspberry Pi Compute Module 5 by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi Compute Module 5
Sale priceFrom £43.20 incl. VAT excl. VAT
Raspberry Pi 27W USB-C Power Supply by Raspberry Pi - The Pi HutRaspberry Pi 27W USB-C Power Supply by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi 27W USB-C Power Supply
Sale price £11.60 incl. VAT excl. VAT
Raspberry Pi SSD by Raspberry Pi - The Pi HutRaspberry Pi SSD by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi SSD
Sale priceFrom £28.80 incl. VAT excl. VAT
HDMI Cable by The Pi Hut - The Pi HutHDMI Cable by The Pi Hut - The Pi Hut
The Pi HutHDMI Cable
Sale priceFrom £3 incl. VAT excl. VAT
Pure Copper RJ45 Cat5e Ethernet LAN Cable by The Pi Hut - The Pi Hut
The Pi HutPure Copper RJ45 Cat5e Ethernet LAN Cable
Sale priceFrom £2 incl. VAT excl. VAT
Metal Cooling Fan for Raspberry Pi Compute Module 5 by Waveshare - The Pi HutMetal Cooling Fan for Raspberry Pi Compute Module 5 by Waveshare - The Pi Hut
WaveshareMetal Cooling Fan for Raspberry Pi Compute Module 5
Sale price £6.80 incl. VAT excl. VAT
Raspberry Pi Micro SD Card with RPi OS Pre-Installed by Raspberry Pi - The Pi HutRaspberry Pi Micro SD Card with RPi OS Pre-Installed by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi Micro SD Card with RPi OS Pre-Installed
Sale priceFrom £9.60 incl. VAT excl. VAT
Raspberry Pi Camera Module 3 by Raspberry Pi - The Pi HutRaspberry Pi Camera Module 3 by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi Camera Module 3
Sale priceFrom £24 incl. VAT excl. VAT
Raspberry Pi Touch Display 2 by Raspberry Pi - The Pi HutRaspberry Pi Touch Display 2 by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi Touch Display 2 - 7"
Sale price £57.60 incl. VAT excl. VAT

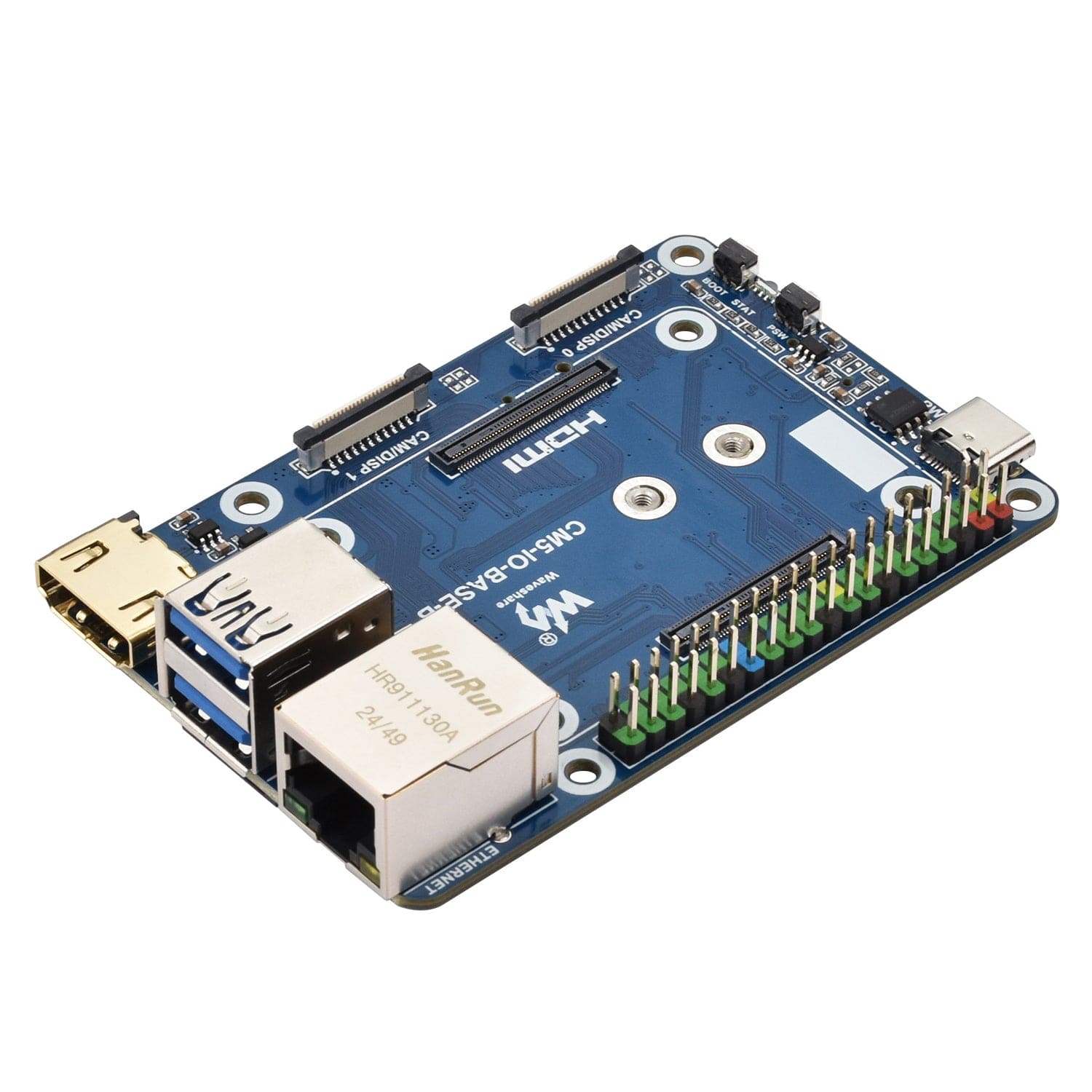

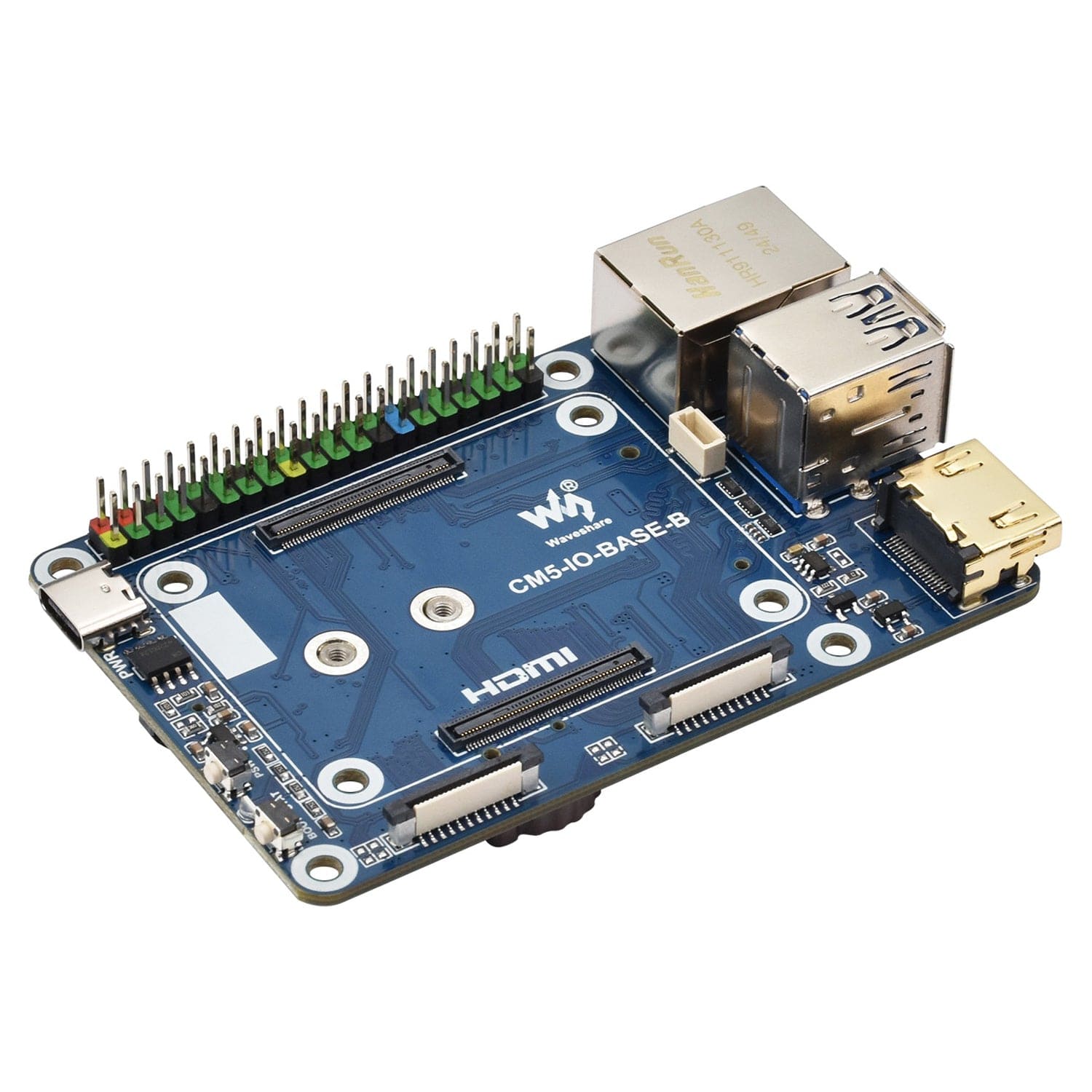

Break out your Raspberry Pi Compute Module 5's vital interfaces and more, including a PCIe M.2 M.2 M-Key slot, with this Mini Compute Module 5 carrier/breakout from Waveshare.

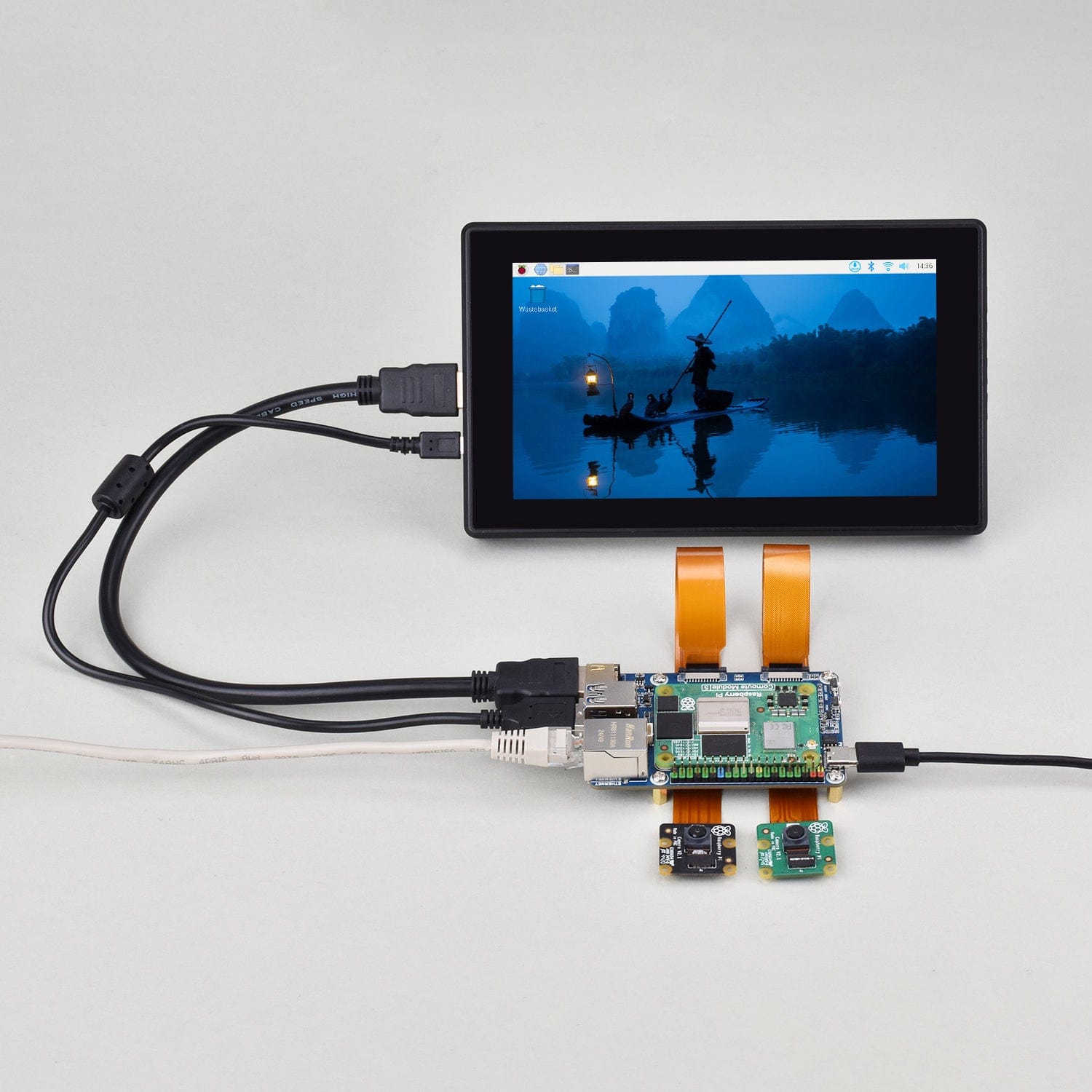

This breakout board is designed for Raspberry Pi Compute Module 5, breaking commonly used interfaces to allow you to use your CM5 for development, projects, or even as a desktop PC.

All the essentials are available - a full-size HDMI port (and another available via FFC), Gigabit Ethernet, two USB 3.0 ports (and USB 2.0 available via FFC), USB-C input for power and programming, and a MicroSD slot.

In addition, the board also features dual MIPI CSI/DSI interfaces, PCIe M.2 NVMe slot (M-Key) for 2230 or 2242 M.2 devices such as SSDs, RTC battery holder, 4-pin fan header, Power/BOOT buttons and a dual-colour indication LED.

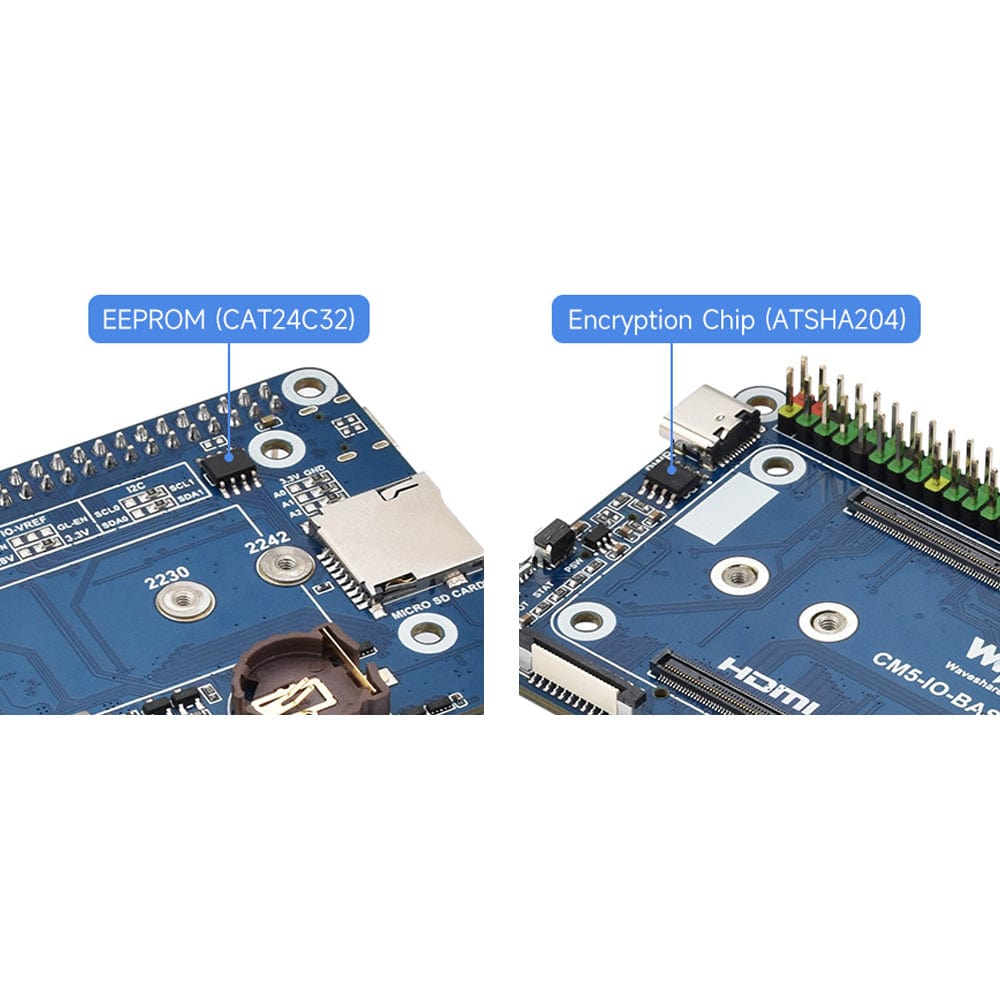

To top it off, advanced users will appreciate the onboard CAT24C32 EEPROM and ATSHA204 encryption chip, both connected via I2C.

With all the above features sitting on a familiar Raspberry Pi-esque footprint, this board is going to be an excellent companion for the majority of CM5 projects.

CM5 and accessories not included.

Features

  • Designed for Raspberry Pi Compute Module 5
  • PCIe M.2 M-Key slot for 2230/2242 NVMe devices
  • Full-size HDMI port (second available via FFC)
  • Gigabit Ethernet port
  • Two USB 3.0 ports
  • USB 2.0 via FFC connector
  • USB-C for power and programming
  • MicroSD card slot
  • Dual MIPI CSI and DSI interfaces
  • RTC battery holder
  • 4-pin fan header
  • Power and BOOT buttons
  • Dual-colour status LED
  • Onboard CAT24C32 EEPROM (I2C)
  • Onboard ATSHA204 encryption chip (I2C)
  • Compact Pi-style board footprint

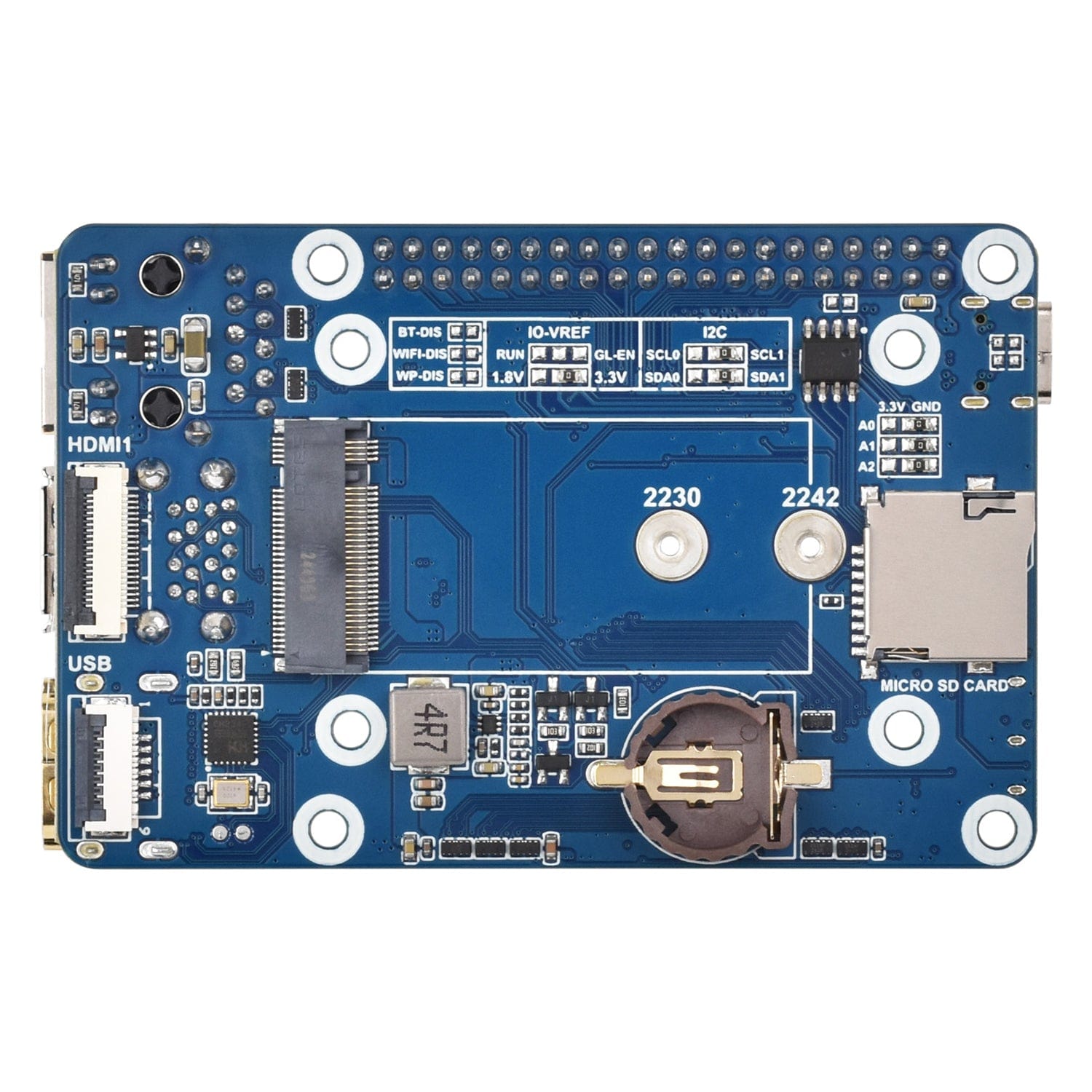

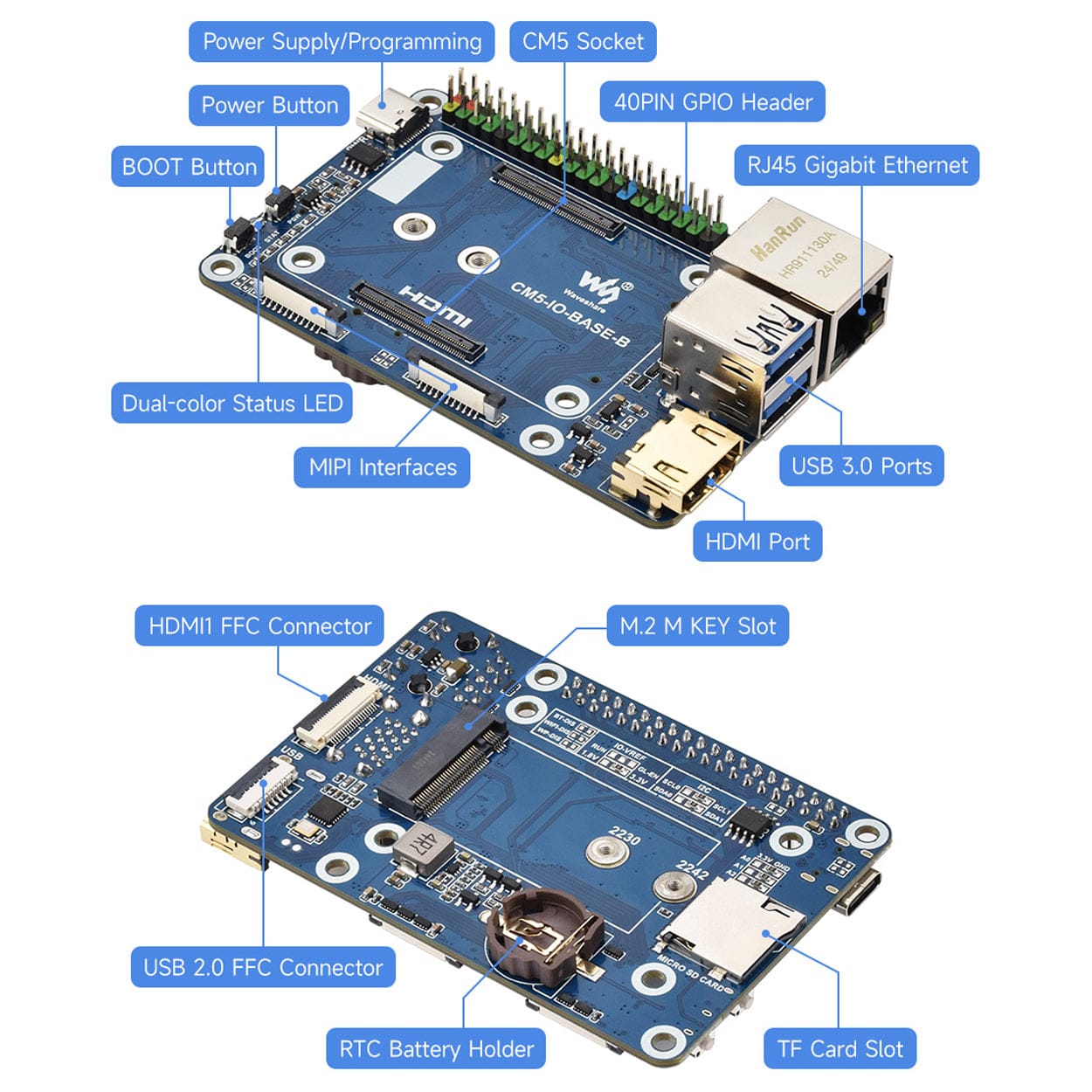

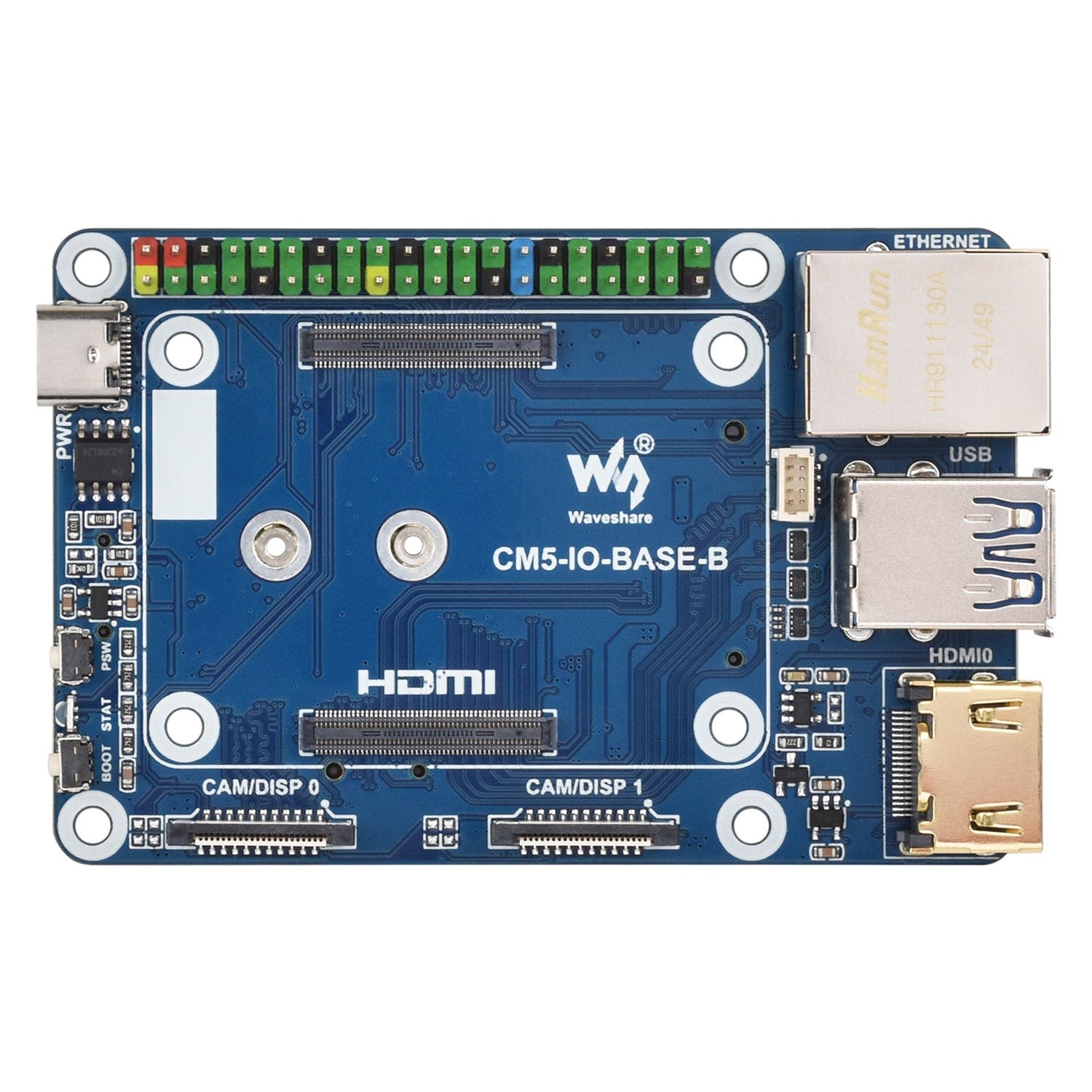

What's Onboard?

  1. CM5 socket
    • Supports all Compute Module 5 variants
  2. 40-pin GPIO header
    • For HAT / HAT+ modules
  3. Power input / Programming
    • 5V / 5A input or eMMC burning
  4. Encryption chip (ATSHA204)
    • Secure symmetric authentication
  5. PSW power button
    • Hold to power off; short-press for soft off or on
  6. STAT LED
    • Dual-colour status LED
  7. BOOT button
    • Hold during power-up to enter bootloader mode
  8. Dual MIPI interfaces
    • DSI and CSI display/camera connections
  9. HDMI0 connector
    • HDMI port with 4K output
  10. USB 3.2 Gen1 ports
    • 2x USB 3.2 Gen1, 5Gbps speed
  11. RJ45 Gigabit Ethernet
    • Supports 10M / 100M / 1000M
  12. 4-pin JST-SH fan header
    • Cooling fan, 5V power supply
  13. TF card slot
    • Pre-burnt image support (Lite variant only)
  14. IO-VREF selection
    • CM5 IO level: 3.3V (default) or 1.8V
  15. Other function pins
    • Wi-Fi / BT disable or write protection
  16. HDMI1 FFC connector
    • 4K output, connect via adapter
  17. USB 2.0 FFC connector
    • Connect via adapter
  18. RTC battery holder
    • Supports CR / ML1220 cells
  19. M.2 M KEY
    • Supports 2230/2242 NVMe SSDs
  20. I2C selection
    • Switches I2C0 / I2C1 for encryption and EEPROM
  21. CAT24C32
    • EEPROM chip

Specifications

CM5 socket Suitable for all variants of Compute Module 5
Networking Gigabit Ethernet RJ45 connector
Connector M.2 M key (2230 / 2242)
Raspberry Pi 40-pin GPIO header
USB USB 3.2 Gen1 Type-A × 2, USB 2.0 × 2 (6-pin 1mm FFC connector)
MIPI 4-lane MIPI interface × 2 (22-pin 0.5mm FFC connector)
Video HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs
Storage TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan header 5V, 4-pin JST-SH PWM connector
Others Onboard EEPROM and encryption chip
Power input DC 5V 5A
Dimensions The base board: 85 × 56mm
With metal case: 90 × 68mm

Resources

Package Contents

  • 1x Mini Base Board (B) for CM5
  • 1x Fixings/standoff pack
  • 1x SSD mounting screw

CM5 and accessories not included.
