MIDI Synthesizer Unit (SAM2695)

Price:
Sale price £12.40
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

M5StackM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW)
Sale price £7.30 incl. VAT excl. VAT
M5StackM5Stack CoreS3 ESP32S3 loT Development Kit
Sale price £57.90 incl. VAT excl. VAT
M5StackM5Stack Tough ESP32 IoT Development Board Kit
Sale price £50.50 incl. VAT excl. VAT

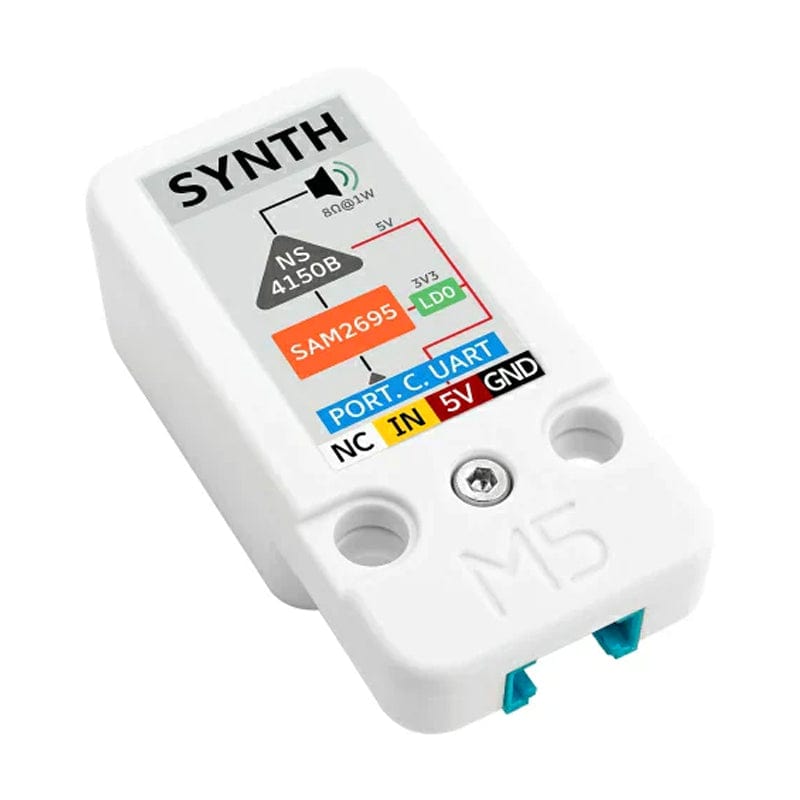

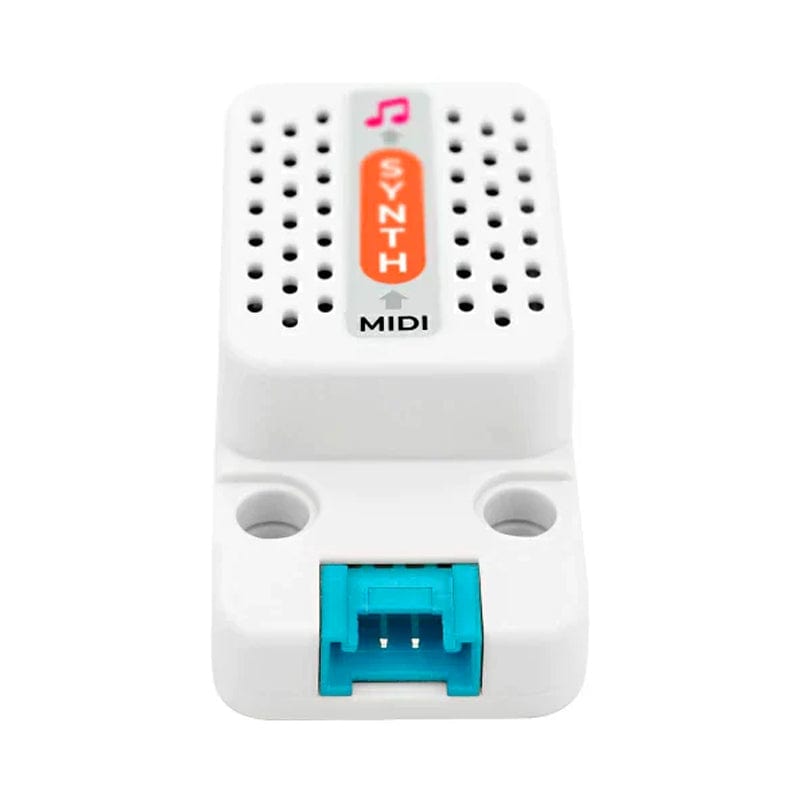

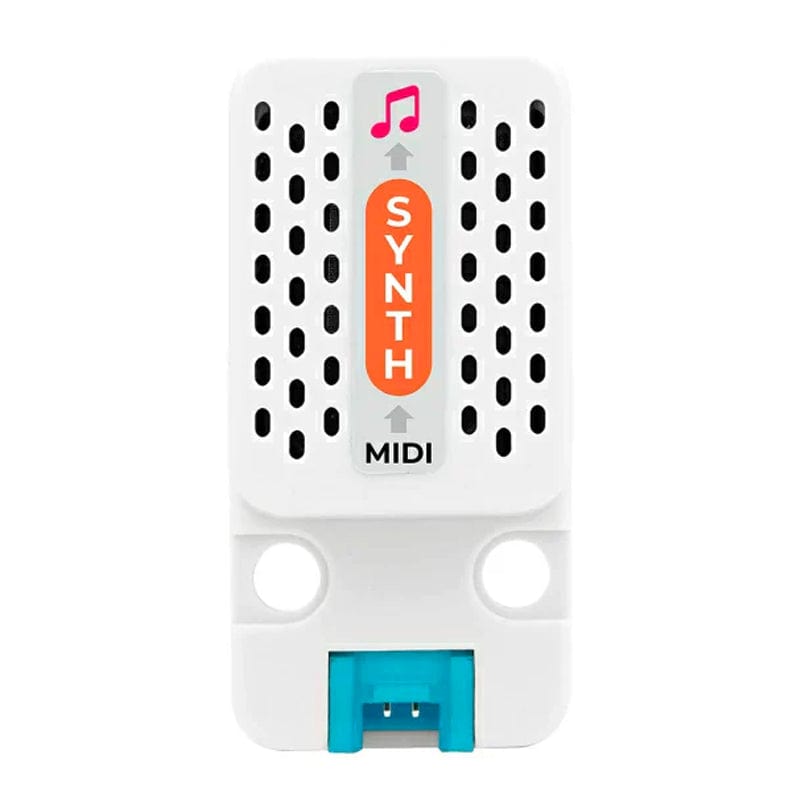

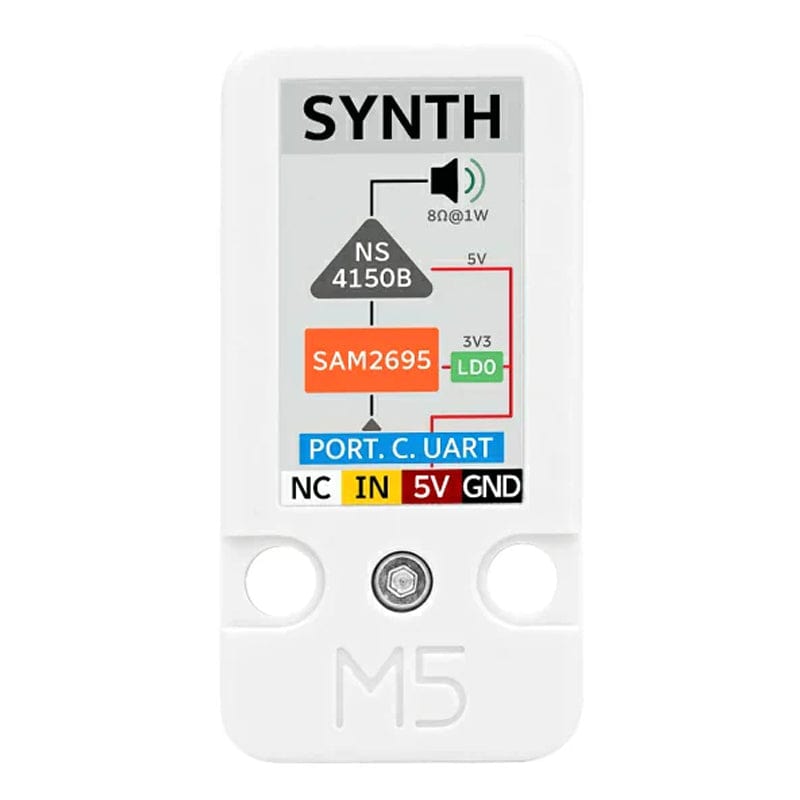

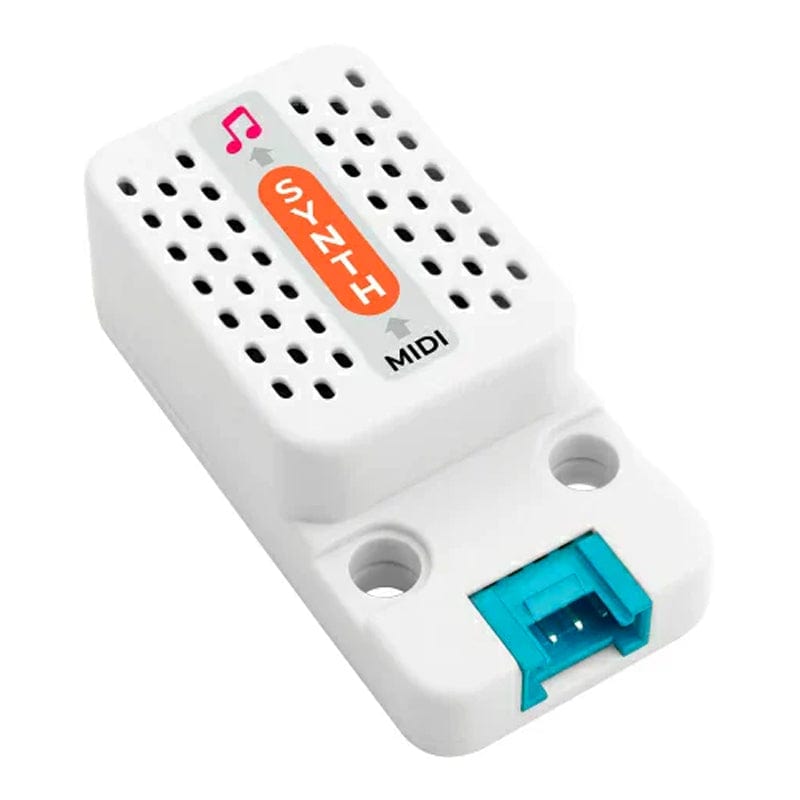

The Synth Unit is an audio module designed for MIDI sound systems, equipped with a SAM2695 audio synthesiser. It handles standard MIDI signals through serial communication, suitable for settings like live performances, music studios, electronic music venues, and STEAM educational programs.

This module offers audio synthesis, mixing, and sound effects processing capabilities. It features multi-channel instrument sound output, allowing for the simultaneous creation of multiple tones for varied musical effects. You can also adjust sound settings with tools such as a four-stage EQ and reverb to tailor audio characteristics.

Additionally, the Synth Unit uses the NS4150B Class D amplifier chip to ensure clear and strong audio output, making it effective for both live performance feedback and studio music production.

Features

  • SAM2695 audio synthesis chip
  • Serial port communication
  • Class D amplifier
  • MIDI Standard Protocol
  • Supports the configuration of multi-channel instrument source output
  • Support four EQ, reverberation and other parameters adjustment
  • Programming environment: Arduino, UIFlow, etc

Specifications

Audio synthesizer chip SAM2695
Power amplifier chip NS4150B
Sound standard protocol MIDI
Speaker 8Ω@1W
Operating temperature 0-40°C
Product Size 48 x 24 x 16mm
Package Size 136 x 92 x 13mm
Product Weight 10g
Package Weight 15.4g

Resources

Package Contents

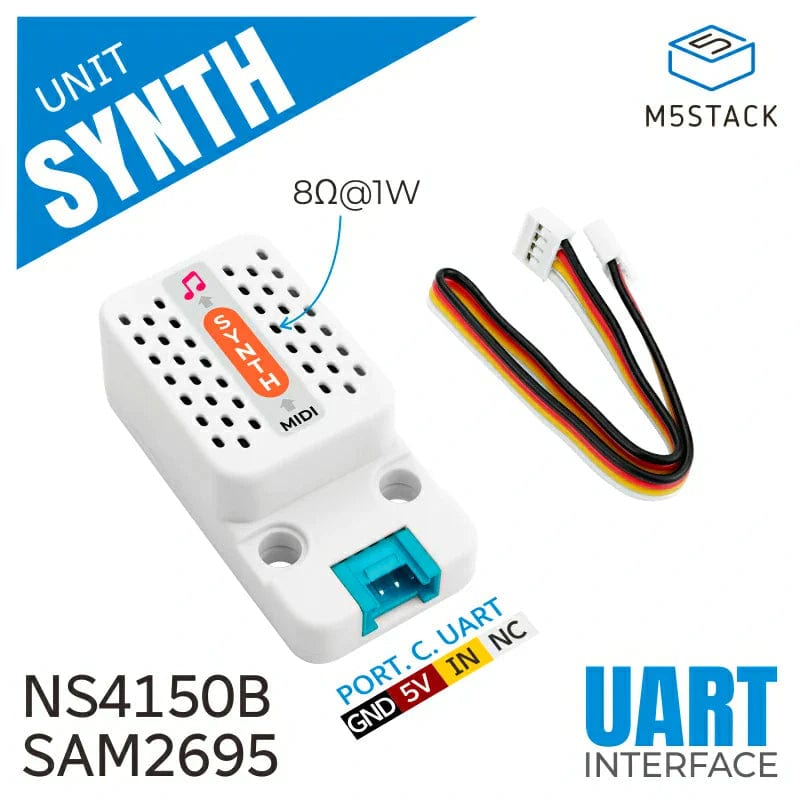

  • 1x Synth Unit
  • 1x Grove Cable (20cm)
