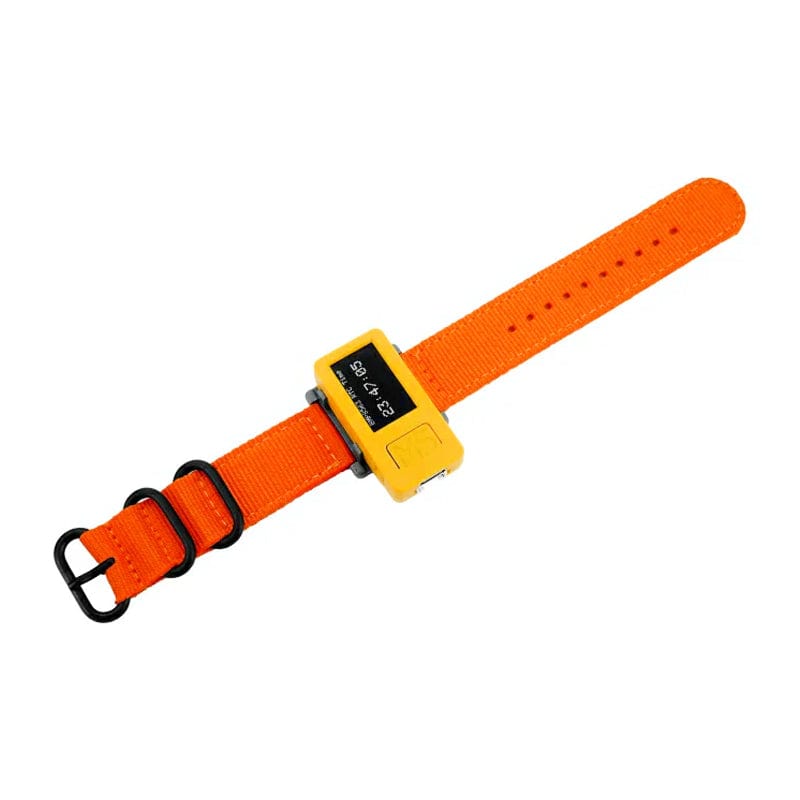

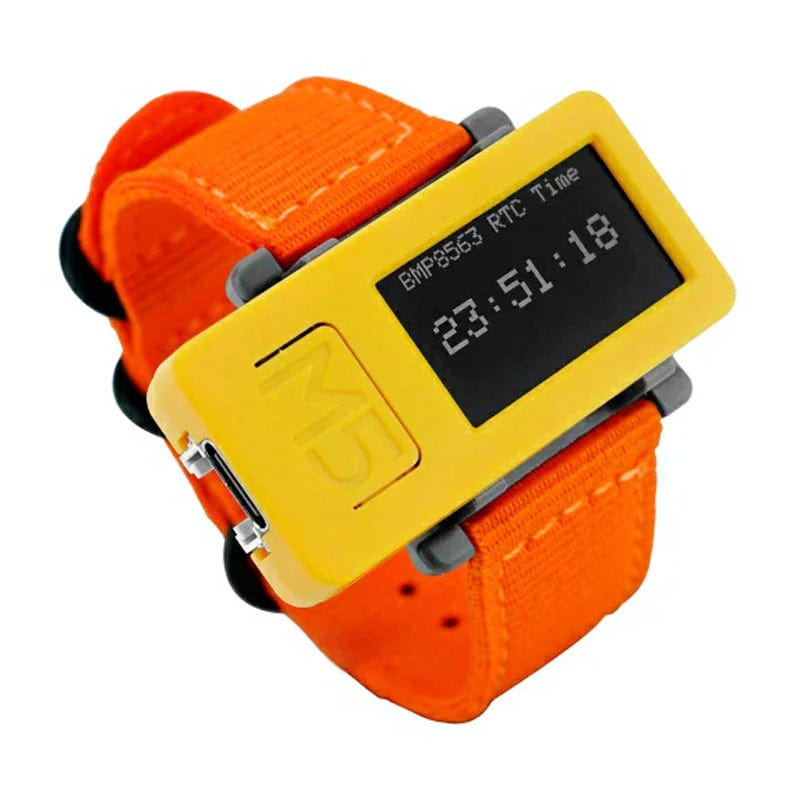

The M5StickC Plus2 with Watch Accessories is a versatile watch kit that not only functions as a timepiece but also supports applications such as sports activity monitoring and smart home control. This kit includes the M5StickC Plus2, a wristband, a LEGO-compatible adapter, and a wall-mounting accessory. It is compatible with the M5Stack HAT hardware ecosystem, enhancing its functionality as a smart wearable.

The M5StickC Plus2 itself features a 240 x 135 colour LCD screen, an ESP32-PICO-V3-02 chip, an MPU6886 6-axis IMU, an SPM1423 digital microphone, a BM8563 RTC chip, and an IR emitter.

Additionally, the device offers extensive connectivity options. It has a HY2.0-4P interface at the bottom, allowing for integration with M5Stack's sensor series for custom functionality. The 8P@2.54mm expansion interface at the top facilitates direct connection with M5Stack HAT series products, broadening the scope for user development and customisation.

If you want the M5StickC PLUS2 separately, you can find it here


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

Features

  • Custom Display
  • 200mAh Battery
  • Light and Portable

Specifications

ESP32 ESP32-PICO-V3-02
240MHz dual core, support wifi, 2 MB SPI PSRAM, 8 MB SPI flash
PSRAM 2 MB PSRAM
Flash 8 MB flash
Power Input 5V @ 500mA
Port 1x TypeC, 1x GROVE (I2C+I/0+UART)
LCD screen 1.14", 135 x 240 Colourful TFT LCD, ST7789v2
Button 3x Custom button
Power indicator LED GREEN LED (non-programmable)
MEMS MPU6886
Buzzer built-in buzzer
MIC SPM1423
RTC BM8563
Battery 200mAh @ 3.7V
Antenna 2.4G 3D Antenna
PIN port G0, G25/G36, G26, G32, G33
Operating Temperature 0°C to 40°C
Strap size and weight 230 x 22 x 6mm / 12.3g
Product Size 48 x 25 x 13mm
Package Size 124 x 67 x 23mm
Product Weight 17g
Package Weight 71.8g

Resources

Driver Installation

Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CP34X (for CH9102) driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. If the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.

Driver name Applicable driver chip Download link
CH9102_VCP_SER_Windows CH9102 Download
CH9102_VCP_SER_MacOS v1.7 CH9102 Download

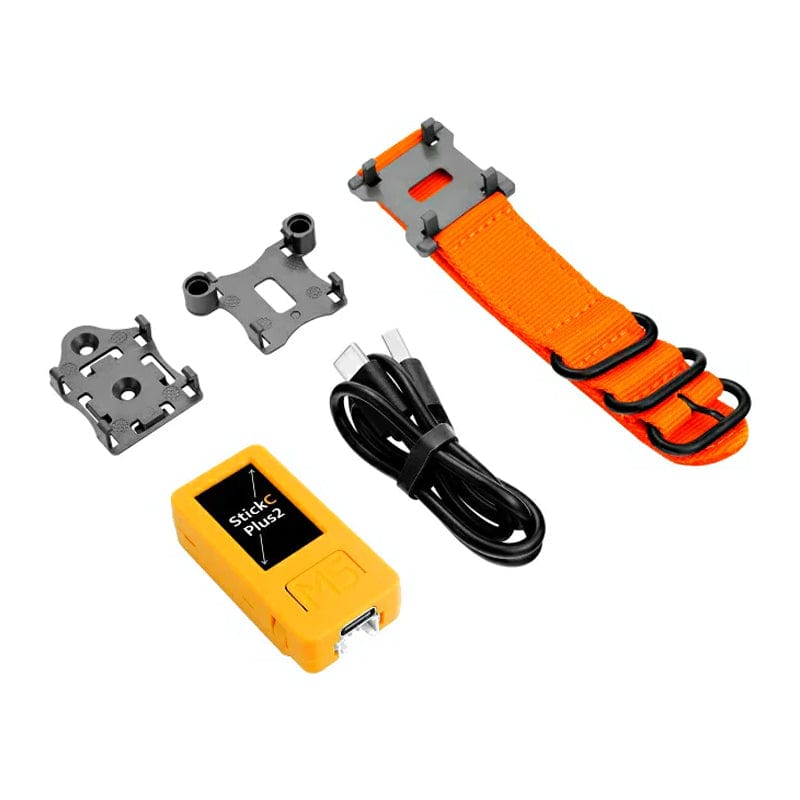

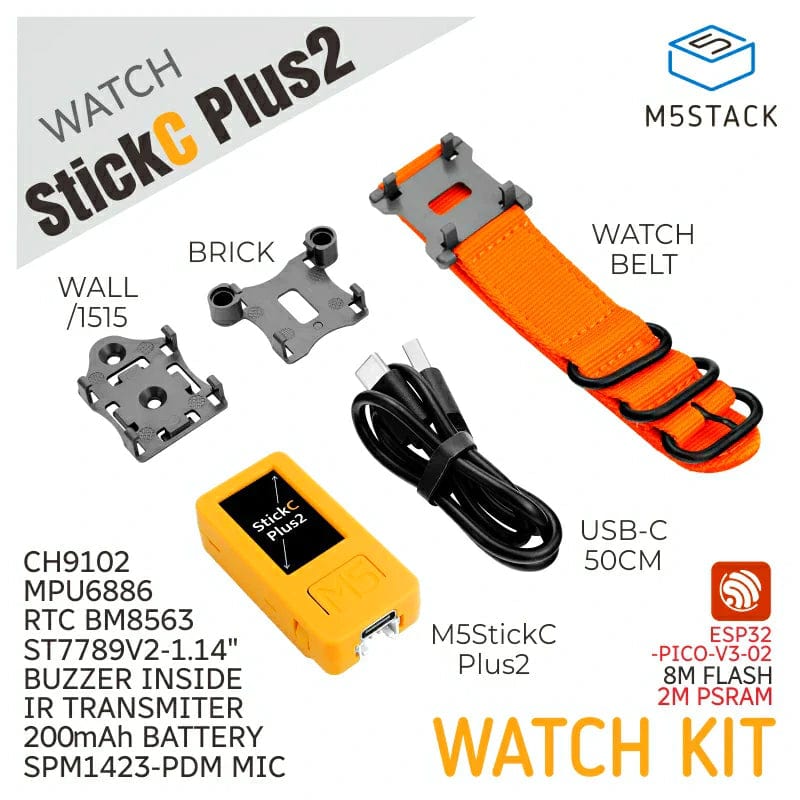

Package Contents

  • 1x M5StickC PLUS2

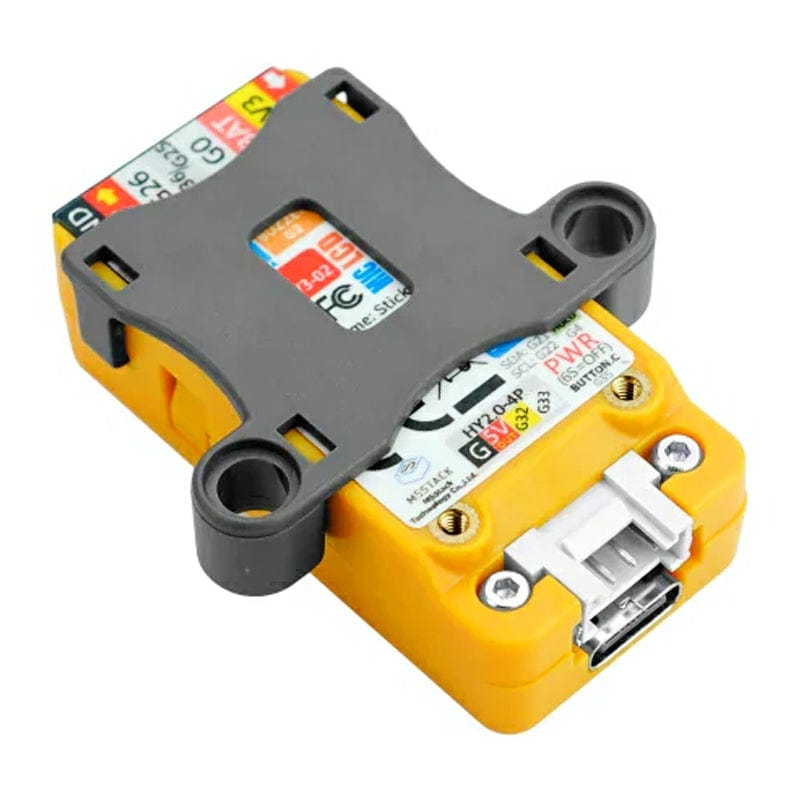

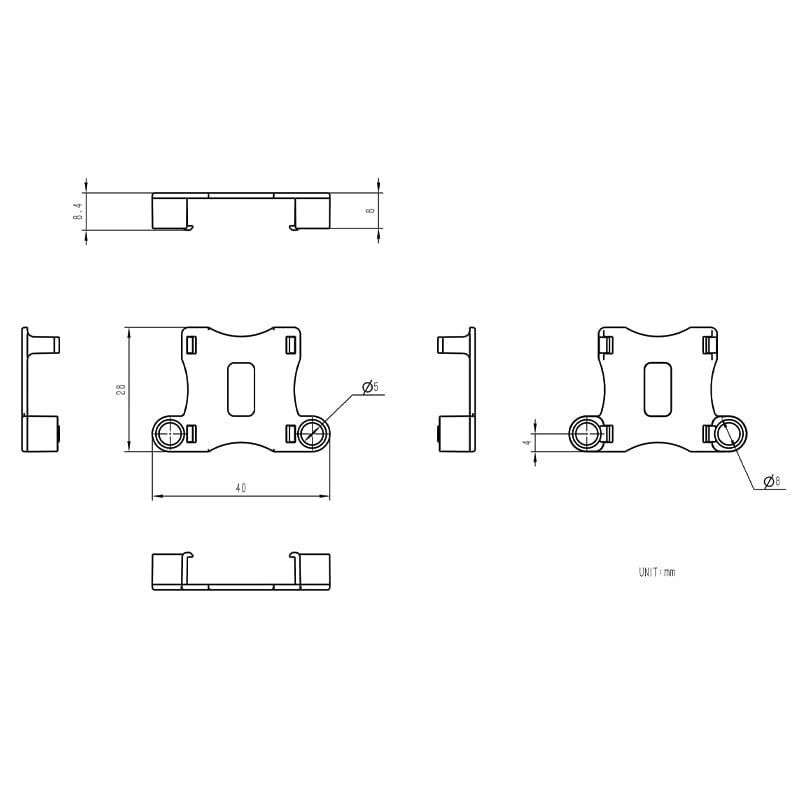

  • 1x LEGO adapter

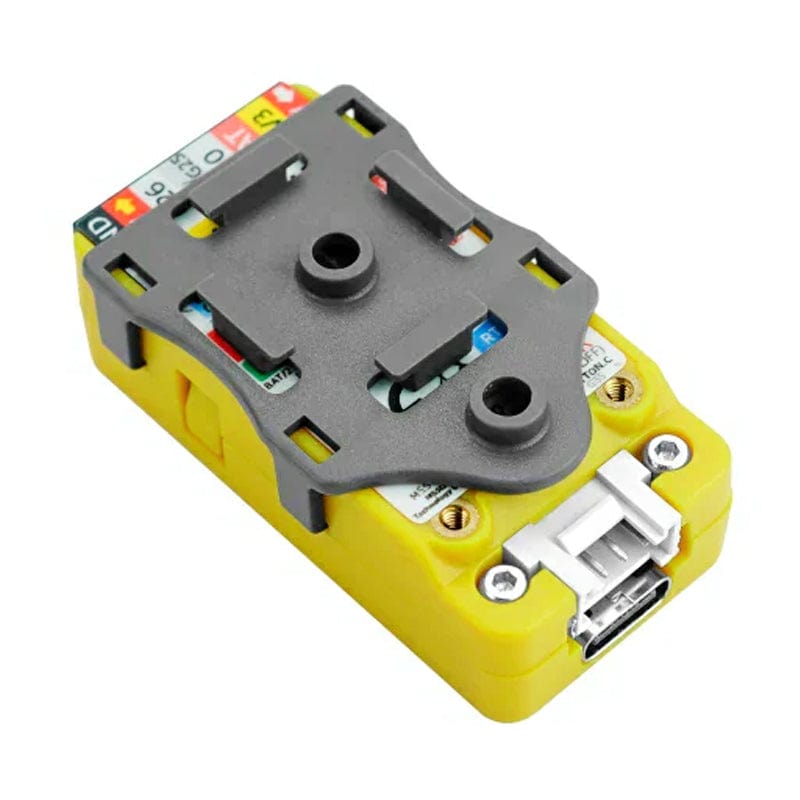

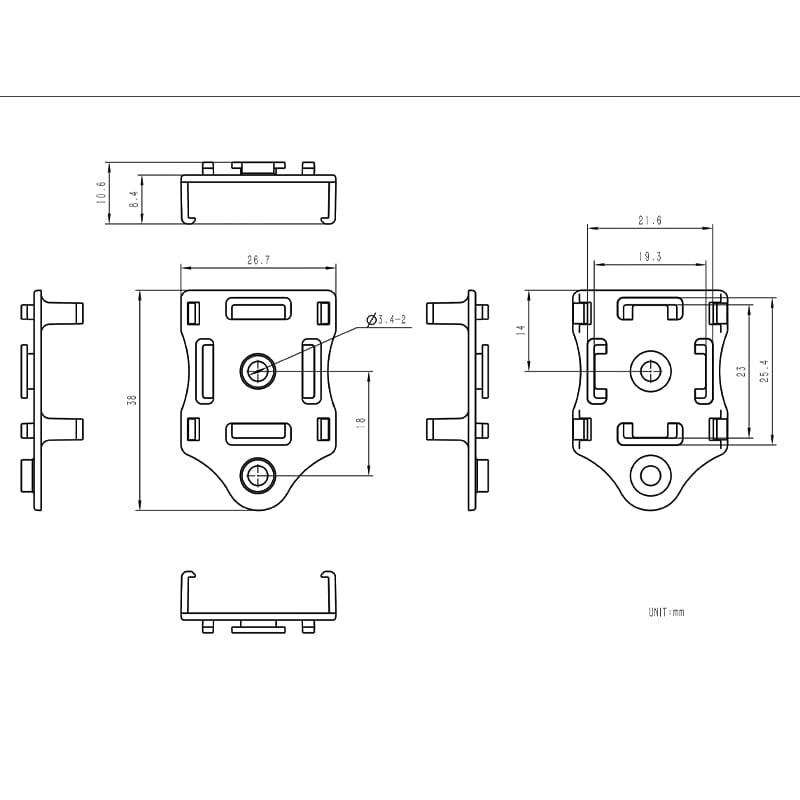

  • 1x Wall/1515

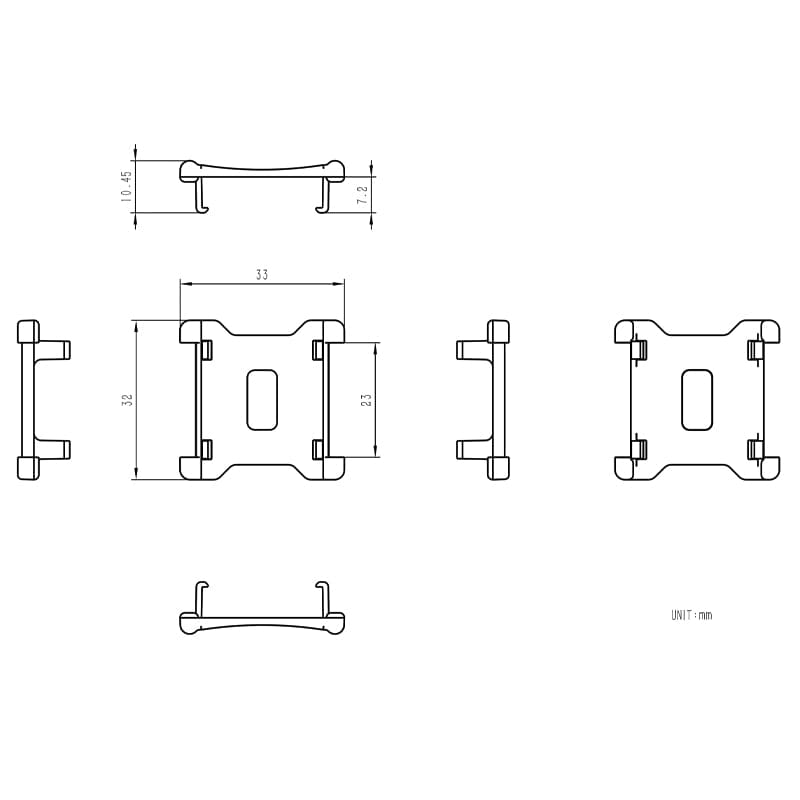

  • 1x Watch band
  • 1x Type-C USB (50cm)
