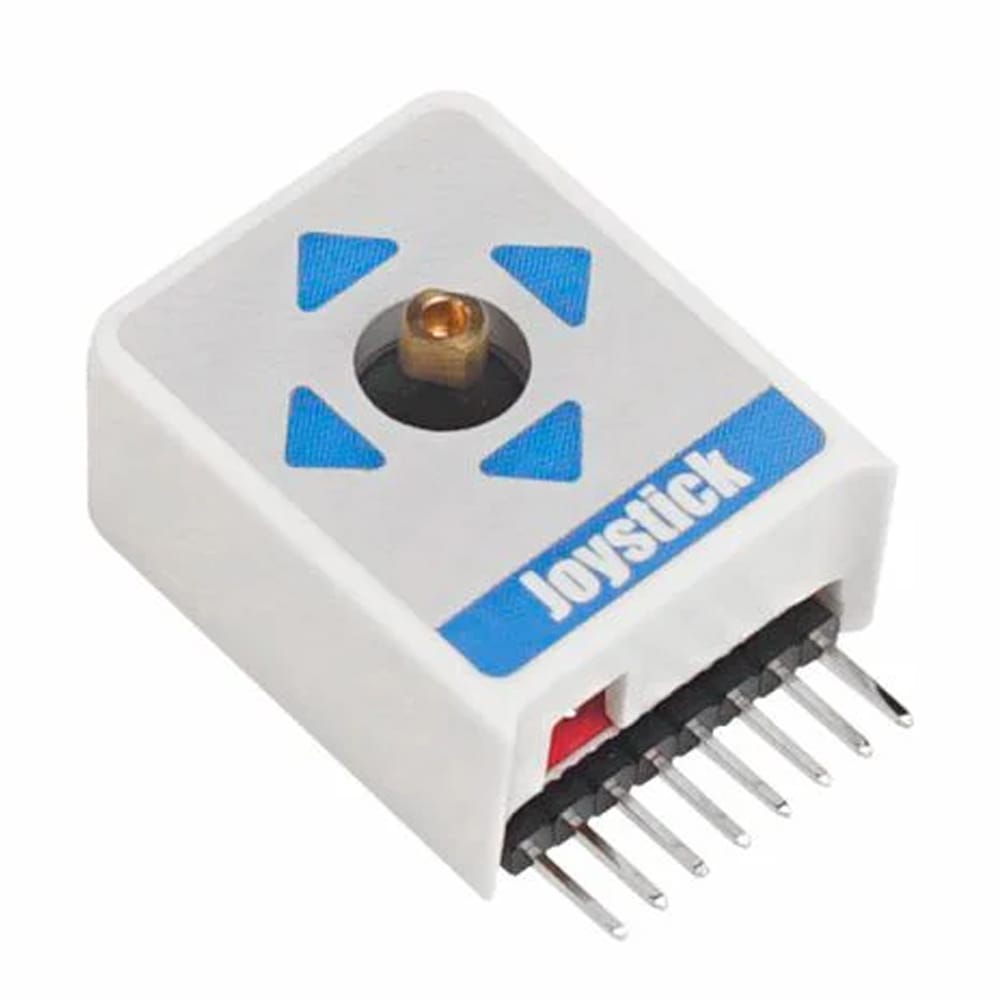

M5StickC Joystick HAT

The M5Stack Joystick Hat adds compact joystick control to the M5StickC, featuring full-range directional input, centre press support, and I2C communication for simple and responsive human-machine interaction projects.

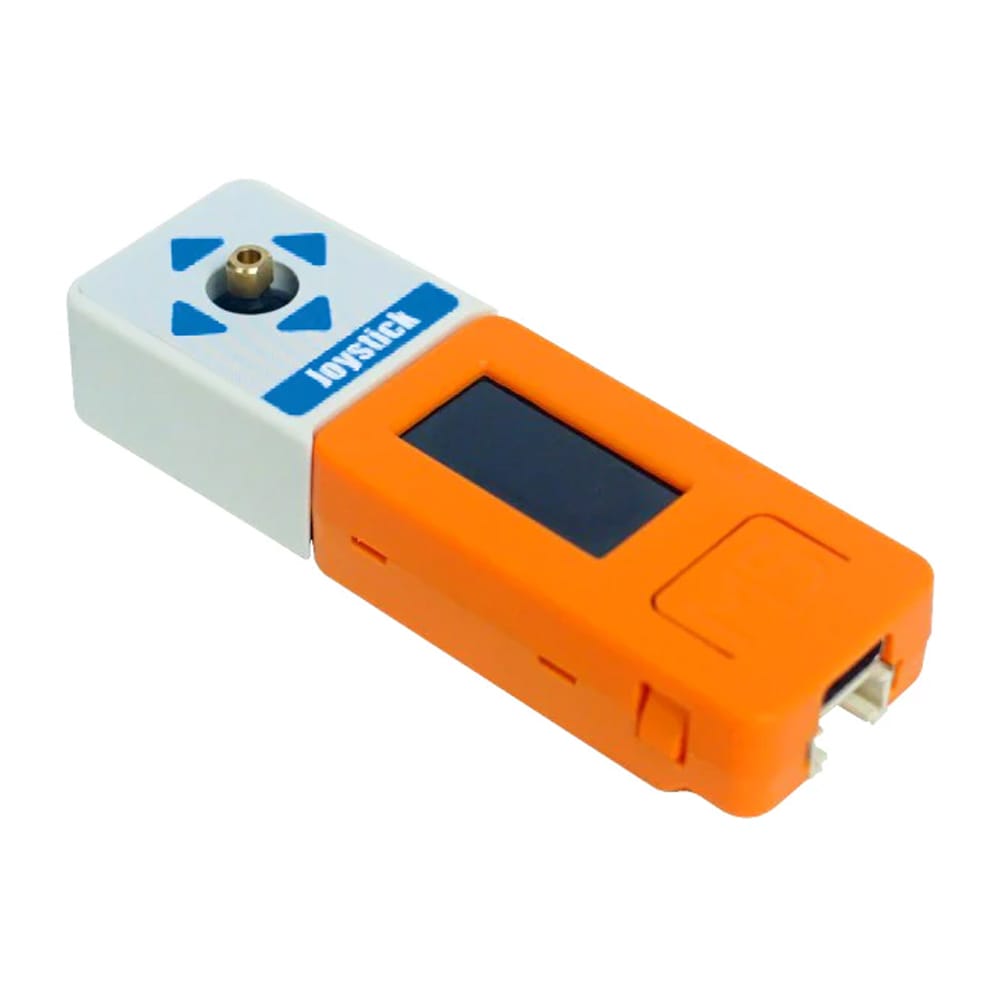

The M5Stack Joystick Hat is a joystick module specially designed for the M5StickC.

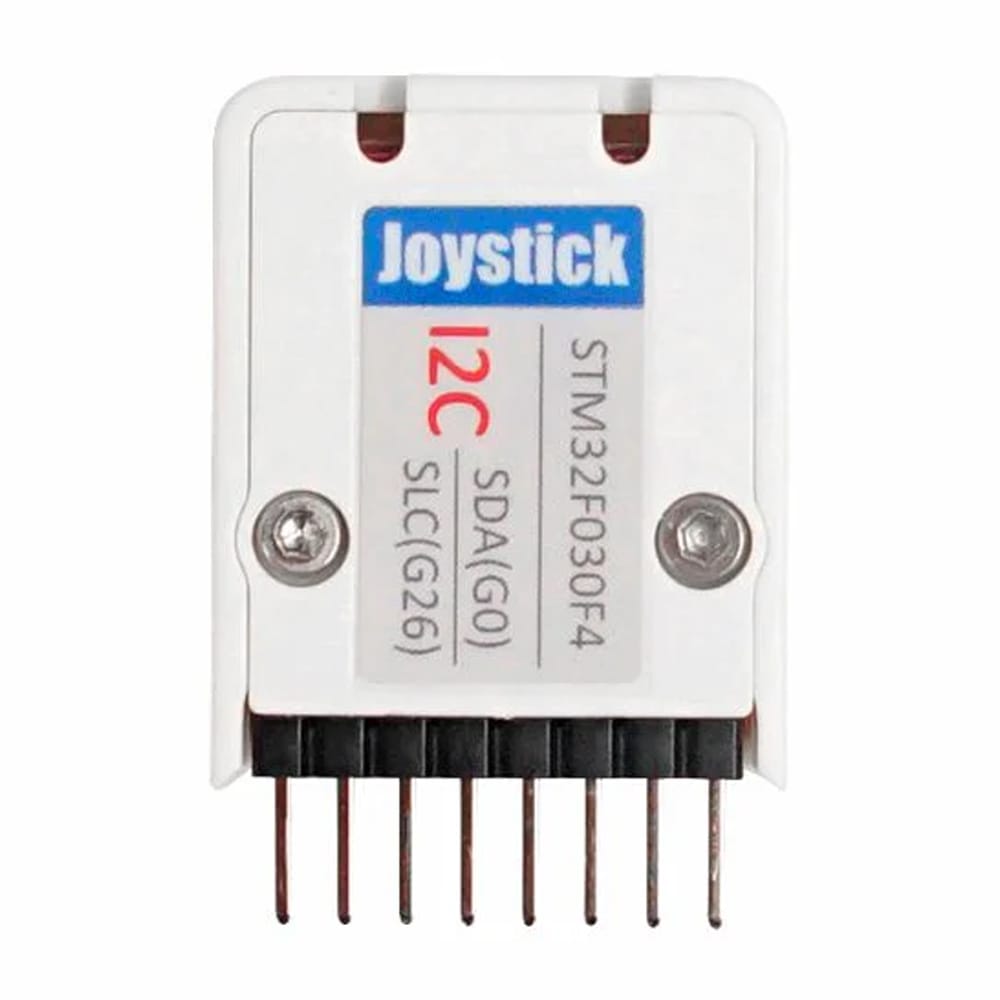

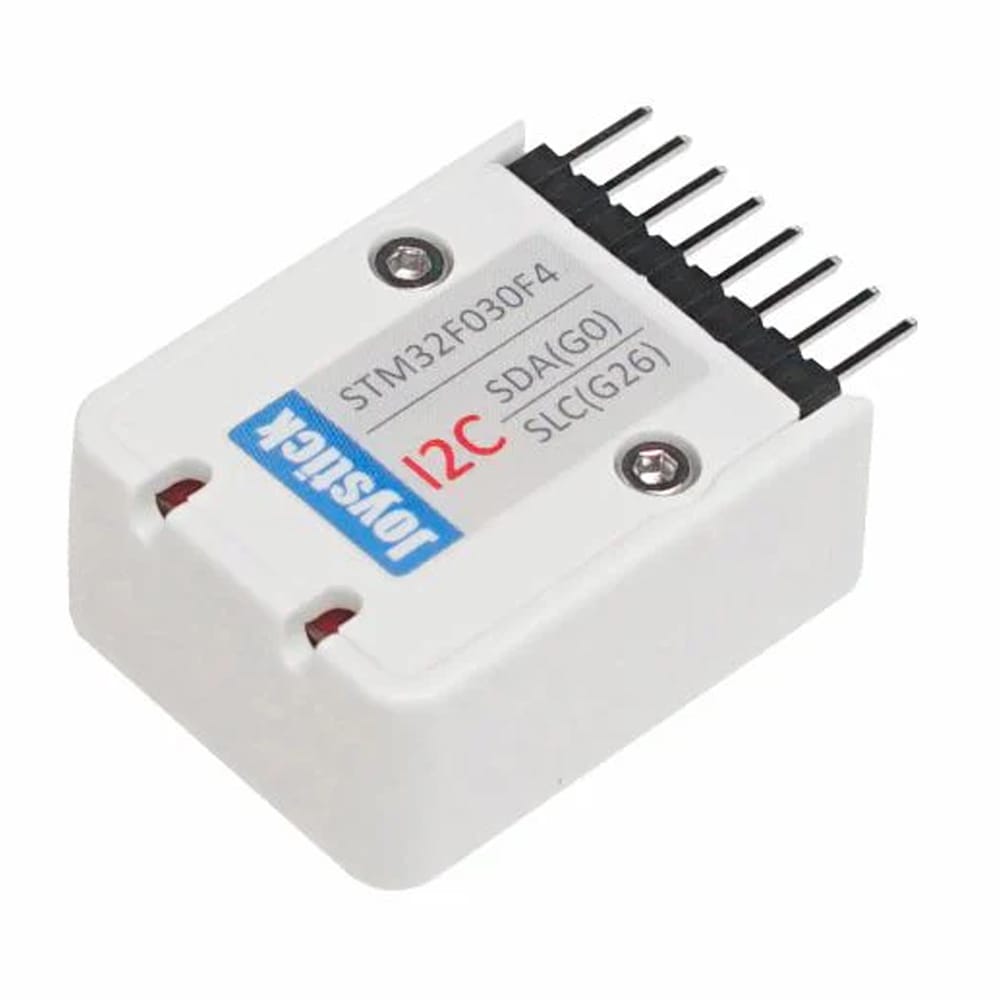

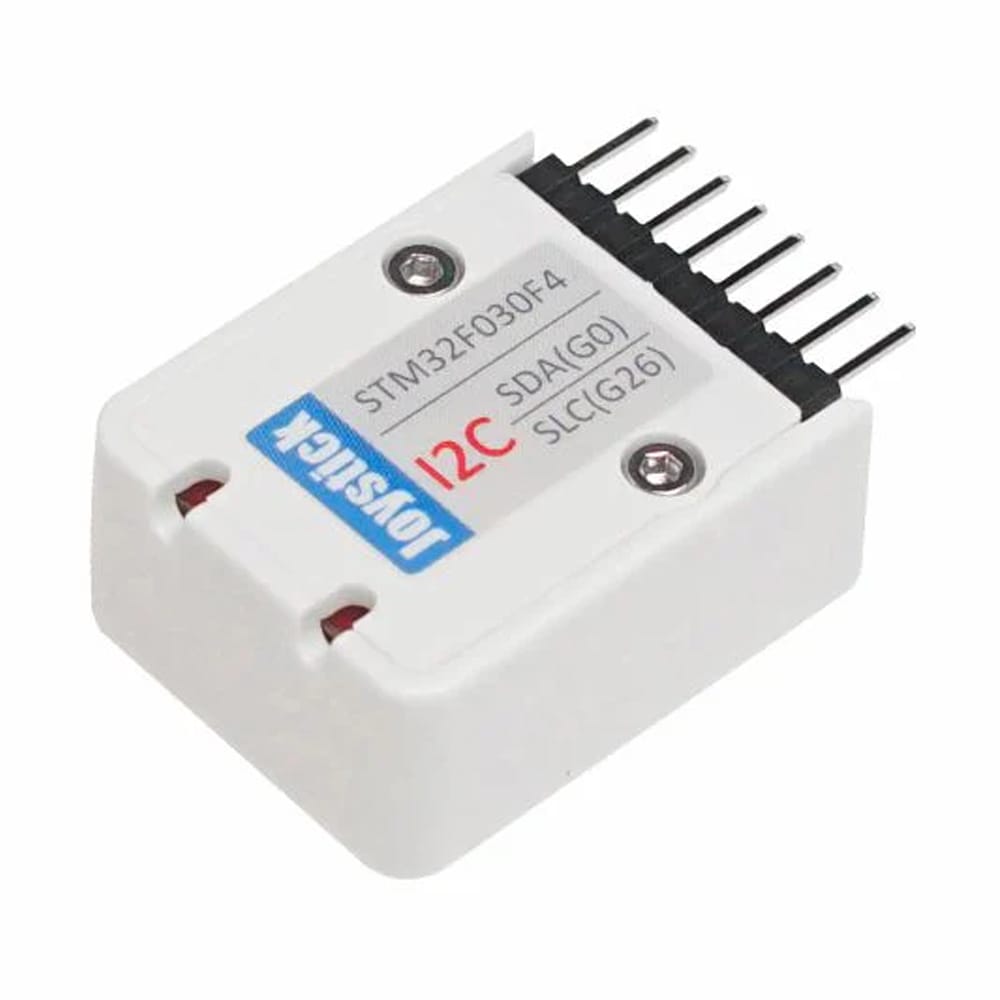

It is equipped with an STM32F030F4 main control chip and uses the I2C communication protocol to transmit data with the M5StickC host.

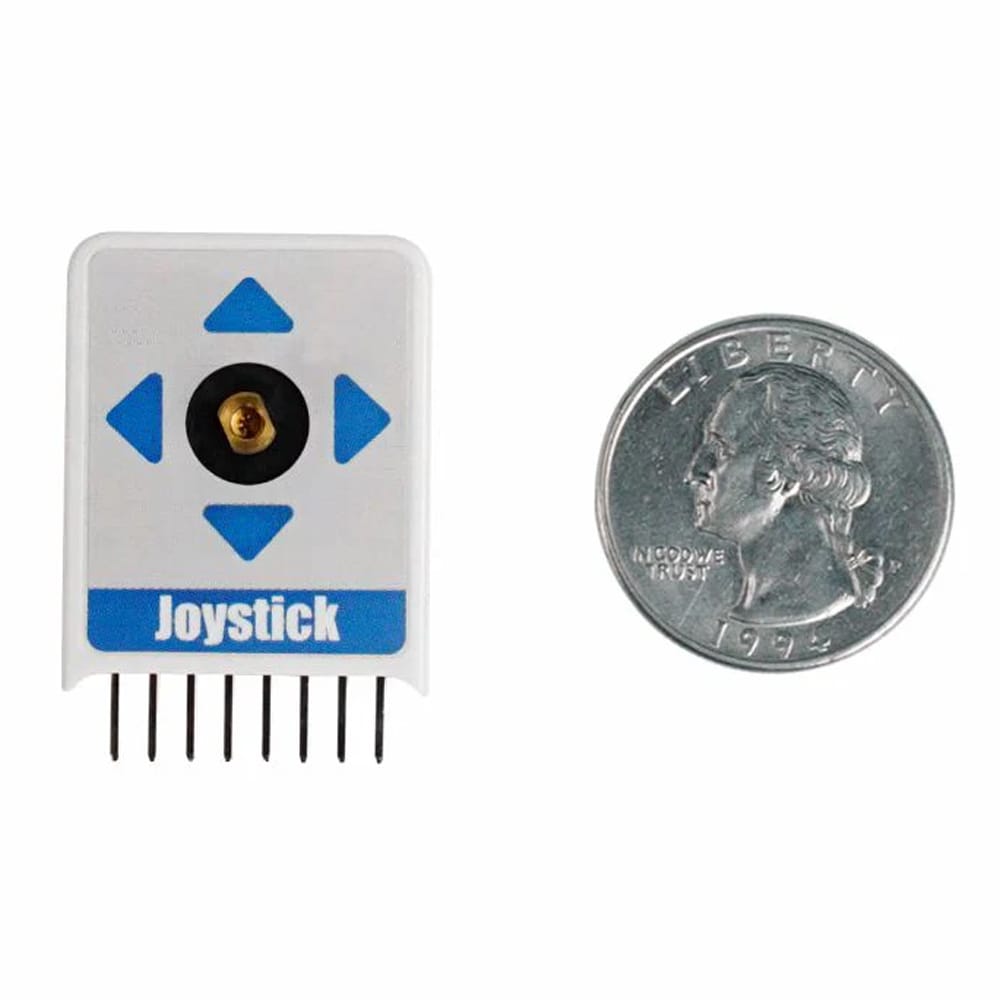

This miniature joystick module supports full-range directional deflection and centre press, outputting deflection angle data and switch digital signals. With the unified plug-in design of the HAT series, it provides a reliable connection to the M5StickC, delivering more human-machine interaction input in a minimalist way.

Please note: The M5StickC Plus is not included.

Features

• Built-in STM32F030F4

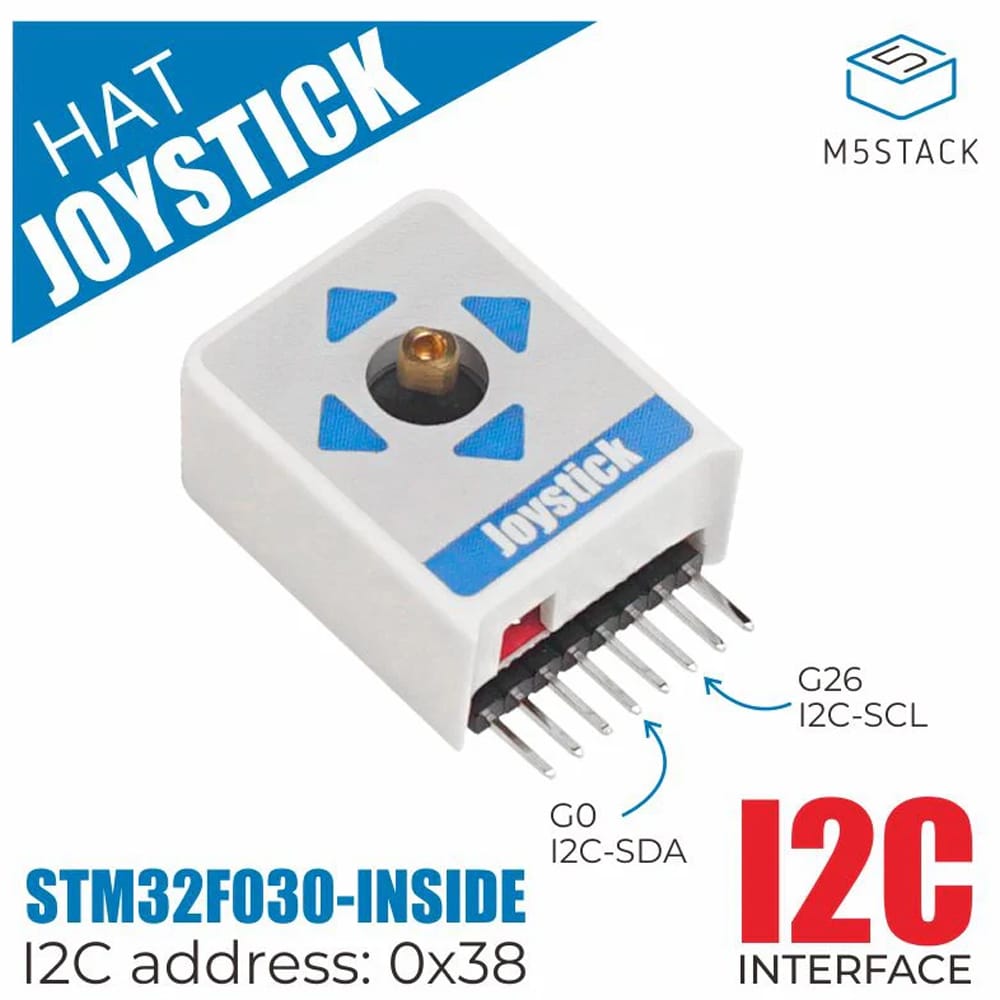

• Communication protocol: I2C (address: 0x38)
• Supports full-range deflection / center button

Specifications

Resources

• Products documentation

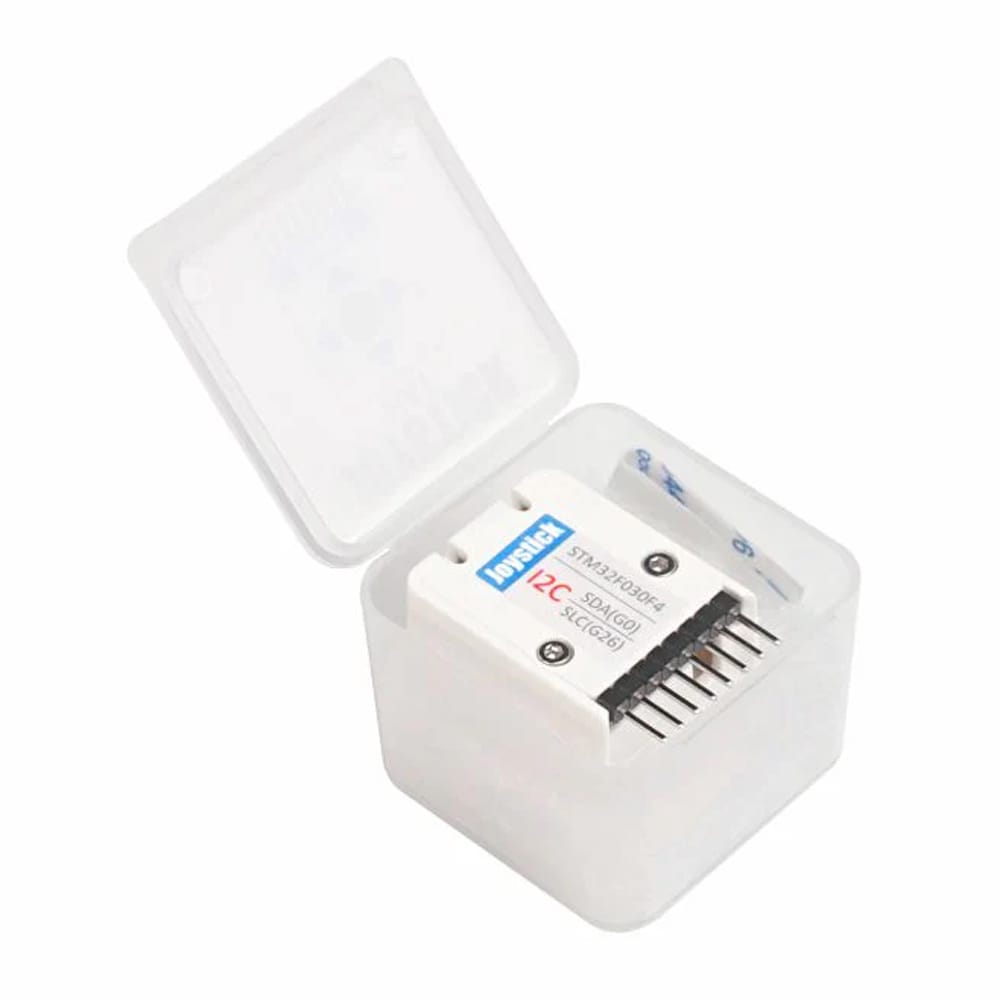

Package Contents

• 1x Hat Joystick
• 1x Double-Sided Tape

Please note: The M5StickC Plus is not included.
