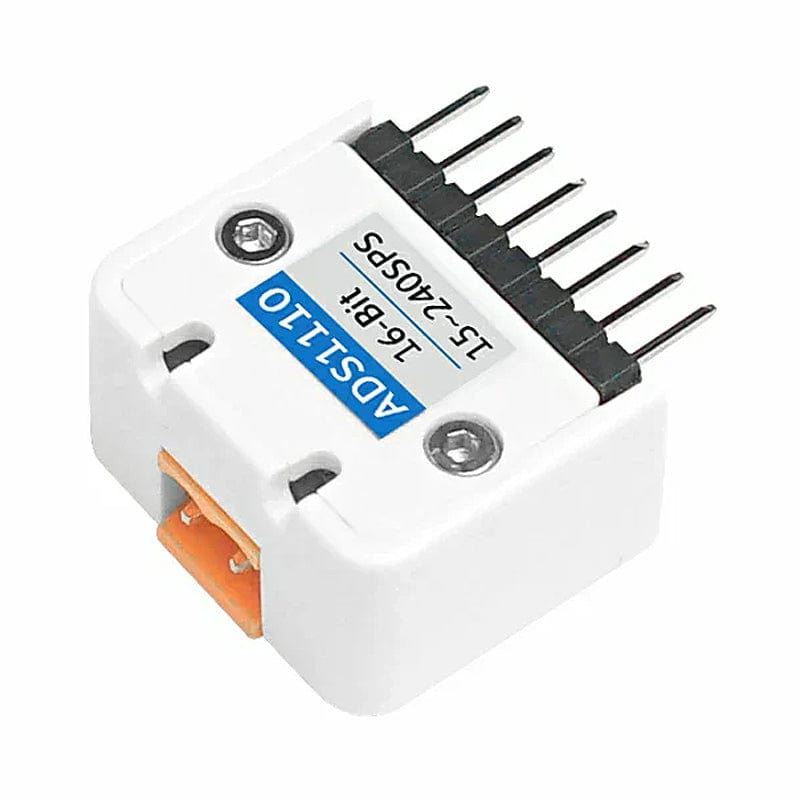

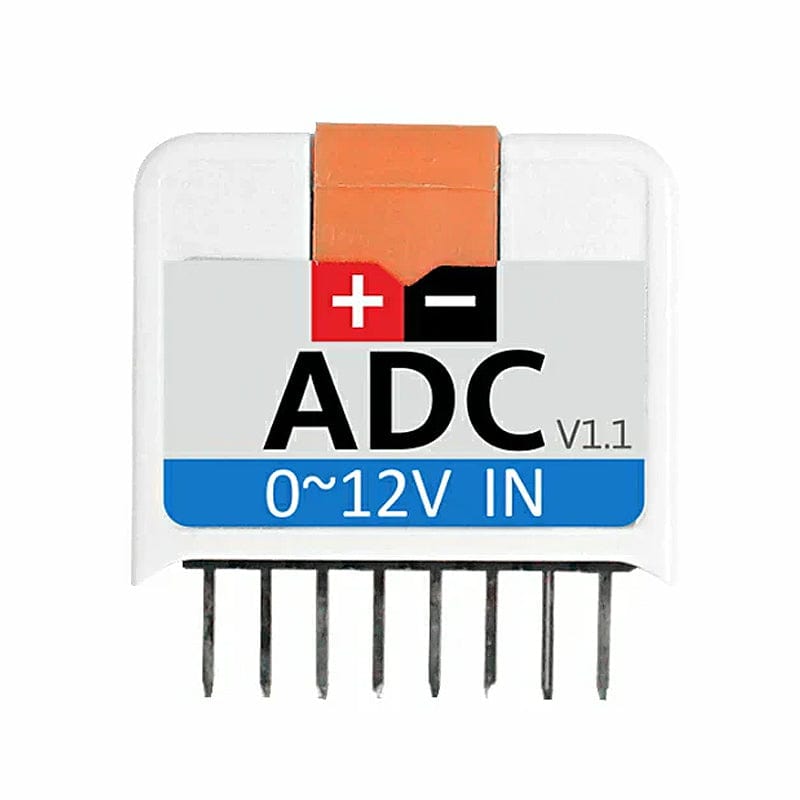

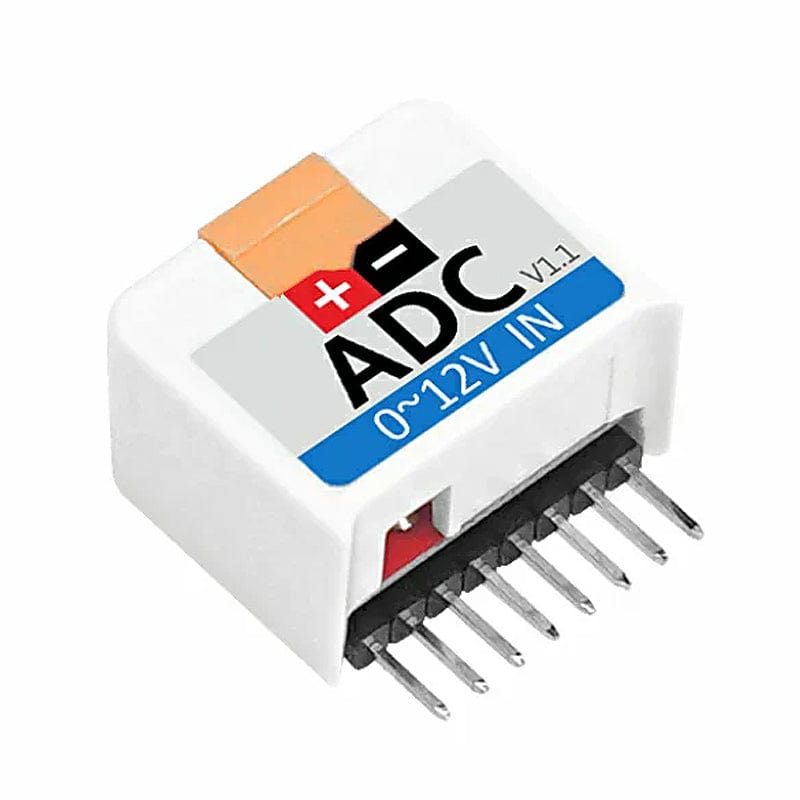

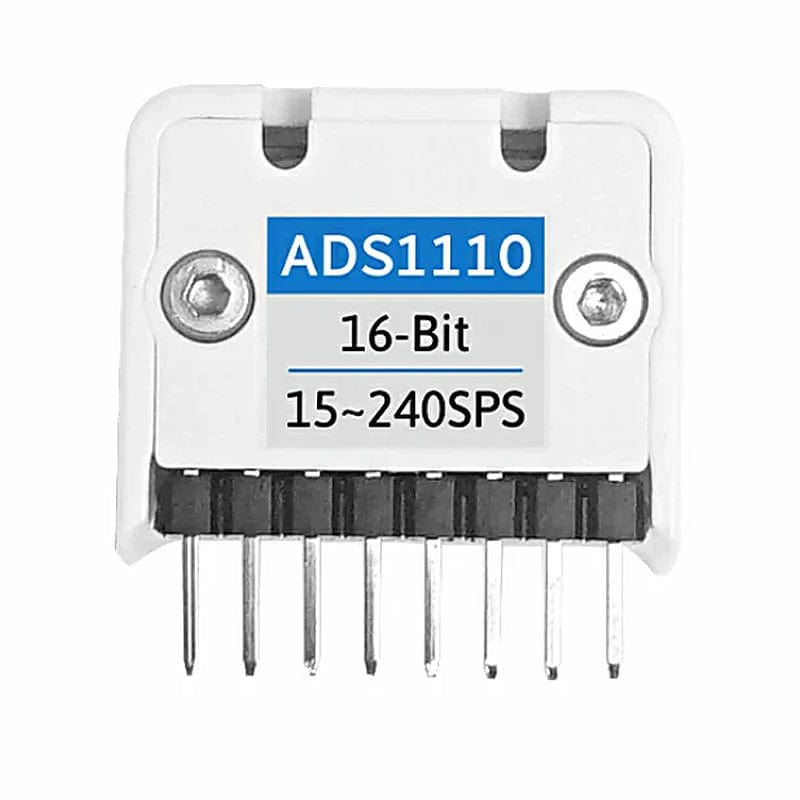

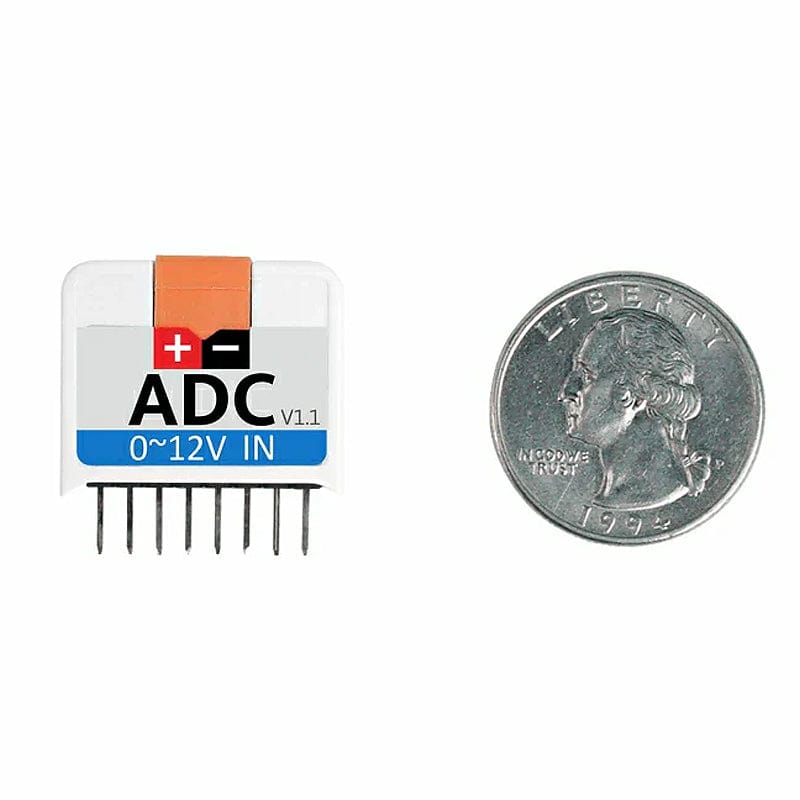

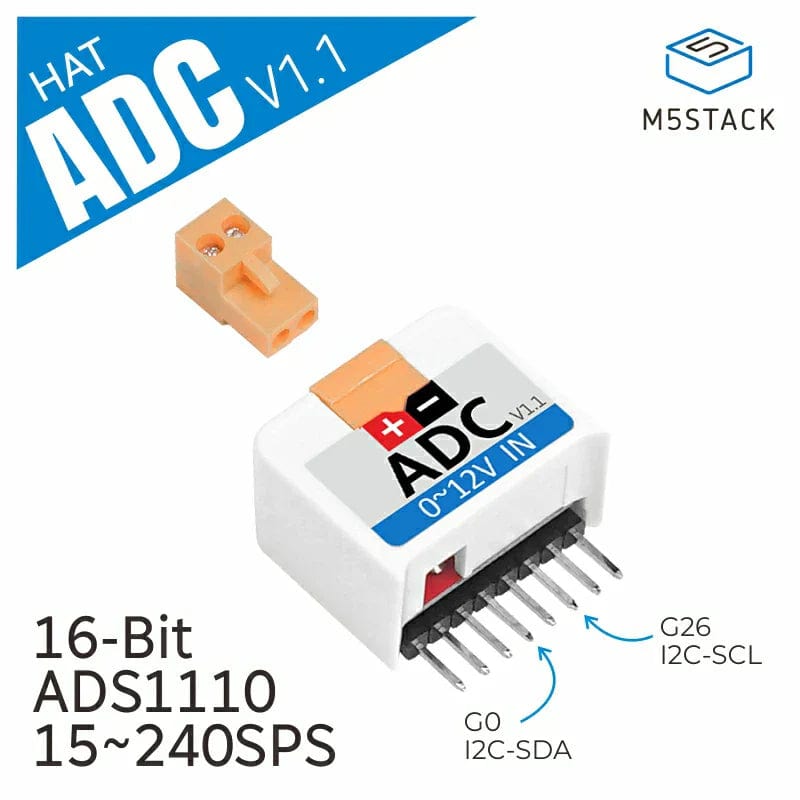

M5StickC ADC HAT ADS1110 v1.1

The M5Stack M5StickC ADC HAT V1.1 is another type of C-HAT specifically designed for the M5StickC controller.

Same as the ADC unit, this is an ADC converter for M5StickC. Packed with an ADC converter chip ADS1110, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Extremely easy to design with and configure, the ADS1110 allows you to obtain precise measurements with a minimum of effort.

The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface. The ADS1110 itself is able to accept a differential input from -5 ~ +5 V, but we have limited the input to 0 to 12V by adding the peripheral circuit design of this IC.

Features

• Programmable gain amplifier (PGA = 1, 2, 4 or 8 continuous self-calibration)
• Low noise (10uVP-P)
• I2C Communication
• Built-in reference (accuracy: 2.048V ± 0.05%)

Specifications

Resources

• Product Wiki
• Schematics
• ADS1110 Datasheet
• Dimension diagram

Arduino

• Unit ADC v1.1 with M5Core
• Unit ADC v1.1 with M5Core2
• Unit ADC v1.1 with M5Atom
• Unit ADC v1.1 with M5StickC
• Unit ADC v1.1 with M5StickCPlus

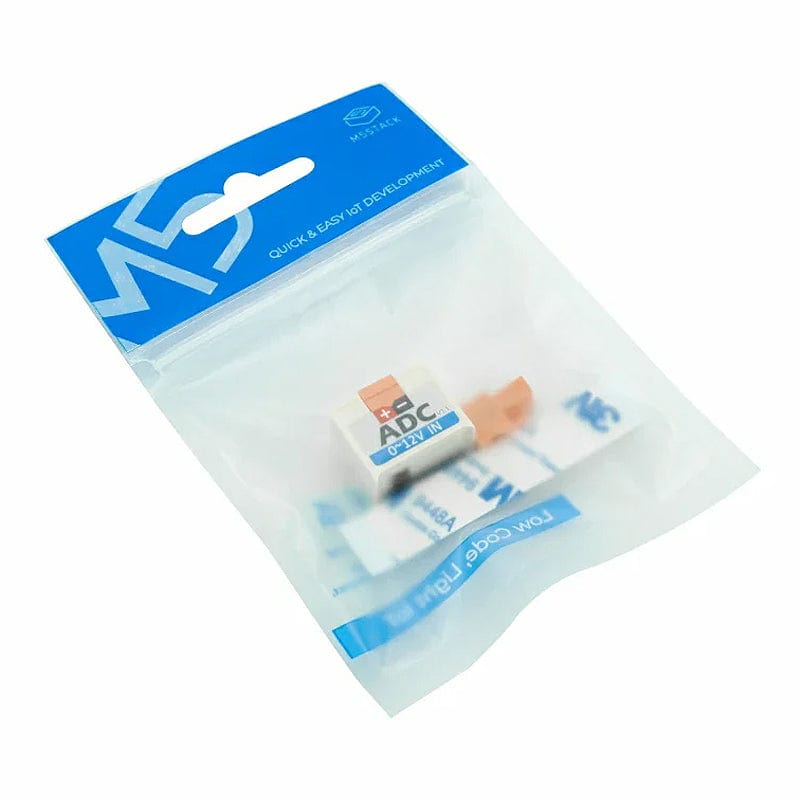

Package Contents

• 1x ADC V1.1 Unit
• 1x Grove Wire (20cm)
• 1x HT3.96 Male Socket (2 pins)
