M5Stack M5StickC ADC HAT ADS1100

Sale price £8.33
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

M5StackM5Stack M5StickC PLUS with Watch Accessories
Sale price £18.75 incl. VAT excl. VAT
M5StackM5Stack M5StickC 18650C
Sale price £5.83 incl. VAT excl. VAT

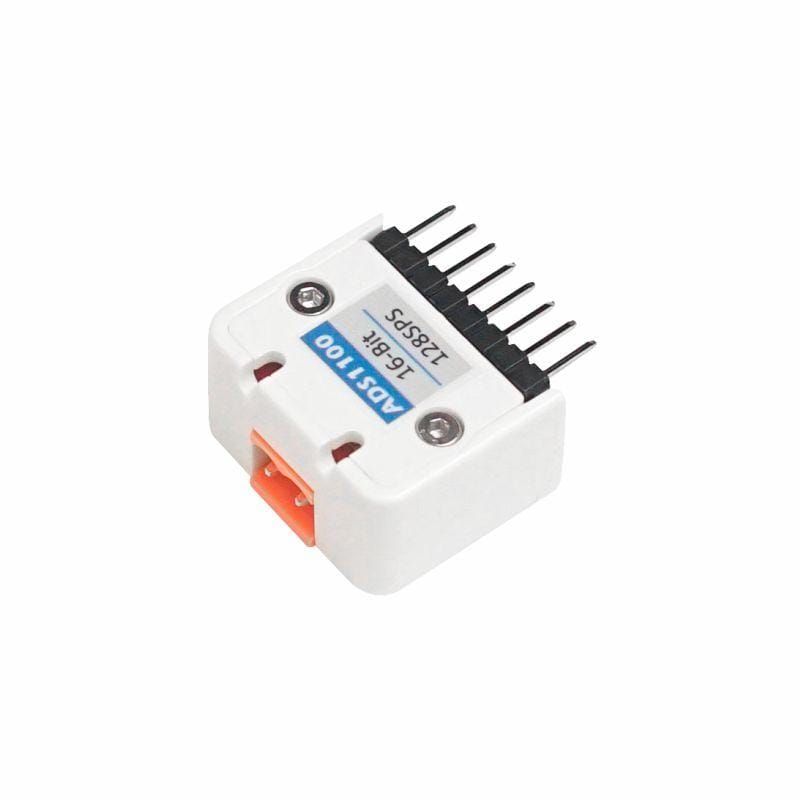

The ADC HAT is another type of C-HAT specifically designed for the M5StickC controller. Same as the ADC unit, this is an ADC converter component for the stickc. Packed with an ADC converter chip ADS1100, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Easy to design and configure, the ADS1100 allows you to obtain precise measurements with a minimum of effort. The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface. The ADS1100 itself is able to accept a differential input from -5/+5 V, but we have limited the input to 0~12V by adding on the peripheral circuit design of this IC.


  • Input: 0-12V
  • Software Development Platform: Arduino, UIFlow(Blockly, Python)

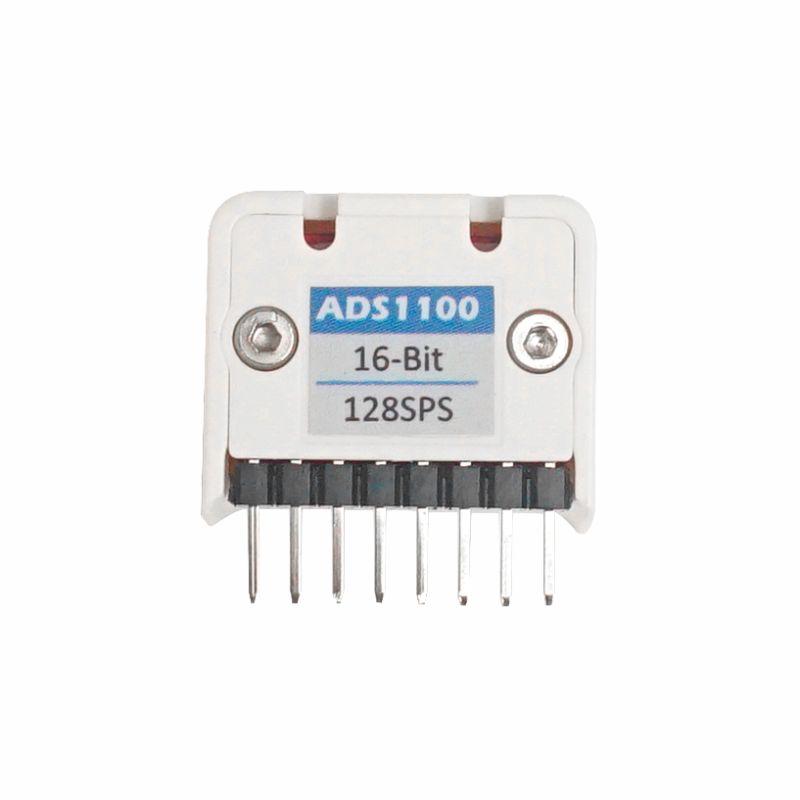

  • ADS1100
    • 16-bits Resolution
    • Continuous Self-Calibration
    • Single-Cycle Conversion
    • Programmable Gain Amplifier Gain = 1, 2, 4, or 8
    • Low Noise: 4μVp-p
    • Programmable Data Rate: 8SPS to 128SPS
    • Internal System Clock
    • I2C Interface: address 0x48

Package Contents

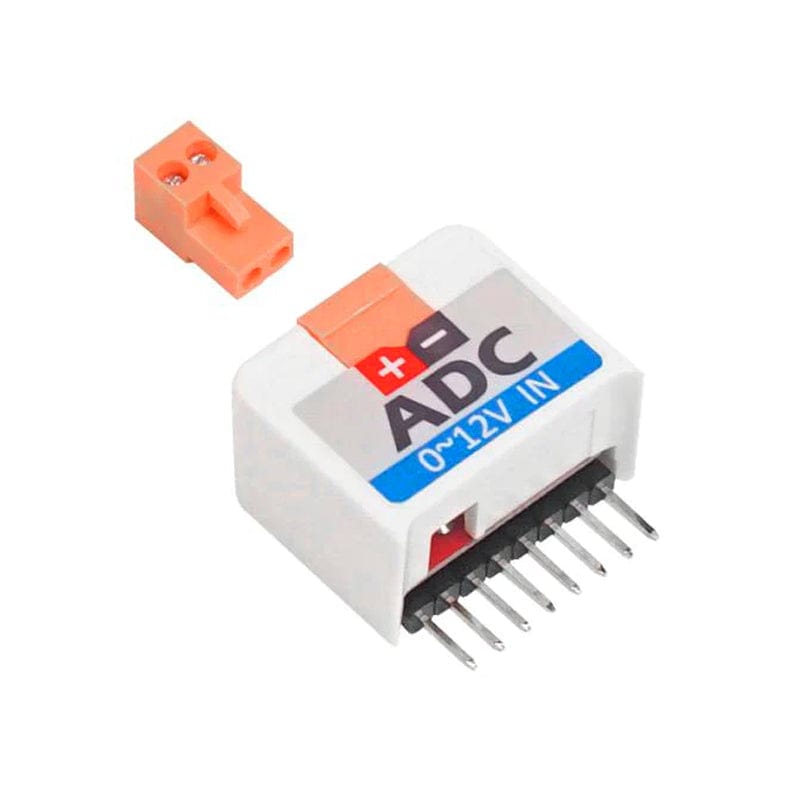

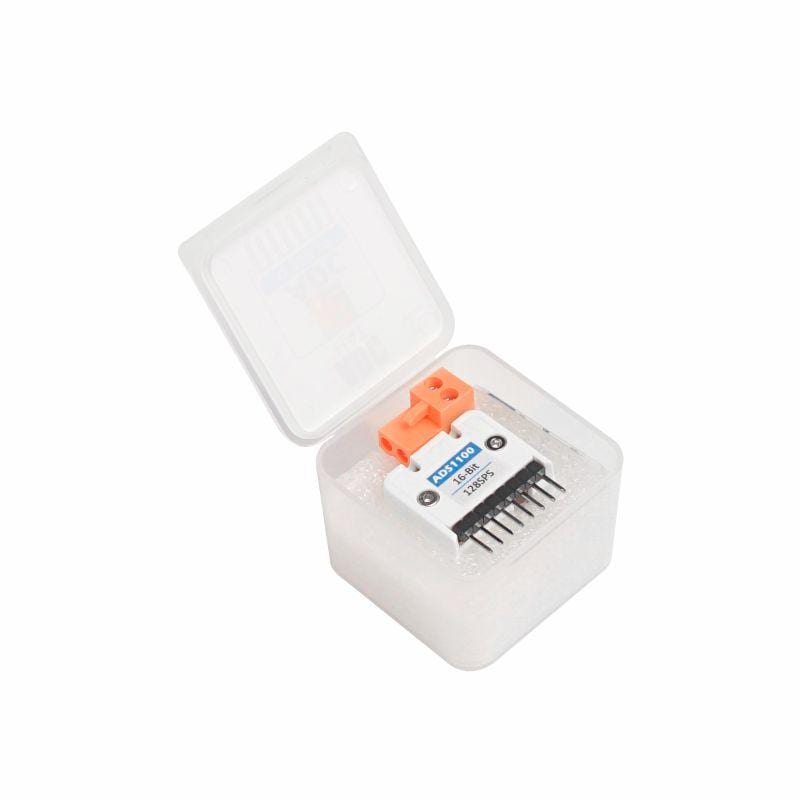

  • 1x ADC HAT
  • 1x 2-Pin 3.96 Pitch Terminal


    Resources Parameter
    Net weight 6g
    Gross weight 14g

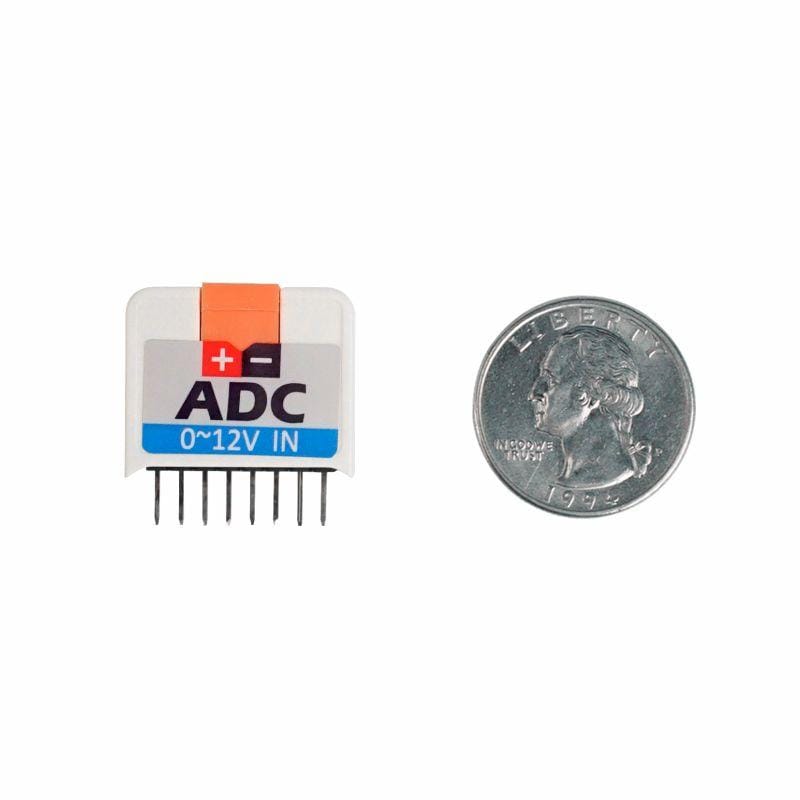

    Product Size 24 x 25 x 13mm
    Package Size 40 x 42 x 30mm
