M5Stamp Extend I/O Module (STM32F0)

M5StackSKU: S002
£6.60
incl. VAT
excl. VAT
Only 6 units left

Awesome Extras

M5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi HutM5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi Hut
M5StackM5Stack Core2 v1.1 ESP32 IoT Development Kit
£44.50 incl. VAT excl. VAT
M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi HutM5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut
M5StackM5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit
£24 incl. VAT excl. VAT
Notify me

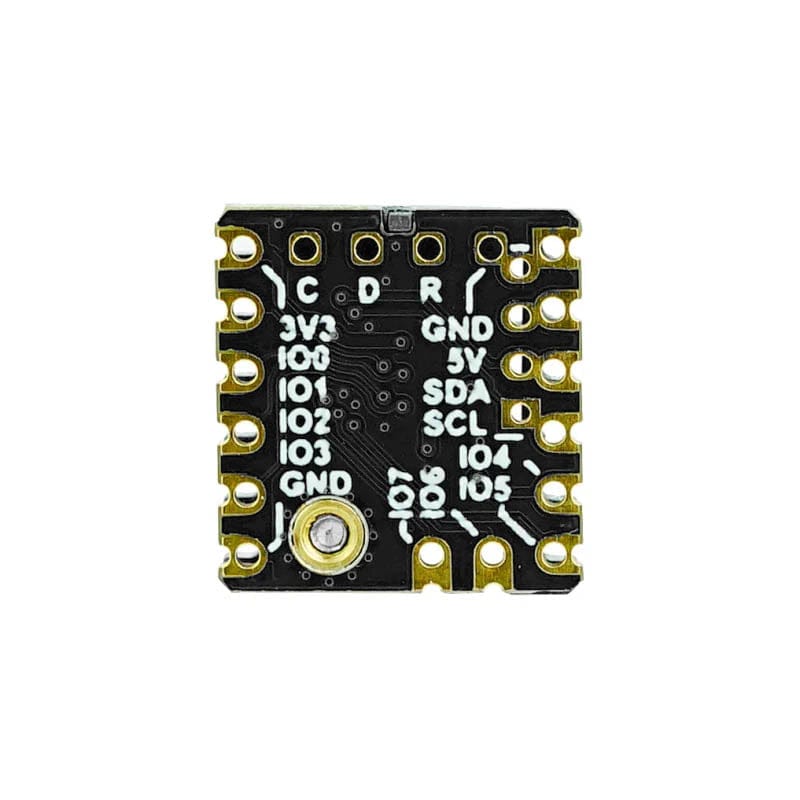

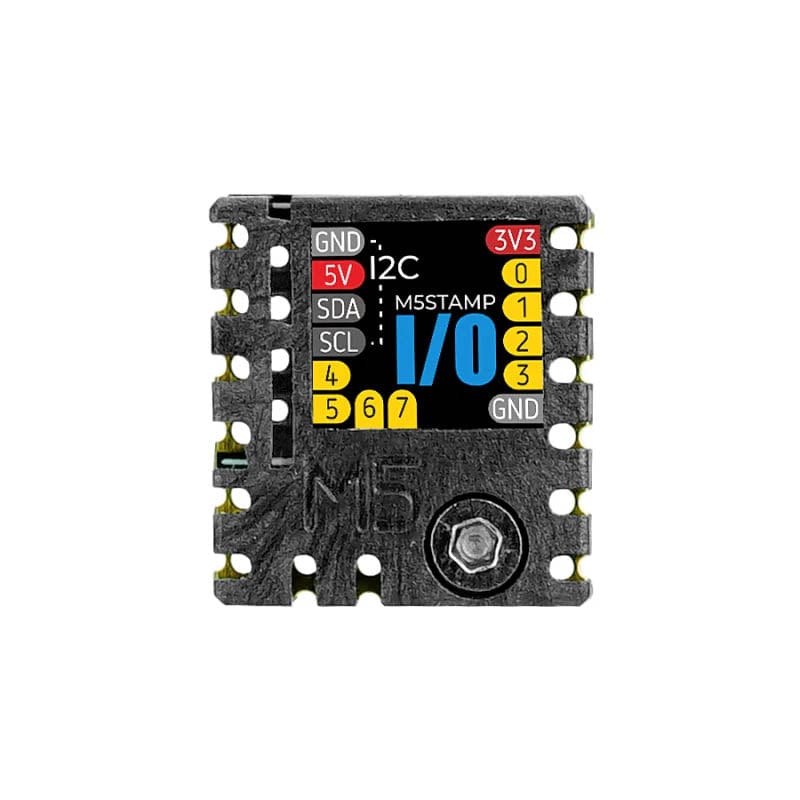

The M5Stamp Extend I/O Module ('STAMP IO') from M5Stack is an IO expansion board based on the STM32F030 main controller, using an I2C communication interface, providing 8 IO expansions.

Each IO supports independent configuration of digital input/output, ADC, SERVO control and RGB LED control modes. Suitable for multi-channel digital/analog signal acquisition, and lighting/servo control applications.

Features

  • 8-channel input and output expansion.
    • Digital input/output
    • ADC input
    • SERVO control (PWM)
    • RGB LED control
  • I2C communication interface:
    • Supports configuration of I2C address
  • Multiple soldering options
    • Three types of soldering options are available (SMT, DIP, Jumper wire),
    • With high-temperature resistant plastic enclosure, Peak temperature = 230℃

Package Contents

  • 1x STAMP IO
  • 1x HY2.0 4-pin female connector (red)
  • 1x Hex key 1.5mm

Specifications

MCU STM32F030
I2C Address 0x45(default)
Number of IO expansions 8
IO Support Mode Digital I/O
ADC
SERVO control
RGB LED control
IO Support Input/Output Levels 3.3V
Net Weight 2.5g
Gross Weight 4.3g
Product Size 15*4.7*16mm
Package Size 93*138mm
