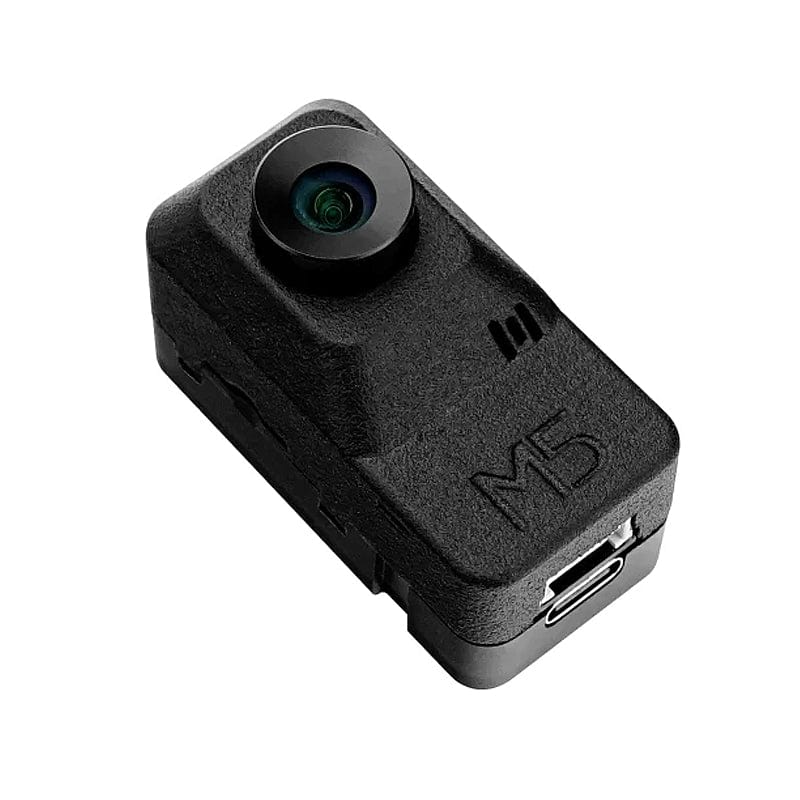

M5Stack UnitV2 M12 Version with Cameras

M5StackSKU: U078-M12
Price:
Sale price £96
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

Awesome Extras

M5Stack UnitV2 - Standalone AI Camera for Edge Computing (SSD202D) TinyML - The Pi HutM5Stack  UnitV2 - The standalone AI Camera for Edge Computing (SSD202D) TinyML - The Pi Hut
M12 Lens - 185-Degree Fisheye (1/2.5" Optical Format, 1.56mm Focal Length) - The Pi Hut
M12 Lens - 180-Degree Fisheye (1/2.5" Optical Format, 1.7mm Focal Length) - The Pi Hut

The UnitV2 is a high-efficiency Ai recognition module from M5Stack which adopts a Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) control core, integrated 128MB-DDR3 memory, 512MB NAND Flash and 1080P camera.

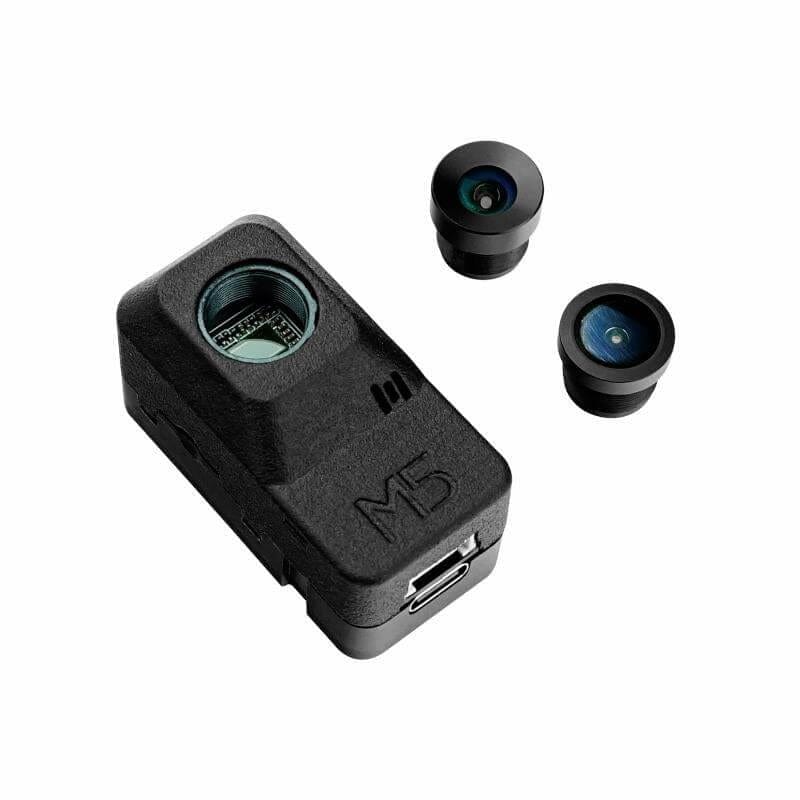

The unit is equipped with 1x regular focal length (FOV: 85°) and 1x wide-angle fisheye lens (FOV: 150°) which support manual focus adjustment.

With its embedded Linux operating system integrated with rich hardware/software resources and development tools, the UnitV2 brings you a simple and efficient Ai development experience right out of the box!

Features

  • Sigmstar SSD202D
  • Dual-core Cortex-A7 1.2GHz processor
  • 128MB DDR3
  • 512MB NAND Flash
  • GC2145 1080P Colored Sensor
  • Equipped with dual lenses: regular focal length (FOV: 85°) + wide-angle fisheye lens (FOV: 150°)
  • Built-in microphone
  • Wi-Fi 2.4GHz
  • Development method:
    • Equipped with 12 ways Ai image functions: QR code, face detection, line tracking, movement, shape matching, image streaming, classification, colour tracking, face recognition, target tracking, shape detection, custom object recognition
    • Support web online preview, UIFlow (used as serial port json format)
    • Linux system (OpenCV, SSH, JupyterNotebook)

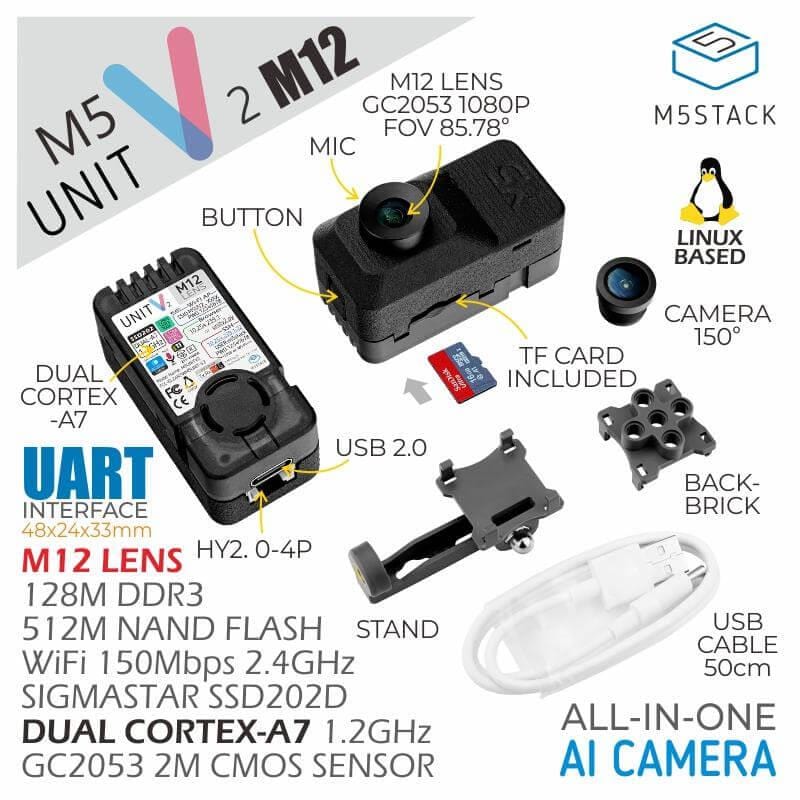

Package Contents

  • 1 x M5Stack UnitV2 M12
  • 1 x 16g TF Card
  • 1 x USB-C cable (50cm)
  • 1 x bracket
  • 1 x back clip
  • 1x regular focal length lens (FOV: 85°)
  • 1x wide-angle fisheye lens (FOV: 150°)

Applications

  • Ai recognition function development
  • Industrial visual recognition classification
  • Machine vision learning

UNIT-V2 series comparison

UNIT-V2 UNIT-V2 M12 UNIT-V2 USB
Normal focal length (FOV 68°) Normal focal length (FOV 85°) + wide-angle focal length (FOV: 150°) Without lens, USB-A universal interface, can be connected to various UVC cameras

Specification

Specifications Parameters
Sigmstar SSD202D Dual Cortex-A7 1.2GHz Processor
Flash 512MB NAND
RAM 128MB-DDR3
Camera GC2145 1080P Colored Sensor
Lens 1x regular focal length (FOV: 85°) + 1x wide-angle fisheye lens (FOV: 150°)
Input voltage 5V @ 500mA
Hardware Peripherals TypeC x1, UART x1, TFCard x1, Button x1, Microphone x1, Built-in active cooling fan x1
Indicator light Red, White
Wi-Fi 150Mbps 2.4GHz 802.11 b/g/n
Ethernet network card SR9900
