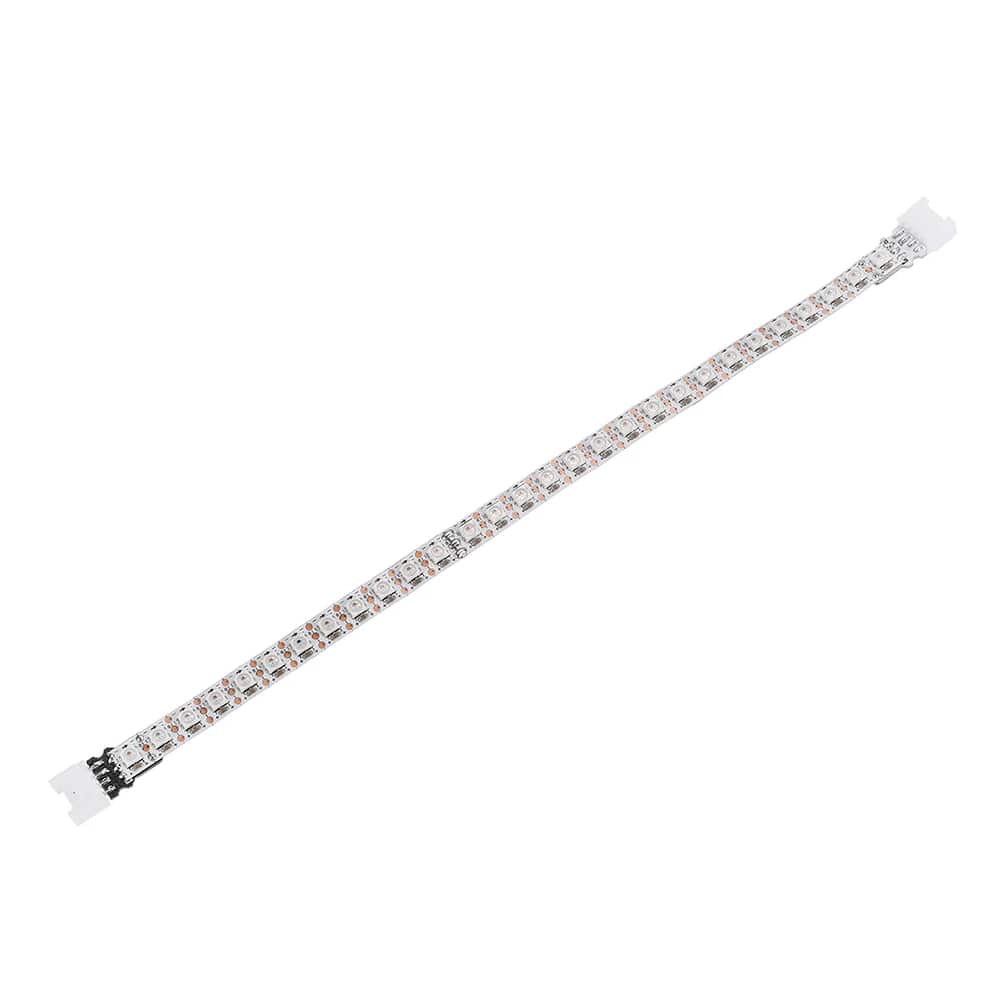

M5Stack SK6812 Digital RGB LED Strip

M5StackSKU: A035-B

Length:20cm

£8.20

incl. VAT

excl. VAT

Only 20 units left

Awesome Extras

M5Stack ATOM Matrix ESP32 by M5Stack - The Pi Hut

M5Stack M5Stack ATOM Matrix ESP32

£18.60 incl. VAT excl. VAT

Notify me

M5Stack ATOM Lite ESP32 by M5Stack - The Pi Hut

M5Stack M5Stack ATOM Lite ESP32

£9 incl. VAT excl. VAT

M5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm by M5Stack - The Pi Hut

M5Stack M5Stack Unbuckled Grove Cables

From £1.90 incl. VAT excl. VAT

The M5Stack Unit RGB LED is a programmable SK6812 LED light strip with individually addressable LEDs, allowing custom colour and brightness control for lighting effects, indicators, and interactive projects.

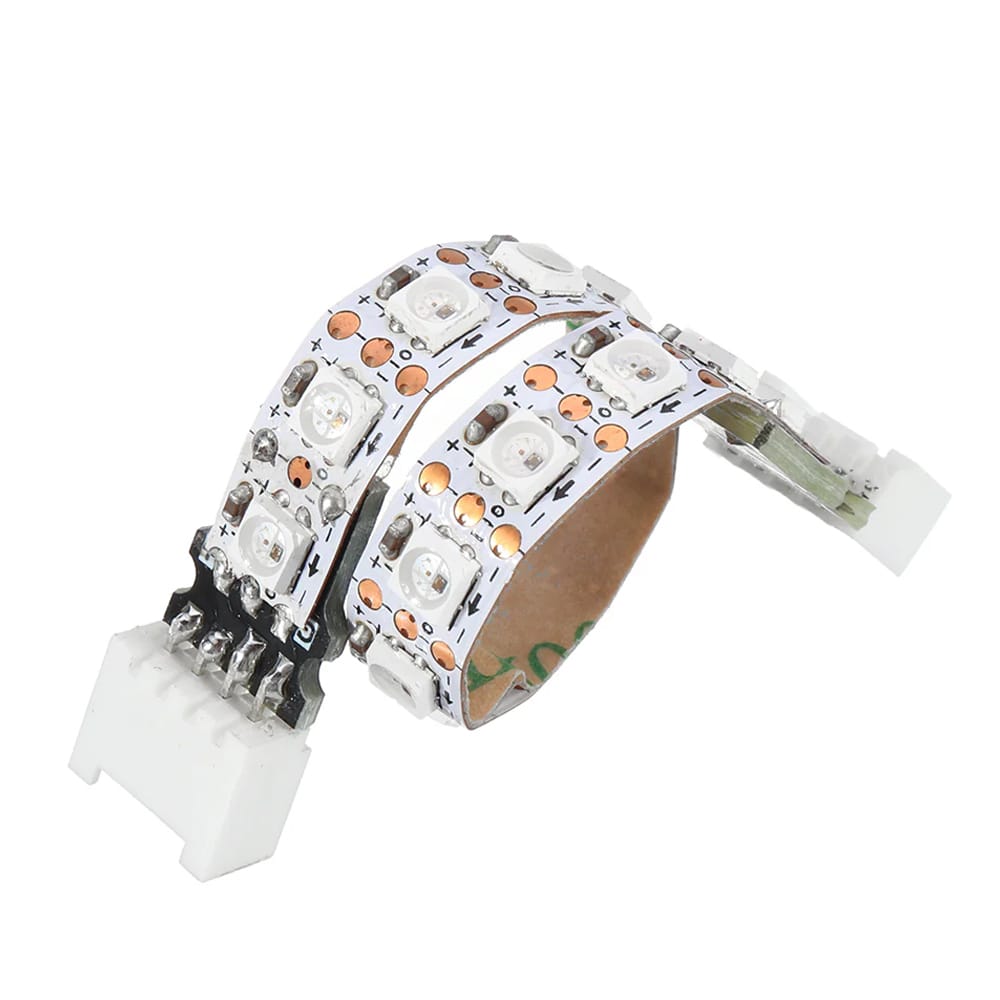

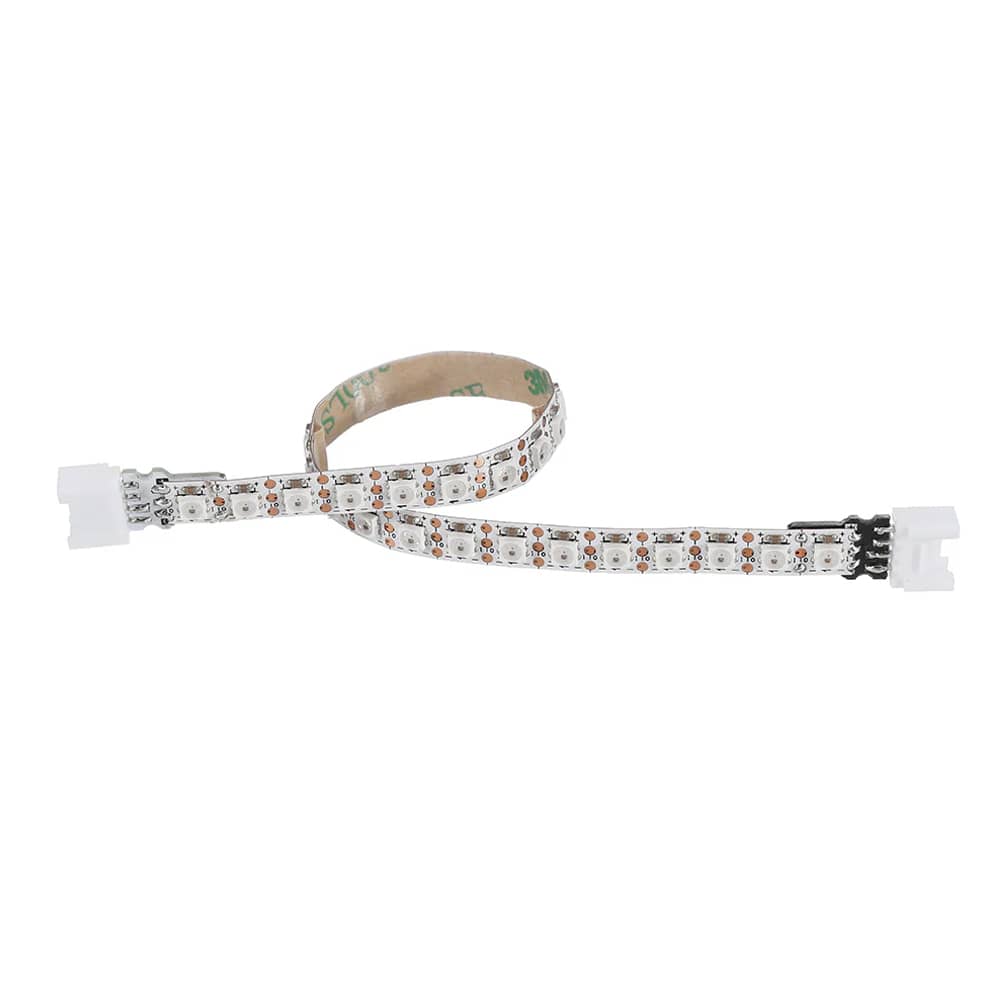

The M5Stack Unit RGB LED is a programmable light strip that uses SK6812 LEDs.

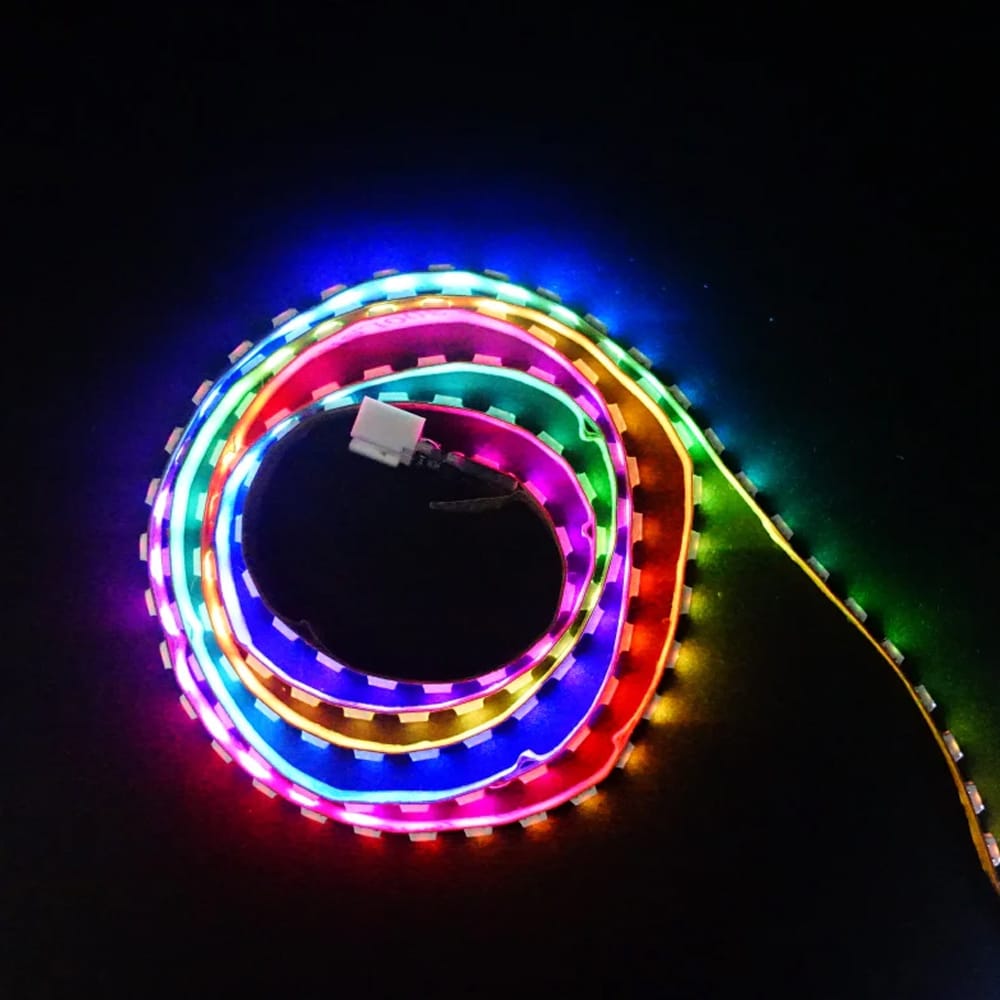

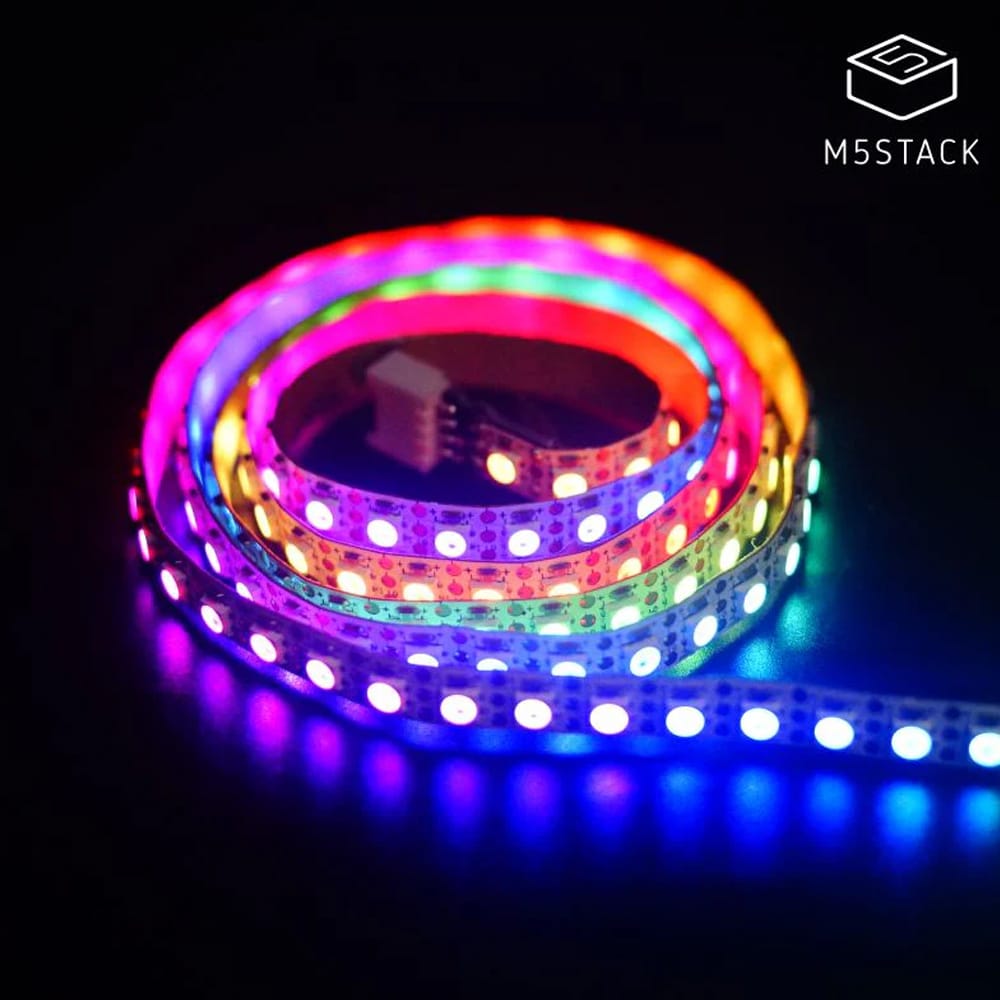

This light strip supports digital addressing, meaning you can individually control the colour and brightness of each LED on the strip. It uses a single-bus programming interface, allowing for the expansion of the light strip.

Please note: As the number of connected LEDs increases, so does the power consumption. Therefore, when using a Unit RGB LED strip with a large number of LEDs, an additional power supply is required.

These are available in various lengths. Please select before checkout.

Features

Available lengths: 10cm (15 LEDs) / 20cm (29 LEDs) / 50cm (72 LEDs) / 1m (144 LEDs) / 2m (288 LEDs)
Development platforms:
- Arduino
- UIFlow (Blockly, Python)
Expandable length

Specifications

LED Model	SK6812 (3535)
Power	18W/m
Data Transfer Rate	800K/s
Operating Temperature	-40~80°C
Waterproof Level	Bare Board - Non-Waterproof
Product Size	10.0 x 100.0/10.0 x 200.0/10.0 x 500.0/10.0 x 1000.0/10.0 x 2000.0mm
Product Weight	4.0g/6.0g/10.0g/12.0g/34.0g

Important Information

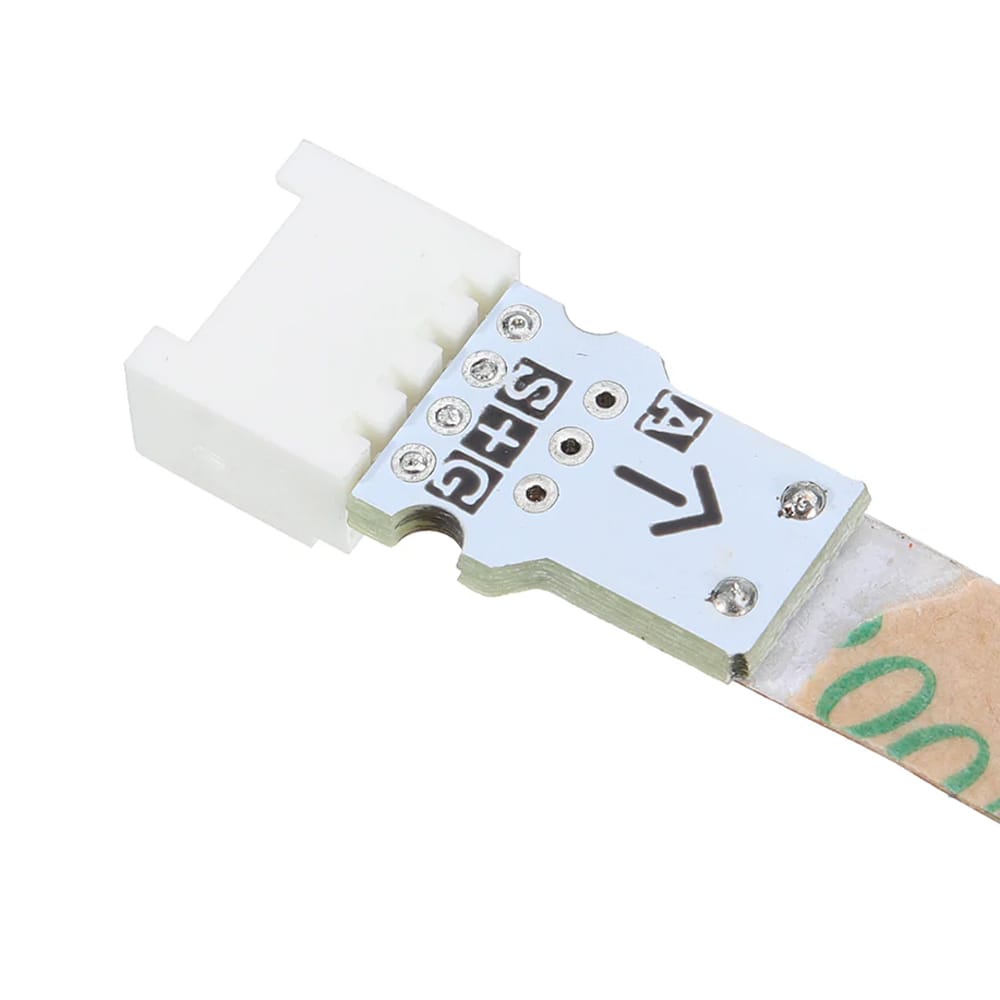

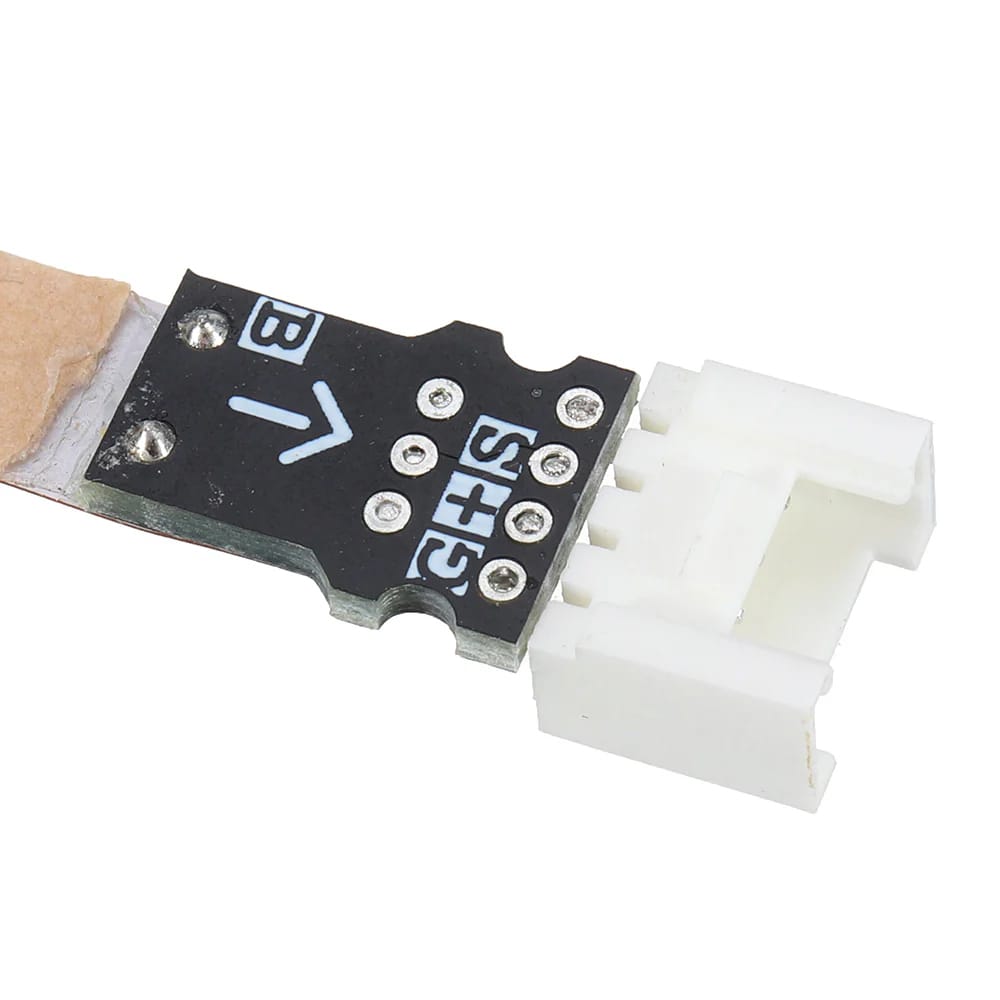

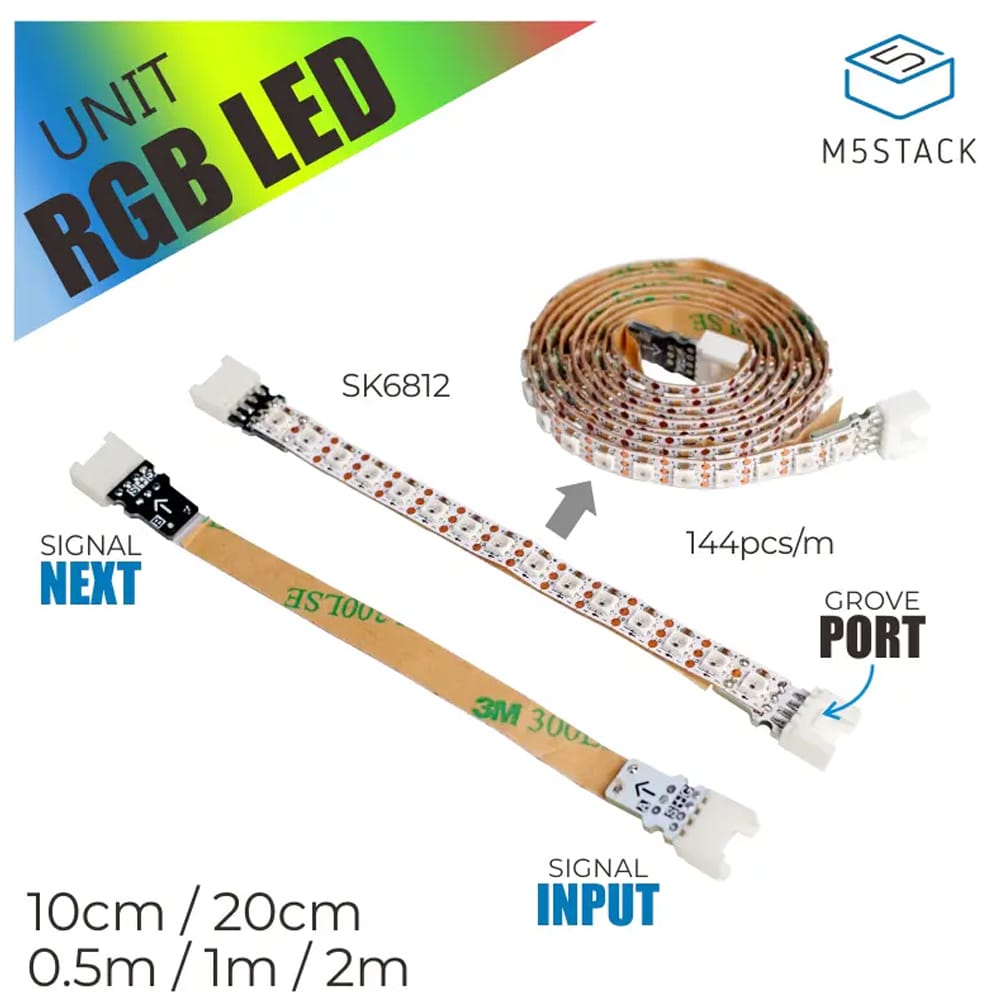

Signal Input/Output -The white PCB at the end of the strip is the signal input (connected to the main controller), and the black PCB is used for extending the strip.
