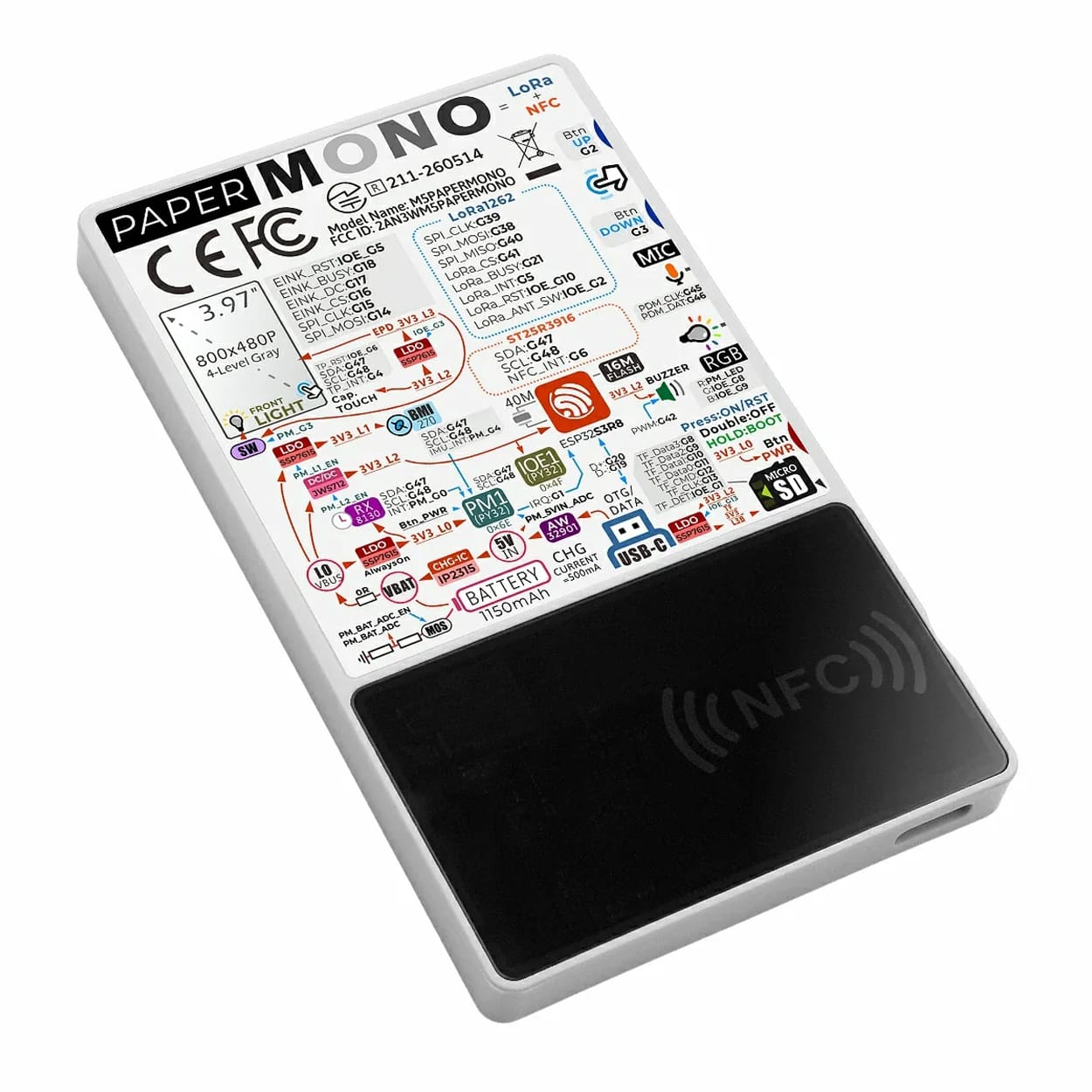

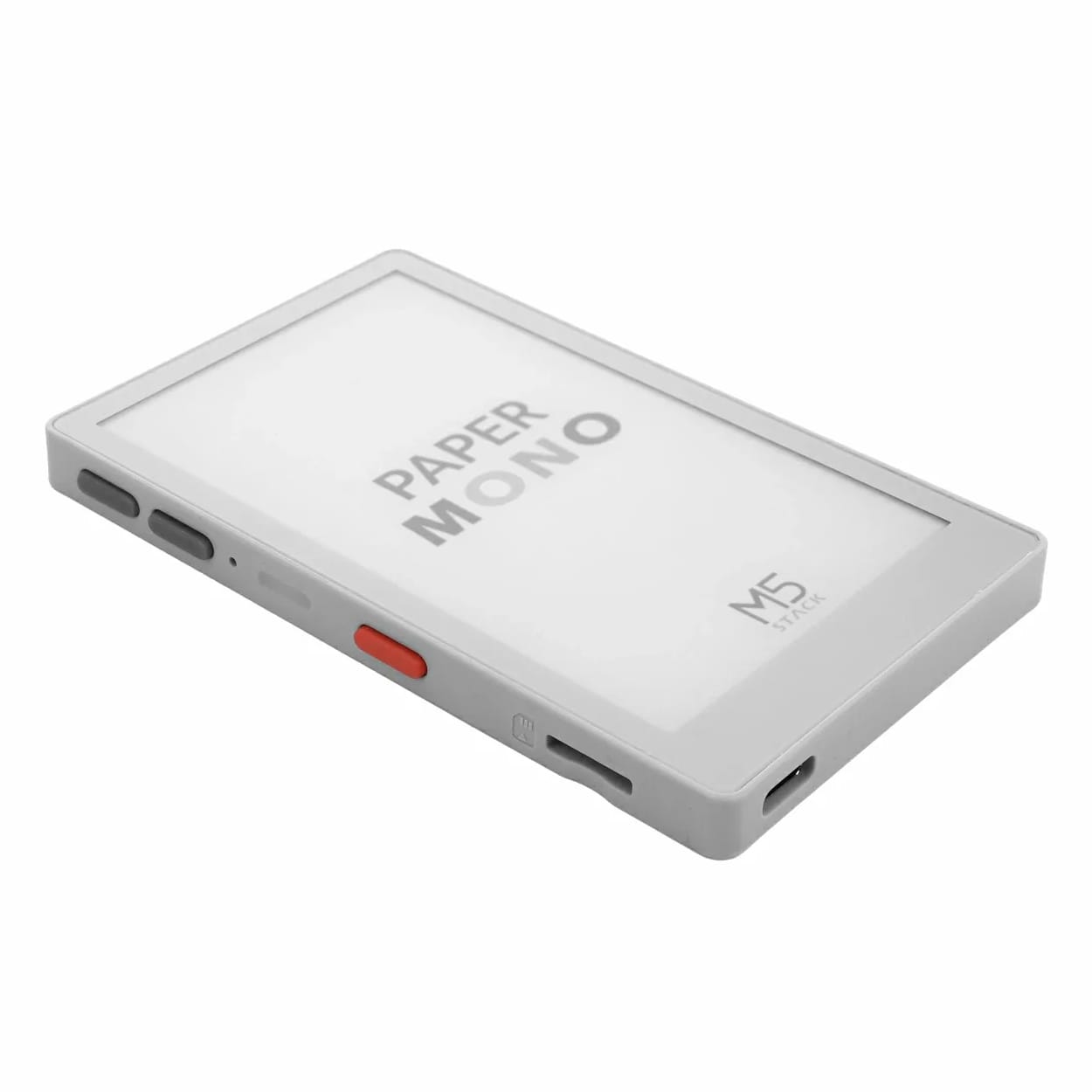

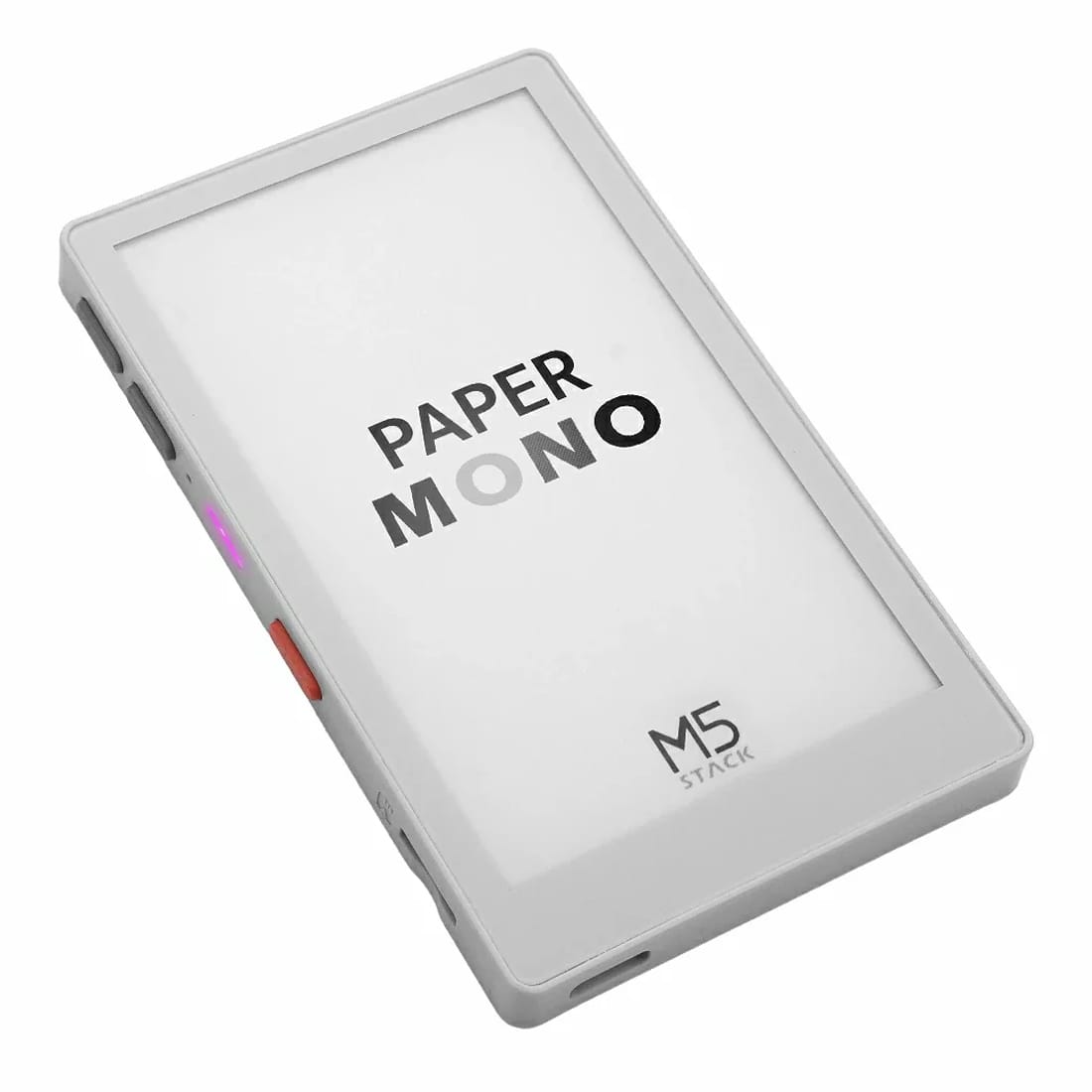

The M5Stack PaperMono is a compact ESP32-S3 e-paper dev board with touch, NFC, LoRa, Wi-Fi and a built-in battery for low-power connected projects.

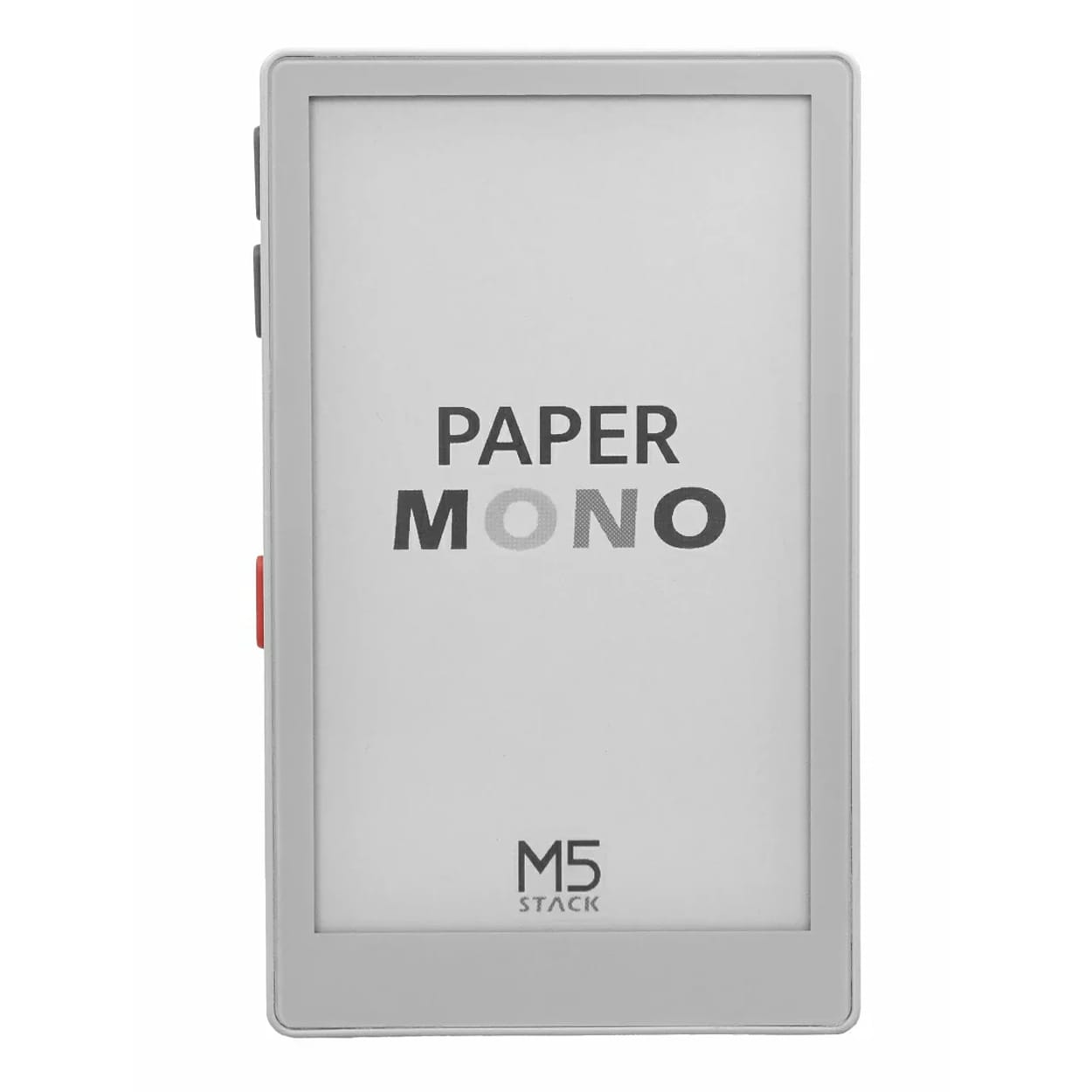

The M5StackPaperMono is an e-paper dev board built around low-power display, near-field identification, and long-range communication capabilities.

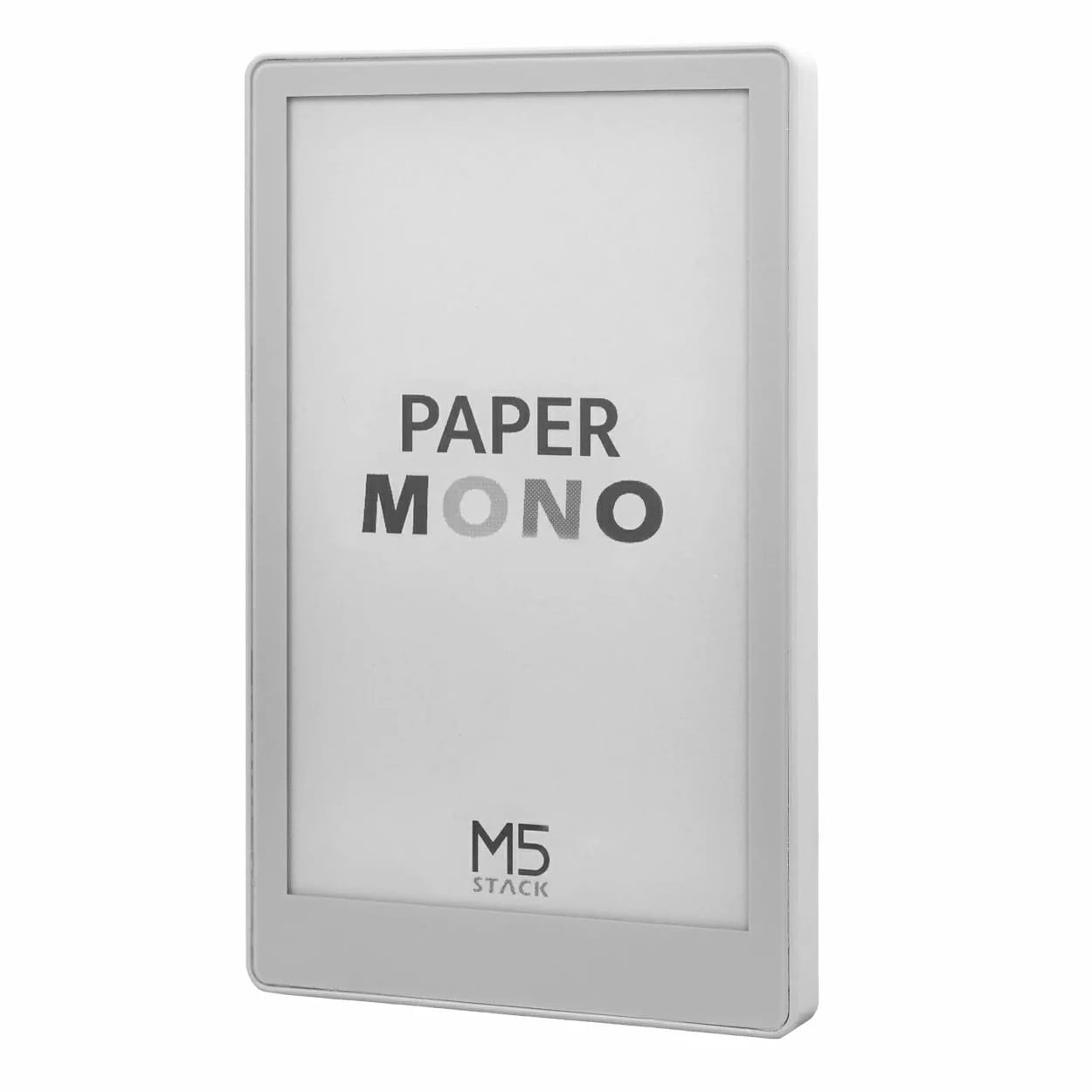

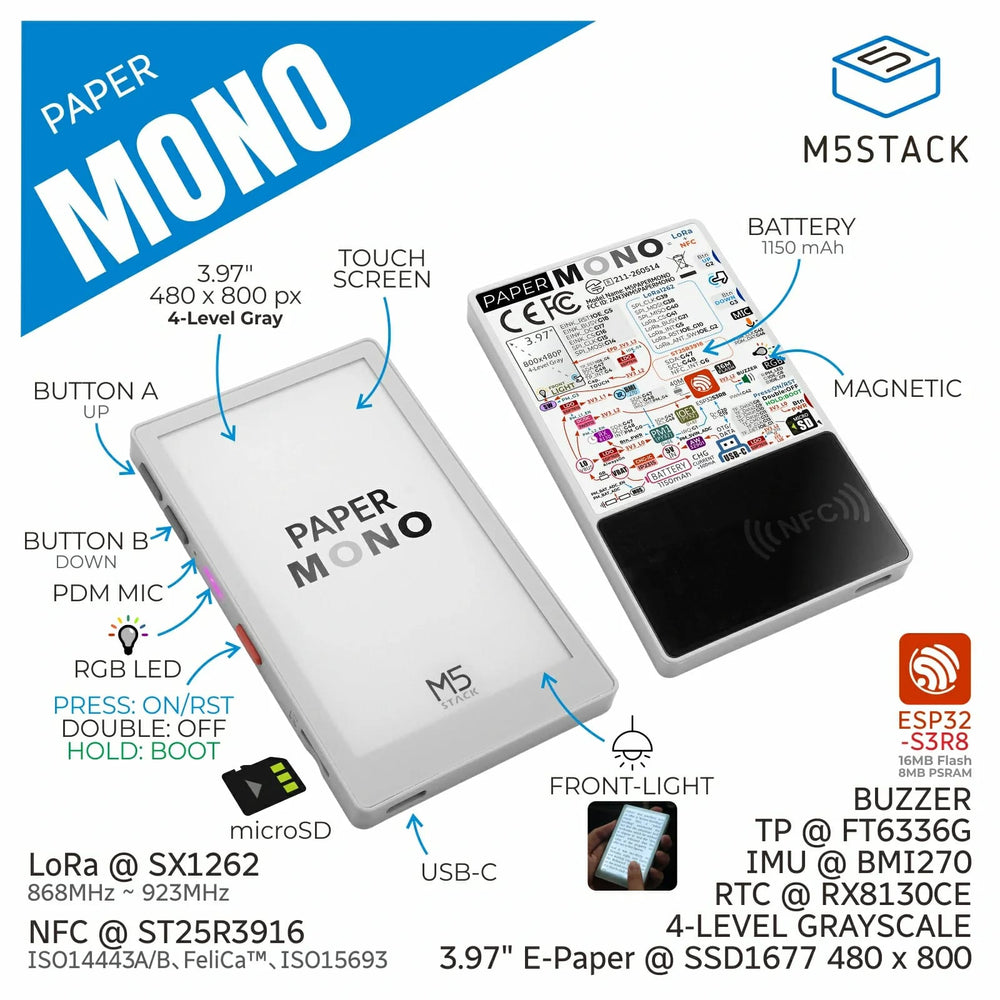

It features a touch-enabled 3.97" 480 x 800 4-level grayscale monochrome e-paper display, and integrates a frontlight system for a more comfortable reading and interaction experience in low-light environments.

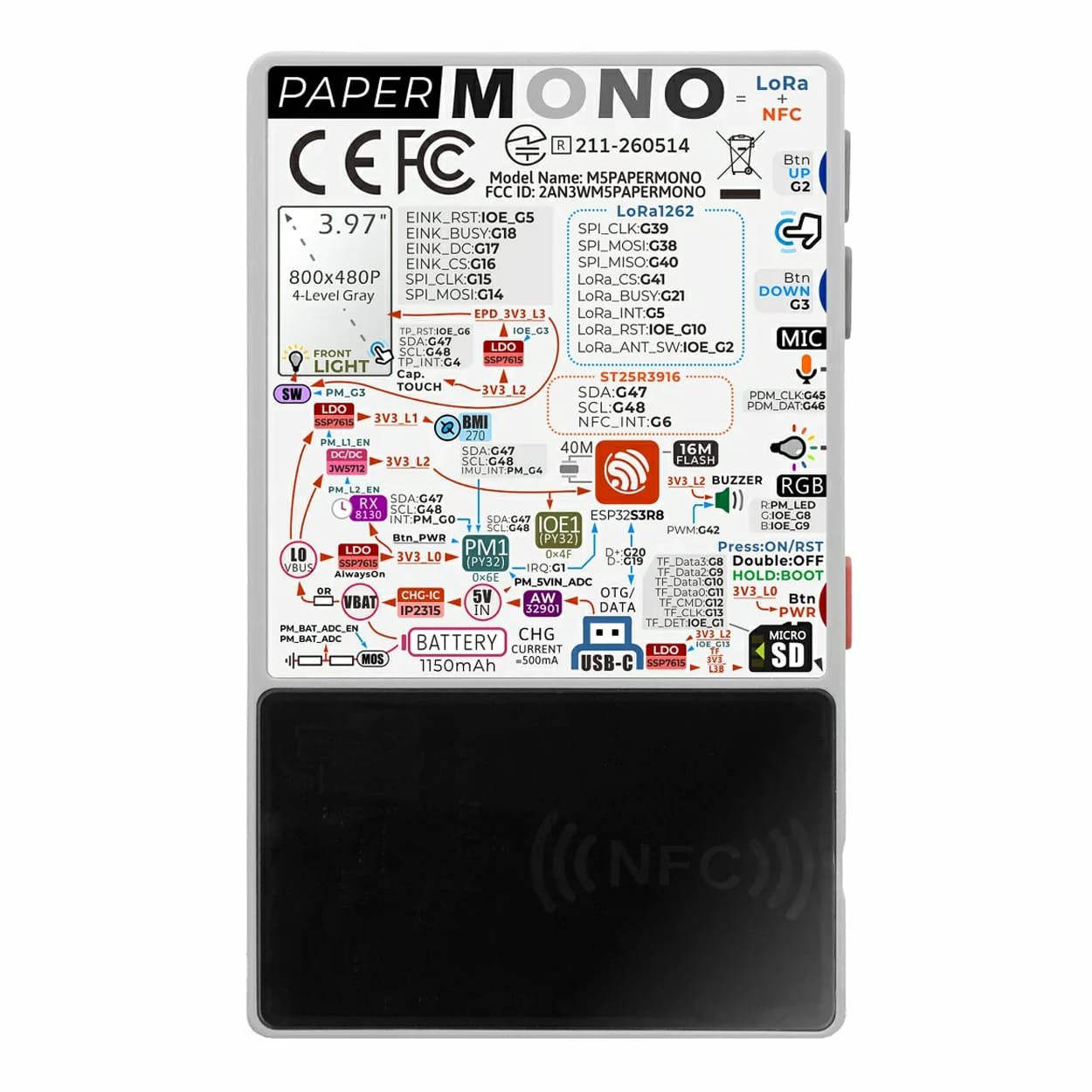

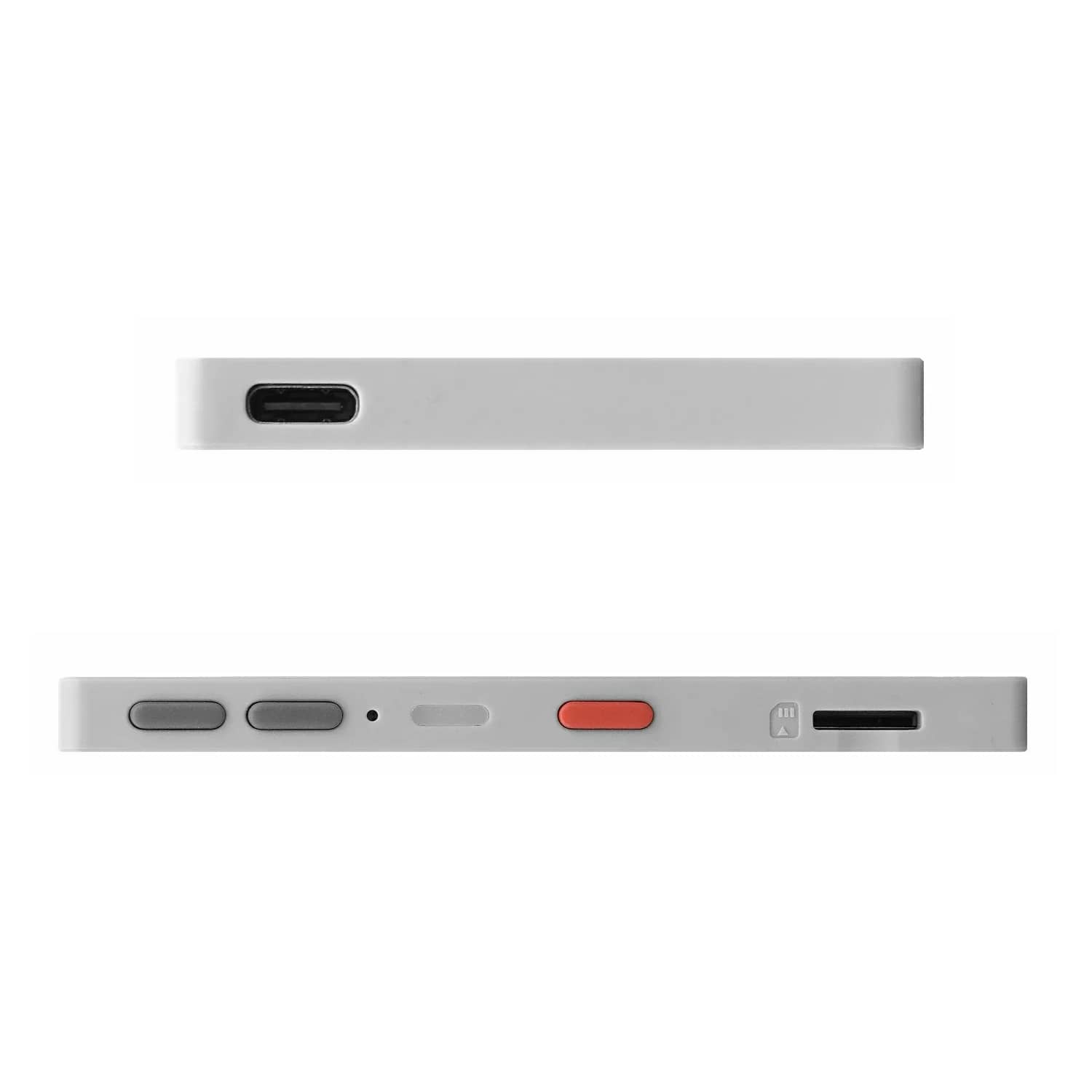

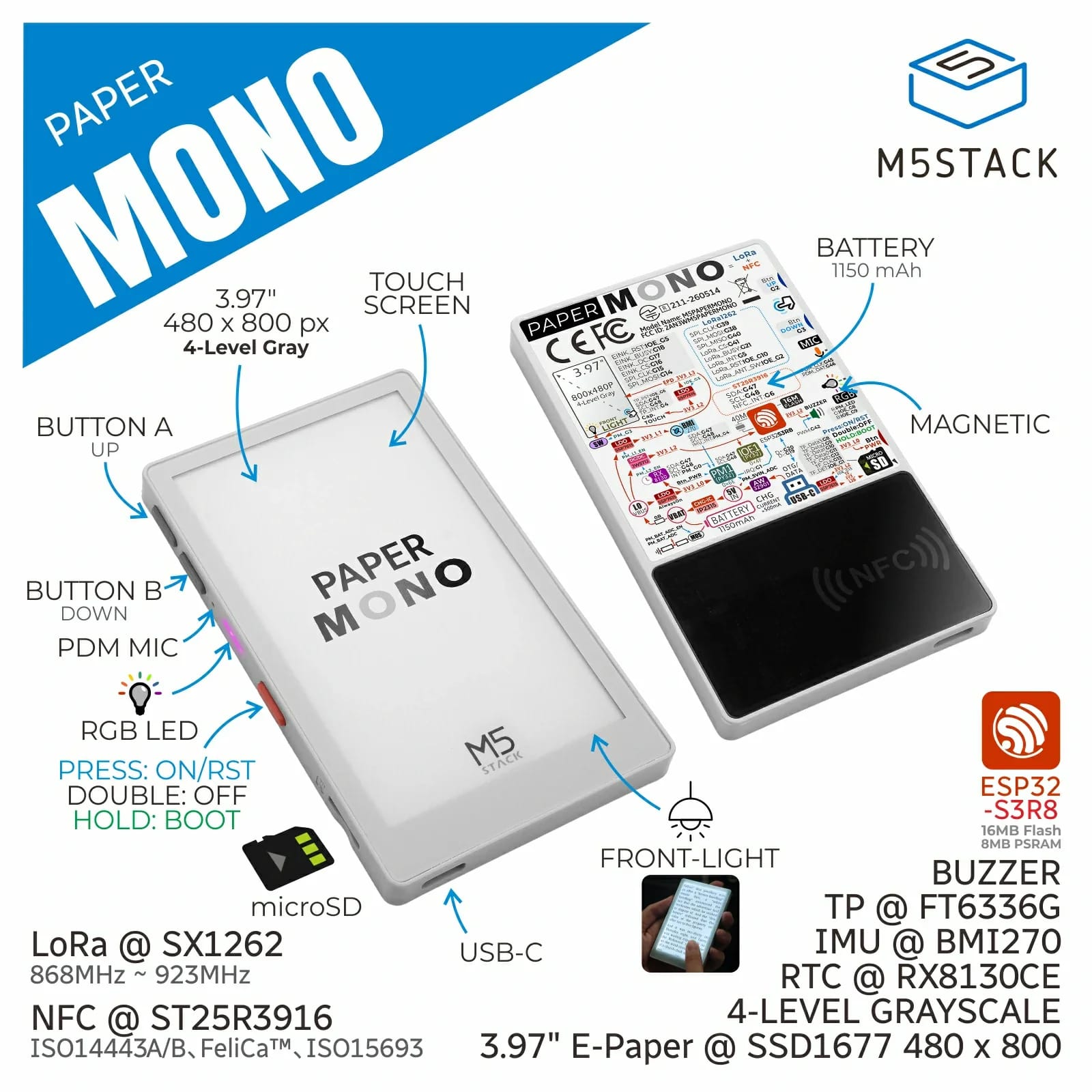

The core adopts an ESP32-S3R8, paired with 16MB Flash, 8MB PSRAM, and 2.4 GHz Wi-Fi, along with an onboard buzzer, PDM microphone, RGB LED, 6-axis IMU, IO expander, microSD card slot, and real-time clock. the internal battery is rechargeable via the USB-C port (USB-C cable not included).
The NFC functionality supports ISO14443A, ISO14443B, FeliCa™, and ISO15693; LoRa communication adopts the SX1262 chip with a built-in FPC antenna, supporting the 868MHz ~ 923MHz band. Combined with a multi-level power management system and 1150mAh battery, it meets the requirements of low-power IoT and embedded applications such as e-readers, e-paper signage, access control terminals, identity authentication, and intelligent transportation.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
ESP32-S3R8 Core Controller
16MB Flash
8MB PSRAM
2.4 GHz Wi-Fi
3.97" 4-level grayscale monochrome e-paper display with touch
