M5Stack Neo HEX 37 RGB LED Board (WS2812)

M5StackSKU: A045-B
Price:
Sale price £8.50
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

(11 Reviews)
M5StackM5Stack Core2 ESP32 IoT Development Kit
Sale price £45 incl. VAT excl. VAT
(3 Reviews)
M5StackM5Stack ESP32 Basic Core IoT Development Kit V2.6
Sale price £37.80 incl. VAT excl. VAT
(3 Reviews)
M5StackM5Stack M5StickC PLUS with Watch Accessories
Sale price £22.50 incl. VAT excl. VAT

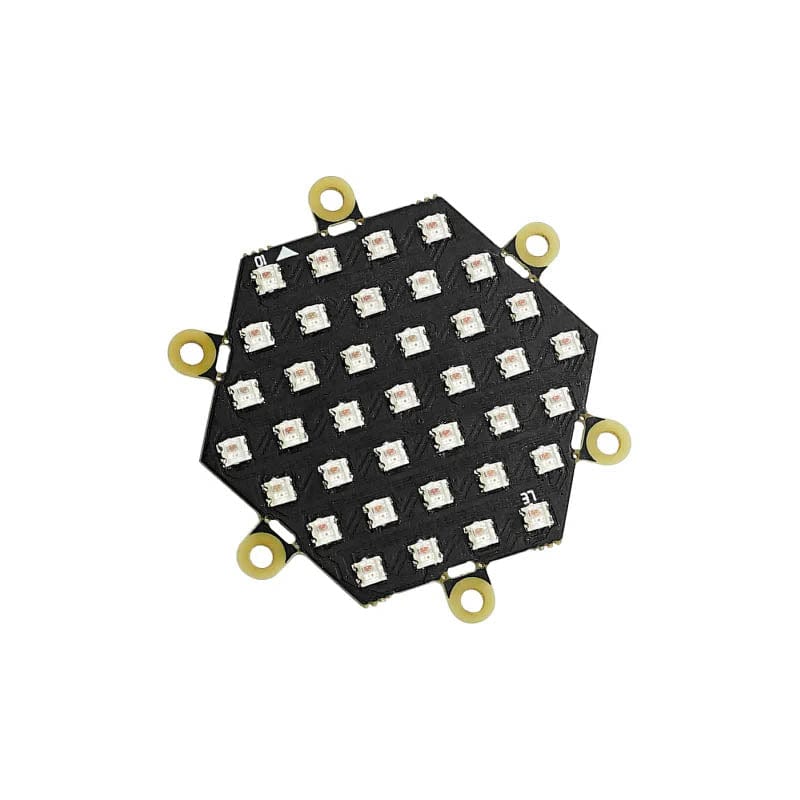

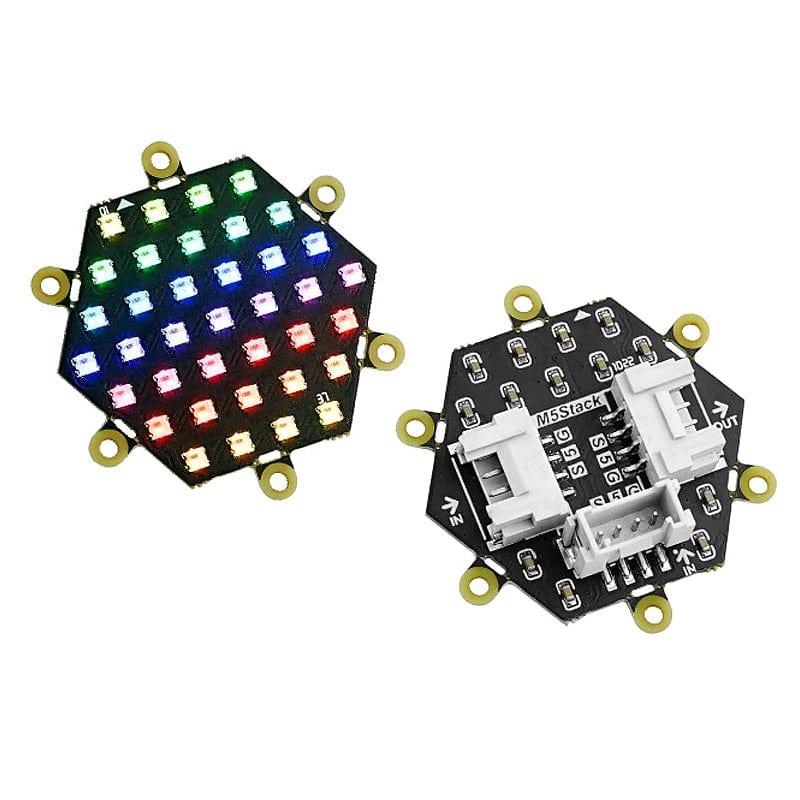

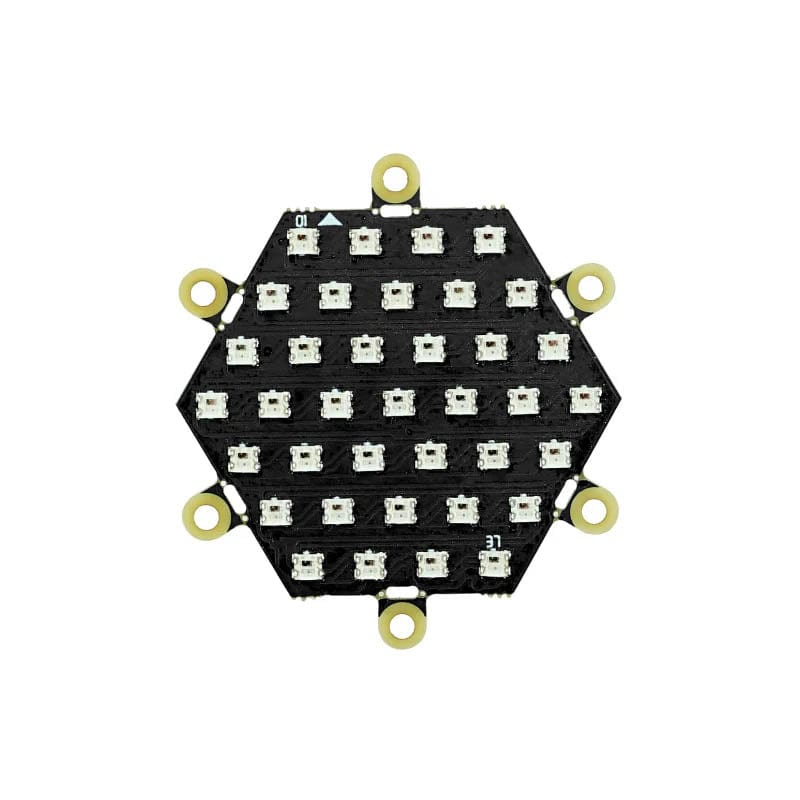

The M5Stack NeoHEX is a hexagonal board with 37 WS2812 RGB LED flexible beads and will be sure to 'WOW' plenty!

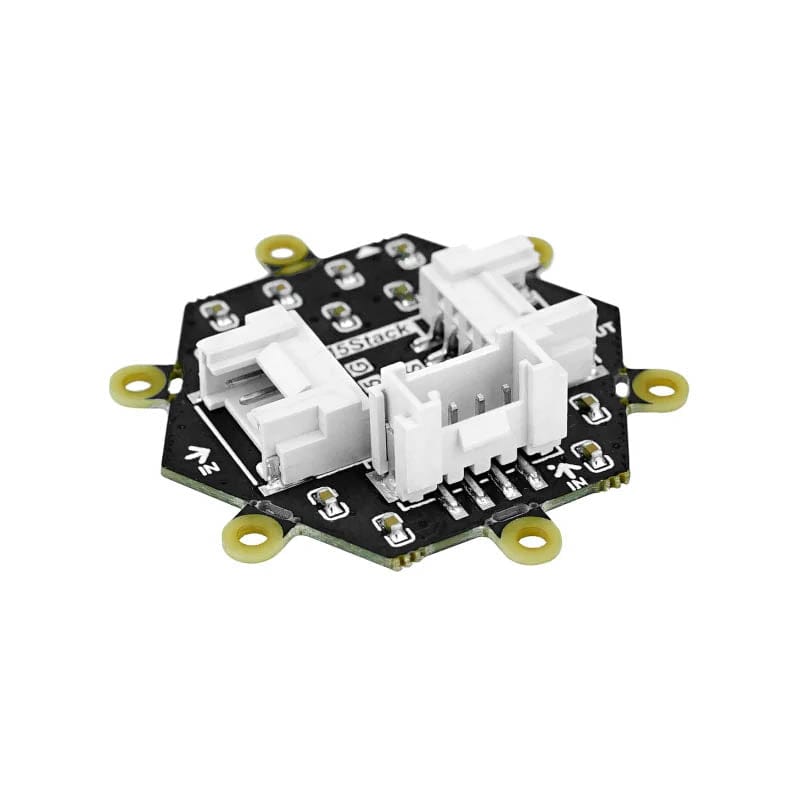

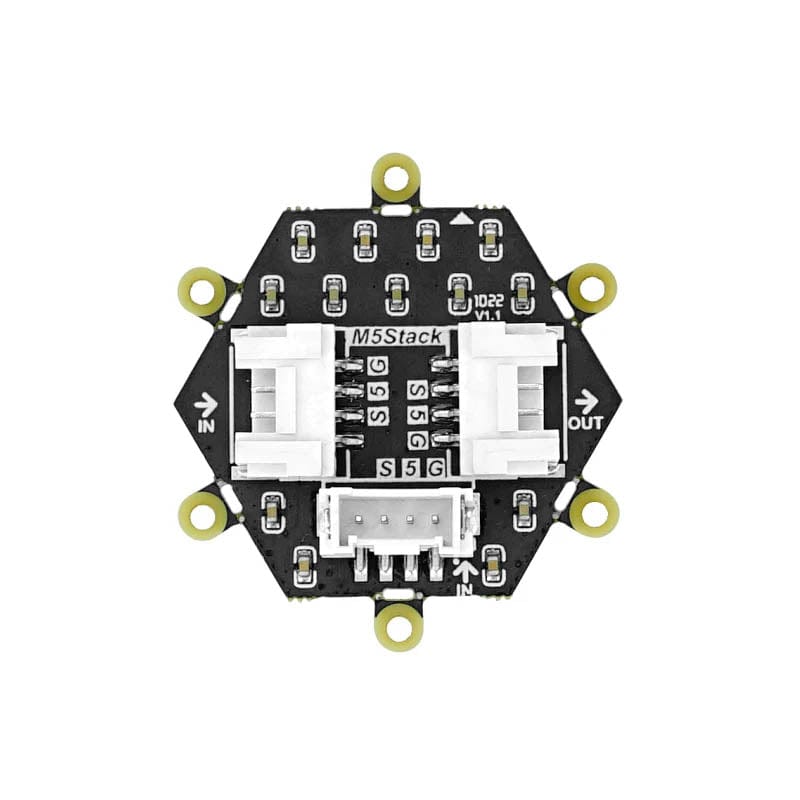

The NeoHEX uses a single BUS control and supports multiple boards connected together. Two sets of different angle input connectors are provided for independent power supply + signal control.

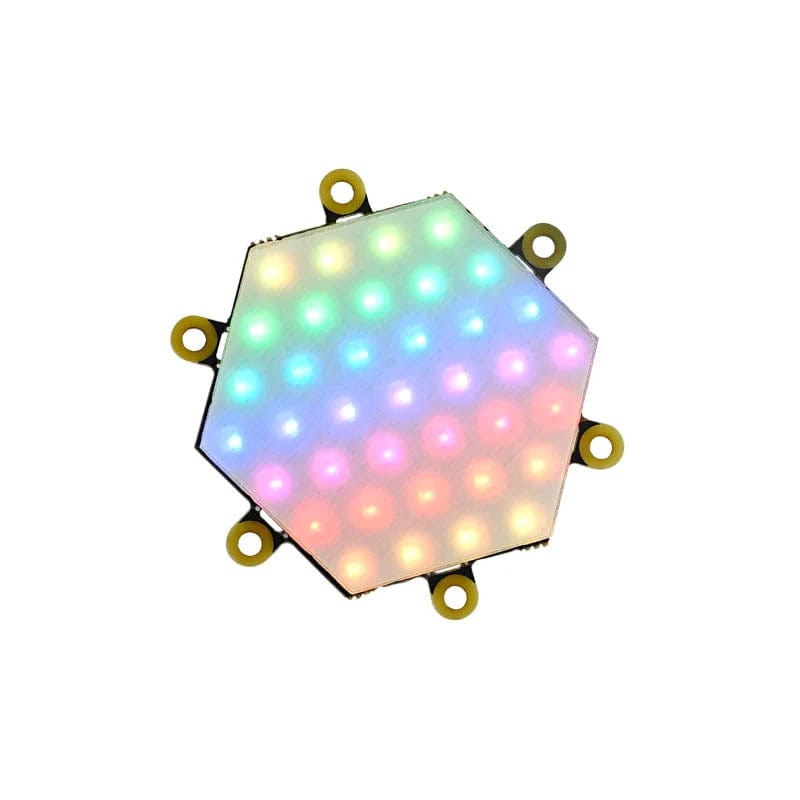

It features an external structure with fixing ears for easy installation. With its opal light sheet, the diffusion creates a gentle glow and provides innovative solutions to transform your living spaces into unique pieces of functional art.

Features

  • WS2812C-2020-V1
  • Number of LEDs: 37
  • Support multiple boards connection
  • 6x fixing ears (removable)
  • Comes with an opal light sheet
  • Single pixel support 256 levels of brightness display, can be combined for 16777216 kinds of full-colour display

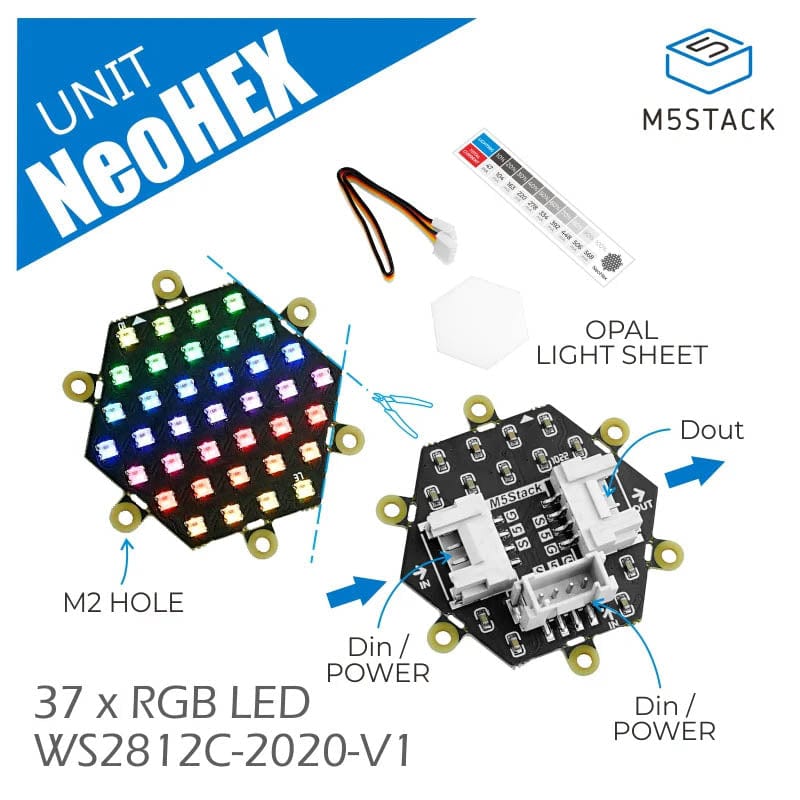

Package Contents

  • 1x NeoHEX Unit
  • 1x Opal light sheet
  • 1x Power Consumption Reference Card
  • 1x HY2.0 4-pin cable (20cm)

Specifications

LED Model WS2812C-2020-V1
Number of light beads 37
Voltage supply 3.7 ~ 5.3V
Logic input level -0.3V ~ VDD+0.7
Output/output interface HY2.0-4P interface
2x input (signal, power)
1x output (extension)
Refresh Rate 30 frames (1024 cascades)
Power consumption (37 lights fully lit, brightness 100%)
Red Light:DC5V@207mA
Green Light:DC5V@109mA
Blue Light:DC5V@208mA
White light:DC5V@568mA
Adjustable brightness Level 256
Support Colors 16777216 kinds of colors
Fixing hole diameter 2mm
Net Weight 3.7g
Gross Weight 9g
Product Size 40*36*7mm
Package Size 93*138mm

Resources

Pinout

M5Core (PORT A) GPIO22 GPIO21 5V GND
Unit NeoHEX / Data Pin 5V GND
