M5Stack LoRa Module (868MHz) v1.1

M5StackSKU: M029-V11
Price:
Sale price £16.50
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

M5StackM5Stack CoreS3 ESP32S3 loT Development Kit
Sale price £57.90 incl. VAT excl. VAT
M5StackM5Stack COM.LoRaWAN Module 868MHz V2.0 (ASR6501)
Sale price £26.10 incl. VAT excl. VAT
M5StackM5Stack LoRa Module (433MHz)
Sale price £10.50 incl. VAT excl. VAT

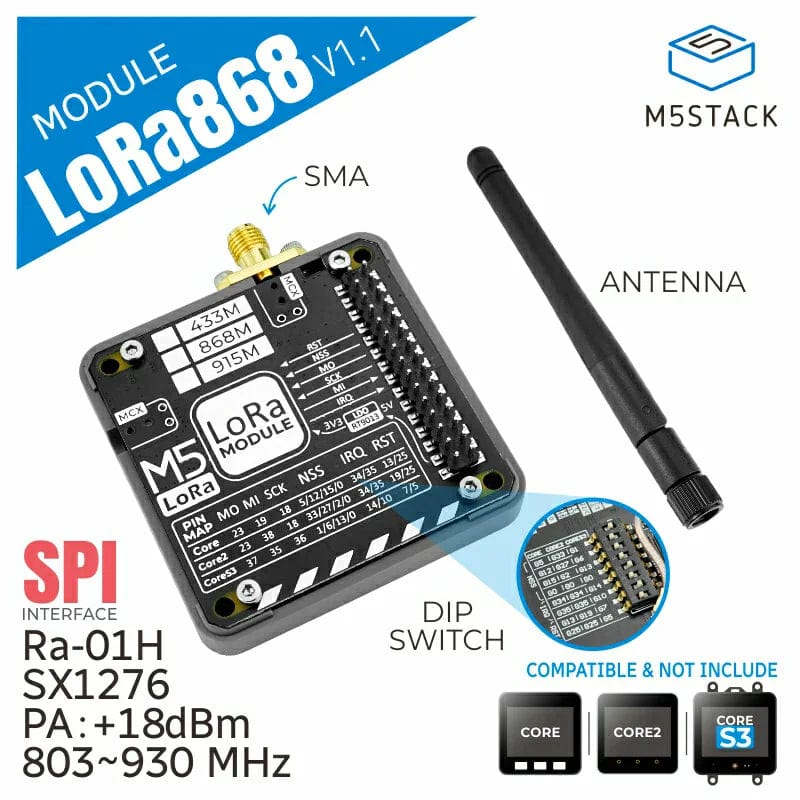

The LoRa868 module is part of the M5Stack stacking module series and is made for LoRa communication at a frequency of 868MHz. It comes with a standard SMA antenna and includes two additional patch MCX antenna socket interfaces, allowing you to switch between different antenna types as needed. The module also features a DIP switch, providing flexible switching between different communication pins for the simultaneous use of multiple stacks, offering better customisation and flexibility. It is ideal for remote monitoring, home and industrial automation, and Internet of Things (IoT) devices.

Features

  • Serial communication protocol: SPI

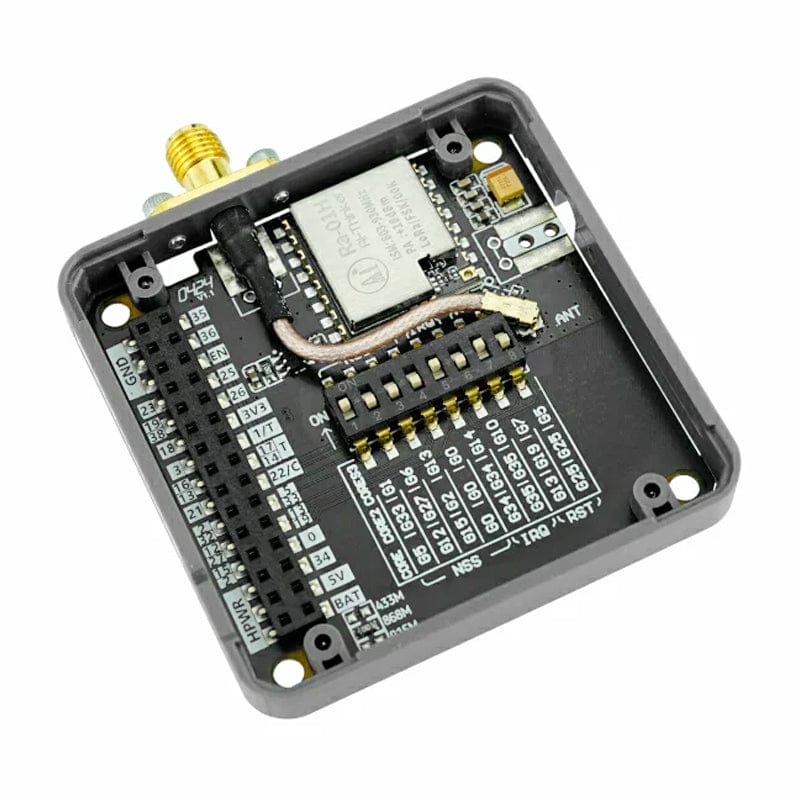

    • Ra-01H Module
  • Dip switch Switches I/O
  • Multiple stacks
  • Operating frequency: 803~930 MHz
  • Supports FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation modes
  • Reception sensitivity: as low as -148 dBm
  • Programmable bit rate up to 300Kbps
  • External antenna interface
  • Built-in dip switch toggle pin
  • Development platform: Arduino, Micropython, UIFlow (Blockly)

Specifications

Resources Parameters
Spectral Range 803~930MHz
Communication Interface SPI
Programmable Bit Rate Up to 300kbps
Operating Temperature 0-40°C
Product Size 54 x 54 x 13.1mm
Package Size 92 x 63 x 25mm
Product Weight 16.1g
Package Weight 44.6g

Resources

Package Contents

  • 1x LoRa868_V1.1 Module
  • 1x SMA External Antenna
