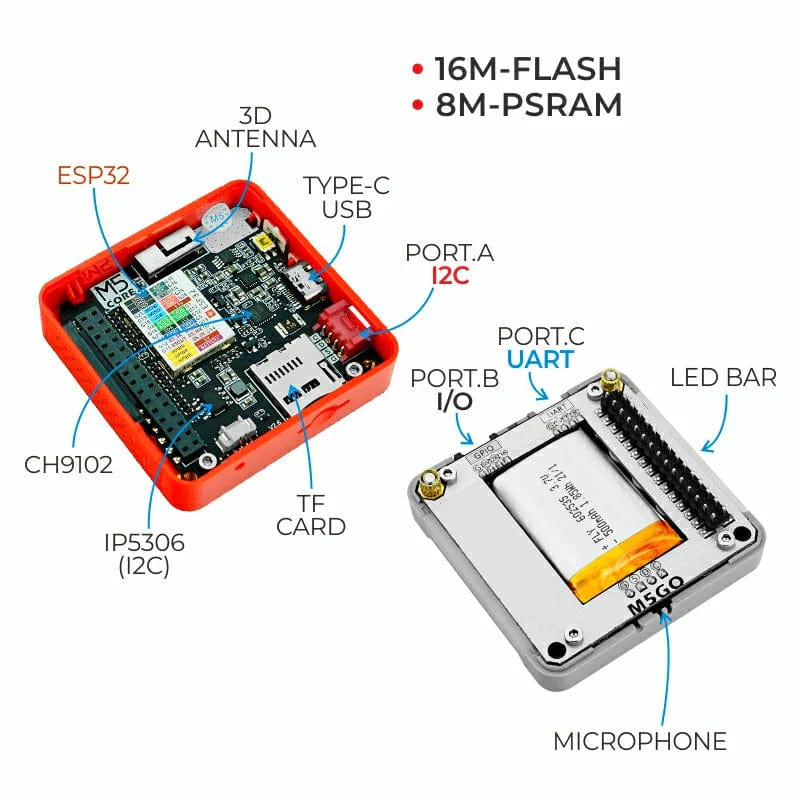

The FIRE V2.7 uses the Espressif ESP32 main control chip, which includes two low-power Xtensa® 32-bit LX6 microprocessors operating at a high frequency of 240MHz. It comes with 8M PSRAM and 16M Flash memory and integrates various peripherals such as a 2.0" full-colour HD IPS display panel, a 6-axis IMU, LED, microphone, speaker, and SD card slot. Its powerful processing capabilities and stability make it ideal for product prototyping, industrial control, and intelligent building projects.
It has a full-cover case design that provides reliable circuit protection in tough working areas. It also includes a variety of connectivity resources like ADC, DAC, I2C, UART, and SPI connectors, providing great options for expansions. It is powered by a built-in lithium battery and also includes a power management chip, supporting dual power supply options via USB-C connection and POGO pin connection.

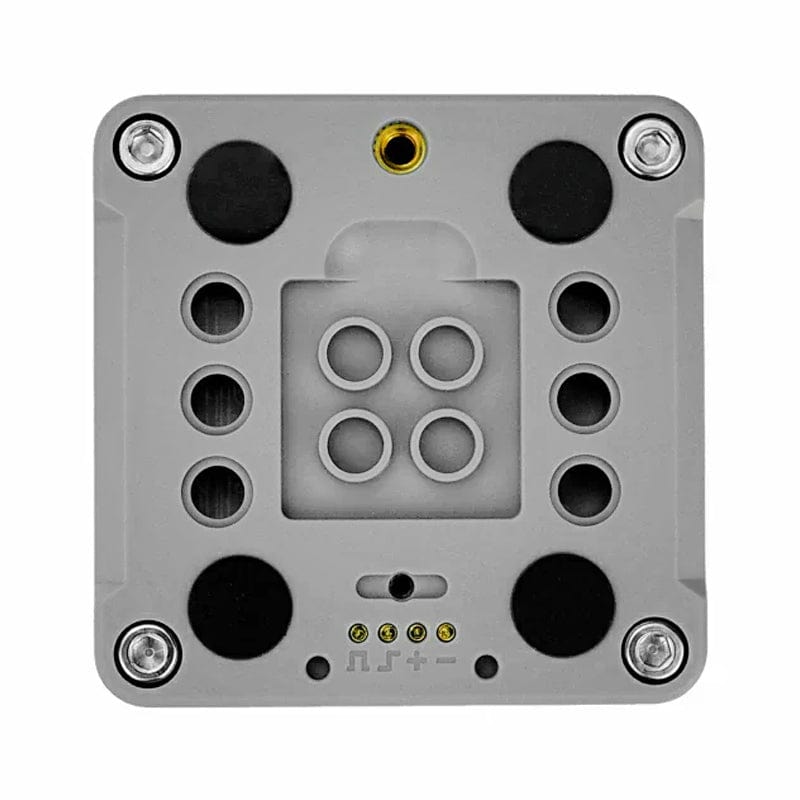

The base includes a magnetic device and LEGO connection, allowing for flexible deployment and connection in multiple scenarios.

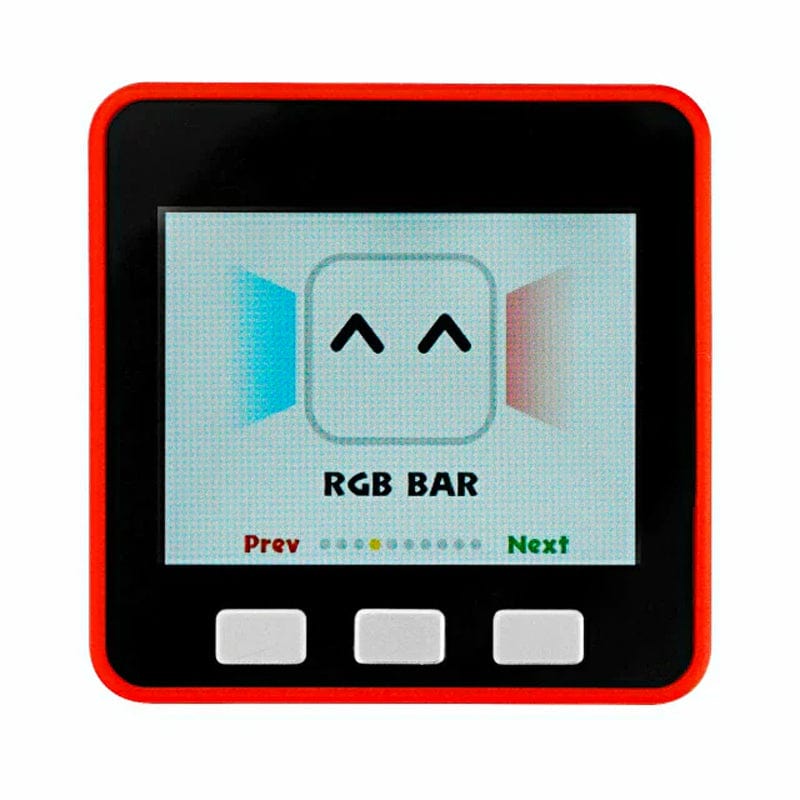

Compared to the V2.6 version, the M5Stack FIRE V2.7 has an improved screen with a glass surface for a clearer display. The glass screen is also scratch-resistant, offering better protection and extending its lifespan.
Note: GPIO 16 / 17 of FIRE are connected to PSRAM by default, so when you connect or stack other modules, you need to pay attention to avoid conflicts with these two pins to prevent the device from not working properly.
Switching Operations
Power on: Click the red button on the left
Power off: Quickly double-click the red button on the left
USB power: By default, It can not be shut down when USB power is on.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
Based on ESP32 development
8M PSRAM + 16M FLASH memory combination
HD IPS display panel with various hardware peripherals
Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.
M5GO BOTTOM base compatible with 8mm size LEGO blocks, the structure is full of fun to build.
2.0"@320 x 240 ILI9342C IPS panel, maximum brightness 853nit
Speaker
1W-0928
Microphone
Analog BSE3729 Microphone
IMU
6-axis MPU6886
USB Chip
CH9102F
LED
SK6812 RGB LED 10x
Antenna
2.4G 3D antenna
Battery
500 mAh @ 3.7V
Operating Temperature
0°C to 40°C
Net Weight
62.3g
Gross Weight
162g
Product Dimensions
54mm x 54mm x 30.5mm
Package Size
105mm x 65mm x 40mm
Cover Material
Plastic (PC)
Driver Installation
Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CH9102 driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. (If you are not sure of the USB chip used by your device, you can install both drivers at the same time.
During the installation process of CH9102_VCP_SER_MacOS v1.7, an error may occur, but the installation is completed, just ignore it.) When using it, if the program cannot be downloaded normally (the prompt is over time or failed to write to target RAM), you can try to reinstall the device driver.
