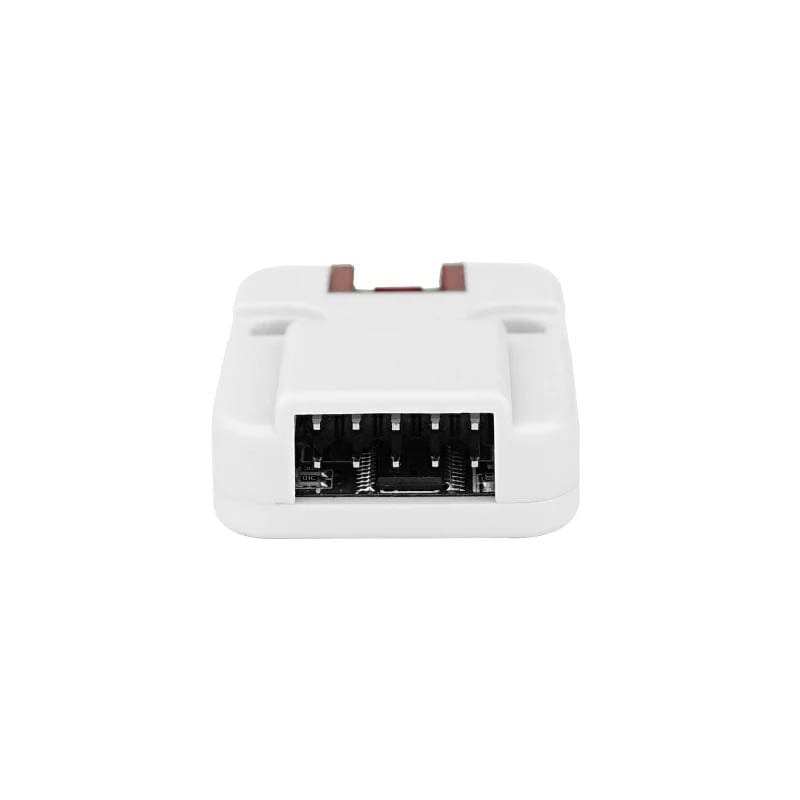

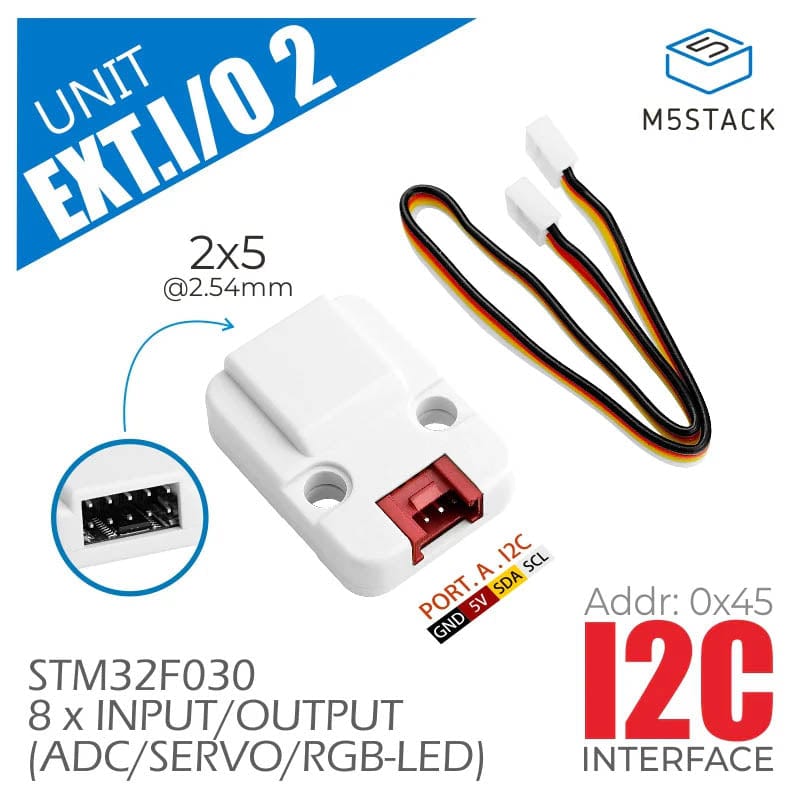

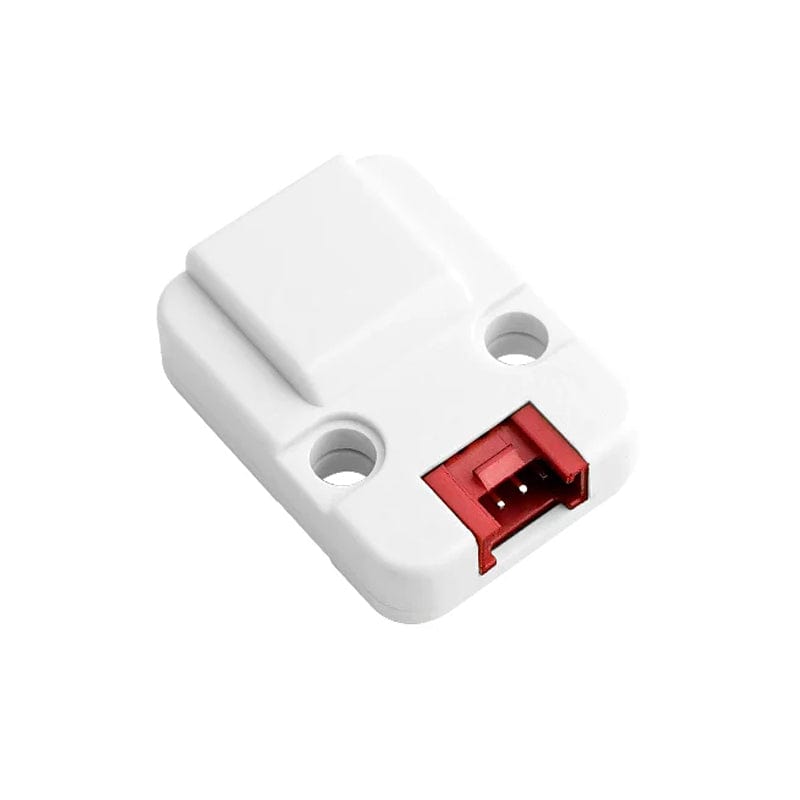

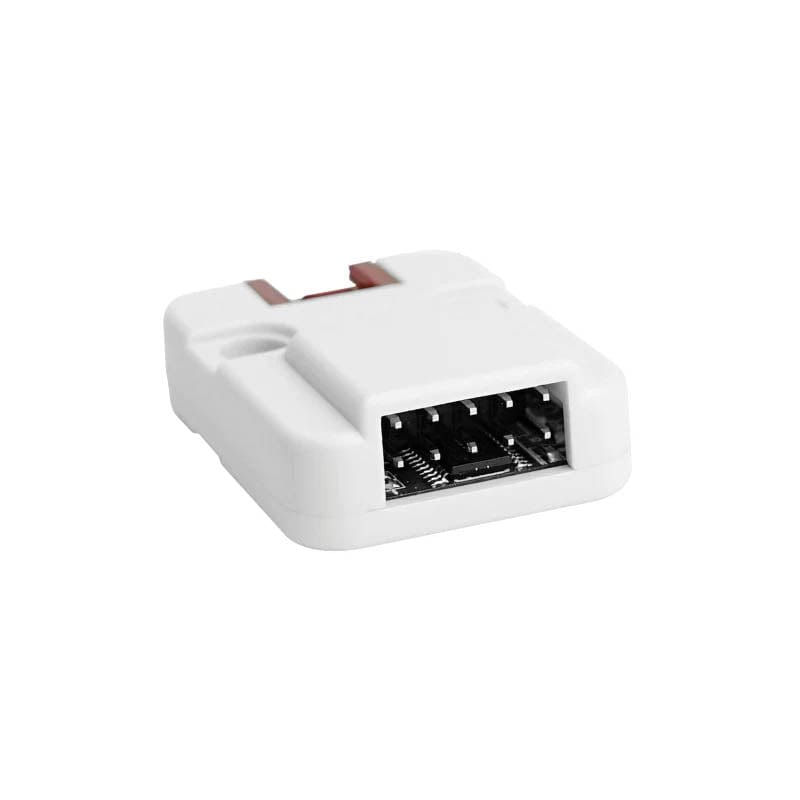

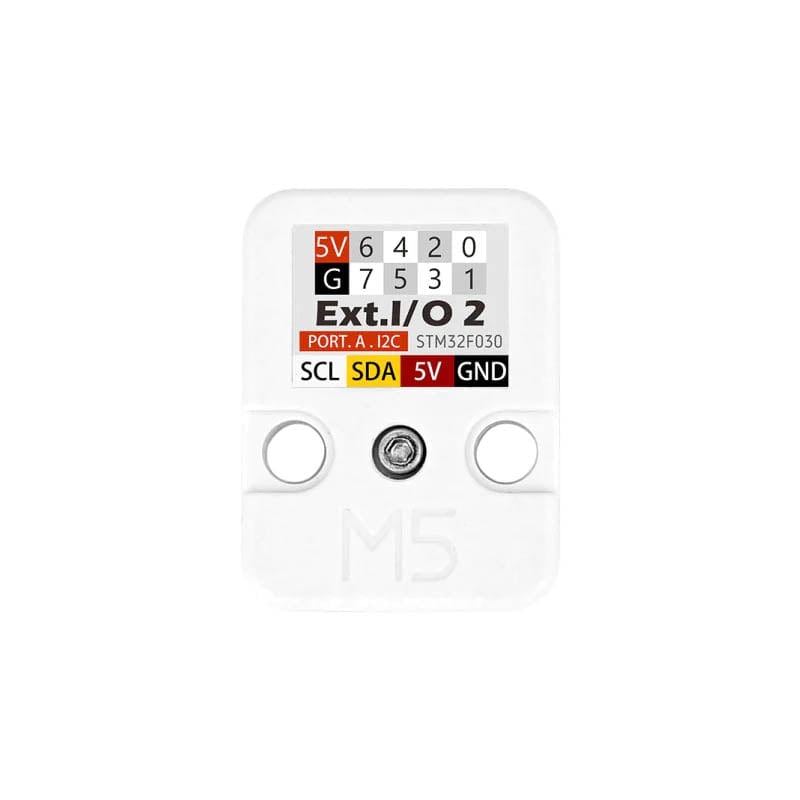

The M5Stack Extend I/O 2 Unit (EXT.IO2) is an IO extension unit, based on the STM32F030 main controller, using the I2C communication interface and providing 8 IO expansions.

Each IO supports independent configuration of digital I/O, ADC, SERVO control and RGB LED control modes. Supports configuration of device I2C address, which means that users can mount multiple EXT.IO2 UNITs on the same I2C BUS to extend more IO resources.

Suitable for multiple digital/analog signal acquisition, with lighting/servo control applications.

Features

8-channel input and output expansion:
- Digital I/O
- ADC input
- SERVO control (PWM)
- RGB LED control
I2C communication interface:
- Supports configuration of I2C address

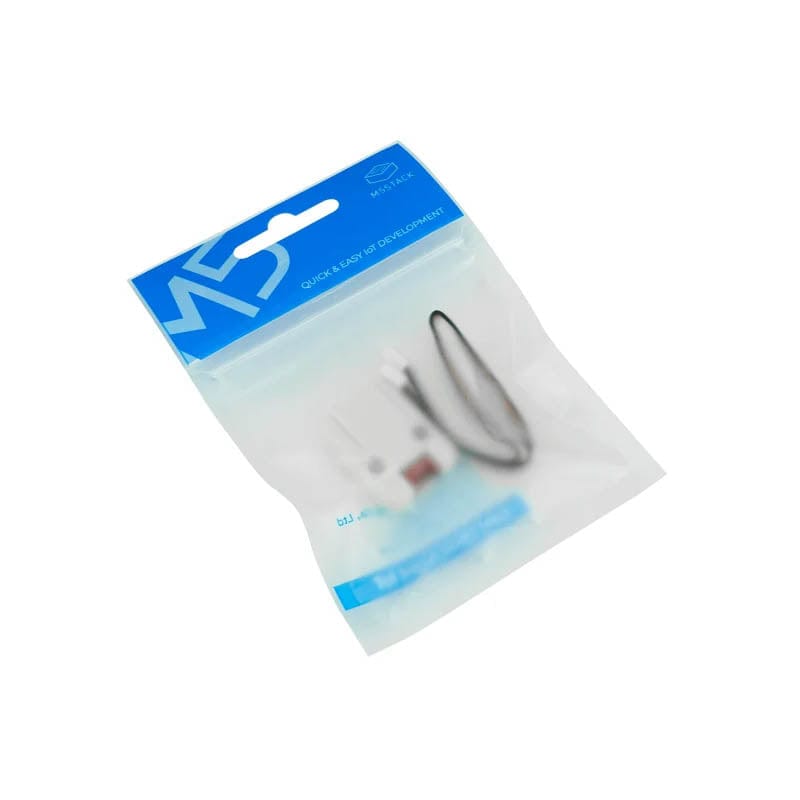

Package Contents

1x EXT.IO2 UNIT
1x HY2.0 4-pin cable

Specifications

MCU	STM32F030
I2C Address	0x45(default)
Number of IO extensions	8
IO interface PIN spacing	2.54mm
IOSupport Mode	Digital input/output ADC SERVO control RGB LED control
IO Input/Output Level Support	3.3V
Net Weight	5g
Gross Weight	13g

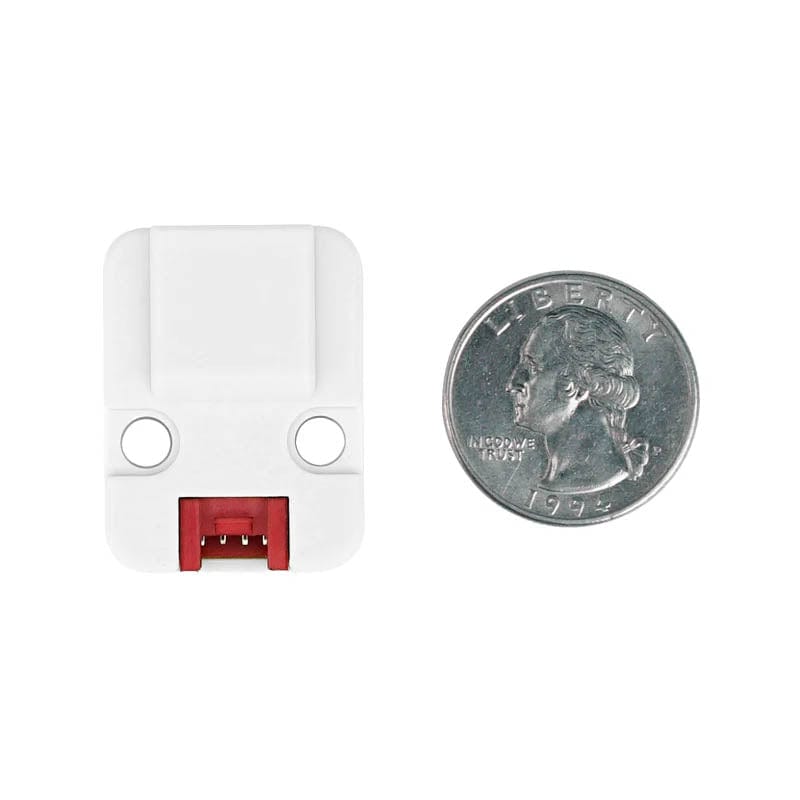

Product Size	322411mm
Package Size	93*138mm
