The Din Base is a 5x5cm series base specially designed for Din Rail rail fixing.
It is suitable for the M5Core, and the built-in 500mAh lithium battery can be externally input with a DC power supply (support 9~24V). There is an onboard power switch to completely shut down the external power and battery.

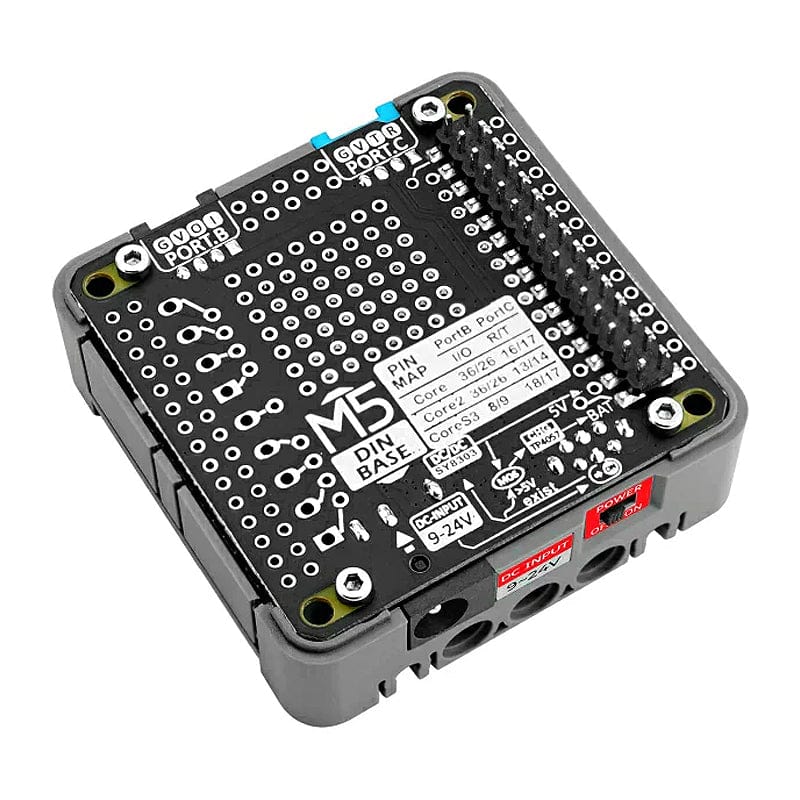

Reserved Port B and Port C interfaces. Lego mounting holes on the lower side for easy fixing, and the bottom supports standard 35mm Dinrails. In addition, four plug-in ears are provided to support a variety of fixing methods. The DinBase has a number of proto pads reserved on the internal PCB for easy DIY.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

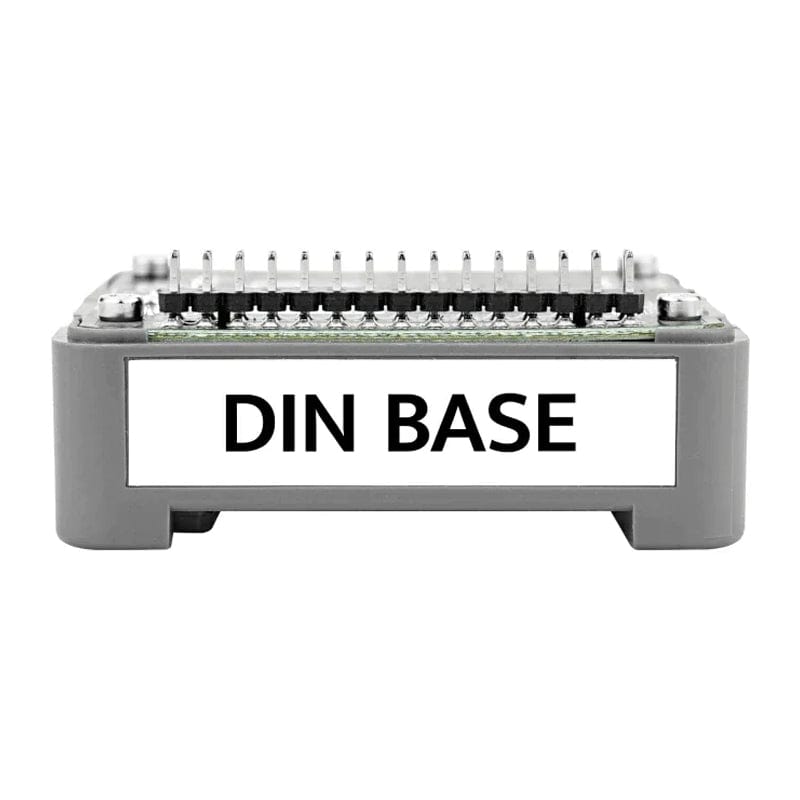

- 1X12P 2.54 interface

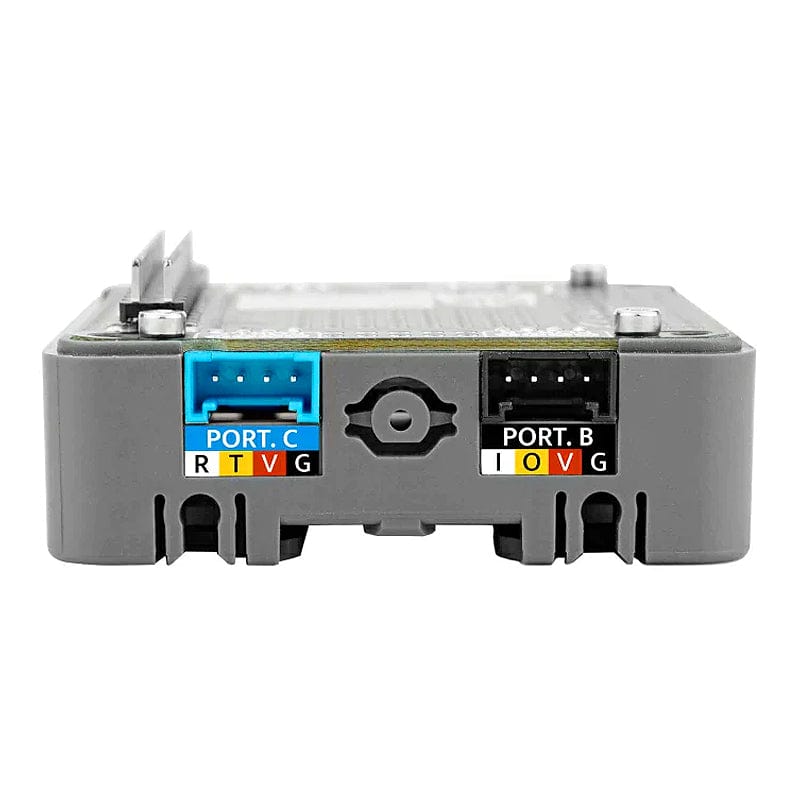

- Port B, Port C interface

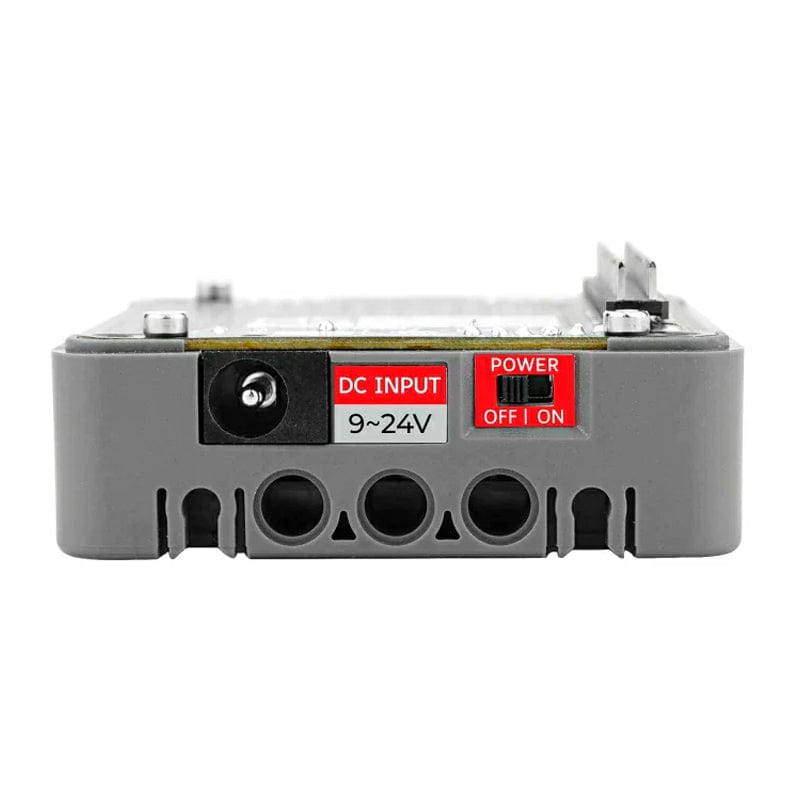

- Power supply mode:
- DC power supply (9-24V),
- 500mAh lithium battery
- Power switch
- Multiple mounting options:
- Hanging ears

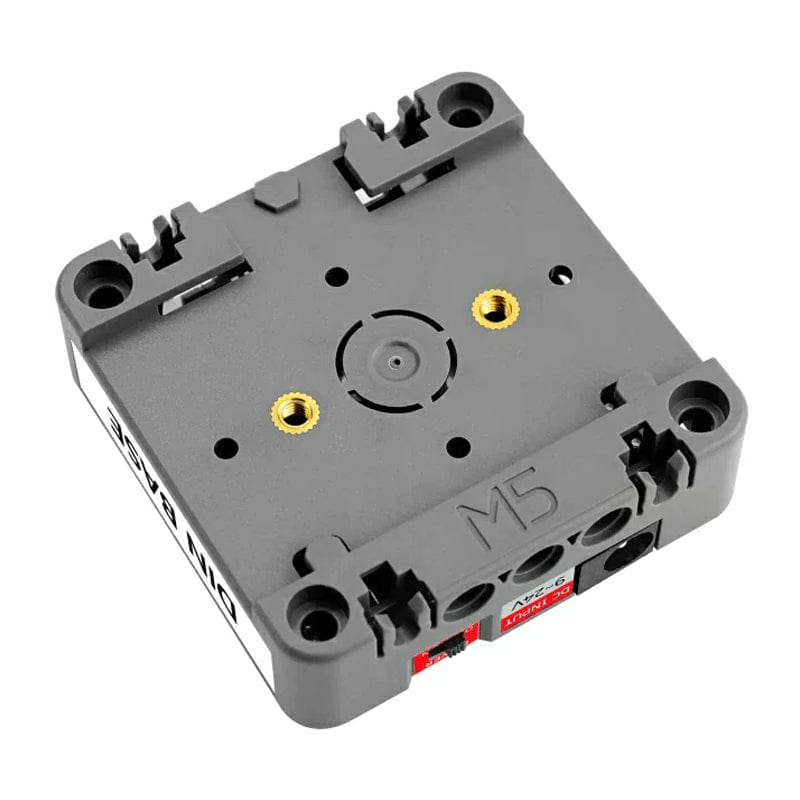

- Two copper nuts embedded in the bottom
- Three LEGO fixing holes on the sides
|DCDC buck chip||SY8303AIC|
|Lithium battery charging chip||TP4057|
|DC External power supply||DC9-24V|

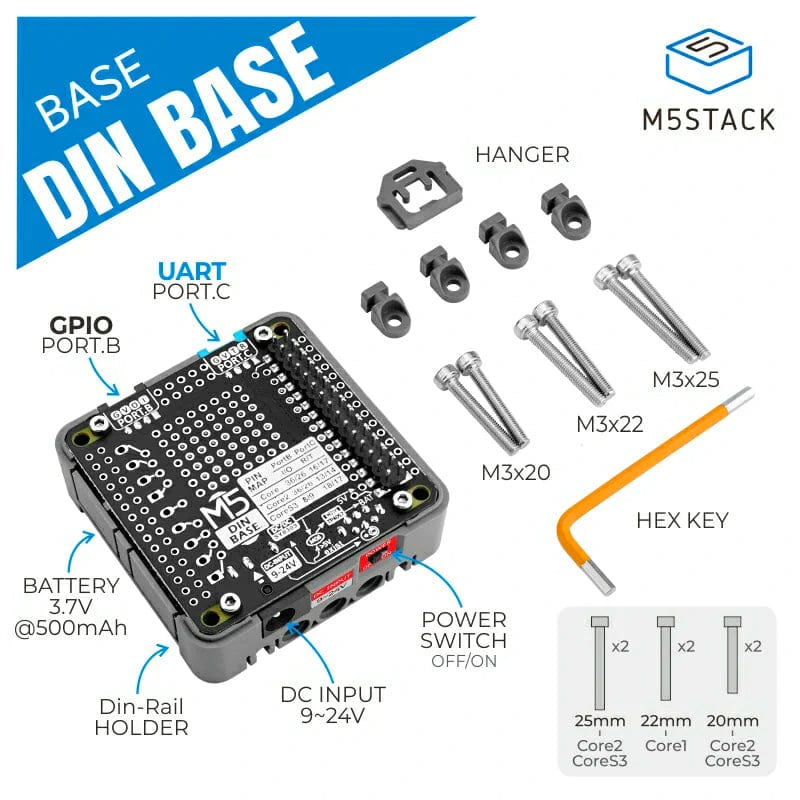

- 1x DinBase
- 4x Hanger
- 1x Snap
- 1x Hex key
- 2x Nut (2x25mm for Core2/CoreS3)
- 2x Nut (2x22mm for Core1)
- 2x Nut (2x20mm for Core2/CoreS3)
