The M5Stack Unit RGB LED Strip is a programmable SK6812 LED strip with individually addressable LEDs, flexible expansion support, and IP65 waterproof protection, suitable for custom lighting, decorative, and interactive projects.

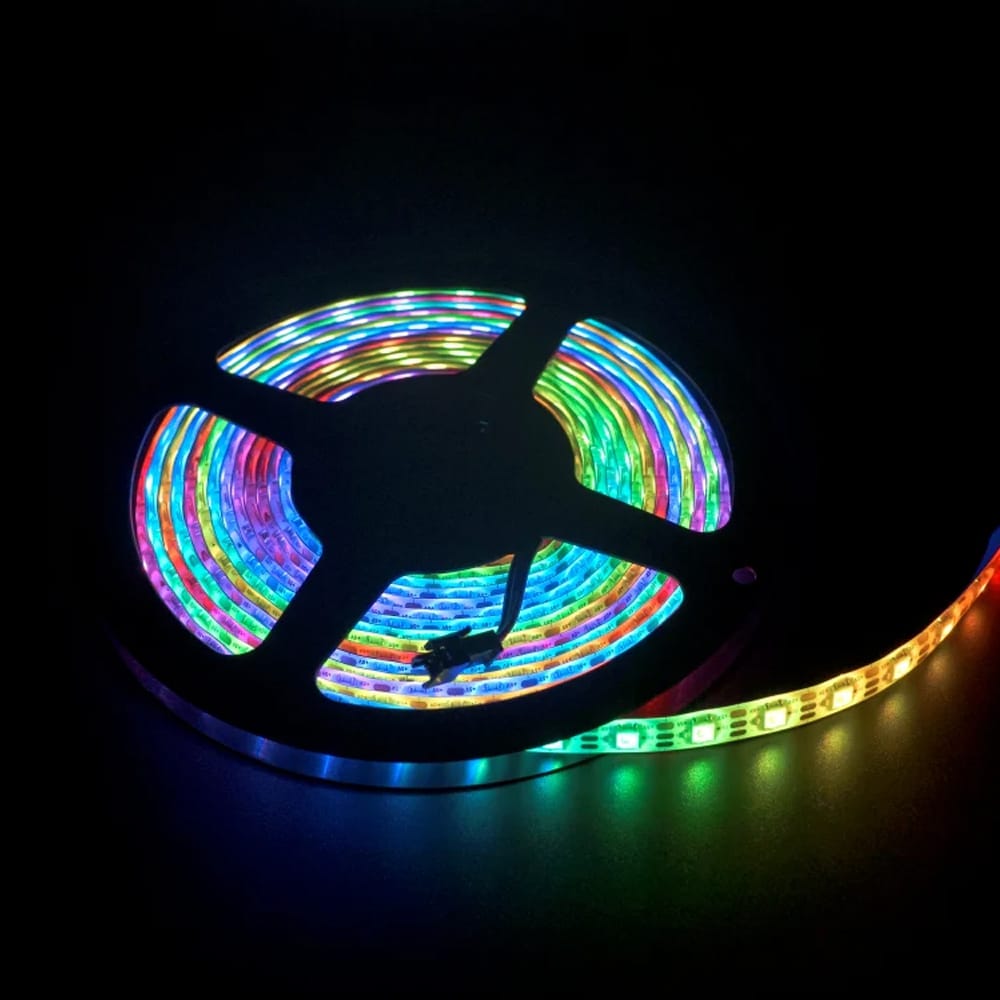

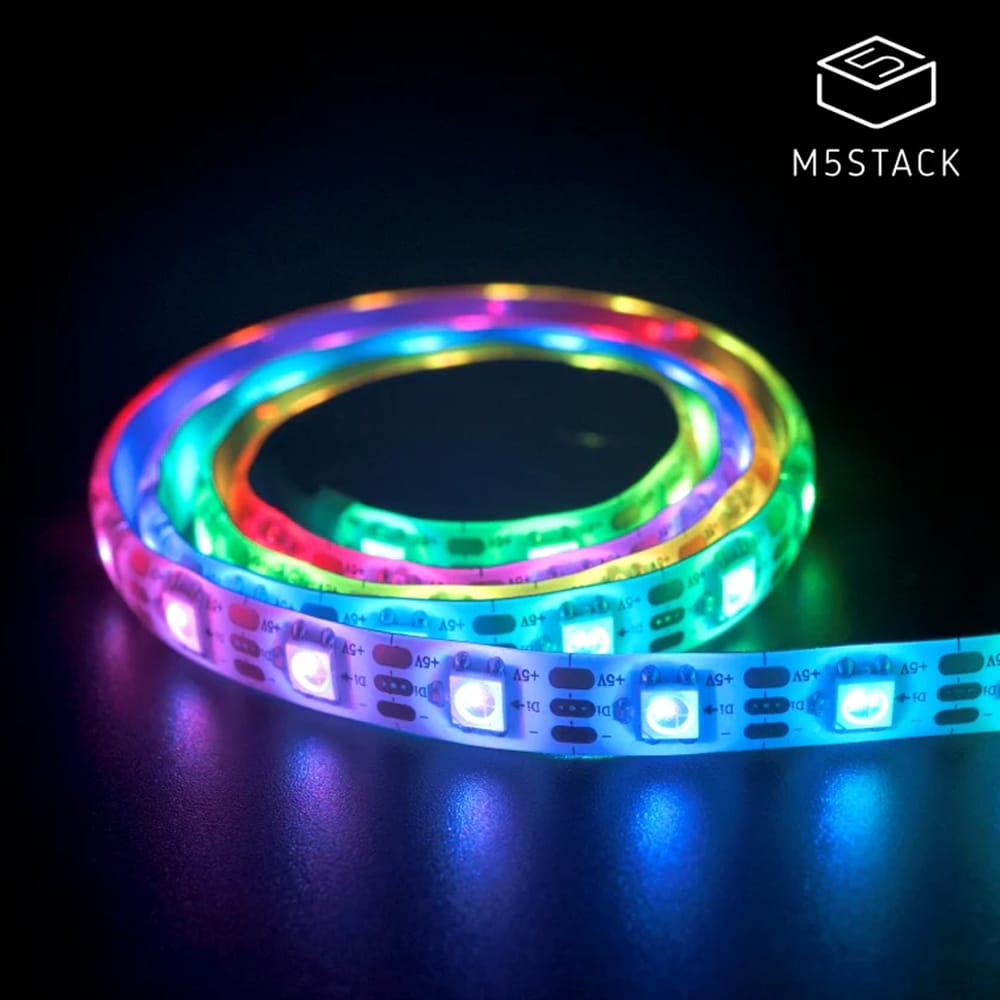

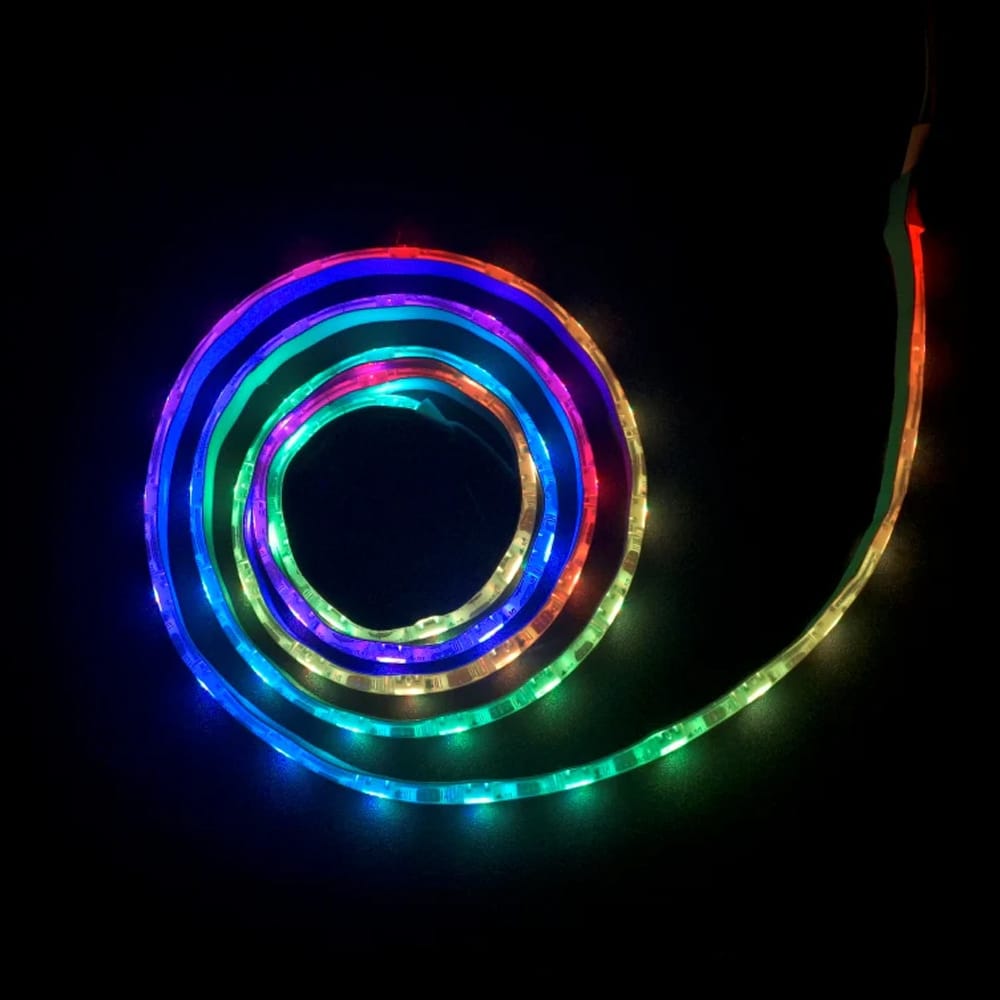

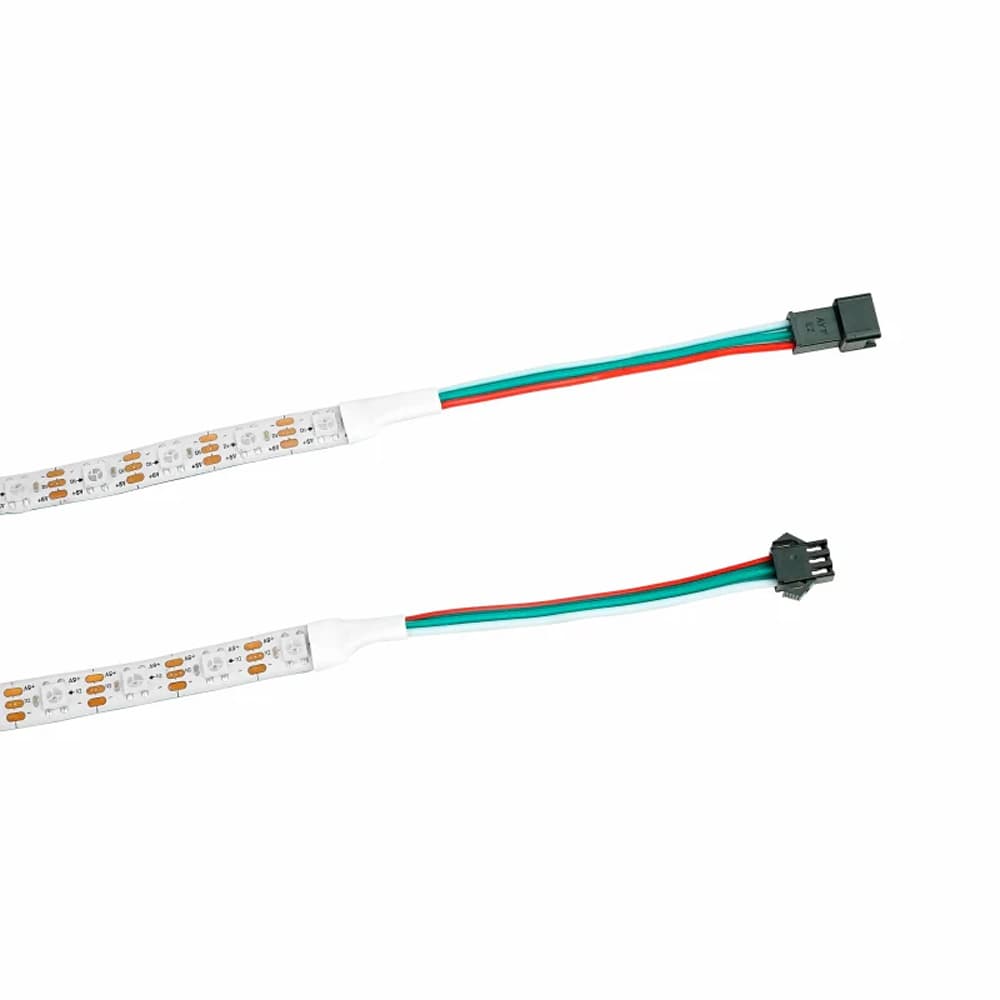

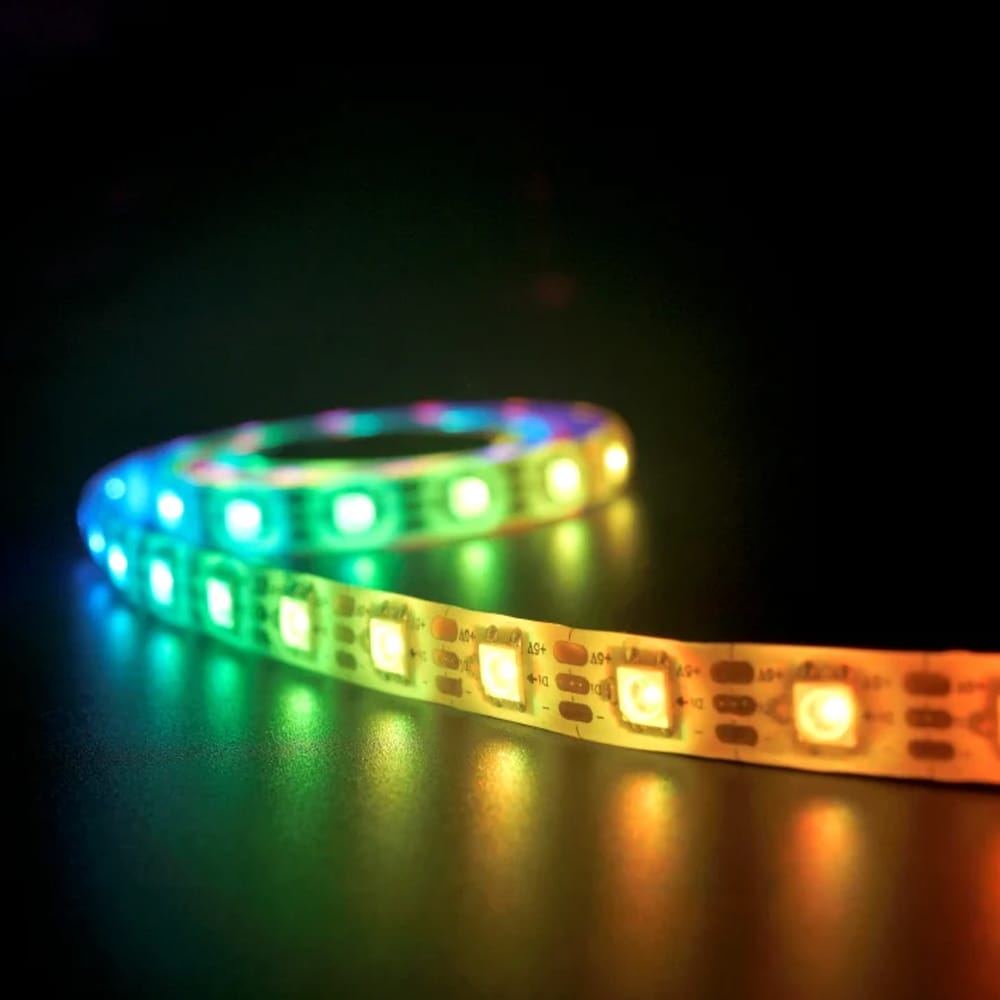

The M5StackUnit RGB LED Strip is a programmable light strip using SK6812 LEDs.
The strip supports digital addressing, meaning each individual LED on the strip can be controlled independently for its colour and brightness. Single bus programming allows strip expansion.
The outer layer of the strip adopts epoxy waterproof processing, and the transparent protective silicone cover supports IP65-level waterproof protection, adapting to various usage environments.
The product uses flexible FPC (soft strip board) / PCB (hard strip board) as a substrate for welding LEDs, with 5050 spec RGB LEDs, and the back is equipped with strong 3M double-sided adhesive for easy attachment. Operating voltage is 5V DC, and various lighting effects can be achieved through controller programming.

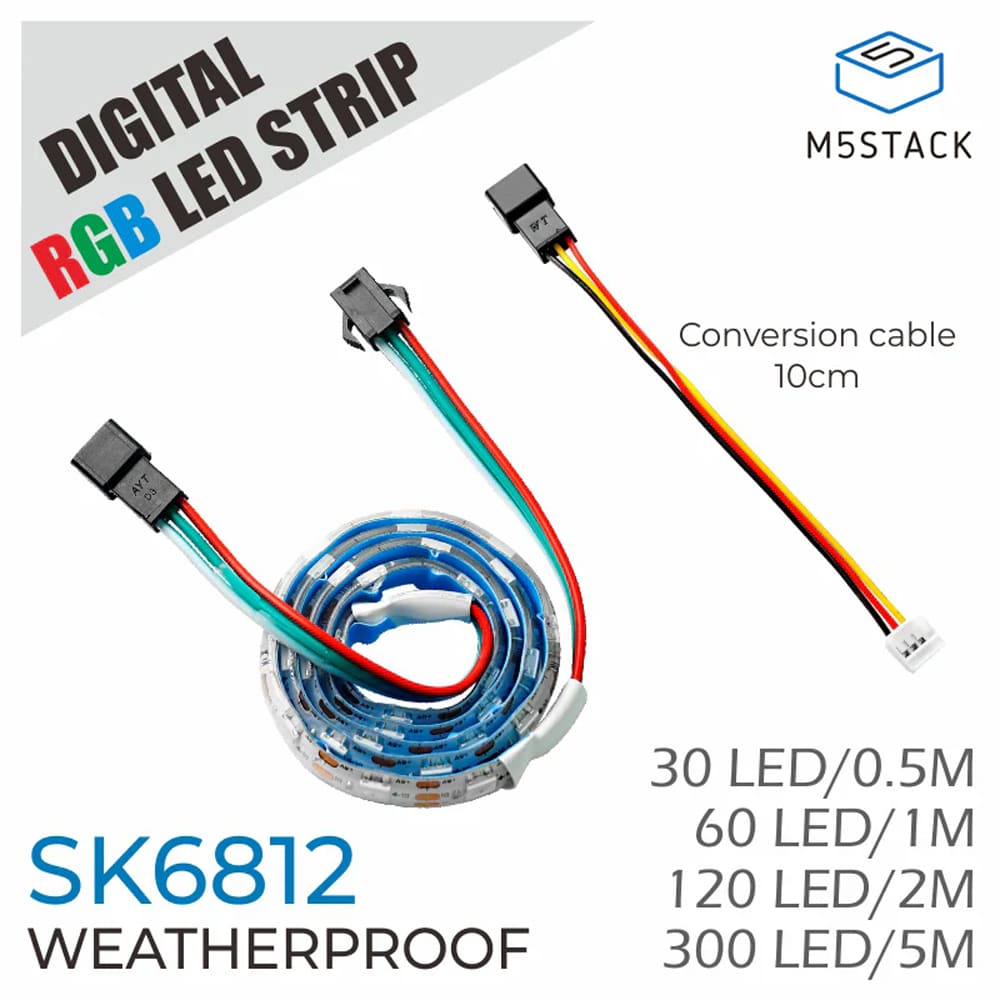

Please note: These are available in various lengths and LED densities. Please select your preferred configuration.
Features
Product category: RGB LED Strip
LED model: xdx-5050RGB-60-60
IC model: SK6812
Operating voltage: 5V
Power: ±18W / meter
Board width: 10mm
Display grayscale level: 256
Number of LEDs: 60 LEDs / meter
Number of ICs: 60 ICs / meter (ICs located on FPC board), 60 pixel points / meter
Operating temperature: -40°C ~ 80°C
Service life: 30Kh
Board base color: White / Black
Light colour: Full-colour / any colour and effect achievable via controller
As the number of connected strips increases, the accompanying power consumption will also rise. Therefore, when using RGB LED strips with a large number of LEDs, it is recommended to provide additional power supply.
