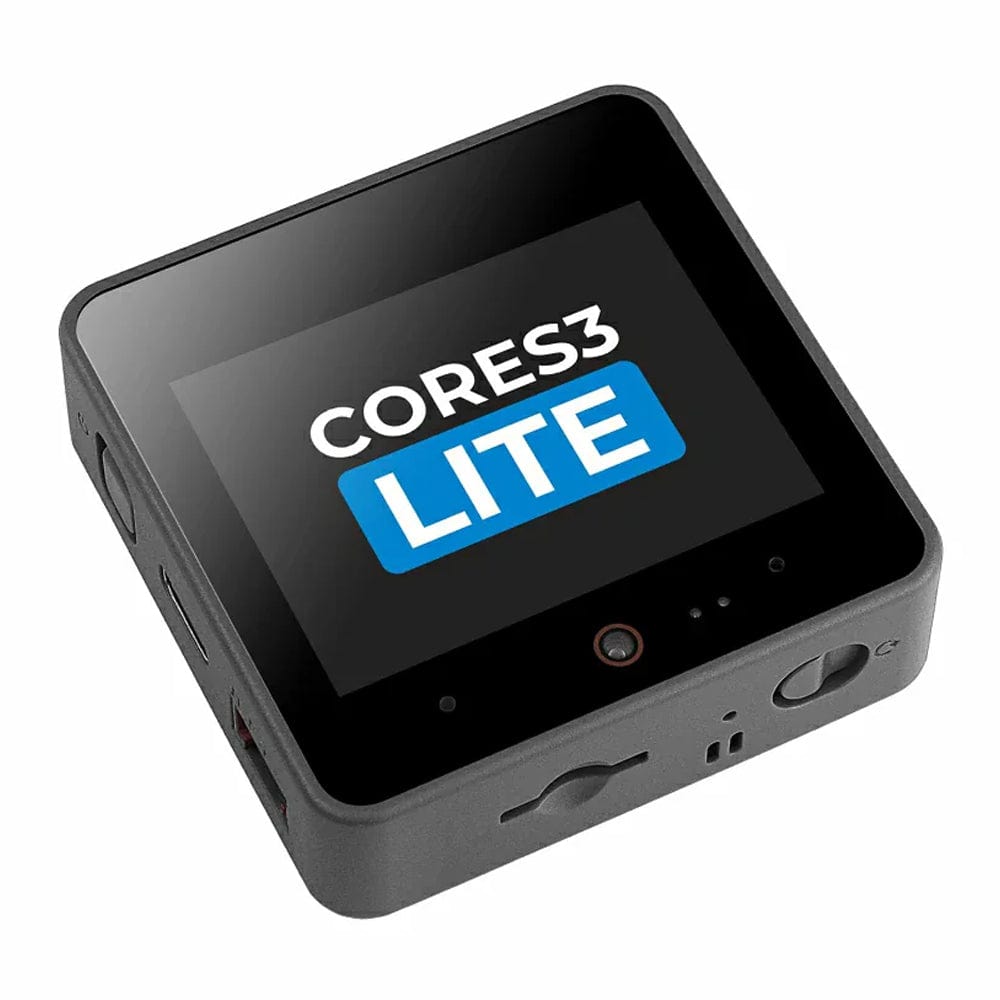

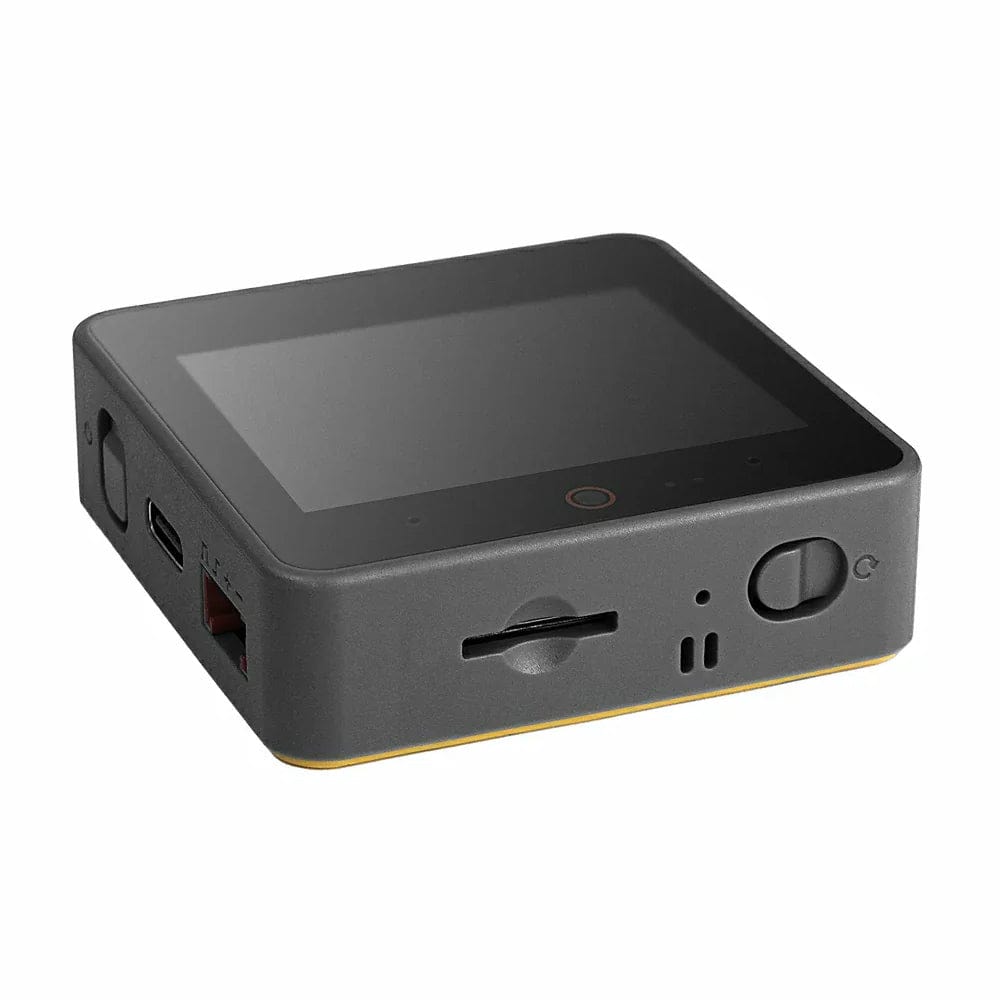

The CoreS3-Lite is an ESP32-S3 IoT controller with 16MB Flash, 8MB PSRAM, 2.0" capacitive IPS display, 0.3MP camera, proximity/light sensor, 9-axis IMU, audio with dual mics and speaker, microSD slot, 200mAh LiPo, and magnetic back cover.


The M5Stack CoreS3-Lite is a programmable IoT controller with a wide range of built-in features. At its core, it runs on the ESP32-S3 with a 240 MHz dual-core processor, 16 MB of Flash memory, and 8 MB of PSRAM.

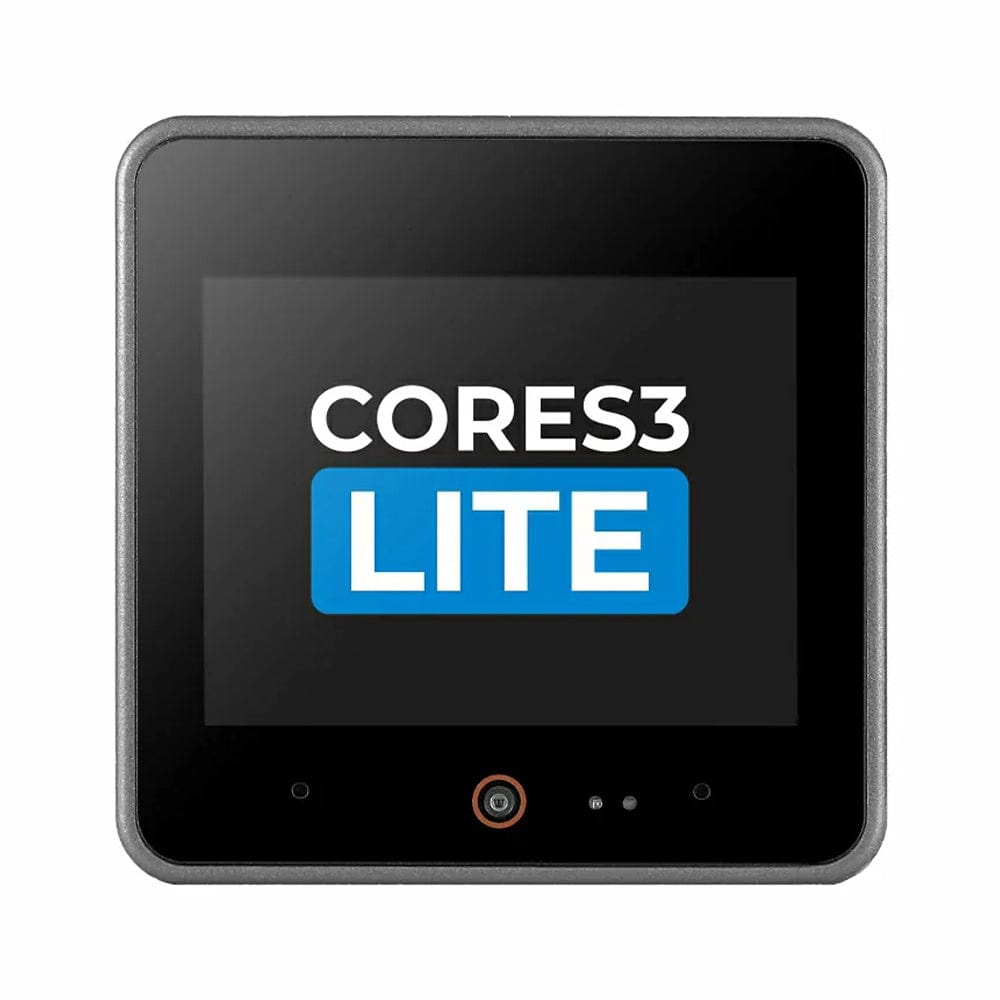

On the front, it has a 2.0" touchscreen display, a 0.3 MP camera, and a light/proximity sensor. These work together to support basic face detection and recognition features.

Inside, it includes motion sensors (a 6-axis IMU and a 3-axis magnetometer) for interaction, along with a power management chip and a real-time clock that allow power monitoring and timed wake-ups.

For audio, the device features a 16-bit amplifier with a 1W speaker, plus a two-way audio system with dual microphones for clearer sound input and output.

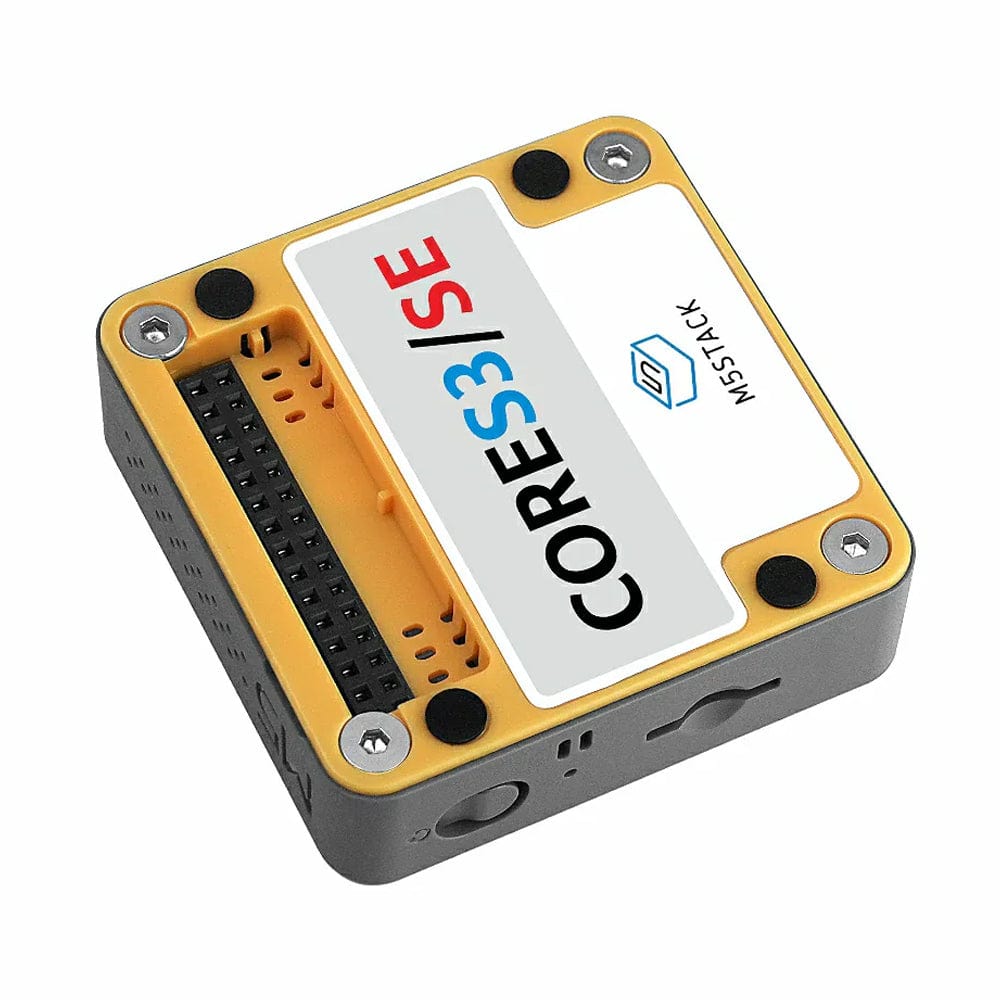

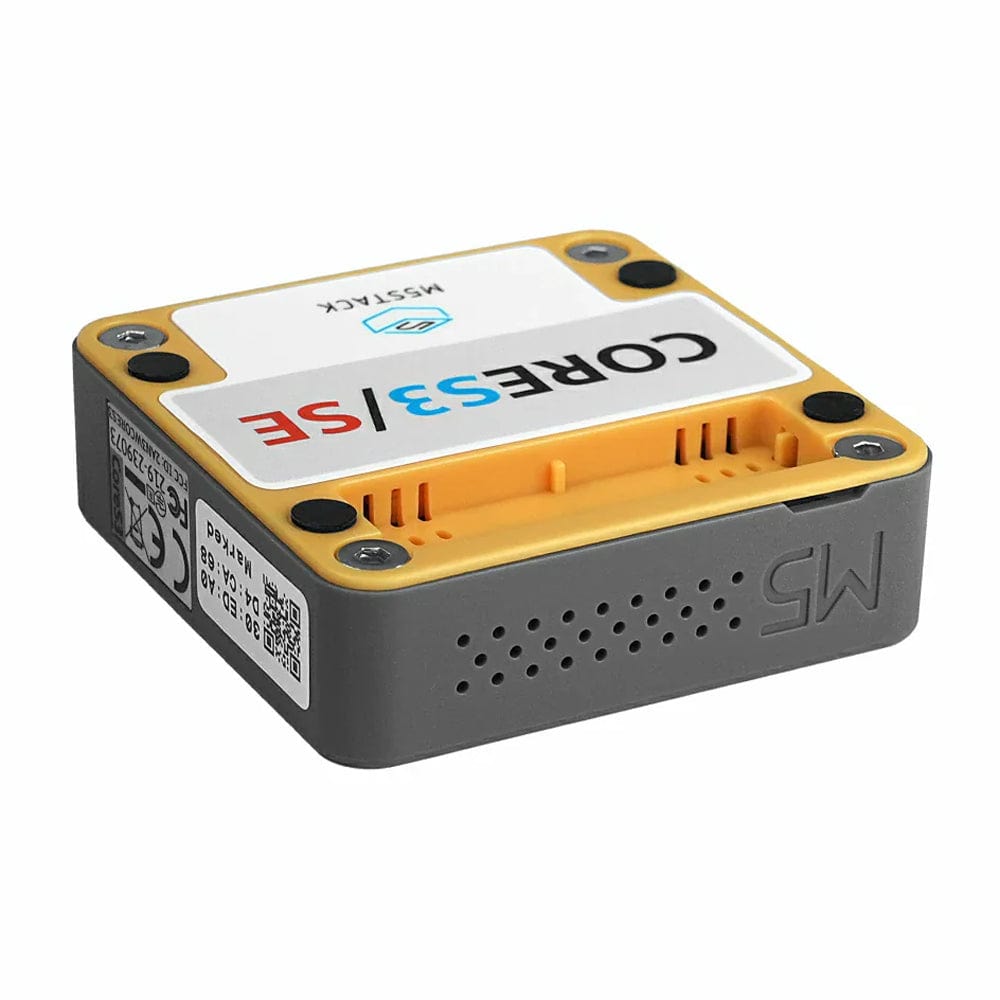

It also comes with a 200 mAh LiPo battery and a magnetic back cover, making it simple to mount or attach. Example uses include smart-home control, desktop robot companions, and more.

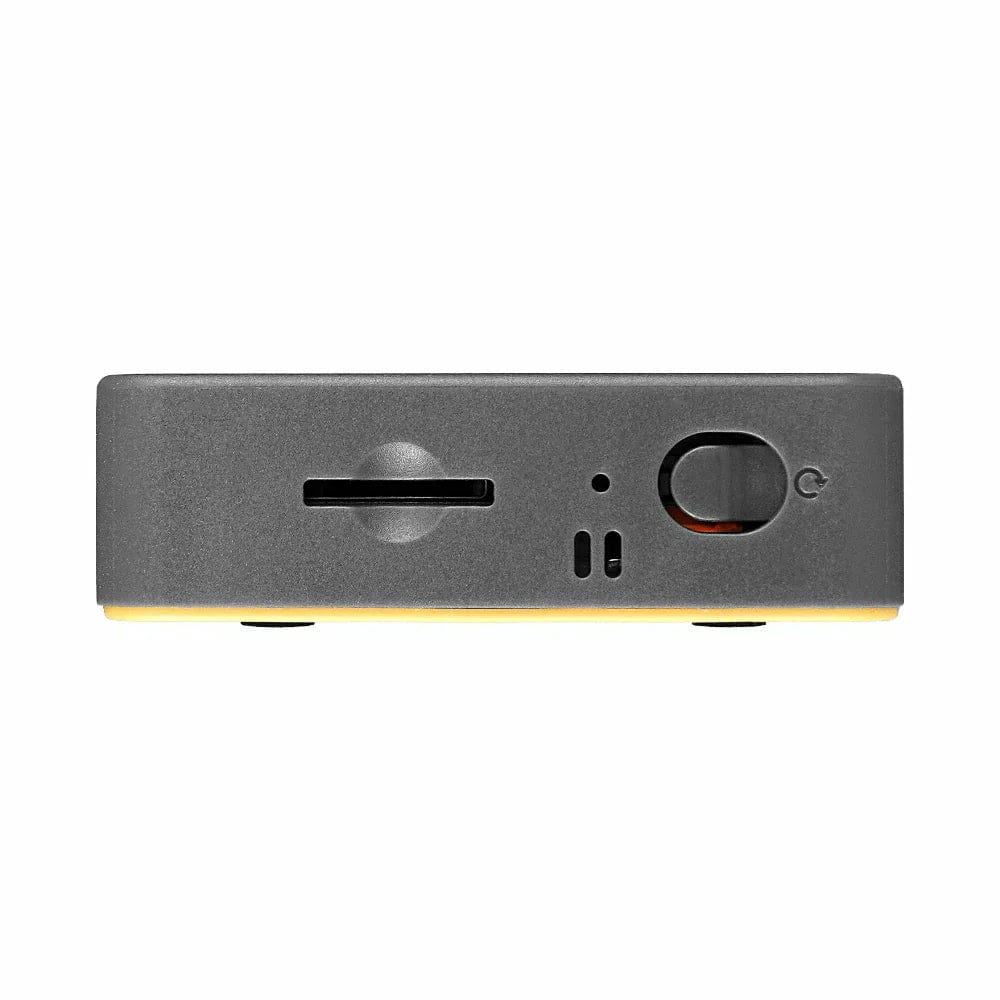

A slot for a microSD card is onboard for development and data storage.


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

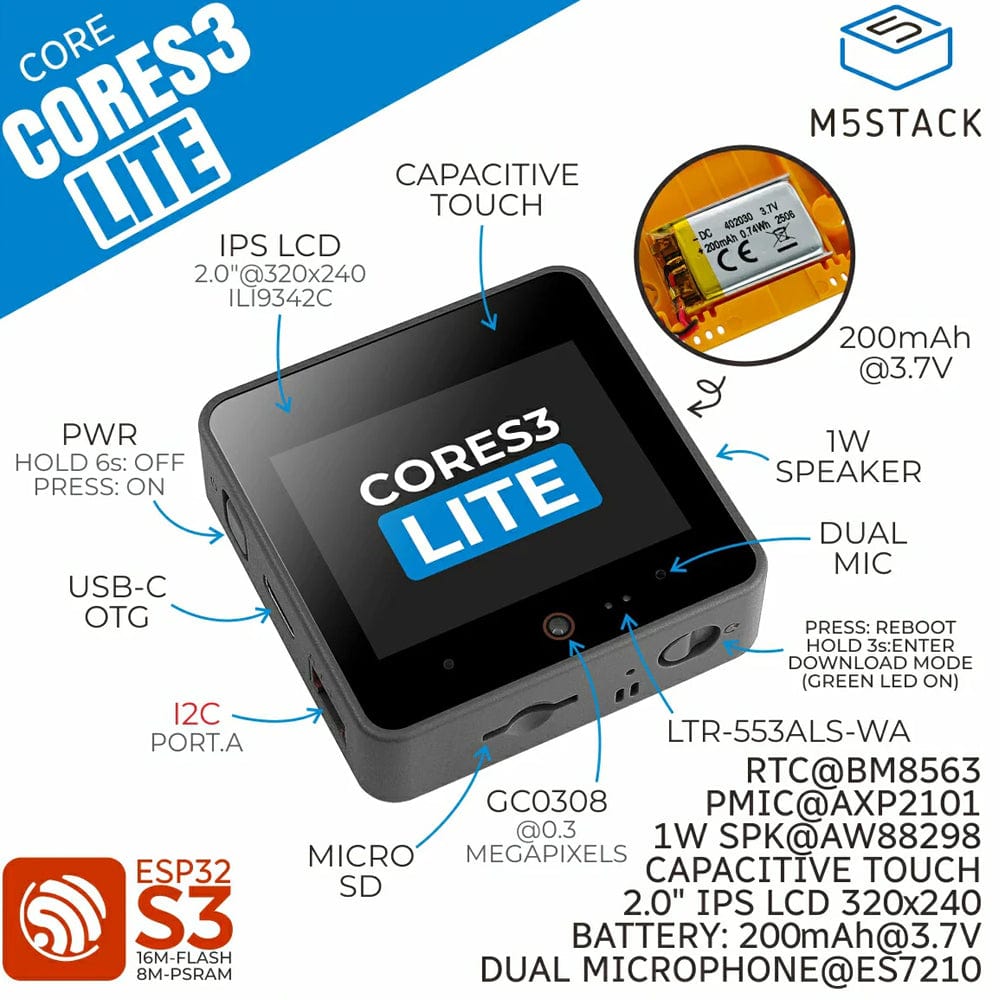

Features

  • Based on the ESP32-S3
    • 240 MHz Xtensa® 32-bit LX7 dual-core
    • 2.4 GHz Wi-Fi
    • 16 MB Flash + 8 MB PSRAM
  • 2.0" capacitive touch IPS display
  • 0.3 MP camera (GC0308)
  • Integrated digital ALS & proximity sensor: LTR-553ALS-WA
  • Six-axis IMU (BMI270) + three-axis magnetometer (BMM150)
  • Power management with AXP2101
  • Low-power timed wake-up with BM8563 RTC
  • AW88298 16-bit I2S amplifier + 1 W speaker
  • ES7210 codec + dual-microphone array
  • microSD card slot
  • USB-OTG support
  • Magnetic backplate design

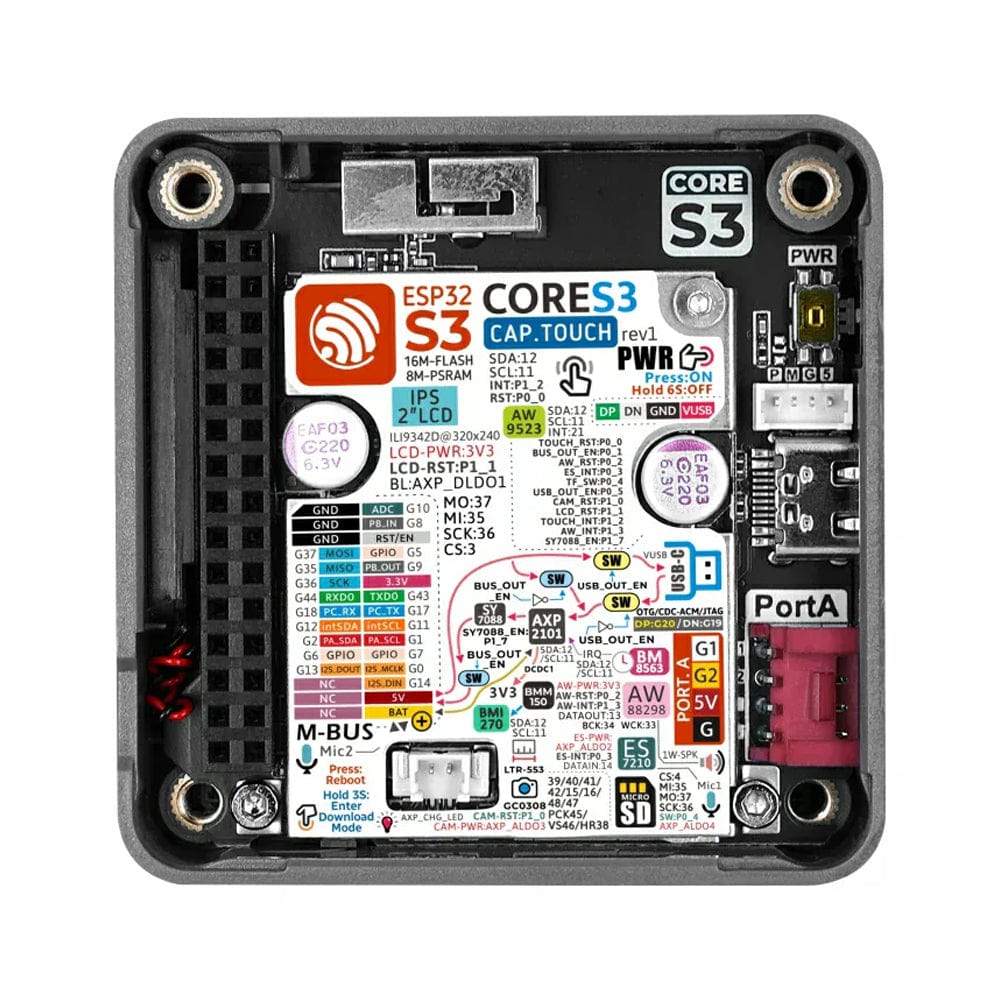

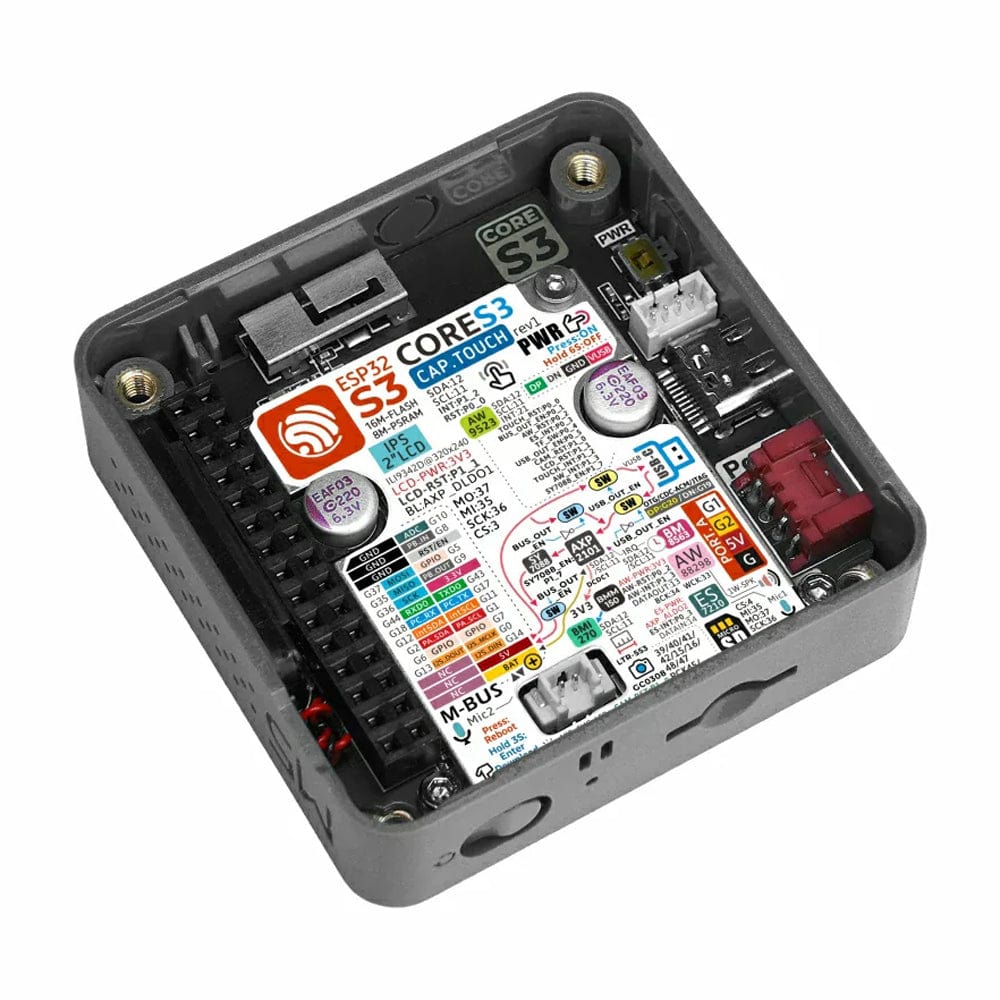

Specifications

Specification Parameter
SoC ESP32-S3 240 MHz Xtensa® 32-bit LX7 dual-core processor, 2.4 GHz Wi-Fi, USB-OTG
Flash 16 MB
PSRAM 8 MB
Display Driver 2.0" @ 320 × 240 ILI9342C
Touch Driver FT6336U
Camera GC0308 @ 0.3 MP
Proximity Sensor LTR-553ALS-WA
Power-Management IC AXP2101
Six-Axis IMU BMI270
Three-Axis Magnetometer BMM150
RTC BM8563
Speaker 16-bit I2S amplifier AW88298 @ 1 W
Audio Codec ES7210, dual-microphone input
Product Size 54.0 x 54.0 x 16.5 mm
Product Weight 54.0 g

Resources

Package Contents

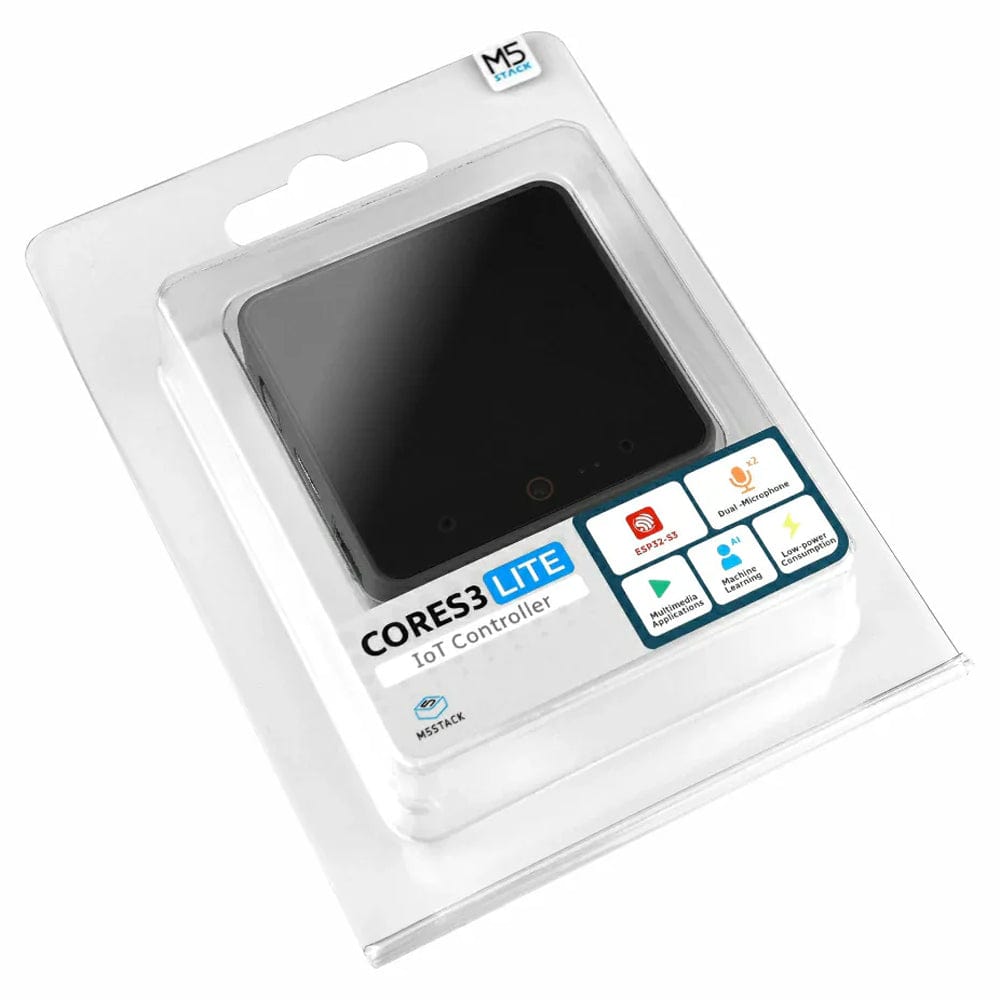

  • 1xM5Stack CoreS3 Lite ESP32S3 IoT Dev Kit
