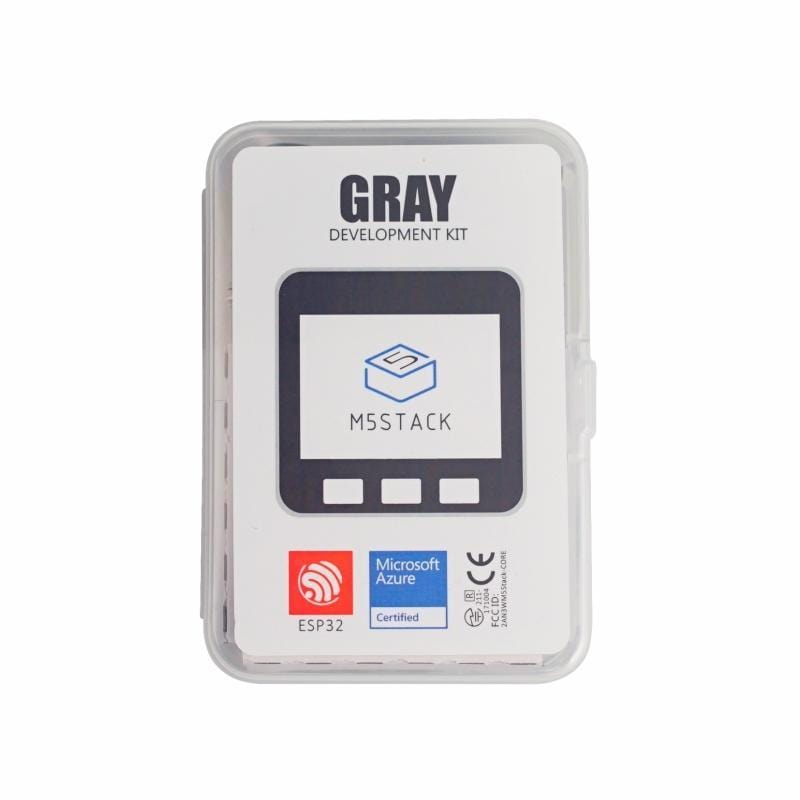

A starter kit for the modular, stackable, and portable M5Stack IoT development board series, with a range of inbuilt motion sensors.
Powered by an ESP-32 dual-core processor, M5Stack is open source, low cost, and easily expandable with a variety of stackable modules. All Core starter kits come with an industrial-grade case, onboard Wi-Fi & Bluetooth and an inbuilt lithium battery.
The Grey kit includes a built-in 9-Axis IMU sensor (6-Axis posture acceleration measurement and 3-Axis magnetic measurement), which lets you detect acceleration, angle, and trajectory - ideal for collecting sports data or a 3D remote gesture controller.
For more information and for help getting started, click here
Product Features
- ESP32-based
- Built-in Speaker, Buttons, LCD
- TF card slot (Up to 16GB support)
- Battery Socket & Lipo Battery
- Extendable Pins & Holes
- M-Bus Socket & Pins
- Development Platform UIFlow, MicroPython, Arduino

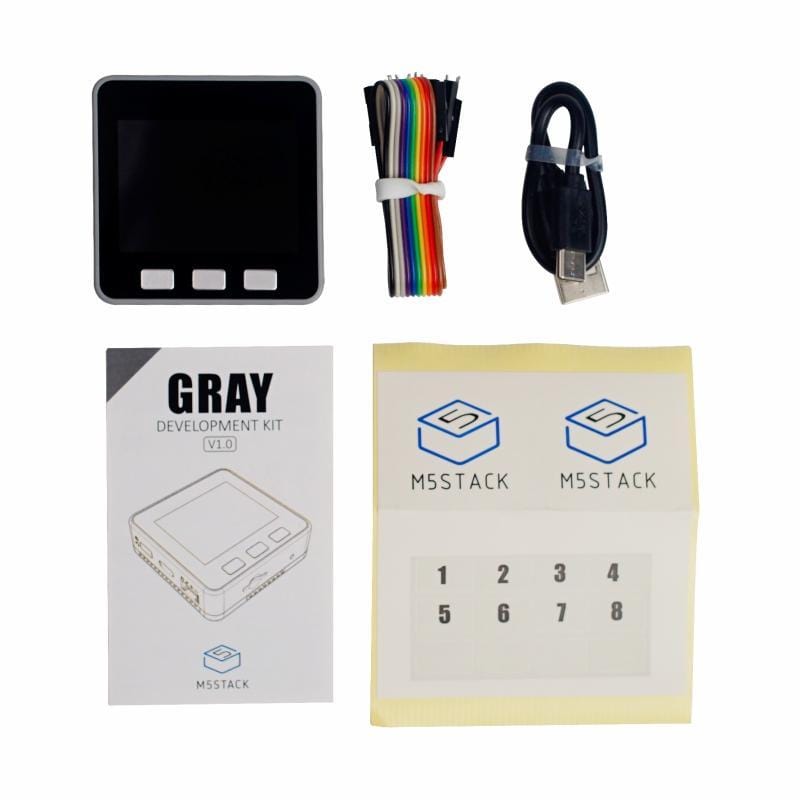

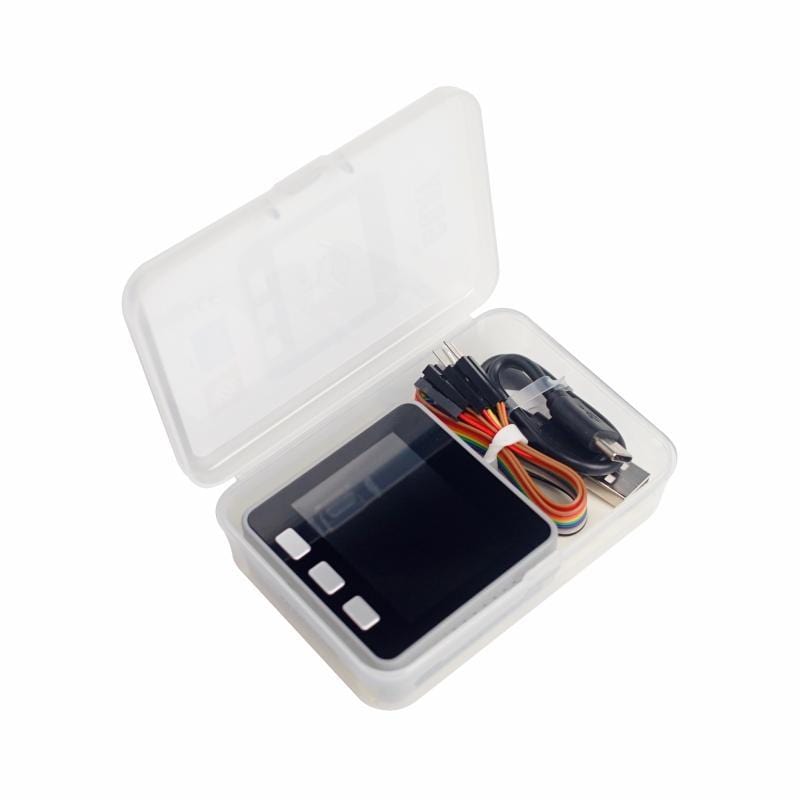

Includes
- 1x Gray
- 10x Female-male Dupont connectors
- 1x Type-C USB cable (20cm)
- 1x User Manual
- 1x Sticker
Applications
- Internet of things terminal controller
- Stem education product
- DIY creation
Specification
| Resources |
Parameter |
| ESP32 |
240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash Memory |
16MB (old: 4MB) |
| Power Input |
5V @ 500mA |
| Port |
TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| IPS Screen |
2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit |
| Speaker |
1W-0928 |
| Button |
Custom button x 3 |
| Core Bottom Port |
PIN (G1，G2，G3，G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36) |
| MEMS |
BMM150 + MPU6886 |
| Battery |
110mAh @ 3.7V |
| Antenna |
2.4G 3D Antenna |
| Operating Temperature |
32°F to 104°F ( 0°C to 40°C ) |
| Size |
54.2 x 54.2 x 17.9mm |
| Weight |
49.2g |
| Case Material |
Plastic ( PC ) |
