M5Stack Barometric Pressure 2 Unit (QMP6988) by M5Stack - The Pi Hut

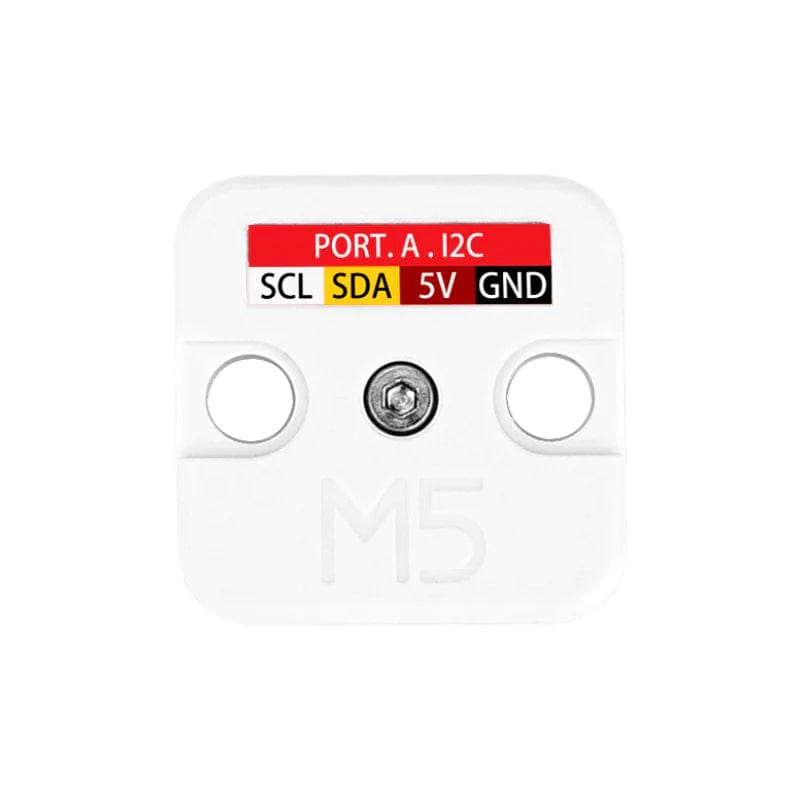

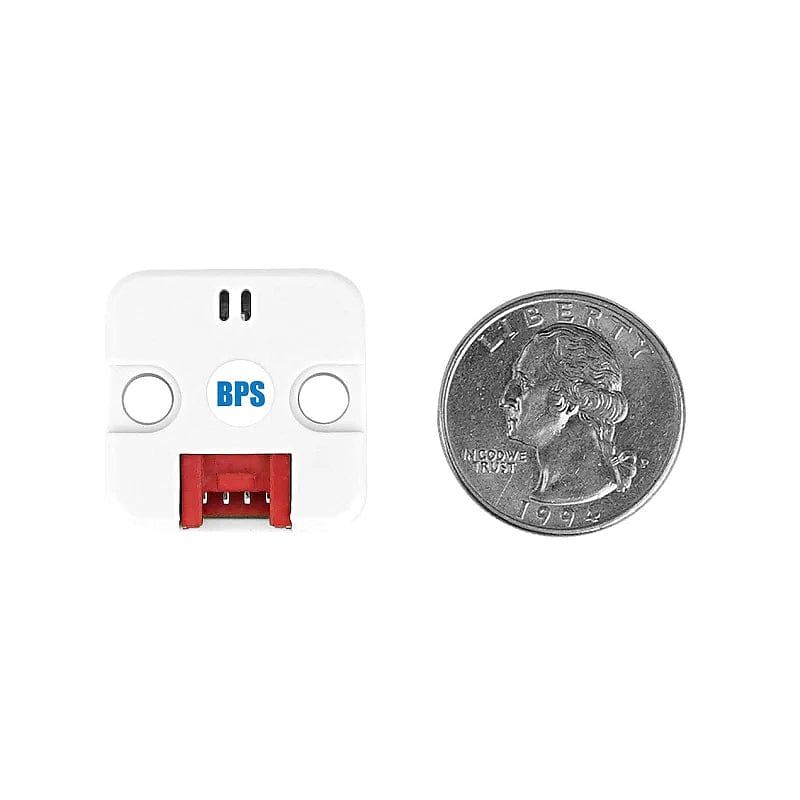

M5Stack Barometric Pressure 2 Unit (QMP6988)

M5StackSKU: U090-B

£4.40

incl. VAT

excl. VAT

Only 6 units left

Awesome Extras

M5Stack Core2 v1.1 ESP32 IoT Development Kit by M5Stack - The Pi Hut

M5Stack M5Stack Core2 v1.1 ESP32 IoT Development Kit

£47.90 incl. VAT excl. VAT

M5Stack Passive Buzzer Unit by M5Stack - The Pi Hut

M5Stack M5Stack Passive Buzzer Unit

£4.40 incl. VAT excl. VAT

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) by M5Stack - The Pi Hut

M5Stack M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)

£7.70 incl. VAT excl. VAT

The Barometric Pressure Unit is a barometer unit that uses a QMP6988 barometric pressure sensor to measure atmospheric pressure and altitude estimation, with a relative accuracy of ±0.039hPa (±0.12hPa, equivalent to ±1m height difference), a wide measurement range, and an integrated temperature sensor inside the chip.

Features

Built-in temperature and pressure sensors
High precision (pressure accuracy: ±0.039hPa; Temperature accuracy: 0.0002°C)
Low current consumption: 21.4uA
Development platform: Arduino, UIFlow (Blockly, Python)

Specifications

Resources	Parameters
Sensor	QMP6988
LDO	HT7533
Operating Pressure Range	30kPa to 110kPa
Relative Pressure Accuracy	±3.9
Pressure Resolution	Temperature Resolution
Temperature Resolution	0.0002°C
Temperature measurement range	-40-80°C
I2C Address	0x56
voltage support	5v
Product Size	24mm × 24mm ×8.1mm
Package Size	136mm × 92mm × 13mm
Product Weight	3.3g
Package Weight	6.9g

Resources

Product Wiki

Package contents

1x Barometric Pressure Unit (QMP6988)
1x Grove Cable (5cm)
