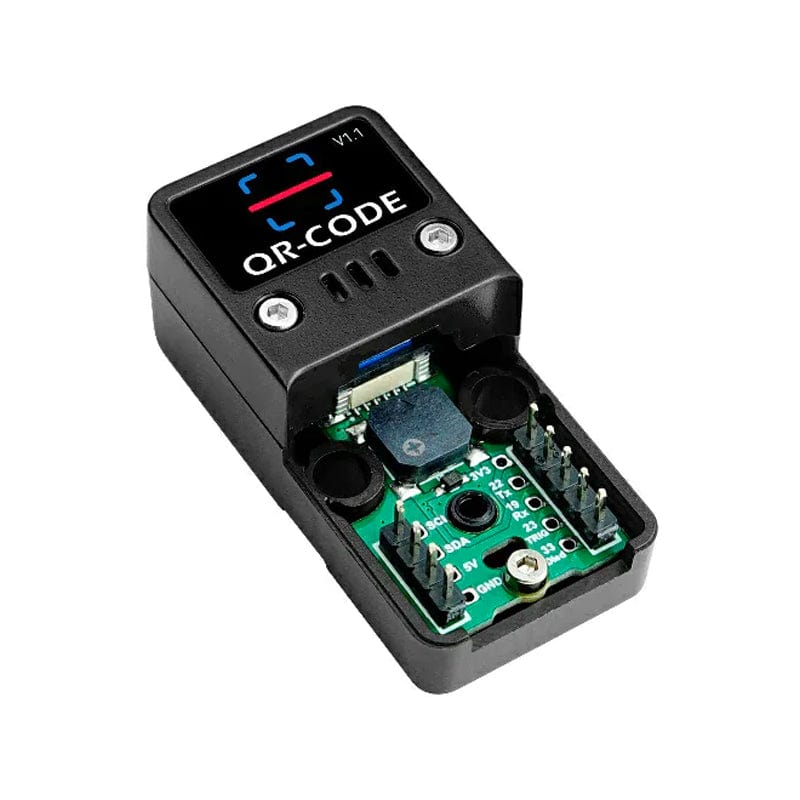

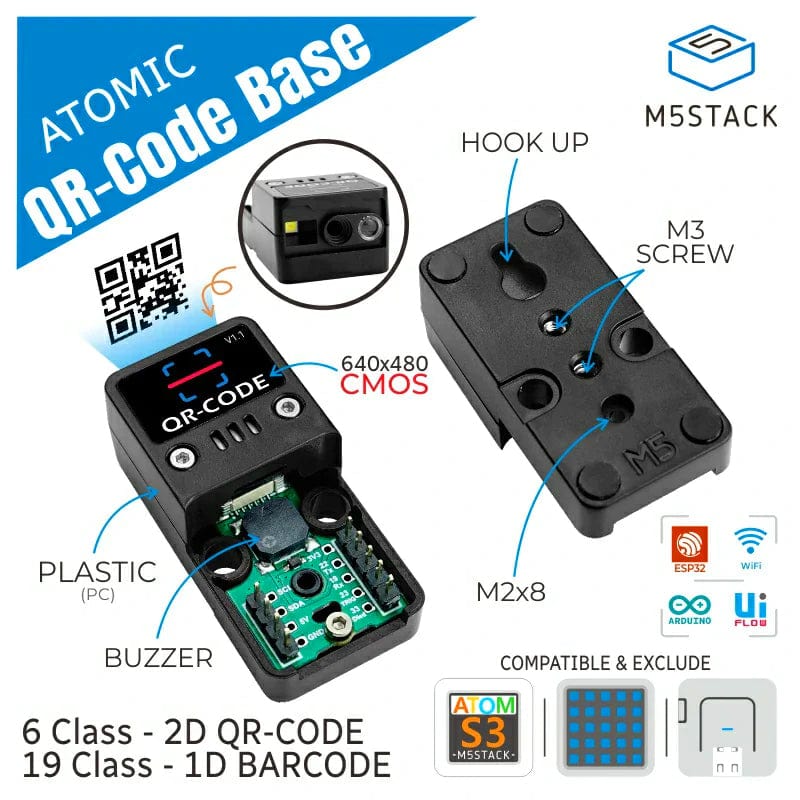

Introducing the ATOM Barcode Scanner Base, a powerful M5Atom Base designed specifically for reading Barcode/QR codes. With its advanced features and versatile functionality, it is the perfect tool for various applications.
This module supports an impressive range of codes, including 6 types of 2D codes and 19 types of 1D codes. No matter the format, it can accurately decode them with its high-resolution CMOS imaging technology, boasting an impressive recognition accuracy of up to 5mil. Even in low-light environments, the built-in lighting LED ensures clear and easy code identification. The green LED aids in precise focusing and aiming, making scanning effortless.
Versatility is a key feature of this module. It offers multiple reading modes, allowing you to choose between automatic continuous triggering or manual triggering based on your specific requirements. The module is equipped with a buzzer that provides different sound effects to indicate various states, providing audible feedback for seamless operation.
You can add custom prefixes or suffixes to the scanned data, define a multi-national keyboard, and perform data editing. The module utilises TTL communication, enabling straightforward data transmission through a serial port. Whether you prefer Arduino or UIFlow programming, integrating this module into your project is a breeze.
To process the scanned data, you can effortlessly send it to the receiver via wired or wireless connections using the M5Atom Controller. This allows for seamless integration into your existing setup.
This scanner base is a reliable and versatile solution for all your barcode and QR-code scanning needs. Its robust features, precise decoding, and easy integration make it an ideal choice for a wide range of projects!
Features
Compatible with Atom Matrix/Atom Lite/Atom S3/AtomS3 Lite

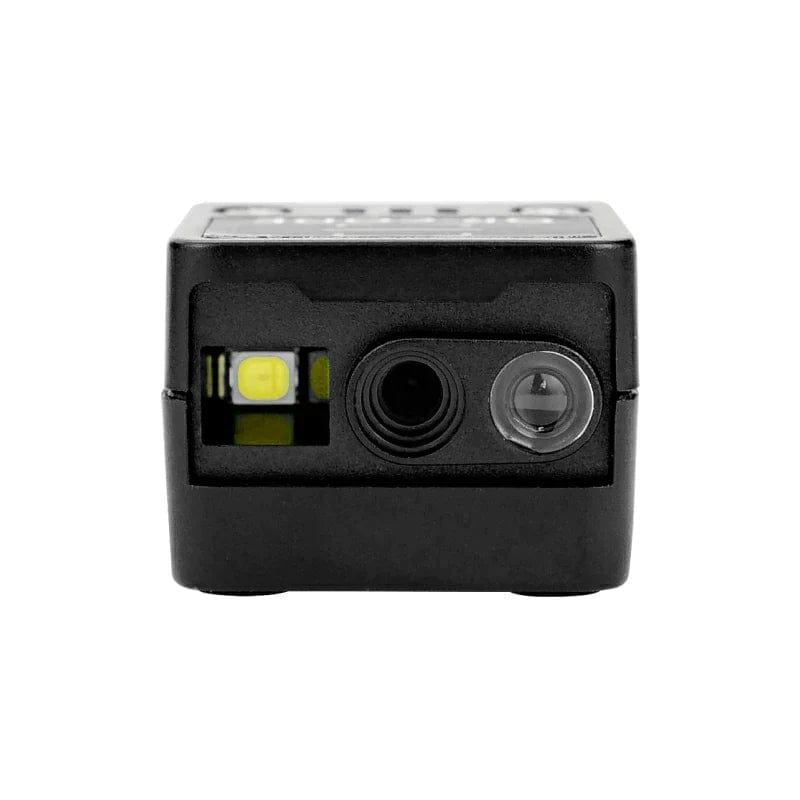

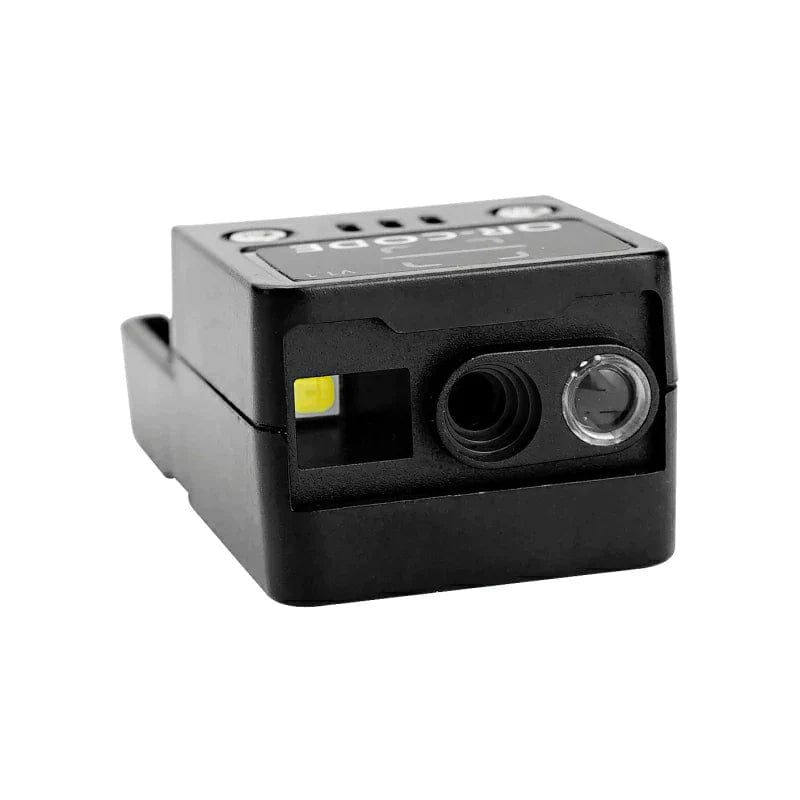

Built-in lighting and focus LED
UART/TTL communication
Manual and automatic scanning mode
Light and sound reminders
Multiple output formats
Data can be pre-edited and hidden
Rich custom instructionsSupport RAW / GBK / Unicode
Support Arduino/UIFlow
Specifications
Resources
Parameters
Read QR Code Type
QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec
