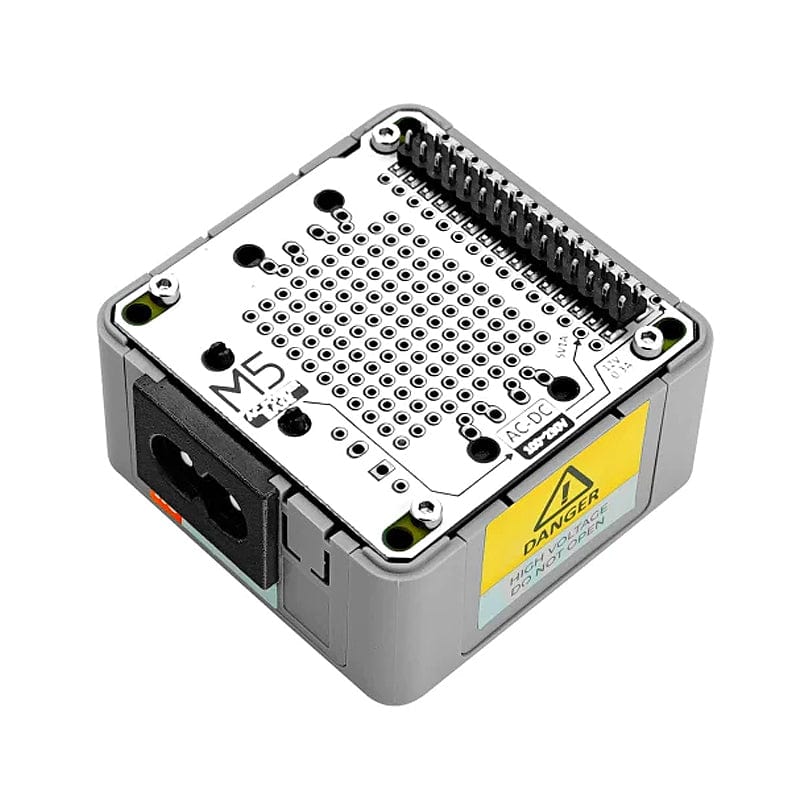

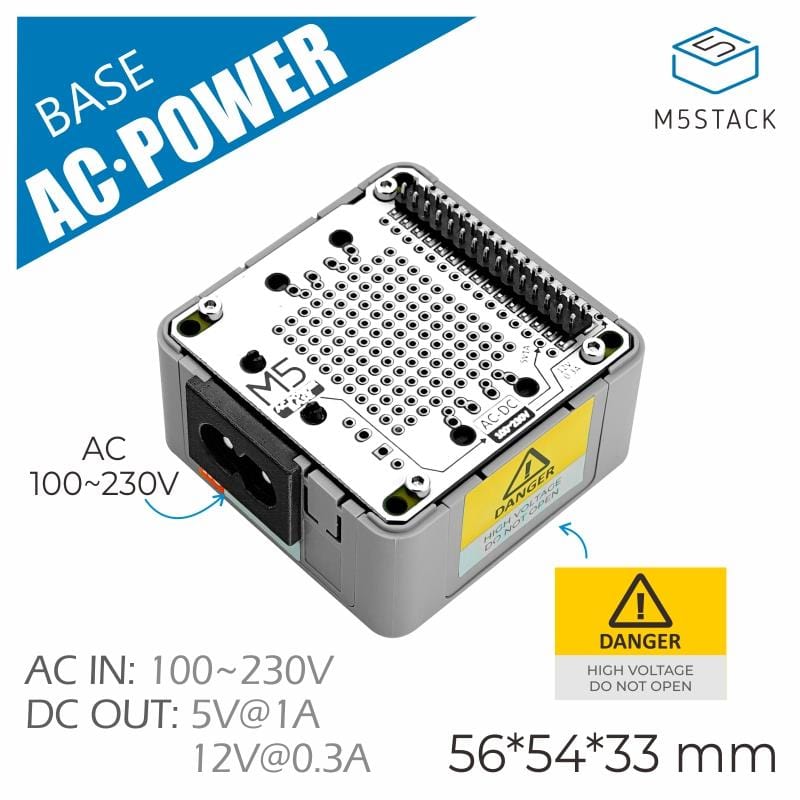

The M5Stack AC POWER BASE is a high-performance AC->DC Buck Converter Module that supports AC 100 ~ 230V input.

Through the internal buck module, the base offers a reliable DC 5V and DC 12V output, dual-channel DC power supply. With a built-in EMC and pulse attenuator, it provides excellent anti-interference and high stability.

In addition, the base increases flexibility for any M5 main controller's power supply, and it is ideally suited for a wide variety of fields including general electrical engineering applications.

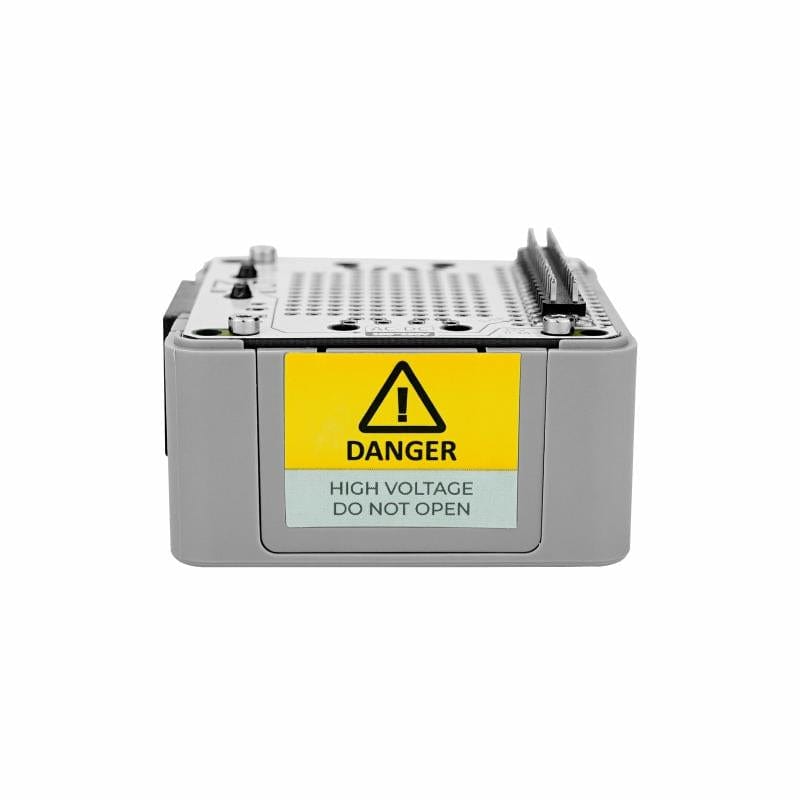

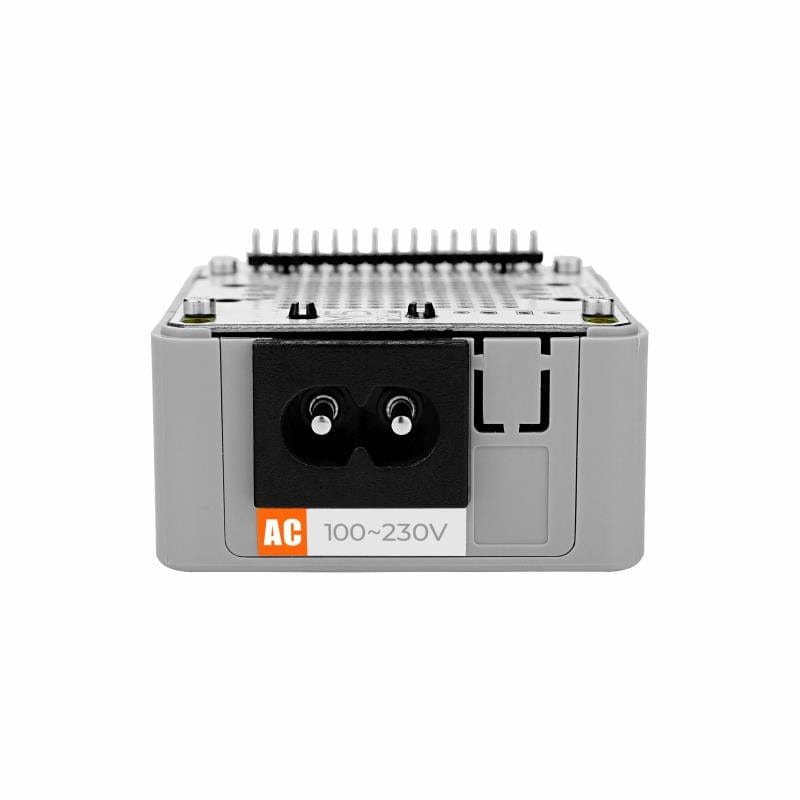

Note: Do not open up or disassemble the product for any reason! This product requires a 100 ~ 230V AC input via a figure-8 cable (not included).

Features

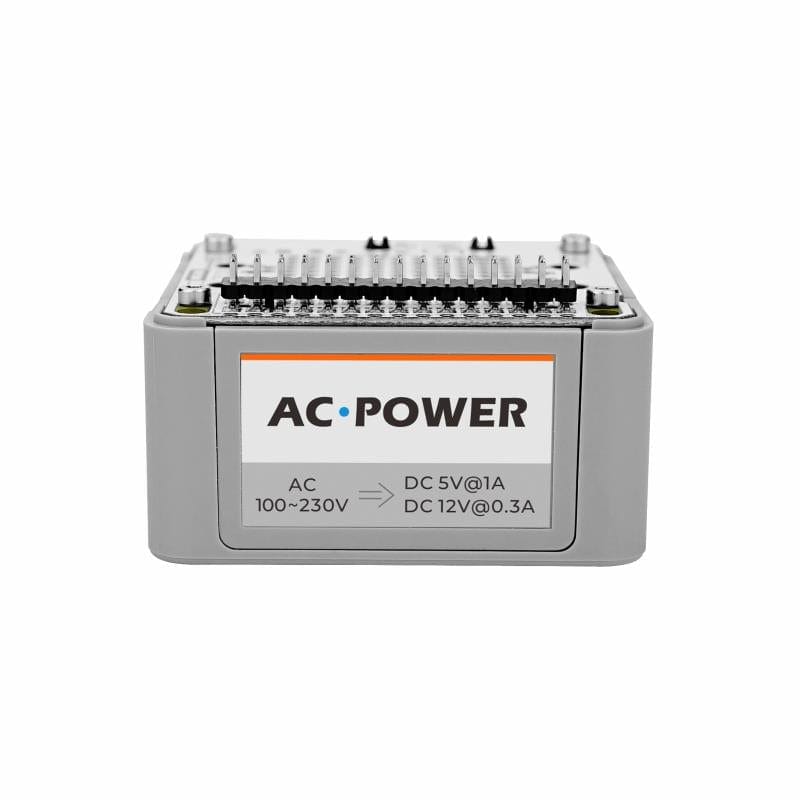

  • Input Voltage
    • AC 100 ~ 230V INPUT
  • Output Voltage
    • DC 5V@1A OUTPUT
  • DC 12V@0.3A OUTPUT
  • Built-in fuse protection 250V/1A

Specifications

Resources Parameter
Input voltage AC 100 ~ 230V
Output voltage 5V@1A, 12V@0.3A
Voltage accuracy ±1%
Efficiency (Typ) 0.82
AC interface specifications AC-018E
Built-in fuse specifications 250V/1A
Power indicator Red
Net weight 81g
Gross weight 107g
Product size 56 * 54 * 33mm
Packing size 85 * 67 * 47 mm

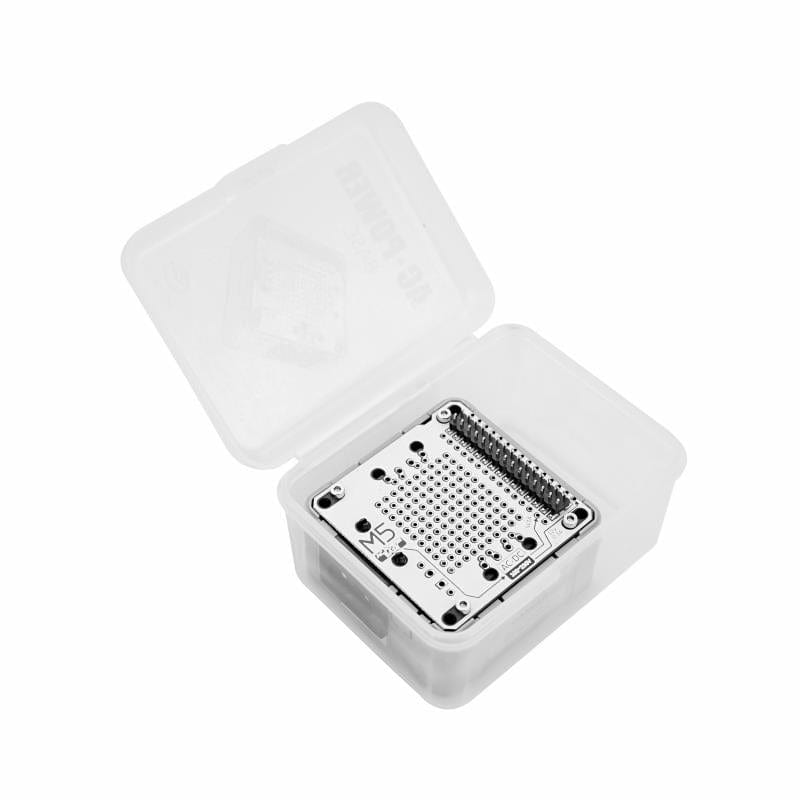

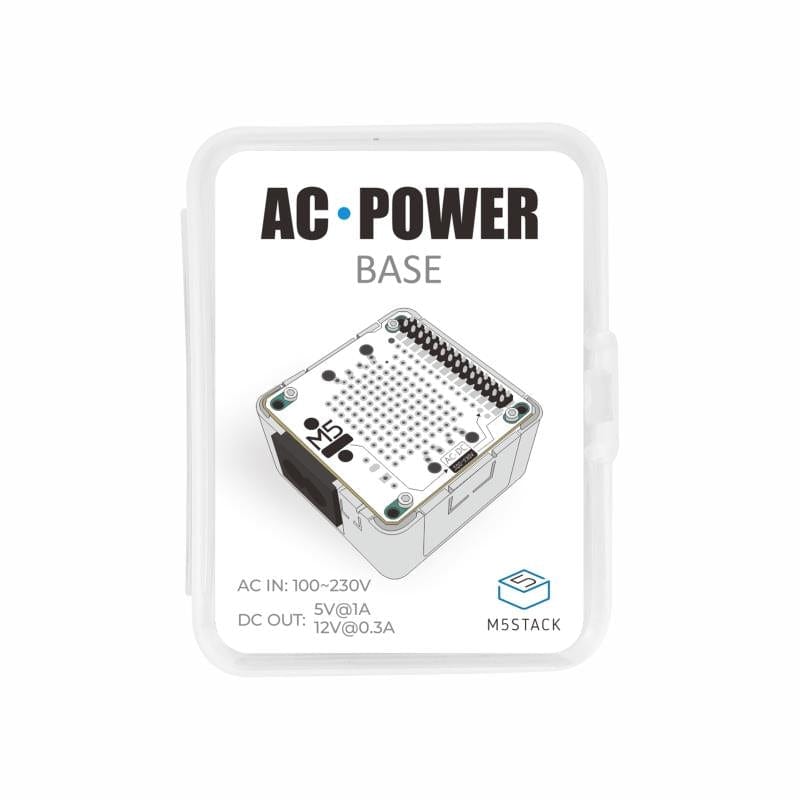

Package Contents

  • 1x AC POWER BASE

Resources

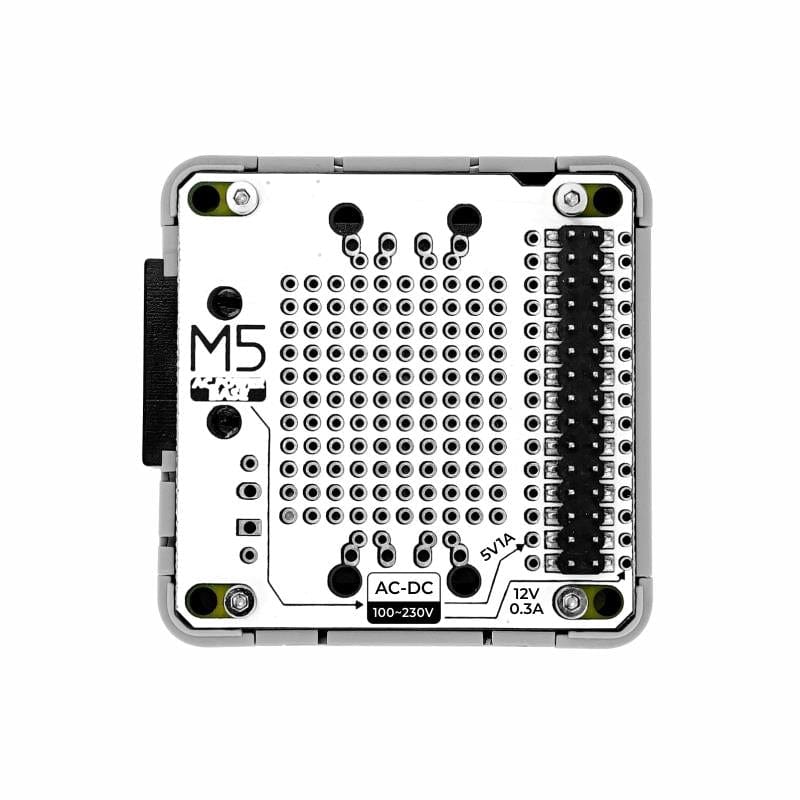

Pin Mapping

M5BUS HPWR 5V
AC POWER BASE 12V 5V
