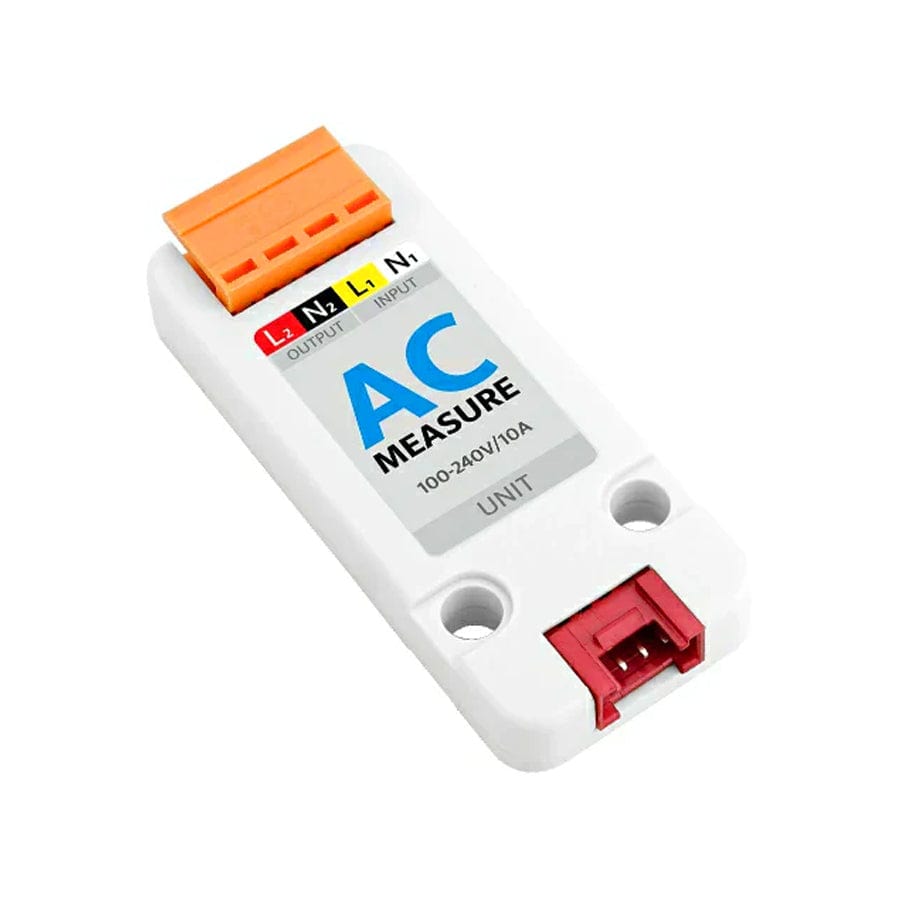

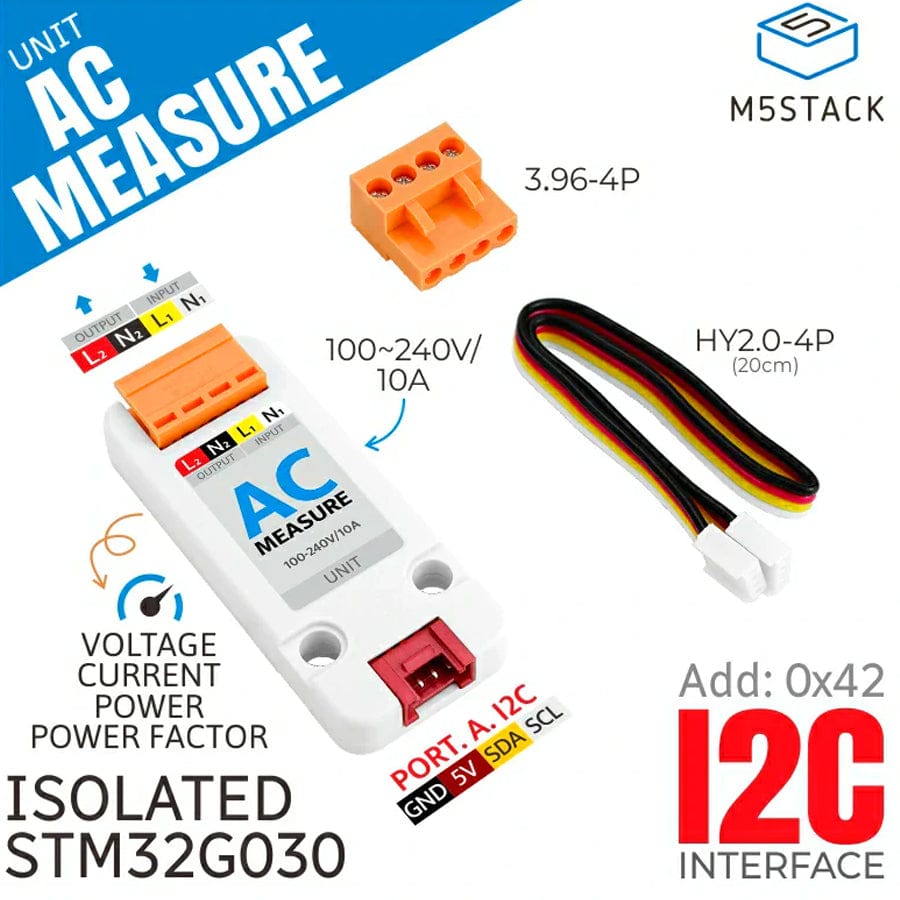

Introducing the AC Measure Unit, a high-performance single-phase AC measurement module with advanced isolation capabilities. This module utilises the powerful STM32+HLW8032 scheme to provide real-time monitoring of high-precision current, voltage, power, and other data.

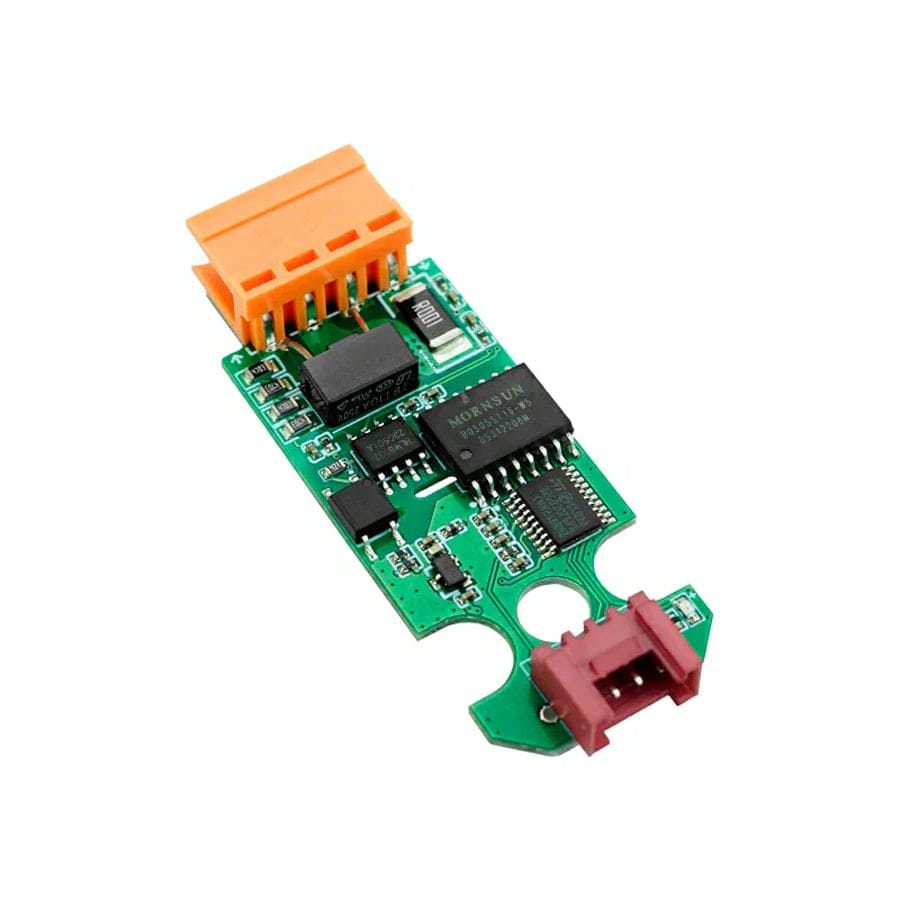

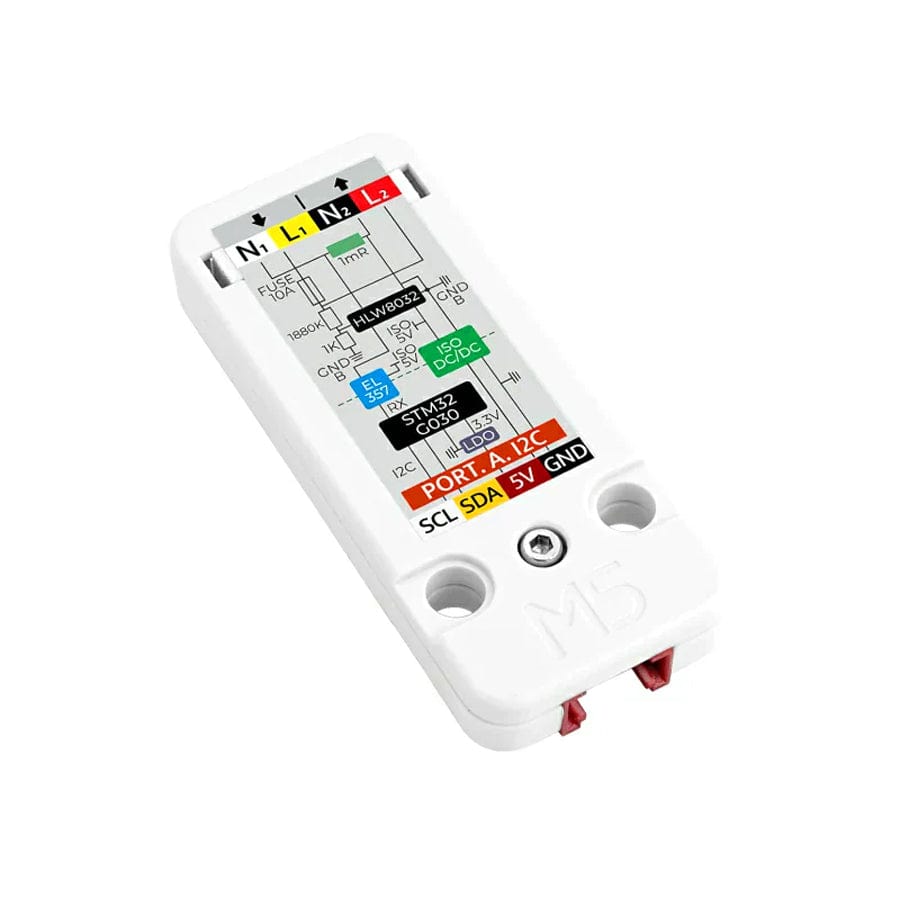

Equipped with a built-in AC isolation chip, the B0505ST16-W5, and leveraging the EL357 optocoupler isolation chip for seamless communication with the STM32, this module provides a reliable and secure operation. The AC Measure Unit enables users to easily access the measured data through efficient I2C communication.
Designed for a wide range of applications, this versatile product is perfect for power supply information collection, remote smart home appliances, and other related fields. Experience the convenience and accuracy of real-time AC measurement with the AC Measure Unit.
- STM32G030@M0+ 32-bit MCU,64 KB Flash, 8 KB RAM
- Single-phase alternating current 100-240V/10A measurement
- I2C Communication (0x42)
- Programming platforms: UIFlow, Arduino

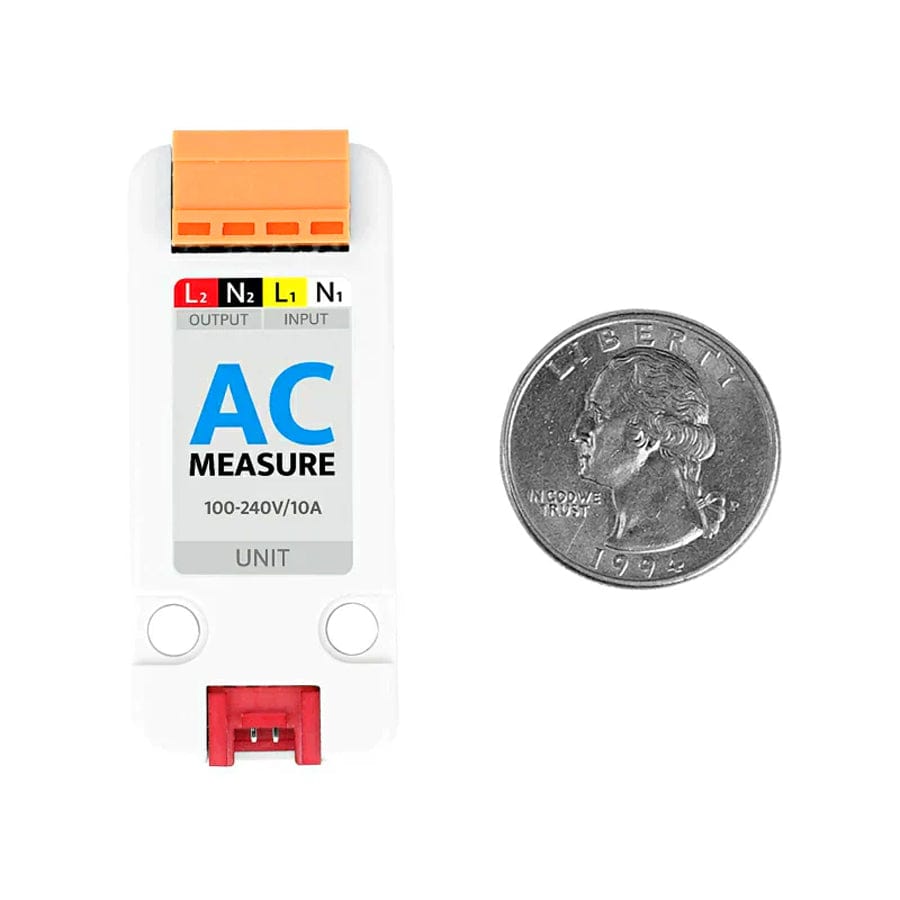

|MCU||STM32G030@M0+ 32-bit MCU,64 KB Flash, 8 KB RAM|
|AC Current Acquisition Chip||HLW8032|
|Optocoupler Communication Chip||EL357NB|
|Product Size||56 x 24 x 10.3mm|
|Package Size||136mm x 92mm x 13mm|
- 1x AC Measure Unit
- 1x HY2.0 Cable (20CM)
- 1x 3.96-4-Pin terminal
